V6 PRO Diagnostic Scan Tool 2022 Newest, OE-Level Full System, ECU Coding&Hidden Bi-Directional Control, Active Test, Key Programming, ABS Bleed, Power Balance, Injector Coding, 2-Years Free Update, 25+ Special Functions+Remote Technical Support+Diagnostic Report Share&Print, 11 languages Support, 32GB Storage
Why Choose Ancel V6PRO Full System Diagnostic Scanner?
Ancel V6 PRO is a proffessional efficient and convenient diagnistic tool for passenger car.
(1)Powerful quad-core Cortex-A53 2.0GHz processor with faster 2GB LPDDR4 and reliable 32GB On-board memory
(2)Android 10.0 OS running on 8.0 inch IPS Multi-touch capacitive touch screen
(3)Unique ergonomic design with rubberized outer protection and a rugged internal housing
(4)Built-in rechargeable lithium-polymer battery for up to 8 hours of continuous operation
(5)OE-Level full-systems coverage for more than 10000 car models
(6)Supporting 25 most commonly used service Reset Functions
(7)Remote Technical Support via Teamviewer
(8)Support Multi-languages:English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch
(9)Support ECU Coding&Action Test for some car models
(10)Support 2 Year Free Update(11)Valuable Additional Functions: One-click screenshot, record video, take photo (5.0 megapixel, auto focus, with flashlight), one-click update, remote diagnostic, quick support, testing report, data stream record & playback & print, diagnostic feedback, etc.

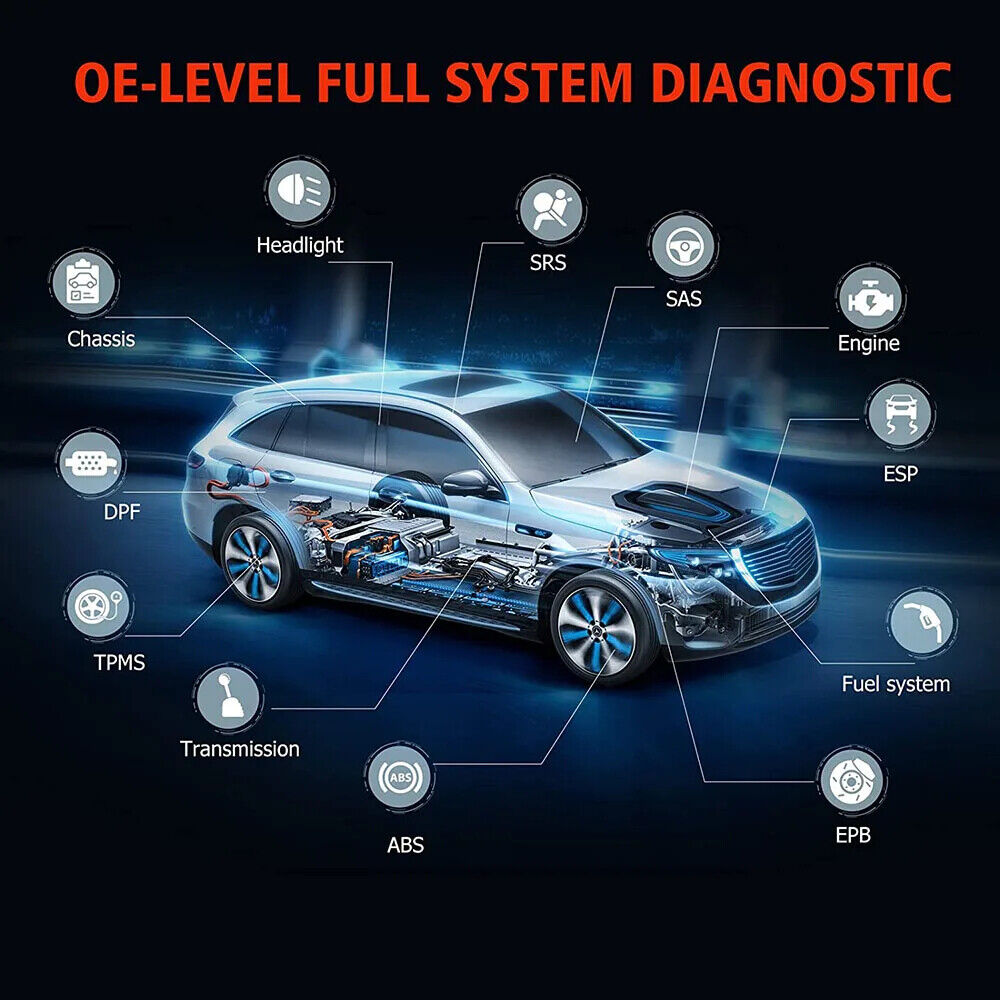

Ancel V6 Full Systems Diagnosis
To diagnose Brake System if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;
To diagnose Emission System if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;
To diagnose Fuel system if vehicle wonât start or âCheck Engineâ light is illuminated. Check carâs fuel system regularly ensures the best performance of your car with the lowest emissions;
To diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;
To diagnose Wiper System if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you canât see clearly;
To diagnose Light System if you see rapid signal blinking or dimming lights.
And many more ...
25 Kinds of Special Reset Service Functions
Comprehensive automotive scan tools with multiple reset functions have become a market trend. Other diagnostic tools that cost about the same typically include only a few or 10+ service reset functions, are limited in their capabilities and expensive. The upgraded V6 PRO professional diagnostic tool has 25+ services that allow you to do your own repairs efficiently and easily, and is definitely the most cost-effective diagnostic scanner on the market. Here are some of the most popular services:
1. Oil Reset: When the service lamp on the instrument cluster is up, changed the oil, then turn off the oil light and reset the service mileage.
2. ABS Bleeding: When the ABS contains air, the ABS bleeding function is required to bleed the brake system to get a firm brake pad.
3. EPB Reset: It performs the maintenance of electronic parking brake systems. The brake pad reset is required to turn the MIL off after replace the brake pad.
4. IMMO Keys function (All Keys Lost, Add Key, Reset Key): It supports add the new key and remotely disable the lost one when the key was lost to prevent your car from being stolen.
5. BMS Reset: When the battery shows aging or damage, need to re-match and registering the battery, then clear the fault codes from the dashboard and reset BMS module.
6. D-P-F Regeneration: The diesel filter will become clogged after a long time. Once the engine recognizes the D-P-F clogging, it will trigger regeneration. This function performs diesel filter cleaning to clear the blockage and reset the D-P-F light.
7. Injector Coding: Write the new injector code to the ECU after replacement of injector so that the cylinder can identify the new injectors to lower fuel emissions.
8. SAS Calibration: The steering angle sensor is used to detect the rotation angle of the steering wheel. This function performs calibration for the steering angle sensor to clear fault memories of the steering angle sensor.
9. Throttle Adaptation: After clearing or repairing the electronic throttle, re-learning and adapt throttle sensor position is necessary to precisely adjust the throttle opening.
10. TPMS Reset: The tire pressure monitoring system can perform real-time automatic monitoring of various tire conditions. When the tire pressure is insufficient, need to perform tire pressure reset after replace the tire or sensors.
11. AT Set/Gearbox Matching: Perform complete the self-learning of the gearbox and improve the quality of shifting. After the gearbox is disassembled or repaired, it will cause problems such as shift delay. At this time, this function needs to be executed to make the gearbox automatically compensate according to the driving conditions to achieve a more ideal shift quality.
12. Gear Learning: In the case of replacing the engine ECU, crankshaft position sensor, crankshaft flywheel, or shows fault codes "tooth not learned", tooth learning must be performed.
13. Suspension Calibration: This function can adjust the height of the vehicle. The following situations need to perform this function to adjust the vehicle height sensor for calibration: 1. After replacing the vehicle height sensor or control module in the air suspension system. 2. When the level of the car is wrong...........
14.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.
15.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (NOx)in engine exhaust.If the NOx fault is re-initialized and the NOx catalytic converter is replaced,it is necessary to reset the catalytic converter learned value stored in the engine ECU.
16.Sunroof Initialization
This function can set the sunroof lock off,closed when it rains,sliding/tilting sunroof memory function,temperature threshold outside the car etc.
17.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware)
18.Transport Mode
In order to reduce power consumption,the following functions may be disabled,including limiting the vehicle speed,not waking up the door opening network,and disabling the remote control key,etc.At this time,the transport mode needs to be deactivated to restore the vehicle to normal.
19.Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.
20.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory,and recover the automatic ascending and descending function of power window.
21.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
22.Language Change
This function is used to change the system language of the vehicle central control panel.
23.AFS(headlamp) Reset
The feature is used to initialize the adaptive headlamp system.According to the ambient light intensity,the adaptive headlamp system may decide whether to automatically turn on the headlamps,and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.
24.Adblue Reset
After the diesel exhaust treatment fluid (car urea) is replaced or filled up,urea reset operation is required.
25.Pump start
The automatic starting of oil pump is a low oil pressure protection device (interlock device). When the system sends an oil pressure bottom alarm, the interlock device automatically starts the hot standby oil pump to maintain the oil pressure of the system, so as to avoid burning out the bearing pads, etc.
Note: note that not all services and special features are universally compatible. Please send us the VIN number and the functions you need to check compatibility.
What is Bidirectional Control / Active test?
Bi-Directional Control capability means it can perform Active Tests to access vehicle-specific subsystems and component tests. The tester outputs the command to the ECU to drive the actuators to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators. It is necessary when you want to activate and control an onboard system remotely.
What exactly can Bidirectional Control / Active test do?
Lock / unlock door
Rolling up / down a window;
Turn on/off the radiator fan, lights, sound horn, fuel pump;
Cycling the a/c clutch on and off;
Helping with an emissions leak test;
Modulate the throttle;
Inlet & outlet valve;
Wheel speed sensor supply;
Operate Mirros/Fuel Injector Balance/ Injector Buzz Test Door Lock/Window/Horn/ Light/ Headlamp Test, etc.
After performing actuation tests, you will be able to view reports via the live data function. By monitoring the functions directly, you can locate and solve the problems quickly.
NOTE: Please send your VIN to check compatibility, as vehicles work differently.
Ancel V6PRO OBD OBD2 Car Diagnostic Tool Support Languages:
English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch
ANCEL V6PRO Full System Diagnostic Scanner support car brand
ASIA Area:
for ACURA,for ASIAGM, for DAEWOO, for DAIHATSU, for HONDA, for HYUNDAI , for INFINITI, for ISUZU, for KIA, for LEXUS, for MAZDA, for MITSUBISHI, for NISSAN, for PERODUA, for PROTON, for SSANGYONG, for SUBARU, for SUZUKI, for TOYOTA, for TATA, for MAHINDRA, for MARUTI.
EUROPEAN Area:
for ABARTH, for ALFA, for ASTON MARTIN, for AUDI, for BENTLEY, for BENZ, for BMW, for BUGATTI, for CITROEN, for DACIA, for FERRARI, for FIAT, for FORDEU, for JAGUAR,for LAMBORGHINI, for LANCIA, for LANDROVER, for MASERTI, for MINI, for OPEL, for PEUGEOT, for PORSCHE, for RENAULT, for SAAB, for SEAT, for SKODA, for SMART, for VAUXHALL, for VOLVO, for VW.
AUSTRALIA Area:
for HOLDEN, for AU FORD .
CHINA Area:
for BYD, for CHANGAN, for CHANGHE, for CHERY, for EMGRAND, for ENGLON, for FOTON, for GEELY, for GLEAGLE, for GWM, for HBSH, for HUACHEN, for LIFAN, for WULING, for YUAN.
Brazil Area:
for GM,for Fiat,for VW
