OBDSTAR ISCAN for EVINRUDE MARINE Diagnostic Tablet for EVINRUDE

Product Introduction:

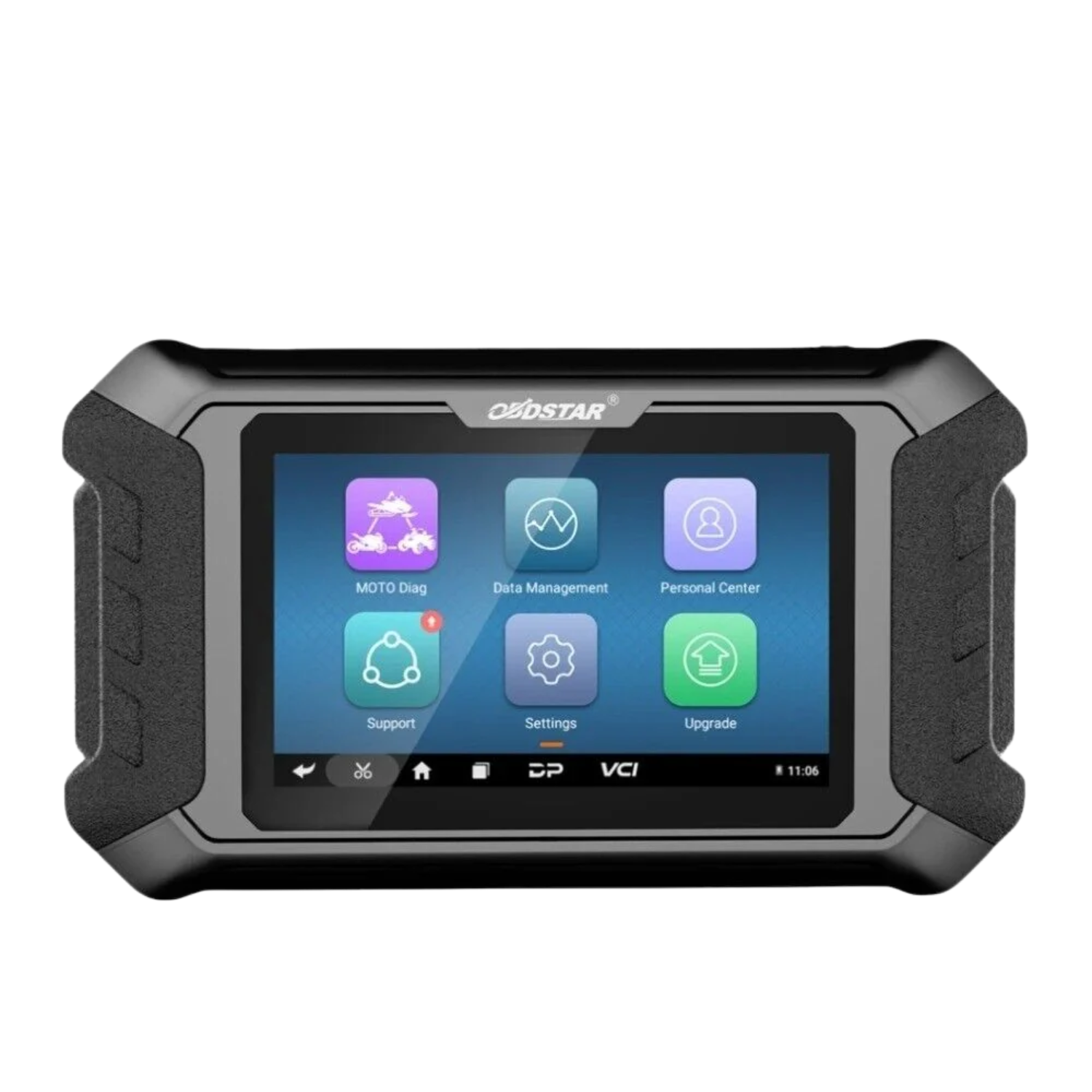

ISCAN for EVINRUDE (MARINE) is a portable tablet which has super performance and industrial appearance design specialized for EVINRUDE . It is a new generation of intelligent marine diagnostic equipment tailored for customers. Based on RK3128 quad-core processor and equipped with a 5.0-inch capacitive touch screen, it brings customer professional diagnosis experien

Product Highlights:

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with ISCAN to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults.
3. Supported languages: EN,ES,RU,PT,TH,TR,FA,FR,DE,PL,IT,ID,VN

Product Features

1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.

Advanced function

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with ISCAN to make marine diagnosis more accurately and efficiently;
2. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults.
3. Support Device Configuration, Maintenance Notification Setting and other special functions.

Diagnostic Support Series:
Support 40 EFI 4 Stroke 1999-2006, 50 EFI 4 Stroke 1999-2006, 70 EFI 4 Stroke 1999-2006 and G2 series(2006-)outboard models.

Supported Brands:

for EVINRUDE

Package Includes:

1pc x ISCAN for EVINRUDE (MARINE) tablet
1pc x M001B main cable
1pc x M002 power cable
1pc x M065 for EVINRUDE adapter cable
1pc x M082 for EVINRUDE adapter cable
1pc x 12V2A charger
