New-LAUNCH S2-2 Sensorbox Check ECU Simulate Sensor Multimeter

2 sold in last 8 hours
LAUNCH
Out of stock Many in stock
$759.99
$759.99

customers are viewing this product
New-LAUNCH S2-2 Sensorbox Check ECU Simulate Sensor Multimeter

LAUNCH X-431 S2-2 Sensorbox & O2-2 Scopebox: 2025 Ultimate Diagnostic Tools for ECU Troubleshooting & Sensor Testing

LAUNCH X-431 S2-2 Sensorbox & O2-2 Scopebox: Elevate your automotive diagnostics with this powerful duo, designed for professional technicians, repair shops, and car enthusiasts. The S2-2 Sensorbox is a versatile sensor simulator and multimeter, perfect for testing and simulating vehicle sensors to troubleshoot Engine Control Units (ECUs). The O2-2 Scopebox is a 4-channel oscilloscope with a 100MHz bandwidth, offering high-precision waveform analysis for circuits, sensors, and actuators. Compatible with LAUNCH X-431 scanners like PRO ELITE, Throttle, PAD V and PAD VII, these tools deliver OE-level diagnostics, customizable waveforms, and ECU diagnostics. With lifetime access to multimeter functionality and one-click waveform saving, this bundle is your all-in-one solution for advanced vehicle diagnostics in 2025.



Why Choose the LAUNCH S2-2 Sensorbox & O2-2 Scopebox?

Unmatched Versatility: The S2-2 Sensorbox excels at simulating sensor signals (e.g., throttle, oxygen, crankshaft) and testing actuators (e.g., injectors, solenoids), while the O2-2 Scopebox captures high-resolution waveforms for in-depth electrical analysis. Together, they reduce diagnostic time, minimize unnecessary part replacements, and maximize repair shop revenue.



  • ECU Troubleshooting: Verify ECU functionality and isolate sensor/actuator faults with precision.
  • Sensor Simulation: Mimic sensor outputs without replacing parts, saving time and costs.
  • Multimeter Functionality: Measure voltage, resistance, capacitance, and more with high accuracy.
  • Custom Waveforms: Create hand-drawn or predefined waveforms for tailored diagnostics.
  • 4-Channel Oscilloscope: Analyze multiple signals simultaneously with 100MHz bandwidth.
  • Compatibility: Seamlessly integrates with LAUNCH X-431 scanners for comprehensive diagnostics.
  • User-Friendly: Intuitive menus, one-click access, and multi-language support.

Ideal For: Automotive repair shops, mobile mechanics, performance tuners, and DIYers seeking professional-grade tools for modern vehicles, including those with CAN and LIN protocols.

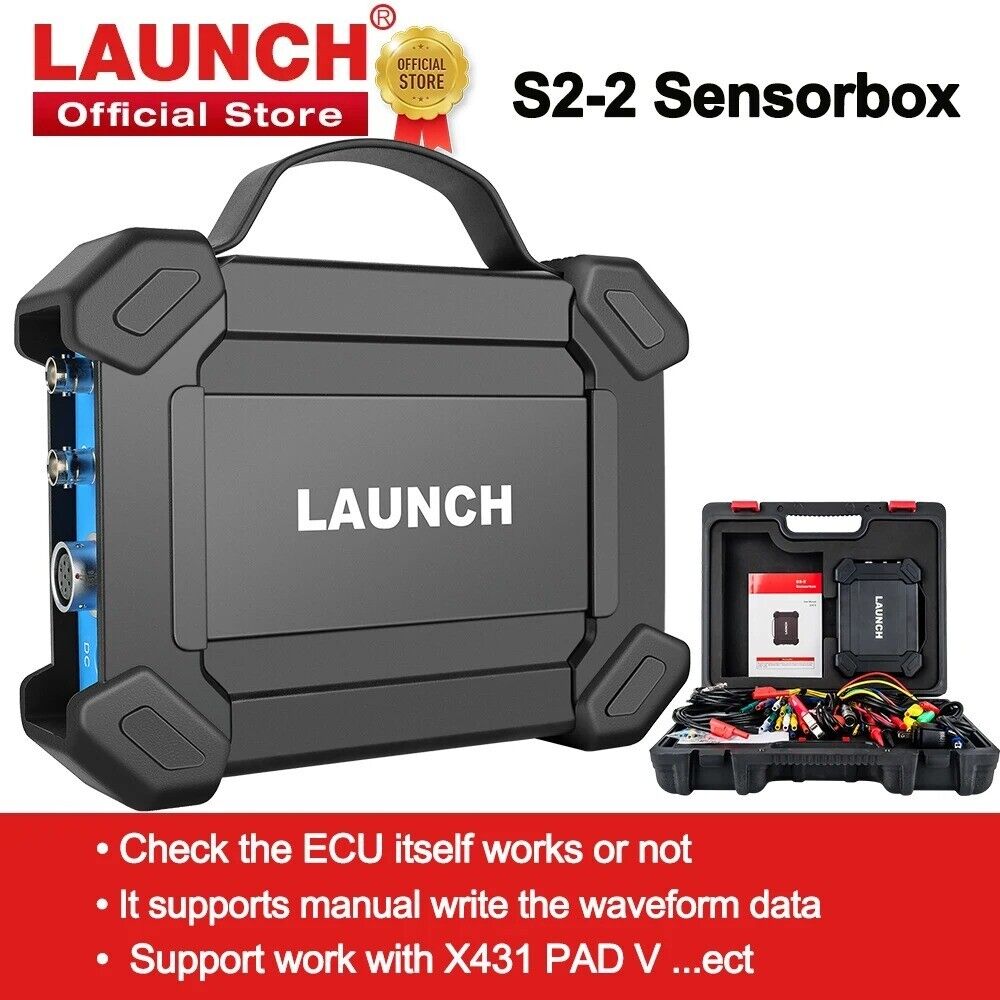

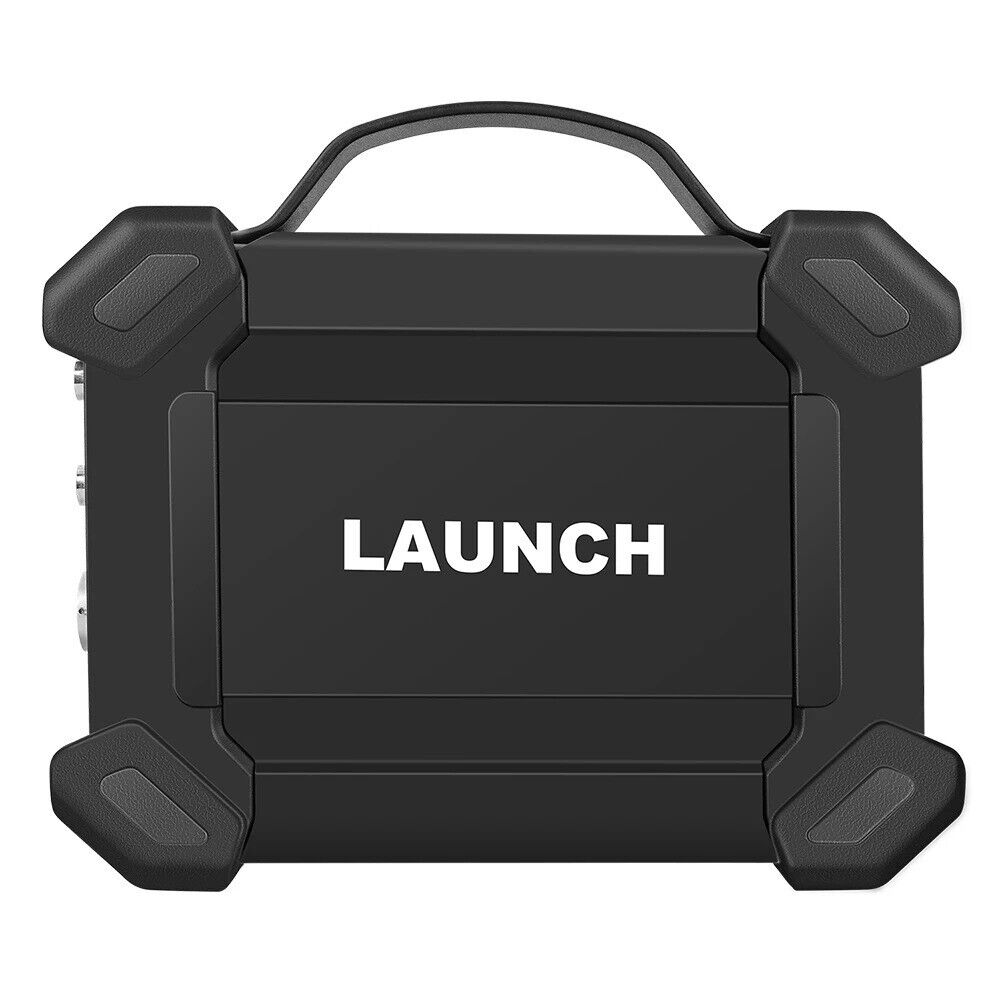

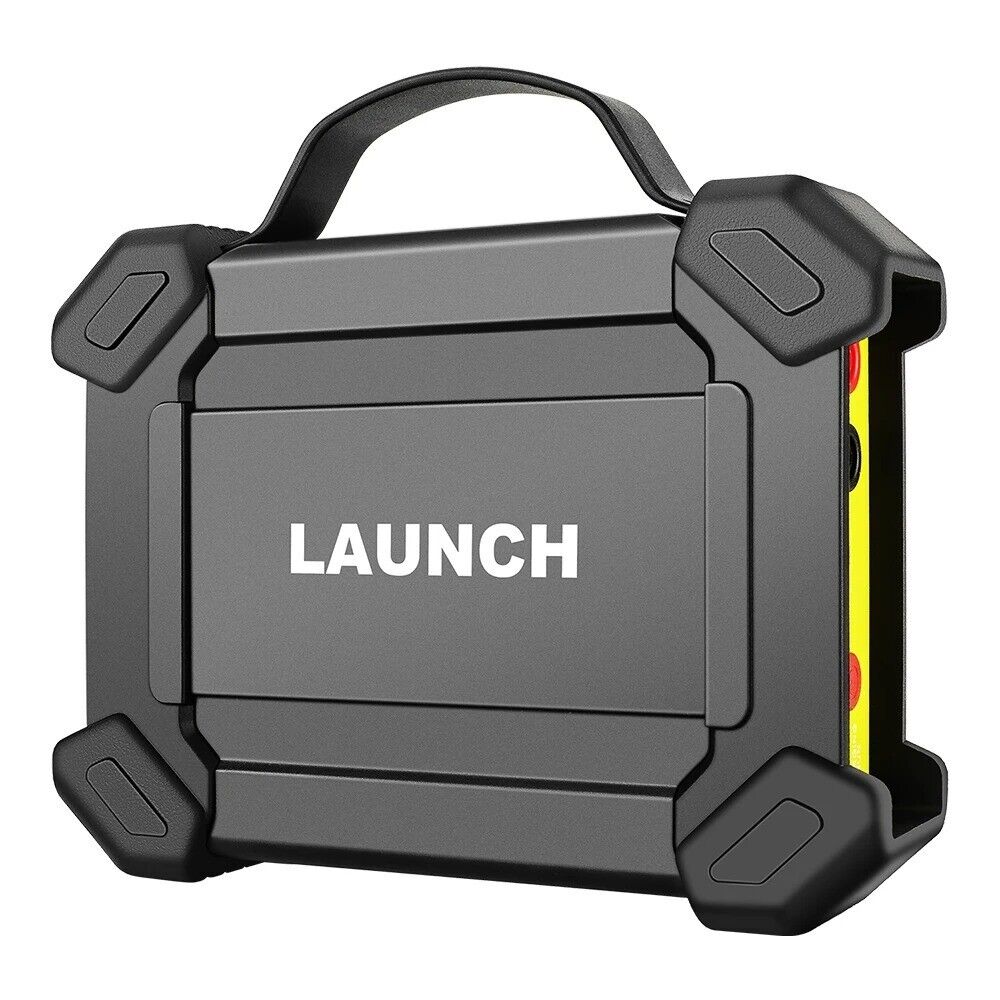

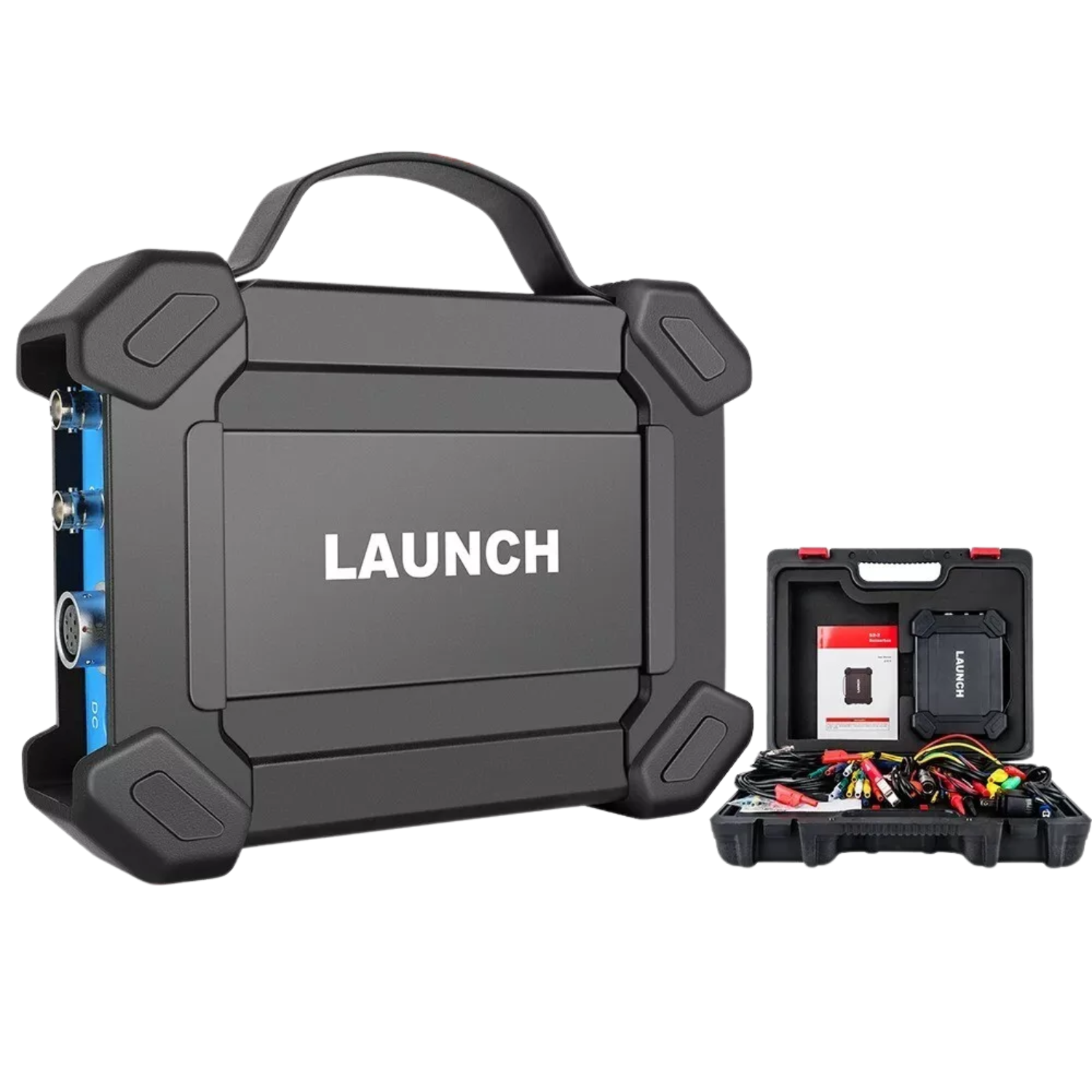

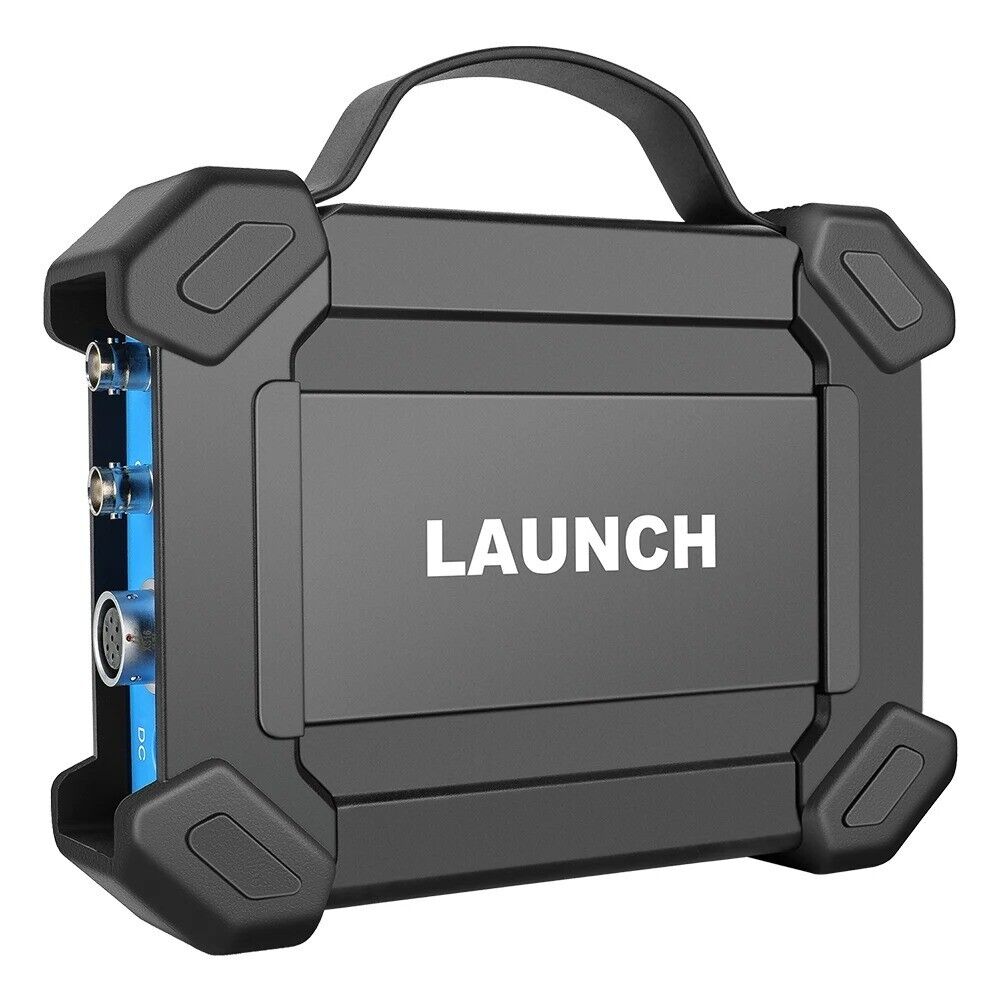

LAUNCH X-431 S2-2 Sensorbox: Versatile Sensor Tester

[Versatile Sensor Tester] The LAUNCH S2-2 Sensorbox is a powerful tool designed for testing and simulating a wide range of vehicle sensors, making it an essential diagnostic device for troubleshooting Engine Control Units (ECUs). It supports manual waveform data entry, sensor simulation, and multimeter functions, enabling technicians to diagnose faults without replacing parts.

Key Features:

  1. ECU Functionality Check: Determine whether the ECU is operating correctly or not, helping you pinpoint issues efficiently.
  2. Manual Waveform Data Entry: This tool supports manual input of waveform data, giving you control and flexibility in your diagnostic processes.
  3. Sensor Simulation: Simulate the working conditions of various sensors without the need to replace parts. This is particularly useful for diagnosing sensor-related problems.
  4. Multimeter Functionality: The S2-2 Sensorbox can also function as a multimeter, allowing you to measure resistance, AC/DC voltage, capacitance, frequency, and pulse signals, among other parameters.
  5. Intuitive Menu: With just one click, access an intuitive menu that includes options for sensors, actuators, defined/drawn waveforms, timing waveforms, multimeter measurements, and system settings.

Supported Sensors & Actuators

The S2-2 Sensorbox simulates and tests a variety of sensors and actuators, ensuring comprehensive diagnostics for modern vehicles:

  • Throttle & Pedal Sensor: Verifies throttle position and pedal input signals for smooth acceleration.
  • Airflow Meters: Simulates mass airflow sensor signals to diagnose intake issues.
  • Oxygen Sensor: Tests O2 sensor outputs for emissions and fuel efficiency.
  • Temperature Sensor: Simulates coolant or intake air temperature for engine management.
  • EGR Sensor: Tests exhaust gas recirculation system performance.
  • Injectors Sensor: Simulates injector signals for precise fuel delivery.
  • Crank & Cam Sensors (Inductive & Hall): Verifies crankshaft and camshaft position signals for ignition timing.
  • Actuators: Tests components like idle motors, EGR solenoid valves, and VVT actuators.

S2-2 Sensorbox Modes

  • Sensor Mode: Simulate input signals for the automobile electronic control system, enabling adjustments to engine operation based on these parameters.
  • Actuator Mode: Simulate output control signals from the electronic control system, facilitating assessment of actuator performance.
  • Multimeter Mode: Test voltage, resistance, and capacitance quickly and accurately.

Waveform Options

  • Defined Waveforms: Choose from 9 waveforms, including sine waves, square waves, straight lines, and more. Adjust frequency, amplitude, offset, phase, and duty cycle as needed.
  • Hand-drawn Waveforms: Create custom waveforms with up to 300 points, offering flexibility in signal generation.

Multimeter Specifications

  • DC Voltage: 0 V – 700 V
  • AC Voltage: 0 V – 700 V
  • Resistance: 0 Ω – 40 MΩ
  • Capacitance: 0 F – 100 µF (maximum 30 s measurement time)
  • Diode: 0 V – 1.5 V
  • Continuity Detection: Audible signal for resistance below 30 Ω

Technical Specifications

  • Number of Channels: 2
  • Voltage Simulation Range: 0~20V
  • Max. Output Current: 20mA
  • Square Wave Signal Frequency: 0~15KHz
  • Square Wave Signal Duty Cycle: 0~100%
  • Power Supply: Battery-powered for sensor output (max current 20mA), external power supply for solenoid and ignition coil output (max current 2A)
  • USB: USB2.0 Type B (with charging and power supply function/5V)
  • Operating Temperature Range: 0°C~50°C
  • Storage Temperature Range: -30°C~70°C
  • Certifications: CE, FCC, RoHS

Compatibility

[Compatible with LAUNCH Scanners] This Sensorbox is compatible with a range of LAUNCH scanners, including x431 PRO ELITE, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Turbo, X431 Pro3S+, X431 PAD V, X431 PAD 7, X431 IMMO Elite, X431 IMMO PLUS, and more. Its versatility ensures that it can be seamlessly integrated into different automotive repair setups. Additional compatible models include:

  • Offline Models: X431 Pro3 Link, X431 Throttle III, X431 Pad II AE, X431 Torque, X431 Turbo
  • Online PRO Series: X431 Pros Star, PROs Elite/PRO ELITE, X431 PRO (V 5.0, PROS V5.0), X431 V+ V5.0, X431 Pro3S+ V5.0, X431 PRO3 APEX, X431 PRO3 ACE, X431 PRO3 (V+) ELITE, X431 PRO5 SmartLink
  • PAD Series: X431 PAD V ELITE, X431 PAD VII ELITE
  • IMMO Series: X431 IMMO Elite, X431 IMMO PLUS

Note: Does not support older models like PRO5, CRP919X BT/CRP919E BT, PRO3S+ V2.0, V+ 2.0, or V+ 4.0. Contact seller with your device’s serial number to confirm compatibility.


User-Friendly Interface

[User-Friendly Interface] Operating the LAUNCH S2-2 Sensorbox is effortless, thanks to its one-click access to an intuitive menu. The menu includes options for sensors, actuators, defined/drawn waveforms, timing waveforms, and multimeter functionality, streamlining the diagnostic process.

Practical Use Cases

  • Diagnosing Misfires: Simulate crankshaft and camshaft sensor signals to verify ECU response, pinpointing faulty sensors without replacement.
  • Fuel System Testing: Test injector and fuel pump actuators to ensure proper operation, reducing diagnostic time.
  • Emissions Troubleshooting: Simulate oxygen and EGR sensor signals to diagnose catalytic converter or exhaust issues.
  • Electrical Faults: Use multimeter mode to measure circuit resistance, voltage, or capacitance in wiring harnesses.
  • Custom Diagnostics: Create hand-drawn waveforms for unique sensor signals, ideal for modified or performance vehicles.

LAUNCH O2-2 Scopebox: 4-Channel Oscilloscope for Precision Diagnostics

Launch O2-2 Scope Box Oscilloscope 4 Channels 100MHz Bandwith Work FOR Launch PAD V PRO5: The O2-2 Scopebox is a high-performance 4-channel oscilloscope designed to analyze complex electrical signals in automotive systems. With a 100MHz bandwidth, 1Gbps sampling rate, and 50M storage depth, it captures high-resolution waveform data for circuits, sensors, actuators, and ignition systems. Its seamless integration with LAUNCH X-431 scanners enhances diagnostic accuracy.

Product Highlights:

  • 4 channels
  • Bandwidth 100MHz
  • Auto configuration
  • Save waveforms with one click
  • Cursor measurement
  • One-click preset waveform parameter settings
  • Demo mode
  • Online help
  • Waveform math operations
  • 23 automatic measurements

Product Features

  • One key enable function: Quickly activate oscilloscope functions for instant diagnostics.
  • Access to 23 variants of automatic measurements: Displayed on one screen for easy switching, including peak-to-peak, frequency, and duty cycle.
  • Buffer memory up to 50M: Stores extensive waveform data for detailed analysis.
  • Zoom in/out feature: Review precise waveform details with horizontal and vertical scaling.
  • Customizable system settings: Save configurations for quick recall during repeated tests.
  • Self-calibration function: Optimizes signal path for maximum measurement accuracy.
  • Waveform math operations: Supports addition, subtraction, multiplication, and FFT for advanced analysis.
  • Multiple automotive tests: Includes circuits, sensors, actuators, ignition, and communication tests.
  • Multi-language user interface: Supports English, Spanish, German, and more.
  • USB Sync Data Transfer: Export waveform data to laptops, tablets, or other devices.

Product Functions

  • Supports multiple vehicle preset project tests: Covers circuits, sensors, actuators, ignition, communication, and combination tests with specific parameters and connection methods.
  • 23 automatic measurement settings: Clear, one-click access to measurements like amplitude, period, and rise time.
  • Quick trigger source switching: Supports edge and pulse width triggers with intuitive settings.
  • Quickly create waveform preset parameters: Save current settings for reuse in similar tests.
  • Quickly save waveforms: Save displayed waveforms in specified formats for reference.
  • Convenient cursor operation: Drag horizontal and vertical cursors independently with one-click activation.
  • Cursor/phase ruler scaling: Adjusts automatically when zooming waveforms.
  • 2-point touch zoom: Zoom waveforms horizontally or vertically with multi-touch gestures.
  • Demonstration function: Preset sine waveforms to demo functions without vehicle connection.
  • Waveform math operations: Perform addition, subtraction, multiplication, division, and FFT calculations.

Detailed Comparison: O2-2 vs. O2-1 Scopebox

Feature O2-1 O2-2
Channels 4 4
Bandwidth 100MHz 100MHz
Rise Time ≤3.5ns (typical) ≤3.5ns
Maximum Sampling Rate 1Gbps (4 channels) 1Gbps
Input Resistance 1MΩ±1.5% 1MΩ±1.5%
Storage Depth 50M 10M
Sampling Bits 8bit 8bit
Vertical Accuracy 3% 3%
Vertical Gear 5mV~10V 5mV~10V
Inverting Support Support
Channel Coupled DC, AC DC, AC
Time Base Gear 5ns~1ks 1ns~1ks
Time Base Accuracy 20ppm 20ppm
Sampling Mode Normal Normal
CANBus Decoding CAN, LIN CAN, LIN
Trigger Type Edge, Pulse width Edge, Pulse width
Trigger Mode Normal, Auto, Single SEQ Normal, Auto, Single SEQ
Trigger Coupling DC, Noise rejection DC, Noise rejection
Math Double wave\FFT Double wave\FFT
Display YT, Zoom, Roll YT, Zoom, Roll
Roll Mode 200ms/div~1000s/div 200ms/div~1000s/div
Auto Configuration Support Support
Auto Measurement 23 23
Cursor Horizontal, Vertical Horizontal, Vertical
Powered By USB port, DC IN port USB port, DC IN port
Data Transmission USB USB
Vehicle Configuration Circuits, sensor, actuators, ignition Circuits, sensor, actuators, ignition
Operating Temperature 0℃~50℃ 0℃~50℃
Power Supply Range USB: 5V/1A, DC: 12V/24V USB: 5V/1A, DC: 12V/24V
Compatibility Different tablet resolutions require different APPs One APP compatible with multiple tablet resolutions
Multi-Touch Gestures No Supports 2-point touch
Vehicle Configuration Help No Supports online help documentation
Firmware Upgrade Manual Online upgrade
Trigger Waveform observation limited during trigger Normal use during trigger waiting
Demo Function No Yes
Split-Screen No Yes
Sampling Rate Single: 1G/s, 2+ channels: 250M/s Single: 1G/s, 2 channels: 500M/s, multiple: 250M/s
Start Time 2-3s ~16s
Power Consumption ~6W ~7.5W

Cable Connection Guide

How to Connect the Cables?

Different application scenarios require different connection methods (no matter which application scenario, the following connections are required):

  1. Power the oscilloscope box through the double-clip power cable: Connect one end of the double-clip power cable to the power interface of the oscilloscope box, and the other end to the vehicle battery to draw power (red is connected to the positive pole, black is connected to the negative pole). Note: PADVII series tablets support USB power supply.
  2. Connect the Type B terminal of the USB cable: Connect to the Type B interface of the oscilloscope, and connect the other end to the USB interface of the diagnostic device.

Practical Use Cases

  • Ignition System Analysis: Capture primary and secondary ignition waveforms to diagnose misfires or weak sparks.
  • Sensor Signal Verification: Analyze throttle position, MAP, or oxygen sensor signals for intermittent faults.
  • Actuator Testing: Monitor PWM signals to fuel pumps or VVT solenoids for proper operation.
  • CAN Bus Diagnostics: Decode CAN and LIN signals to troubleshoot communication issues.
  • Circuit Testing: Measure voltage drops or continuity in wiring harnesses with 23 auto measurements.

Compatibility

The O2-2 Scopebox is compatible with LAUNCH X-431 scanners, including:

  • X431 PAD V
  • X431 PAD VII
  • X431 PRO5
  • X431 Pro3S+ V5.0
  • X431 PRO ELITE
  • X431 IMMO Plus

Combined Benefits for Automotive Professionals

Together, the S2-2 Sensorbox and O2-2 Scopebox offer a complete diagnostic solution for modern vehicles:

  • Comprehensive Diagnostics: Combine sensor simulation, actuator testing, and waveform analysis for end-to-end troubleshooting.
  • Time Efficiency: One-click menus, auto configuration, and preset waveforms reduce setup time.
  • Cost Savings: Avoid unnecessary part replacements by isolating faults with precision.
  • Versatility: Supports a wide range of vehicles, from passenger cars to light-duty trucks.
  • Portability: Compact designs with carrying cases for on-the-go diagnostics.

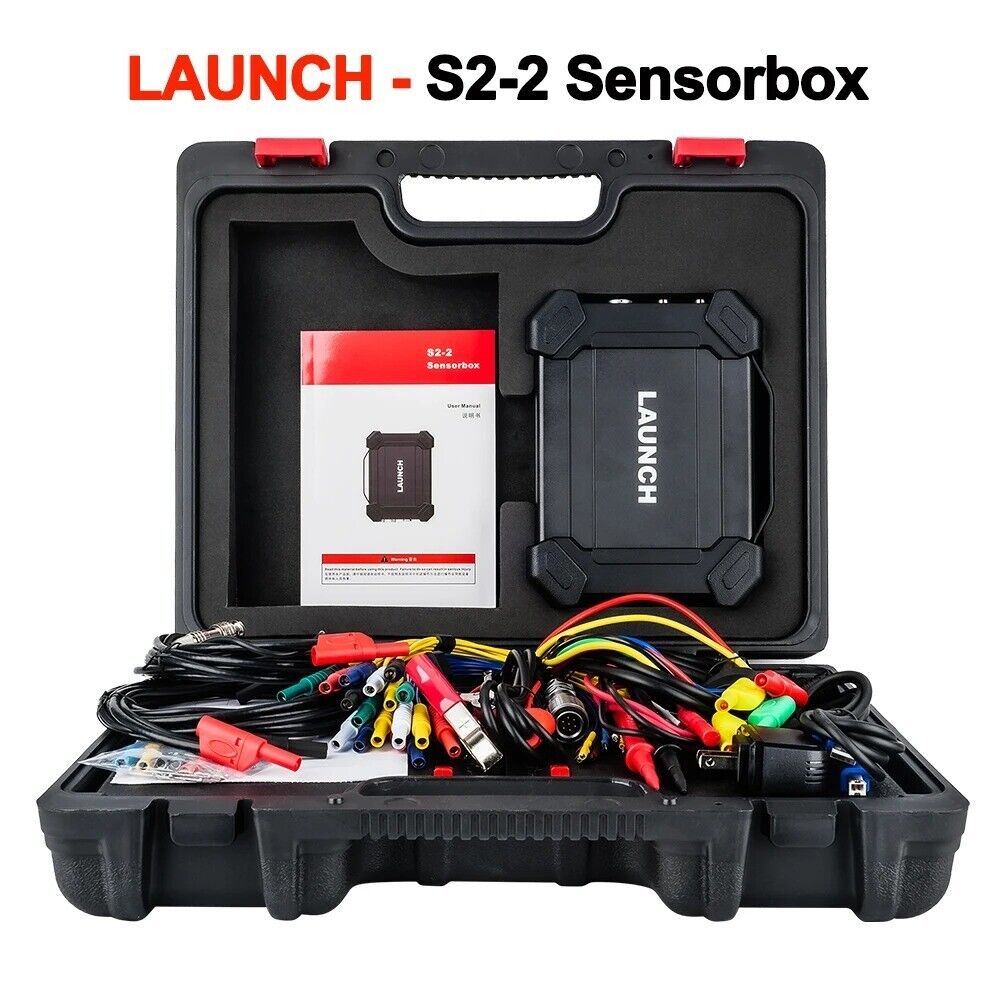

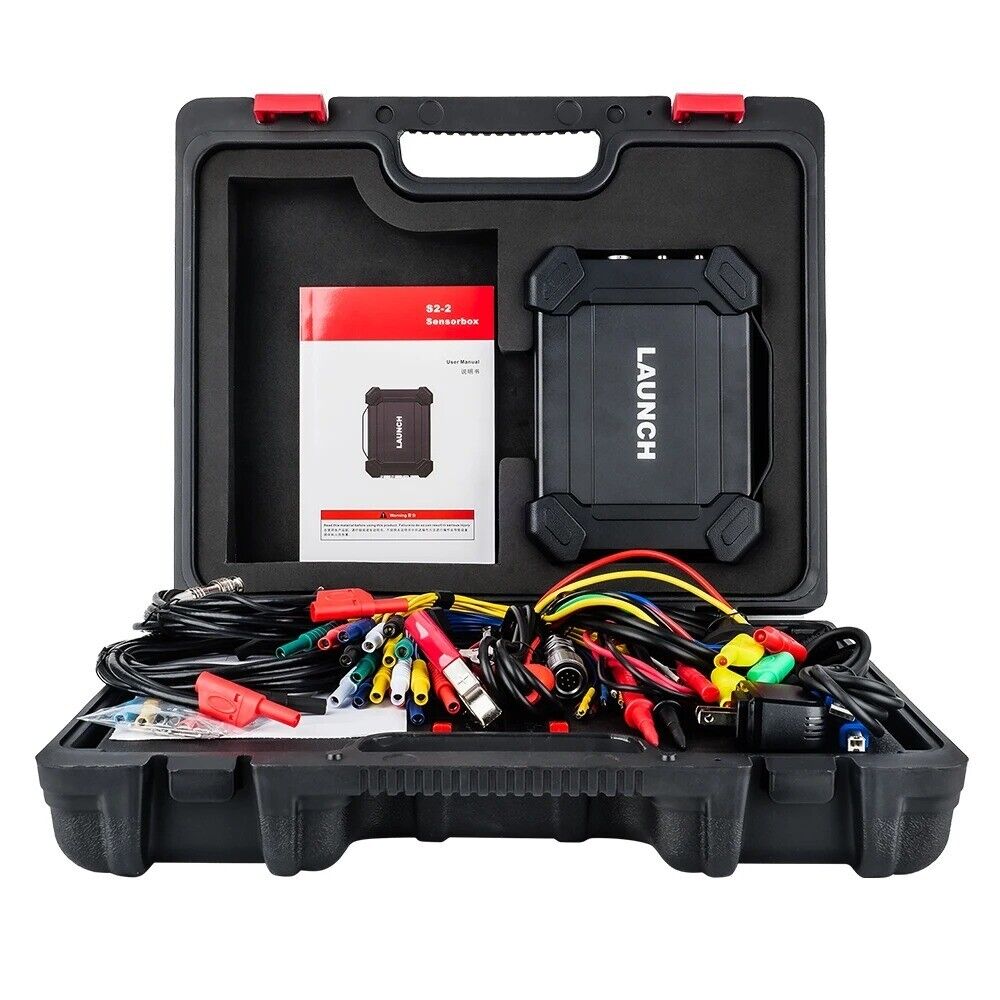

LAUNCH X-431 S2-2 Sensorbox & O2-2 Scopebox Packing List

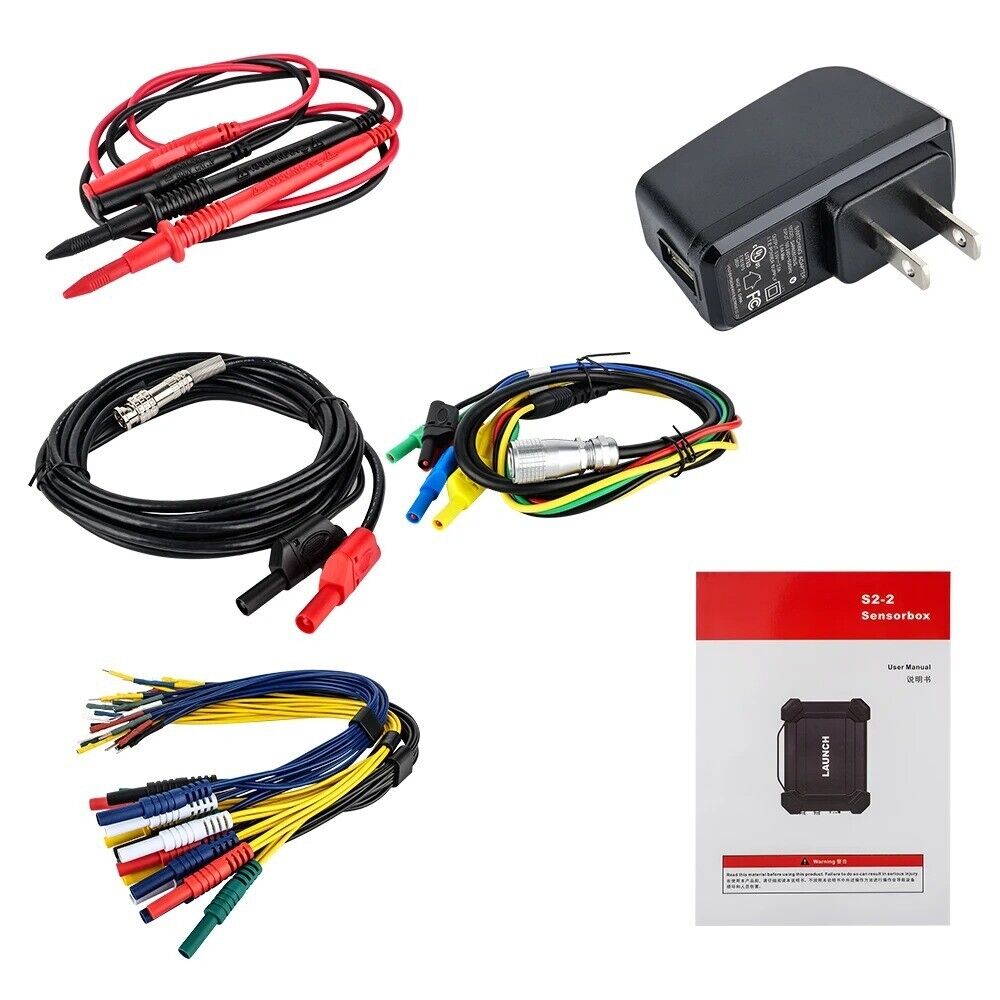

S2-2 Sensorbox What's in the Box

  • S2-2 Module
  • HT30 Test Leads
  • 7-Pin Interface Adapter Cable
  • Battery Clamps Cable
  • USB Cable
  • 6-Way Breakout Lead
  • Multimeter Test Pen (Black + Red)
  • Back Probe Pins Suite
  • Power Adapter

Who Should Buy This Bundle?

  • Professional Technicians: Enhance shop efficiency with advanced ECU and electrical diagnostics.
  • Mobile Mechanics: Portable tools for fieldwork with robust multimeter and oscilloscope functions.
  • Performance Tuners: Fine-tune custom vehicles with hand-drawn waveforms and CAN decoding.
  • DIY Enthusiasts: Tackle complex repairs with professional-grade tools and online help.

Support & Resources

  • User Manuals: Included for both S2-2 Sensorbox and O2-2 Scopebox (PDF versions available online).
  • Online Help: Access tutorials and documentation via LAUNCH’s official website.
  • Warranty: 1-year manufacturer warranty for defects (contact seller for details).
  • Certifications: CE, FCC, RoHS for both devices.

Notes & Limitations

  • S2-2 Sensorbox: Requires a compatible LAUNCH scanner; cannot operate standalone. Verify compatibility with your device’s serial number.
  • O2-2 Scopebox: USB or vehicle battery power required. Some tests (e.g., CAN decoding) may need specific vehicle configurations.
  • Vehicle Coverage: Supports most 1996+ OBD2-compliant vehicles, but certain functions vary by model.
  • Waveform Customization: Hand-drawn waveforms limited to 300 points per frame.
