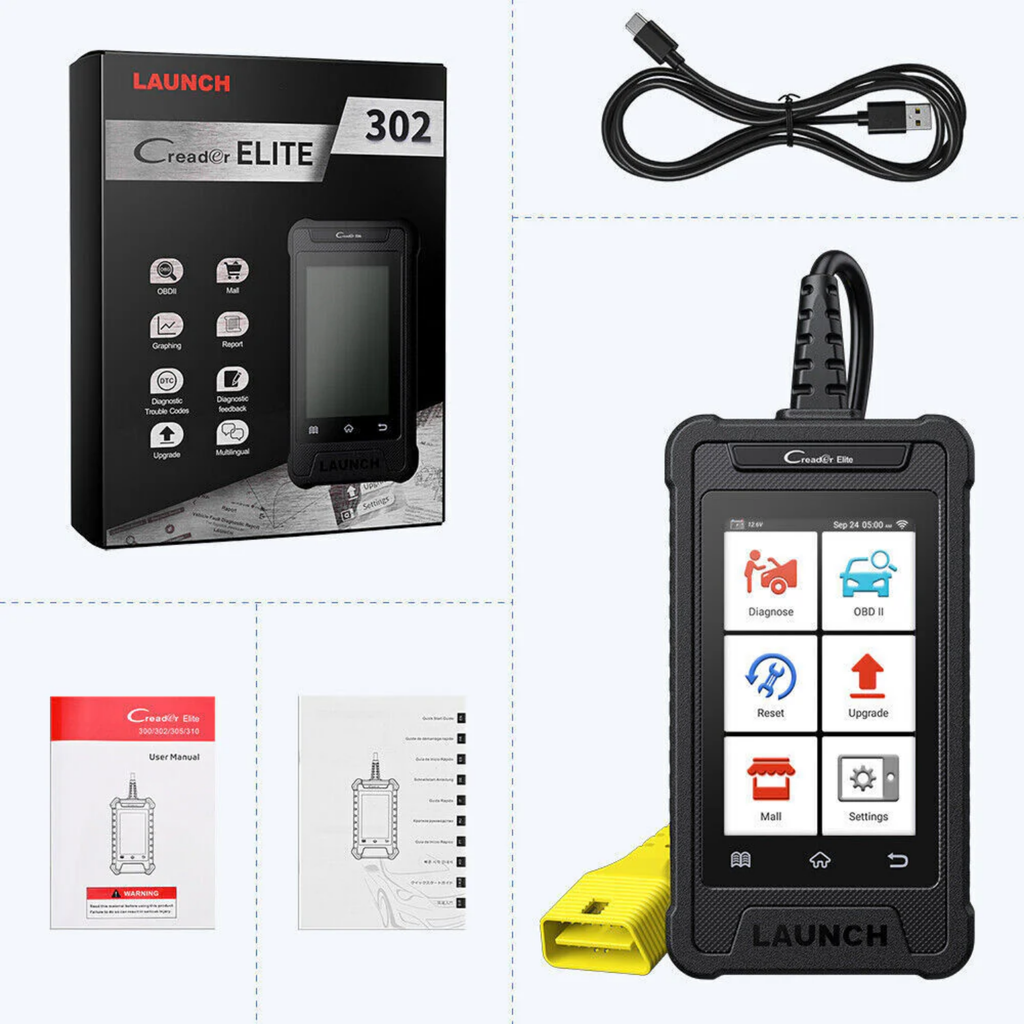

LAUNCH X431CRE 302 WIFI OBD2 Car Code Reader Auto Vin Scanner Diagnostic Tool

2 sold in last 8 hours
In stock
$299.90
Title *
$299.90
customers are viewing this product
LAUNCH X431CRE 302 WIFI OBD2 Car Code Reader Auto Vin Scanner Diagnostic Tool

PRODUCT HIGHLIGHTS

Launch OBD2 Scanner CRE302, Engine SRS ABS Diagnostic Scan Tool, 2 Optional Special Function, Android System,

Touchscreen, Wi-Fi Upgrade, Share Diagnostic Report via Email

2021 Newest LAUNCH CRE302

As the evolutionary new OBD2 Code Reader, CRE302 supports OBD2 10 functions, 3 systems diagnostics, and 2 special functions

Upgraded from LAUNCH CR629 and LAUNCH CREADER VII+, LAUNCH CRE302 adds more features such as a 4’’ touch screen, smooth Android

operating system, Wi-Fi connection, etc., greatly enhancing the scanner’s functionality. The mini-sized scanner delivers superb diagnostic experiences

for both professional technicians and DIYers at competitive spends.

3 Systems Diagnostics + Full OBD2 Functions】

Launch scanner CRE302 can carry out 4 diagnostics functions (read DTCs, display live data and vehicle info, and clear DTCs) for 3 systems

 (Engine, ARS, ABS) of most worldwide mainstream brands. Diagnostic reports will be automatically generated. Besides, CRE302 also supports

 generic OBD2 full functions (Read/Erase Codes, I/M Readiness, Data Stream, View Freeze Frame, etc.) on most US vehicles after1996,

European and Asian cars after 2000.

3 Systems Diagnostics

Engine: LAUNCH diagnostic scan tool helps you to identify the engine-related issues by reading parameters such as engine RPM, engine coolant temperature, air intake humidity, airflow, the voltage of O2 sensor,

misfire data,

 intake manifold pressure, oil pressure, etc.

Anti-Lock Braking System (ABS): This OBD2 scanner can assist you to check the ABS, tell you whether the parameters such as front-wheel

 speed, rear-wheel speed, lateral acceleration, brake pressure, steering angle sensors, etc. are normal, and thus provide a basis for your analysis

 of the problematic parts of the ABS.

Supplemental Restraint System (SRS): You can use Launch CRE320 to address the SRS problems that existed on the components such

as the seat occupancy sensor, airbags, seat belt or airbag sensor, etc., and examine the health status of the SRS system and ensure safe driving.

Full OBD2 Functions

Read Codes: report generic and manufacturer-specific codes;

Clear Codes: reset the trouble code to turn off the malfunction indicator light;

Live Data: graphically show current powertrain diagnostic data;

Freeze Frame: check the raw data recorded when a trouble code was set;

O2 Sensor Test: show the last results of the O2 sensor test in graphic display for troubleshooting;

I/M Readiness Status: check whether the emissions-related systems are ready for smog test;

On-board Monitor Test: read test results for on-board diagnostic monitoring tests of specific components;

Component Test: perform bidirectional control of an on-board system or test (currently limited to some evaporative emissions systems for leak testing);

Vehicle Information: provide VIN (Vehicle Identification Number), CID (Calibration ID), and CVN (Calibration Verification Number)





2 Optional Special Functions】This intelligent function of CRE302 allows you to set up your OBD2 scanner according to your preferences. You can choose 2 functions out

 of a total of 16 special services such as Oil Reset, SAS Reset, BMS Service, TPMS Reset, DPF Regulation, IMMO Service, and Throttle Matching,

 etc., and enjoy the chosen functions for a lifetime. Please notice that the 2 chosen special functions on the OBD2 scan tool cannot be changed once

selected on the OBD2 scanner.

Brake Reset: help you to replace and reset the brake pad

Oil Reset: enable you to reset the oil service lamp for the engine oil life system.

SAS Reset: reset the steering angle to zero to keep the car running straight.

BMS Service: reset the monitoring unit of the car battery to rematch the battery.

TPMS Reset: reset the tire pressure after replacing the tire or sensor.

DPF Regulation: help remove particulate matters from the trap.

IMMO Service: Add new keys or match keys.

Throttle Matching: initialize the throttle actuators to the default state.

ODO Reset: Enter the original mileage of the vehicle after replacing the new odometer.

Injector Coding: write injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder.

Gear Learning: help to do the calibration after replacing the crankshaft position sensor.

ABS Bleeding: enable you to perform tests to check the operating conditions of the Anti-Lock Braking System (ABS).

Air Suspension Matching: adjust the vehicle body height sensor for level calibration after replacing the vehicle height sensor or control module.

Gearbox Reset: help to do the calibration after replace crankshaft position sensor.

Sunroof Reset: set the sunroof lock off, close in rain, memory function of sliding/tilting sunroof, outside temperature threshold, etc.

Headlamp Fitting: Initialize the adaptive headlamp system.

EGR Adaption: reset the EGR system to restore it to a normal working state after replacing the EGR valve or related components.

Auto VIN + Wi-Fi Upgrade + 4-inch Touch Screen】

 Are you tired of entering the VIN on the OBD2 scanner manually? Or going through complex upgrade procedures while using? This Launch

 scanner will help you solve these problems. √Auto VIN: once connected, the OBD2 scanner can automatically identify the vehicle info.

√One-Click WIFI upgrade: avoid time-consuming updating processes. √Android System&4-inch Touch Screen: save tedious registration

steps, deliver intelligent diagnostic experiences.

Diagnostic Report+10 Languages + After-Sales Services】

With this LAUNCH CRE302 scan tool, a diagnostic health status report will automatically generate after the auto-scanning is done. Launch CRE302

supports 10 languages: English, French, Spanish, German, Italian, Russian, Portuguese, Japanese, Korean, and

Traditional Chinese, you can set the one you are accustomed to. What’s more, LAUNCH CRE 302 comes with a lifetime free software update,

professional technical support, and 12 months warranty.



Specifications

★Screen: 4” touch screen with a resolution of 480*800

★CPU: 4-core 1.3GHz processor

★RAM: 1GB

★ROM: 16GB

★WiFi: 802.11b/g/n 2.4GHz

★USB: TYPE C

★OBD II input voltage range: 9~18V

★Power up via:

       ★DC 5V data cable or

       ★Diagnostic cable through connection to vehicle’s DLC

★Working temperature: -10 to 50°C(14 to 122 F°)

★Storage temperature: -20 to 70°C (-4 to 158 F°)
