LAUNCH X431 V+ & Truck HD Module 24V Diesel Diagnostic Scanner 12V CAR + 24V TRUCK SOFTWARE FULL SYSTEM ECU CODING

2 sold in last 8 hours
In stock
$3,490.00
Title *
$3,490.00
customers are viewing this product
LAUNCH X431 V+ & Truck HD Module 24V Diesel Diagnostic Scanner 12V CAR + 24V TRUCK SOFTWARE FULL SYSTEM ECU CODING

PRODUCT HIGHLIGHTS

Latest 2020 Release V4.0

  • AUSTRALIAN VERSION: AU FORD & AU HOLDEN Included.
  • 1 YEAR WARRANTY
  • 2 YEAR FREE UPDATES

  • THE MOST ADVANCED UI: Utilizes Android to provide you with an easy to use interface that has powerful functions, quick auto scanning and vehicle diagnosis, and a touch screen user interface that is easy to learn

  • BEST HARDWARE: The Launch X431 V+ is the newest version of the X431 standard and is the successor to the V, IV and X431 Diagun III versions. This model has a higher hardware configuration, larger storage capacity, faster processor, latest display technology (10 inch capacitive touch screen), and bigger battery for a longer use time between recharging

  • WIRELESS CONVENIENCE: With a Bluetooth OBDII connector module& wifh function, you can wirelessly communicate directly with any vehicle. Since you do not need to be wired into the dashboard when using the Launch X431 V+, you are now free to run the scanning, repair and diagnostic tests while you are working under the hood or while doing other maintenance tasks at your workbench

  • POWERFUL FUNCTIONS: Diagnosis functions include: Read DTCs, Clear DTCs, Read Datastream, Maintenance Recommendations, Special Repair Functions

  • DIAGNOSTIC TOOL FOR EVERY SITUATION: Supports over 100+ car brands and 220 car models from America, Europe, Asia




·Full Systems Diagnoses + Active Test (Bi-directional Control)

·ADVANCED OE-LEVEL FUNCTIONS: Guided Functions +Online Coding +Setting & Changeover +Modification +Offline Coding + Customization + Personalization

·MORE ADVANCED FUNCTIONS ADDED: Windows Calibration + Seats Calibration + Tyre reset + Language Change + A/F Reset A/F + Coolant Bleed + Transport Mode + Adblue Reset + NOx Sensor Reset NOx + Stop/Start Reset + SCN Coding(!!! only LAUNCH X431 V + has this function while V PRO does not)

·Adaptation+ Matching+ 30+ Reset Services + Initialization + Coding + Key Programming

·ECU Coding + Auto VIN + One Click Update + Diagnostic Report + Diagnostic Feedback

·150+ Brands and 10000+ Cars supported + 24 Languages + 2 Years Free Update

·Support Diagnosing Heavy Duty Trucks with Extra X-431 HD Module

·9.0 Android LENOVO Tablet, 10.1 Touch Screen, 7000mAh Rechargeable Battery, 32GB Storage Capacity (128GB extended TF Card)

·Online Maintenance Resources: Operating skills, DTC Help, Automotive Technology handbook, Repair Case and How-to Videos.

launch x431 v+ v pro scan tool diagnostic obd2 scanner code reader ecu coding abs bleeding oil reset

2020 New Added OE-LEVEL Advanced Functions of LAUNCH X431 V+

1.Component Matching: Compatible with Volkswagen / Skoda / Seat / BMW / GM / Ford / Opel / Mazda / Fiat / Honda / Nissan / Hyundai / Kia / Subaru etc.

2.Online Coding: Compatible with Volkswagen / Audi / Benz / BMW / Seat / Porsche etc.

3.Online Account Login Service: Compatible with Volkswagen / Audi / Skoda / Seat etc.

4.Online Calibration: Compatible with Volkswagen / Audi / Skoda / Seat etc.

5.Online Parameterization: Compatible with Volkswagen / Audi / Skoda / Seat etc.

6.Anti-theft IMMO Serivce: Compatible with Volkswagen / Audi / Skoda / Seat etc.

7.Guided Functions: Compatible with Volkswagen / Audi / Skoda / Seat etc.

8.Power Balance: Compatible with Chrysler / GM / Ford etc.

9.Programmable Module Installation: Compatible with Ford / Mazda etc.

10.Flash Hidden Functions: Compatible with BMW / Porsche / Toyota / Subaru etc.

11.SCN Coding: Compatible with BENZ

launch x431 v+ v pro scan tool diagnostic obd2 scanner code reader ecu coding abs bleeding oil reset

30+ Mechanics Frequently USED Service Functions:

ECU CODING – The Coding function is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.

OIL RESET – Reset the oil life systems every time the oil and oil filter are changed;

INJECTOR CODING– Code new injector numbers to replace the previous one when fitting the new injectors or after the replacement is completed;

BRAKE RESET – Deactivate and activate the brake control system, assist with brake fluid control, open and close brake pads, etc.;

SAS RESET – Perform steering angle sensor calibration and clear records;

BAT.RESET – Evaluate the battery charge state, monitor the closed-circuit current, register the battery replacement, etc.;

ABS BLEEDING– When the ABS contains air, the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity;

ELEC.THROTTLE RLRN – Initialize the throttle actuators so that the “learned” values stored on ECU are returned to the default state;

TPMS RESET – Tire pressure resetting is required to be performed after maintenance is performed;

DPF REG – Clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode to stabilize the filter performance;

GEAR LEARN – Perform gear learning for the car when the engine ECU, the crankshaft position sensor, or the crankshaft flywheel is replaced;

KEY PROGRAMMING – Help ECU to recognize the new keys when you need to add new keys.

MORE ADVANCED FUNCTIONS ADDED: Windows Calibration + Seats Calibration + Tyre reset + Language Change + A/F Reset A/F + Coolant Bleed + Transport Mode + Adblue Reset + NOx Sensor Reset NOx + Stop/Start Reset + SCN Coding(!!! only LAUNCH X431 V + has this function while V PRO does not)

GROWING FUNCTIONS:

Accompany with continuous update of Launch X431 software and program, More functions has been added : Head light Fitting, Seat Matching, Door and Window Initialization Study, Sunroof Initialization, Air Suspension Matching, Gearbox Matching, Injector Calibration, Multimedia Video Reset, Cluster Reset, Immobilizer Service, Tire Change Reset, (depending on the specific car models, not for all cars, ). and more and more function will be improved and optimized.

launch x431 v+ v pro scan tool diagnostic obd2 scanner code reader ecu coding abs bleeding oil reset

Mechanics with 40 years of experience Highly Recommended :Bi-Directional Diagnostic Scan tool LAUNCH X431 V+

Extensive Vehicle Coverage - 10000+ Cars supported:

·Aisa: Compatible with Changcheng, Daewoo, Huachen, Zhongxing, Indian Tata, JAC, Maruti, Perodua, Chery, Isuzu, Jinlong, Suzuki, Saipa, HM, Hmazda, Ikco, Malaysia Proton, Luxgen, Toyota, Changan, Futian, Honda, Wuling, V-class, Jpisuzu, Kia, Indian Maruti, Indian Mahindra, Malaysia Perodua, Hafei, Lifan, Mahindra, Nissan, Xiali, Zhongshun, Tata, Changhe, China GM, Saicmg, Mazda, Zhongtai, Daihatsu, BYD Flyer, Hyundai, Proton, Subaru, Ssangyong, Joylong, Mitsubishi,Gonow, Qoros, Maxus, Mvm

·Europe: Compatible with Vaz, Porsche, Maserati, BMW, Seat, VW, Audi, Citroen, Landrover, Smart, Renault, Skoda, Sprinter, Land Rover, Benz, Fiat, Opel, Volvo, Peugeot, Ferrari, Saab, Gaz, DR

·USA: Compatible with Gm, USAFord, Chrysler, Willy;

·Australia: Compatible with Austford, Holden;

·Brazil: Compatible with BXFiat, BXGM

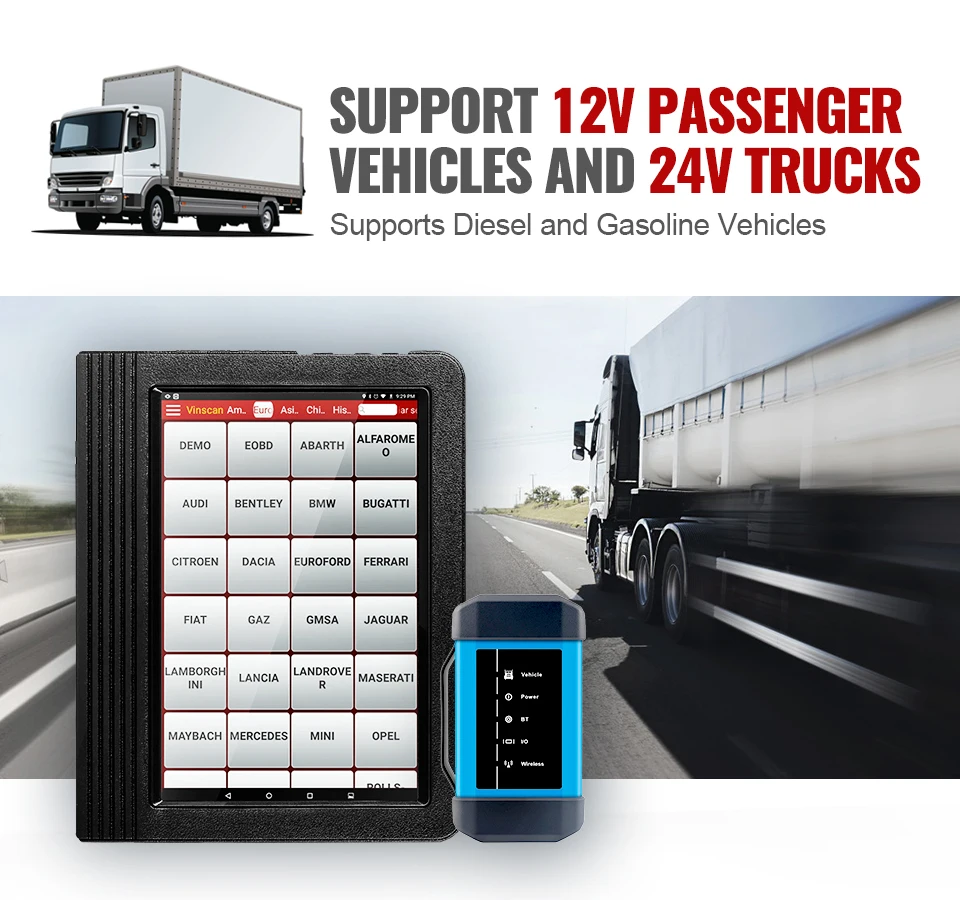

X431 V+ Scanner work with HDIII Model can test 12V gasoline vehicles and 24v trucks

The Launch X431 V Plus work with X431 Heavy Duty Module, enabling it to test gasoline vehicles and trucks with 12V or 24V battery, and trucks with diesel engines. When testing 24V truck, battery conversion is not required. Supports 68 brands and over 220 models from America, Europe, Asia.( Note:If you are not sure whether X431 V Plus work for your car, please feel free contact us .)

Advanced Configurations (Better than LAUNCH X431 V PRO):

·Branded Lenovo Tablet with 5.0 MP Pixel Rear Camera

·10.1-inch HD Touch Screen: A brighter, clearer Screen let you " Deep Dive into Diagnostics"

·All Applications Available: Third party app store access to download your favorite applications,like facebook, Twitter, Tiktok ,hotmail,etc.

·Andriod 9.0 System, make you smooth operation, Anti-Slip & Anti-Grease protective sleeve design

·Brilliant Battery Life: 7000mAh rechargeable battery (up to 10 Hours NON-STOP Using Time+ Long Stand-by Time)

·32GB memory (supports extended to 128GB).

·Multi-PID Live Data Graphing IN 1 Screen: One screen can display 15 data stream (Graphic and textual), three more than V, which is easy to navigate.

launch x431 v+ pro v scan tool diagnostic scanner active test ecu coding abs bleeding oil reset

Bi-directional Control + Active Test + ECU Coding + All Systems Diagnostics

>> Want a Bi-directional scan tool ?

This diagnostic tool LAUNCH X431 V+ supports active test (Bi-directional control) to request information or command a module to perform specific tests and functions. For instance, in the case of OBD II generic information Mode 1, you can initiate a request for information from the powertrain control module, and the PCM responds by sending the information back to the scan tool for display. This LAUNCH X431 V+ also have the ability to actuate relays, injectors, coils, or perform system tests, etc.

ECU CODING

Because every automobile actuator has a record code in ECU, which is the basis for automobile computer to mobilize their work. LAUNCH X431 V+ is equipped with advanced ECU coding function for addressing the following issues:

1. After you change the bad actuators or certain parts, you need to use this function to make a new code and recognize the new actuators.

2. By changing the code with the ECU coding, it’s easy to improve vehicle performance or stimulate high-end functions for the car.

3. ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.

ALL Systems` Diagnoses



To diagnose car comprehensively, it can read DTCs and data streams for ALL systems. For instance, Fuel system, Emission system, Transmission, Engine, Body, Powertrain and more. You do not have to buy other tools for diagnosing systems, saving you much time and money from a long term.

>> Want a Full-System diagnostic scanner ? LAUNCH X431 V+, OVER 100,000 CAR REPAIR SHOPS & MECHANICS 's First Choice !

To diagnose car comprehensively, LAUNCH X431 V+ scan tool can read DTCs and data streams, perform active test, Coding for ALL systems. For instance: Engines/Auto Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip Programming/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics, ....etc.

Online Maintenance Resources, mainly including 4 parts:

1.Operating skills, which mainly introduces how to use diagnostic tool to solve common faults of some models, such as resetting BMW brake warning lights;

2.DTC Help, which introduces the troubleshooting method for a specific fault code of some models, for example, how to eliminate the U0196 fault code of Chrysler 300C;

3.Automotive Technology handbook, circuit diagrams of certain modules of some models, component introduction, fastener tightening specifications, such as the 2009 GM enclave body maintenance information, which describes the bumper and instrument specifications, and the tightening specifications of each component Screw force.

4.Repair Case, repair cases of some car models.

Launch x431 pro diagnostic report

– View History

Once a vehicle diagnosis is performed, LAUNCH X431 V will record the every detail of the diagnostic process.you can record/review/playback live data anytime .The History function provides quick access to the tested vehicles and users can resume from the last operation, without the necessity of starting from scratch

– Remote Diagnosis

Configures LAUNCH X431 V as an I/M(Instant Messaging) tool, which enables technicians to exchange repair experience and perform remote assistance more conveniently.

– Maintenance Help

Including How-to Videos, operation skills, and user manual, Q&A, Quick start guide, etc.



– What If I meet with Issues during the diagnosis ?

For any problems found during the diagnosis, submit the feedback immediately. LAUNCH professional experts will provide perfect solutions for you as soon as possible

V+4.0 2020 Global Version, NO IP Limited . 3GB ROM + 32GB RAM

It is Global version, and NO IP limited. You can use it and update it everywhere around the world.

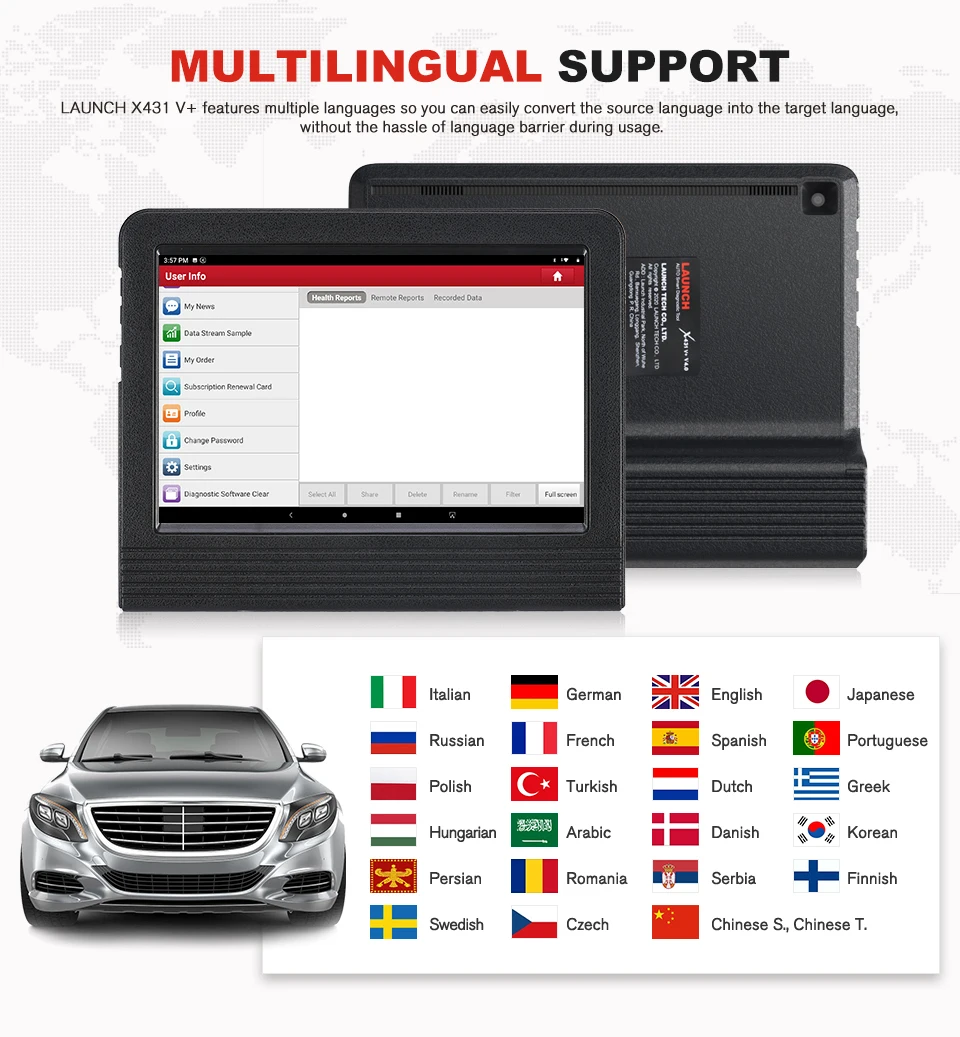

Multilingual Support



Italian, English, Chinese simplified, Chinese traditional, German, Japanese, Russian, French, Spanish, Portuguese, polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Romania, Serbia, Finnish, Swedish, Czech

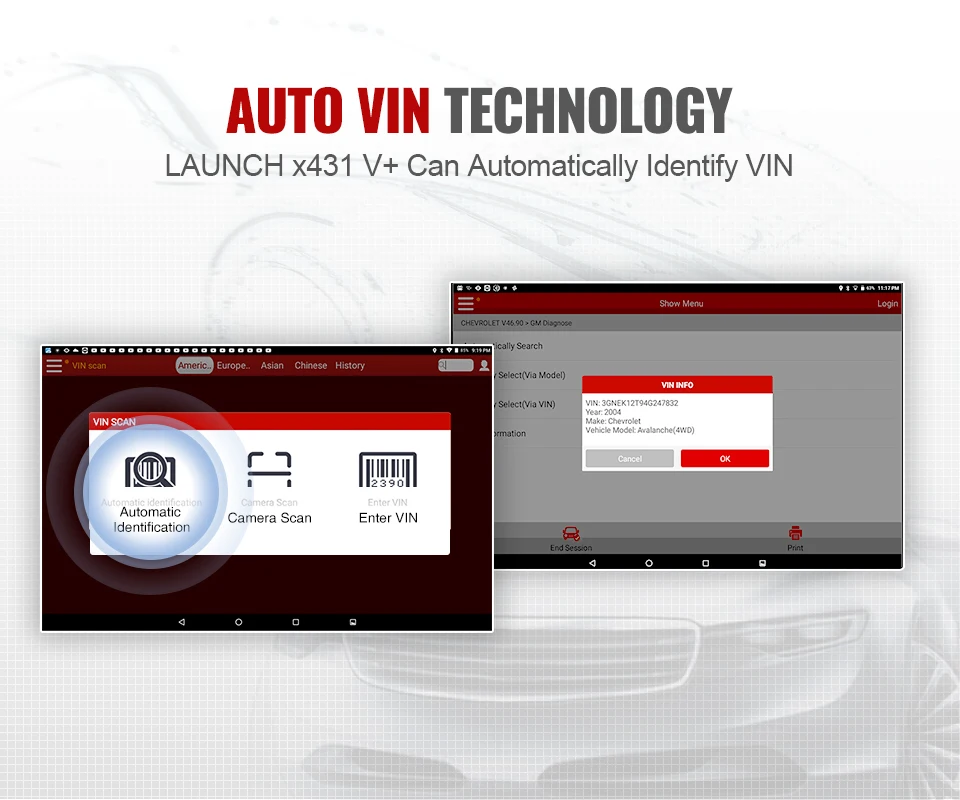

Auto VIN Tech



It supports quick diagnosis via one-button VIN scanning.

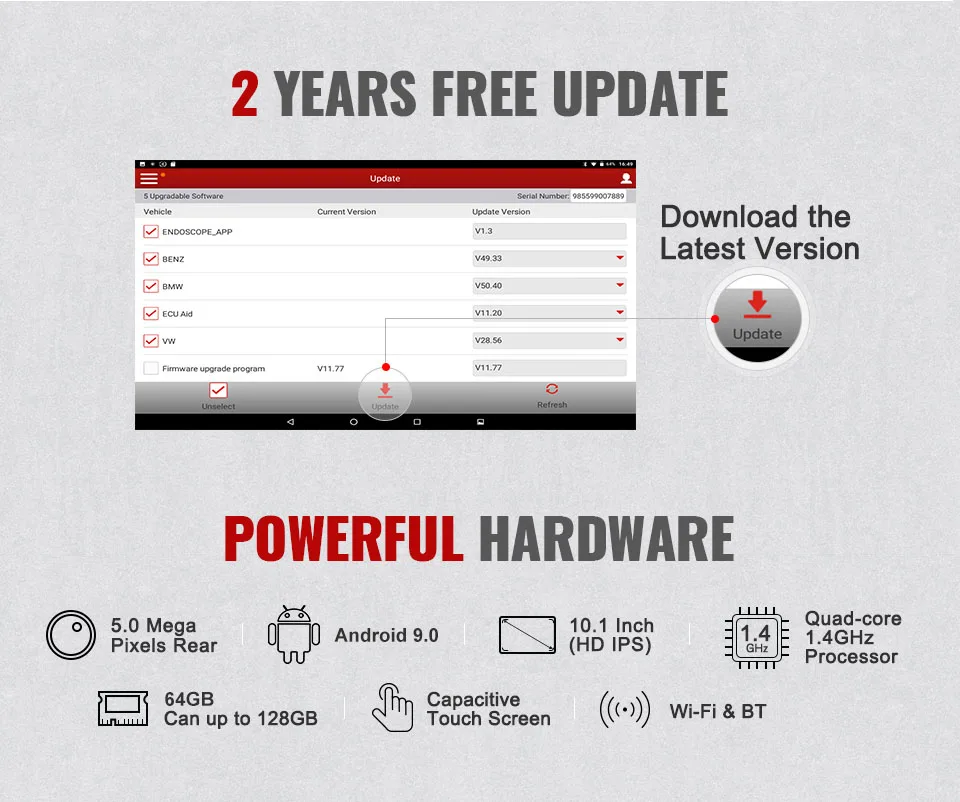

2 Years Free Update + 5 Year Warranty + Lifetime Free Tech Supportted


Bluetooth and Wi-Fi Enabled

You are able to do remote control as this tool can be used through Bluetooth or Wi-Fi. And via Bluetooth, it is simple for DBScar diagnostic connector to communicate with X431 V+.

Anti-theft Matching

This function can protect your car from being stolen by clearing the lost car key information and programming new key into the ECU database. Also known as keys programming.

Practical Remote Diagnosis

Not only users can launch the remote diagnosis with other diagnostic tools of LAUNCH family, which are equipped with this module as well, also they can ask for the remote control through phones, tablets, and computers etc. It has realized the reality that a mechanic can diagnose an abnormal vehicle which is even thousands of miles away.

Social Network

This vehicle code reader helps quickly retrieve vehicle history maintenance record so you can get a series of useful diagnostic references and recourses when you meet any problems in the process of repairing. In addition, you are able to connect with other users, sharing experiences of your automobile maintenance.

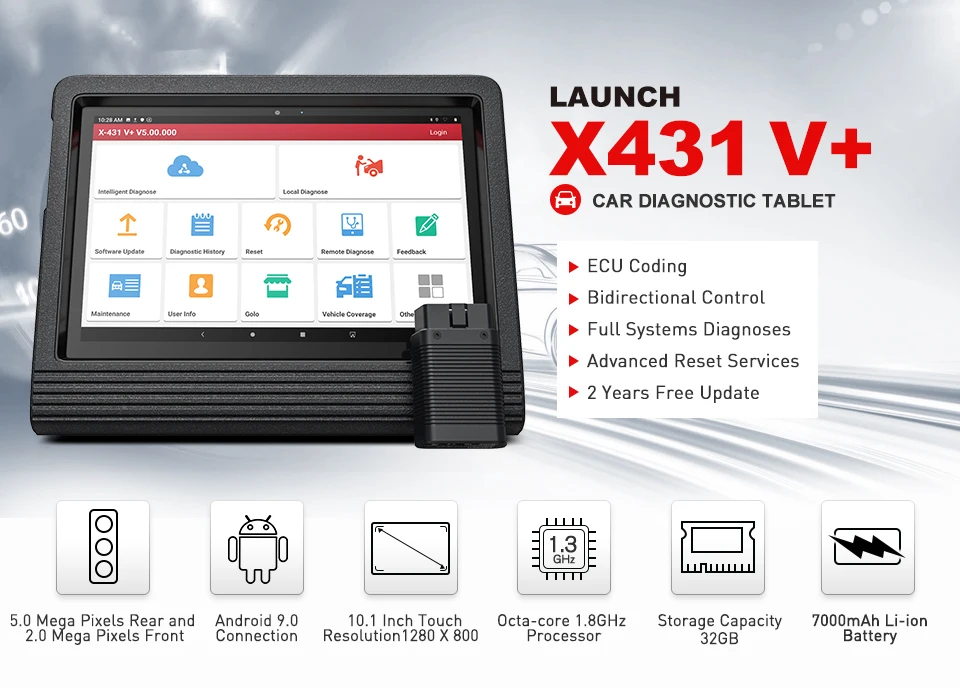

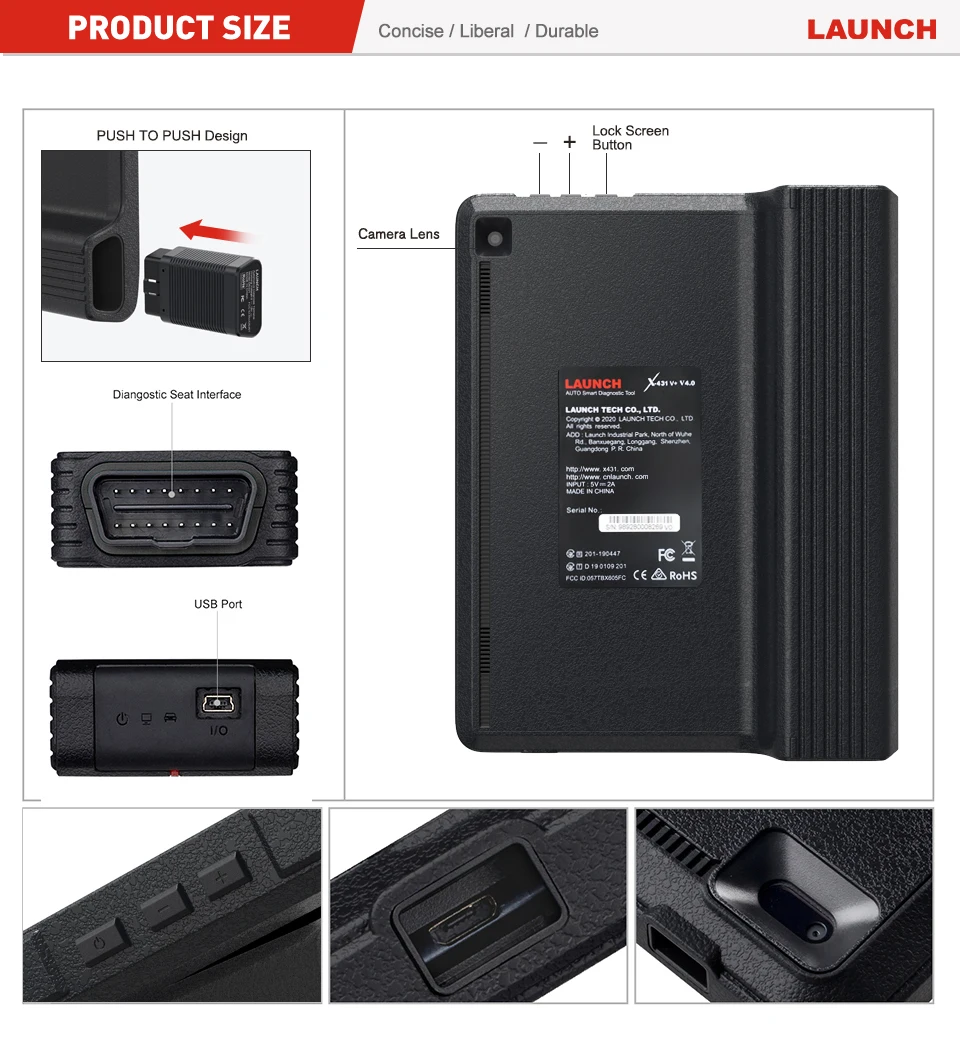

Product Specifications:

Operating System: Android 9.0

CPU: Qualcomm Snapdragon 450, 8-core 1.8GHz

Battery: 7000mAh rechargeable polymer lithium battery

Memory: 3GB

Storage Capacity:32GB (New 2020 Version)

LCD: 10.1 inch

LCD Resolution: 1920*1200

IPS Touch Screen: Capacitive Touch Screen

Cameras: 5.0 mega pixels front and 8.0 mega pixels rear.

Wi-Fi: 802.11a/b/g/n/ac (2.4GHz / 5GHz)

Bluetooth: Supported

Working Temperature: 0 ~ ℃ 45℃

Storage Temperature: -20 ~ ℃ 70℃

Dimensions (L*W*H): 265*214.5*50.5 mm (10.43*8.44*1.99 inches)

Weight (NW): 1.05 kg (2.31 lb)

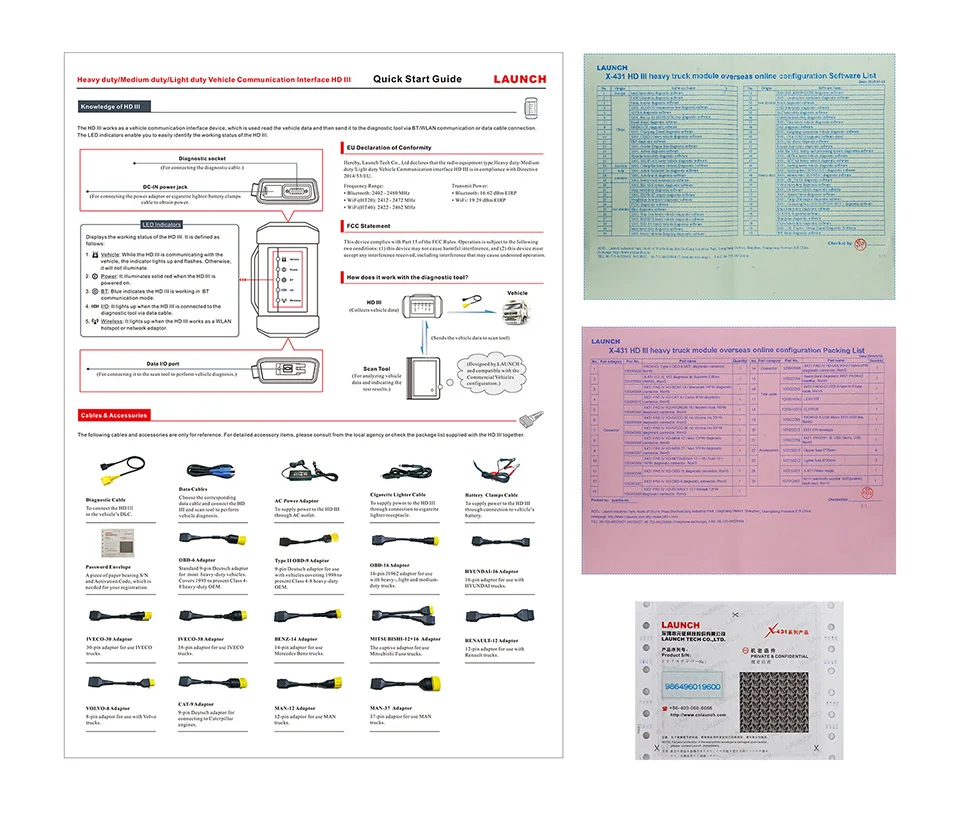

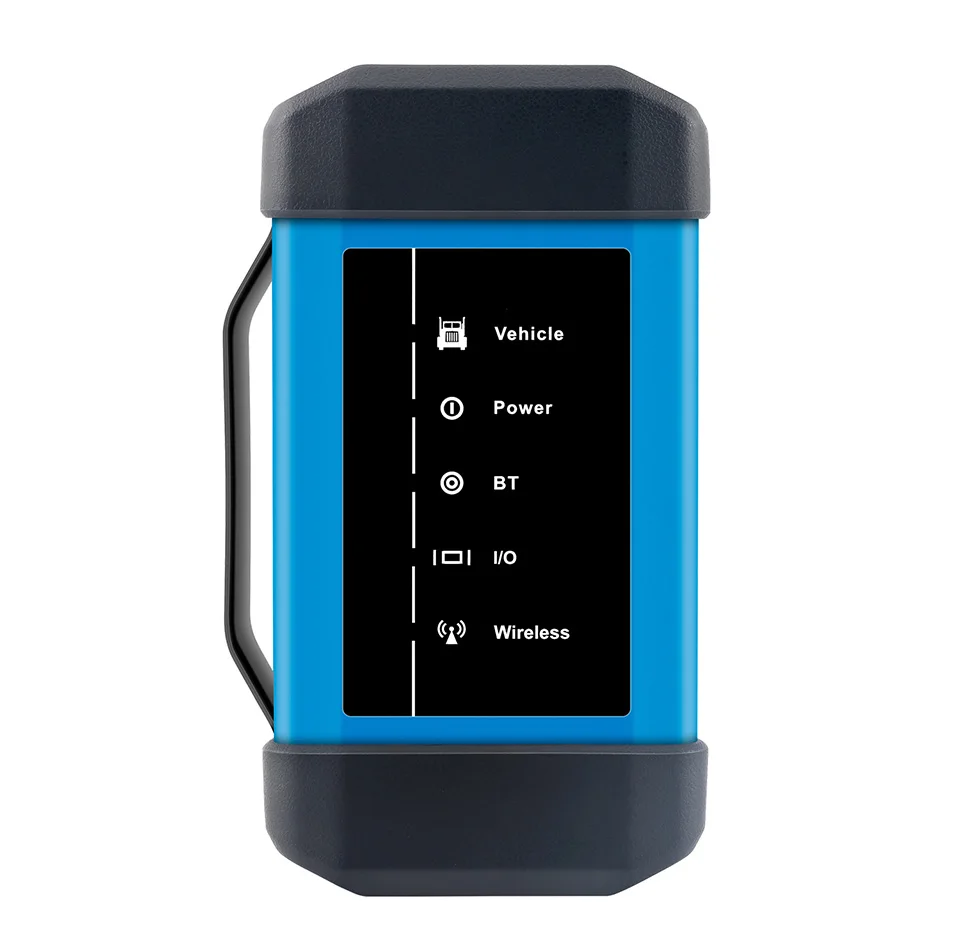

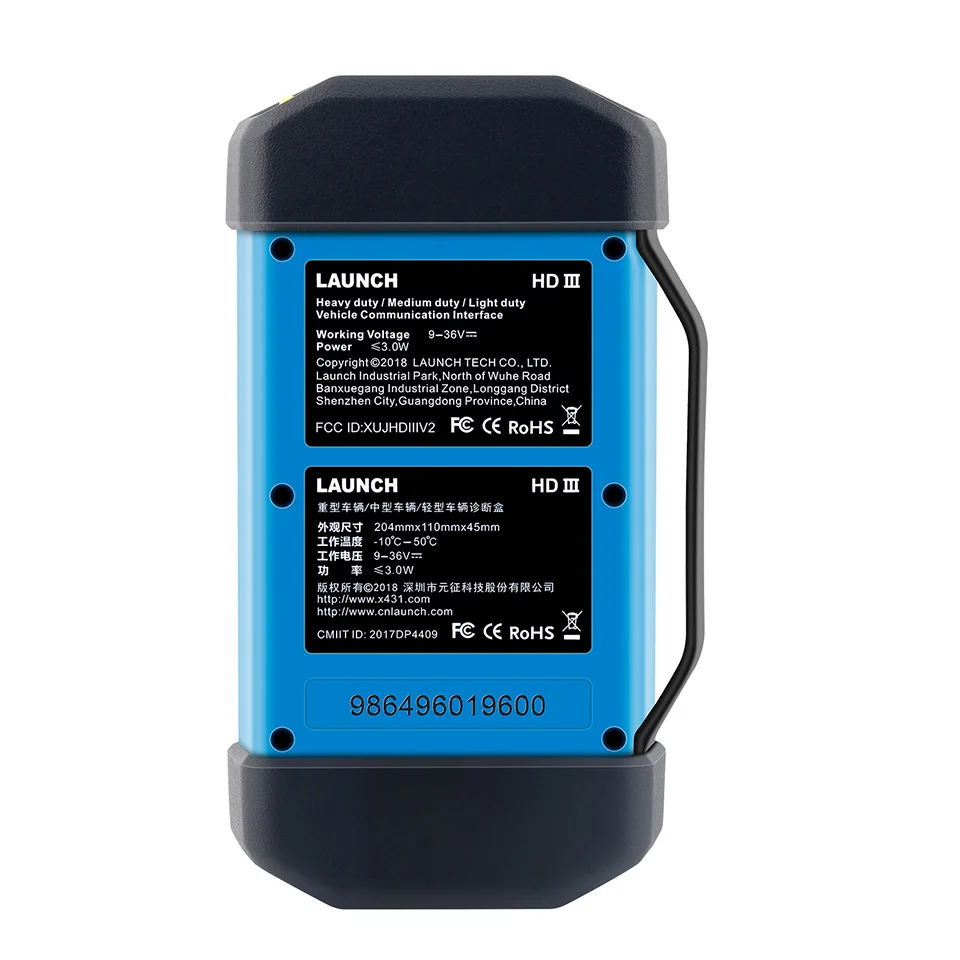

X-431 Heavy-duty Truck Module + V+ Tablet: a new generation heavy-duty truck fault diagnostic tool developed by Launch Tech regarding internet application on the basis of Android OS. It communicates with X-431 PRO3/X-431PAD II throuth Bluetooth to achieve fault diagnosis for various car models and full systems. Advantages include wide car model coverage, powerful test function, more special functions and accurate test data, etc.



Functions:

•
Wireless Bluetooth Diagnosis: Host machine and diagnostic connector adopt Bluetooth connection, making diagnosis more convenient.

• Support various car models: 34 car model software, support more than 60 car models. Moreover, the software is being continuously developed.

• Industrial shockproof design: Industrial shockproof design is perfect for the working environment in repair shops.

• Various configurations are available for selection
Suppose you are going to purchase heavy-duty truck diagnostic tool, you can choose X-431 PRO3 or X-431 PAD II as host machine. If you have already bought X-431 PRO3 or X-431 PAD II diesel configuration, now you want to test truck, just buy a heavy-duty truck module.

• Full comprehensive diagnostic software functions.

• Wide diagnostic software coverage.

• Accurate test data.

• Software based on Android, matching with more diagnostic hosts.

• Release new software version timely to let customers enjoy latest service.

• Able to test truck with 12V or 24V battery diesel engine. When testing 24V truck, battery conversion is not required.

• Diagnostic hardware is designed according to international standard, compatible with diagnostic interfaces of worldwide models.

SUITABLE FOR THE FOLLOWING:


launch-x431-v+
Note:  Software with red font is required to be purchased separately.



SUPPORTED TRUCKS:


HTB1RoK2SVXXXXXEXXXXq6xXFXXXu


930_02960_01_01960_01_02960_01_03960_01_04960_01_05960_02_01
SUITABLE FOR THE FOLLOWING:
960_02_02960_02_03960_02_04960_02_05
