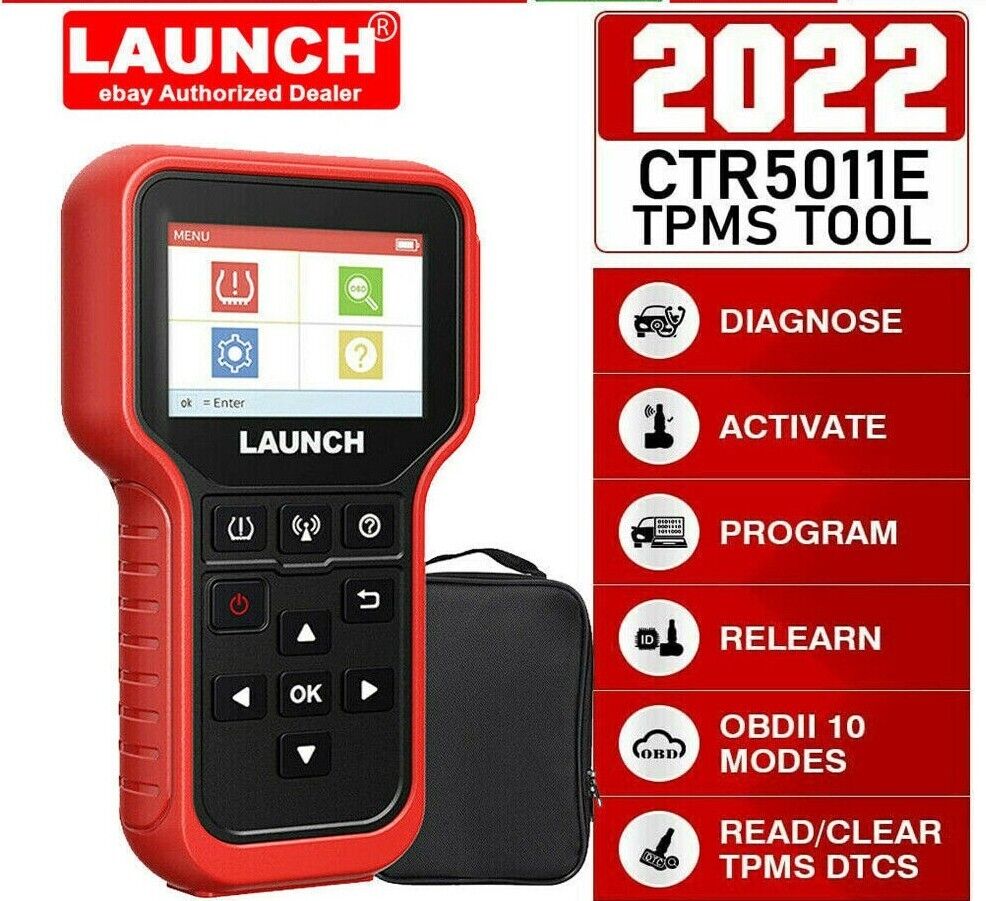

LAUNCH CRT5011X TPMS OBD2 Relearn Reset Tire Sensor Programming Diagnostic Tool

2 sold in last 8 hours
In stock
$234.19
Title *
$234.19
customers are viewing this product
LAUNCH CRT5011X TPMS OBD2  Relearn Reset Tire Sensor Programming Diagnostic Tool

PRODUCT HIGHLIGHTS

Product Description

【TPMS Sensor Programming】+TPMS Relearn Tool】+Activate ALL TPMS Sensor】+【TPMS Diagnostic, TPMS Test& Full OBD2 Functions】+【Broad Compatibility & Lifetime Software Update】


What are the Main Features of the CRT5011X TPMS Programming Tool?

CRT 5011X is a powerful and versatile tool offers 98% coverage of global vehicles with tire pressure system. It is ideal for repair shops or tire shops to easily and accurately find and diagnose the faulty tire pressure sensor, read tire sensor status, read and clear tire pressure DTCs, and reset, relearn and reprogram TPMS sensors.

★Covers over 98% global vehicles with tire pressure system.

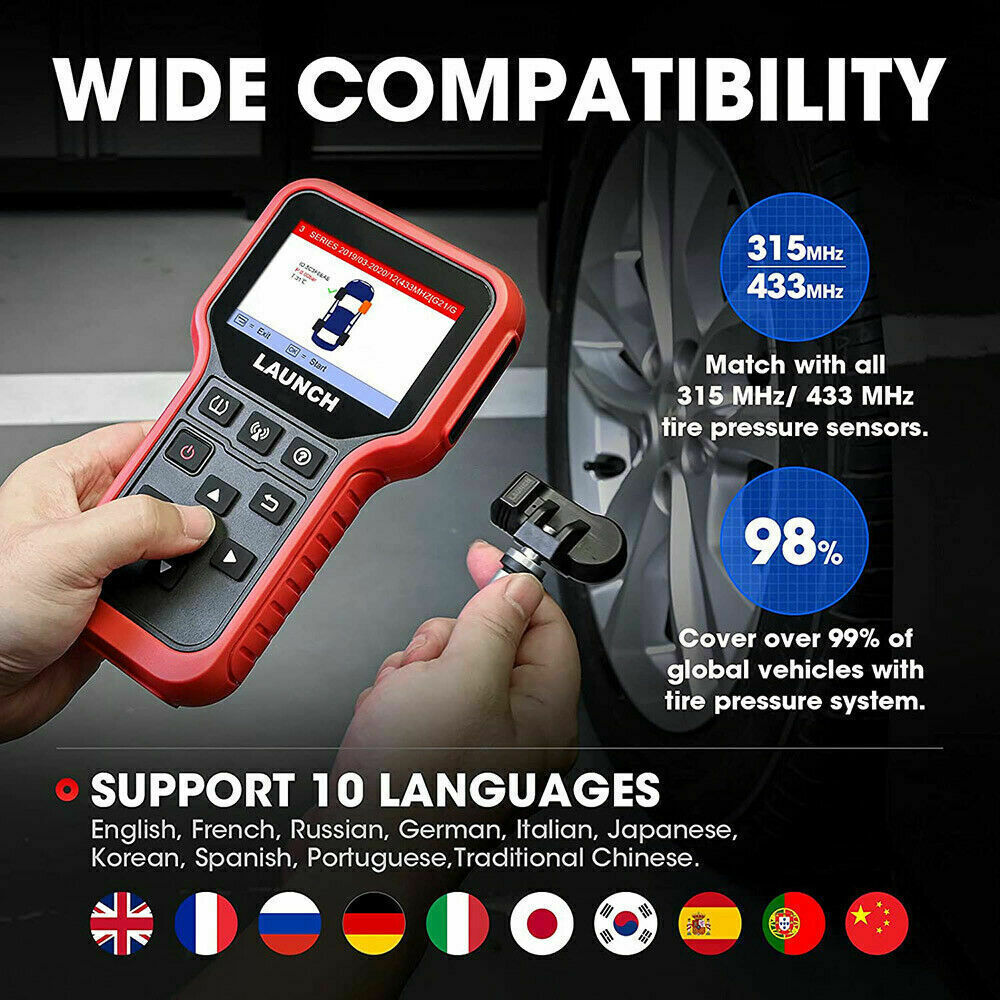

★Activate and match with all 315 MHz/ 433 MHz tire pressure sensors.

★Reset, relearn and reprogram tire pressure sensors fast.

★Diagnose the tire pressure issues, read and clear tire pressure DTCs.

★Reprogramming LAUNCH sensors with unlimited times.

★Read tire pressure, tire temperature and battery status accurately.

★Reprogram up to 8 sensors at one time.

★Built-in learning tutorial for easy operation.

★Multiple IDgeneration methods: Manual creation、Copy ID、Automatic creation.

★OBD II / EOBD functions included.

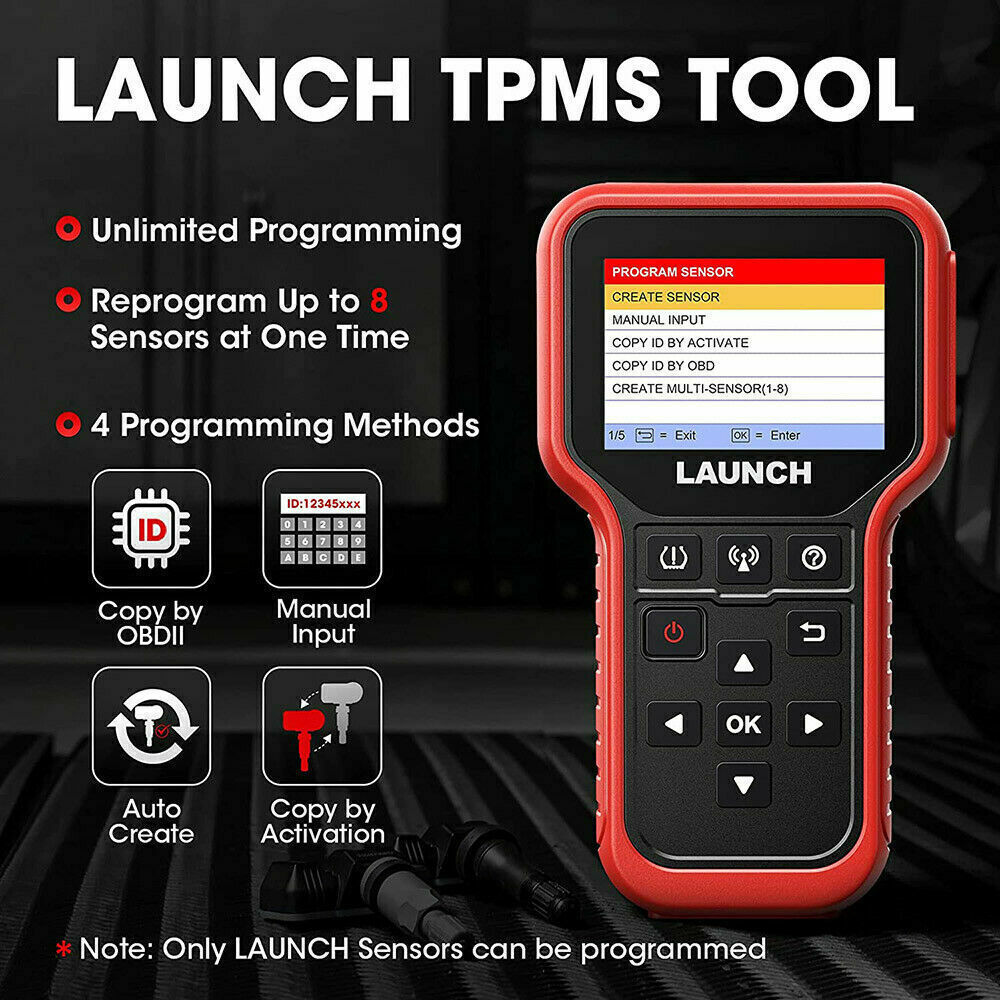

Program LAUNCH Sensors

There are 4 options available for programming: Auto Create, Manual Create, Copy ID by Activation and Create Multi-sensor.

Program Multi-Sensor: This allows users to program multiple sensors simultaneously. Up to 8 sensors can be programmed at the same time.

1. Auto Create: program the LAUNCH-sensor by applying random IDs created according to the test vehicle.

Step1: Select the wheel which needs to be programmed on the tool.

Step2: Place a LAUNCH-sensor close to the TPMS antenna of the tool.

Step3: Select CREATE SENSOR to create a new random sensor ID.

2. Manual input: Manually enter sensor ID. Users can enter the random ID or the original sensor ID if it is available.

Step1: Use the on-screen virtual keypad to input a random or original (if available) sensor ID.

Step2: Select the wheel which needs to be programmed on the tool, places a LAUNCH-sensor close to the TPMS antenna of the tool.

Step3: Start writing the new sensor ID to the LAUNCH sensor.

3. Copy ID by Activation: Write in the retrieved original sensor data to the LAUNCH-sensor. It is used after the original sensor is triggered.

Step1: Select the specific wheel position and press the button to trigger the original sensor.

Step2: Select the specific wheel position and press the OK button to create a sensor ID.

Step3: Start writing the new sensor ID to the LAUNCH sensor.

4. Copy by OBD :Use this LAUNCH TPMS service tool TSGUN to pull the old sensor ID stored in ECU, and write it directly into your LAUNCH RF-sensor.

Activate ALL Sensor

Launch relearn tool CRT5011X can activate all tire pressure sensors of 315MHz and 433MHz. After activating the sensors, you can view sensor data such as sensor ID, tire pressure, tire frequency, tire temperature, and battery condition.

For universal sensors, you just need to follow the below three steps to activate the sensors.

Step1: Place the tool alongside the valve stem

Step2: Point toward the sensor

Step3: Press the trigger button and the sensors will be activated for sensor information checking.

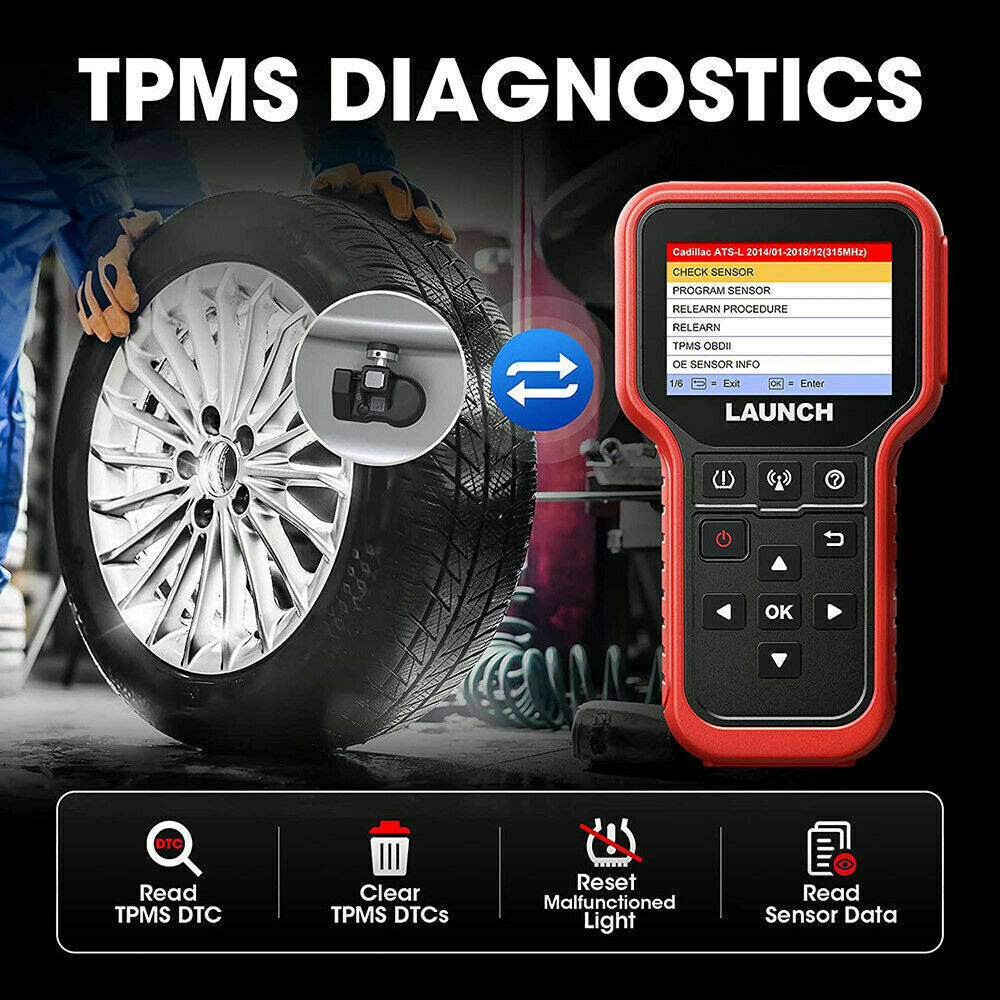

TPMS Diagnostic

In addition to activating replaced sensors, CRT5011X is also capable of diagnosing the tire pressure issues which includes reading and clearing TPMS-related DTCs, read live data, and resetting TPMS after repairs.

Vehicle Info

retrieve a list of information (provided by the vehicle manufacturer) from the vehicle’s onboard computer. The information includes VIN (Vehicle Identification Number), CID (Calibration ID), and CVN (Calibration Verification Number).

The programming function helps users to program the sensor data to the LAUNCH sensors (compatible with 98% of vehicles on the market) and replace faulty sensors. It allows 8 Launch tire pressure sensors to be programmed simultaneously, which generates a huge benefit for auto repair technicians.

Relearning for 99% of OEM Sensors

What’s Sensor Relearning?

Relearn is used to write the newly programmed sensor IDs into the vehicle’s ECU for sensor recognition. With just one click, the specific relearn procedure will be presented. It is a necessary step for tire or sensor replacement.

When Do We Need to Relearn the Sensor?

Relearn operation applies when the newly programmed sensor IDs are different from the original sensor IDs stored in the vehicle’s ECU. Normally, because the IDs of the original sensor and the new Launch sensor are the same and the ID is already recognized by the vehicle's ECU, there is no need to perform the relearn function when the new programmed sensor has been attached to the same wheel.

Relearning Procedure

Step1: Set the tire pressure according to the placard

Step2: Drive the vehicle for at least 10 minutes at least 15MPH

Step3: Sensors will be automatically registered

Note: This TPMS relearn tool supports three relearn methods (Automatic Relearn, Stationary Relearn, OBD Relearn), and the above is the automatic relearn procedure. If you have any other questions or concerns about the process, please check the manual.

Graphic Live Data

The live data can be view in graphic form. You can select the View Graphic Items in the data stream menu, and then the selected graphic items will display on the screen. With this function, you can better inspect and analyze the diagnosis problem.

OBD2 Full 10 Functions

This TPMS diagnostic tool is able to perform the OBD2 full 10 function, which helps you check monitor status before emission certification testing, isolates the cause of the illuminated Malfunction Indicator Lamp (MIL), and performs a number of other emission-related services. The OBD2 function is compatible with 99% of vehicles from 1996-2021.

  • Read Codes: allow you to view the Diagnostic Trouble Codes (DTCs) retrieved from the vehicle’s on-board computer.
  • Erase Codes: After reading the retrieved codes from the vehicle and certain repairs have been carried out, you can use this function to erase the codes from the vehicle.
  • I/M readiness: indicate whether the vehicle’s monitors have run and completed their diagnosis and testing of their designated sections of the vehicle’s emissions system. It also can be used to confirm that the repair has been performed correctly.
  • Data Stream: This option retrieves and displays live data and parameters from the vehicle’s ECU.
  • Freeze Frame: present a snapshot of the operating conditions at the time of an emission-related fault.
  • O2 Sensor Test: The O2 Sensor Test function lets you retrieve and view O 2 sensor monitor test results for the most recently completed tests from your vehicle’s onboard computer.
  • On-board monitor test: read the results of on-board diagnostic monitoring tests for specific components or systems.

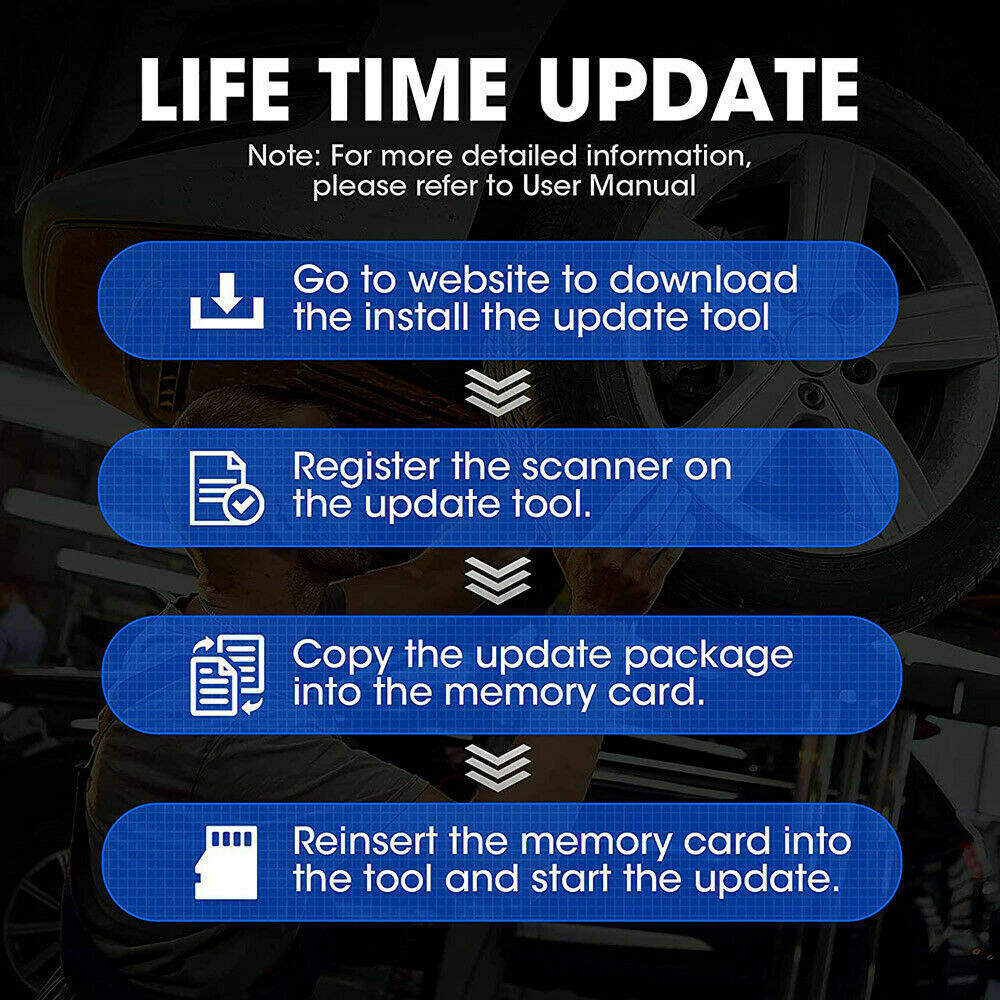

Update for Optimized Functions and Broader Vehicles Coverage

Thanks to the software update feature, the TPMS tool Launch CRT5011X will continue to bring users more optimized functions and cover wider coverage of models. Here is the brief guide on how to register and update:

Step1: Go to the Launch website to download the update tool and install it on the computer.

Step2: Connect the tool to your PC and follow the guidance to note down the serial number and Register code.

Step3: Register the scanner on the update tool.

Step4: Copy the update package into the memory card through the card adaptor provided.

Step5: Reinsert the memory card into the tool and start the update.

Turn Off Malfunctioned Lights

Launch CRT5011X can not only detect the emission-related component or system failures but also can erase the DTCs from the computer’s memory, thus turn off the MIL.

TPMS Diagnose

This function allows users to activate the TPMS sensor to view sensor data such as sensor ID, tire pressure, tire frequency, tire temperature, and battery condition. Besides, it can also read/clear TPMS related DTCs and reset TPMS after replacement or repair.

Key Fob Testing

This feature is developed to assist with the diagnosis of all types of (RF) Radio Frequency remote controls. It can be used on most makes and models of vehicles. Please notice this function is only available after you upgrade the TPMS tool to the latest version.

Specifications

★Screen: 3.5” LCD display with a resolution of 320*480 pixels.

★Input voltage: 9 ~ 18V via OBD diagnostic port / 5V via USB cable.

★Operating temperature: 32°F~122°F / 0°C~50°C.

★Storage temperature: -4°F~158°F / -20°C ~70°C @ RH60%.

★Size: 200*115*35 mm.

★Weight:<450g.

3.5'' LCD Screen Tool

Equipped with a 3.5” LCD with a resolution of 320*480 pixels, the color screen displays the application modules and maintenance procedures for users.

9+ Languages Supported

It supports 9 languages: English, French, Russian, German, Italian, Japanese, Korean, Spanish, Portuguese. You can configure the system language of the tool to your preferred one.
