iScan For KTM /HUSQVARNA Motorcycle Diagnostic Tool
iScan For KTM /HUSQVARNA Motorcycle Diagnostic Tool
Functions
1. New android 5.1.1 operation system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;
4. Menu arbitrary selection is more convenient and quick;
5. Record and play back real-time data flow, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical staff remote assistance.
Advanced function

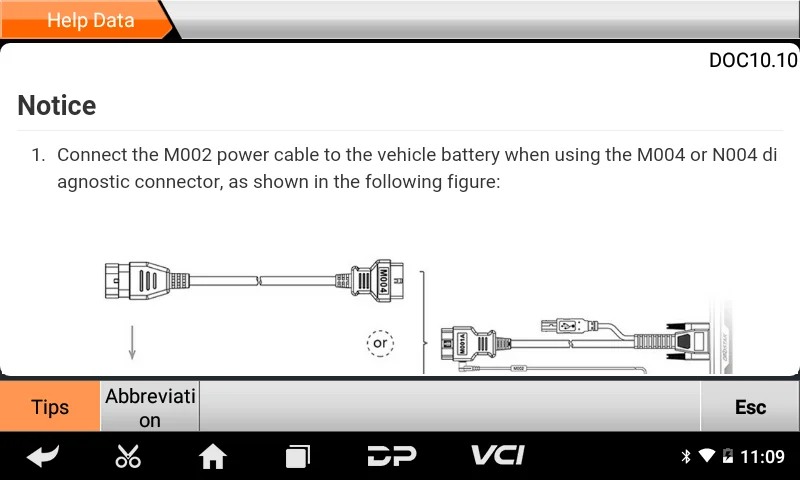

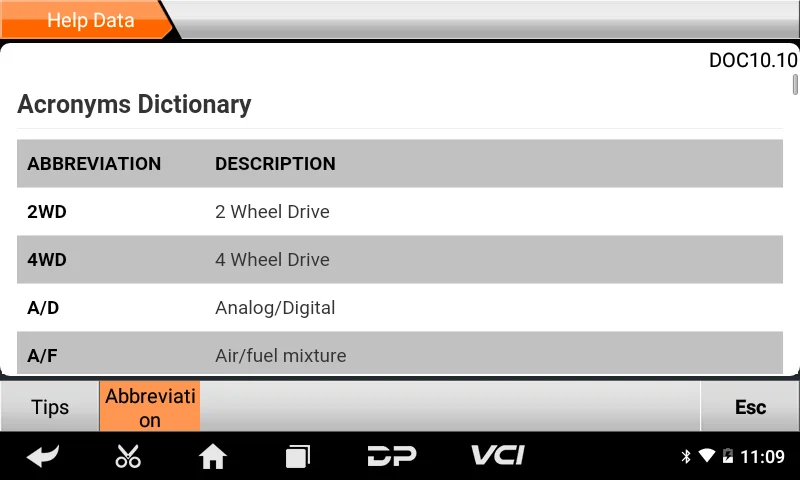

1. The first fault guidance, help data, technical bulletin, diag socket etc help you diagnose accurately and efficiently;
2. Diversified data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.
Motorcycle/snowmobile/ATV/UTV support series
For HUSQVARNA, for KTM

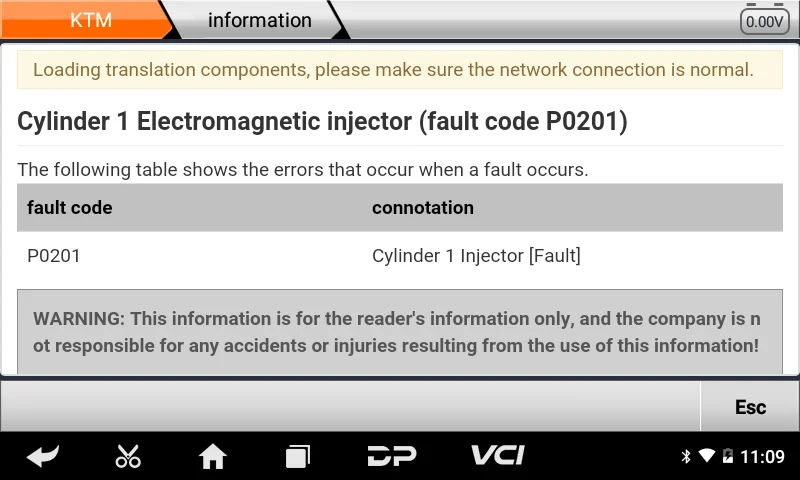

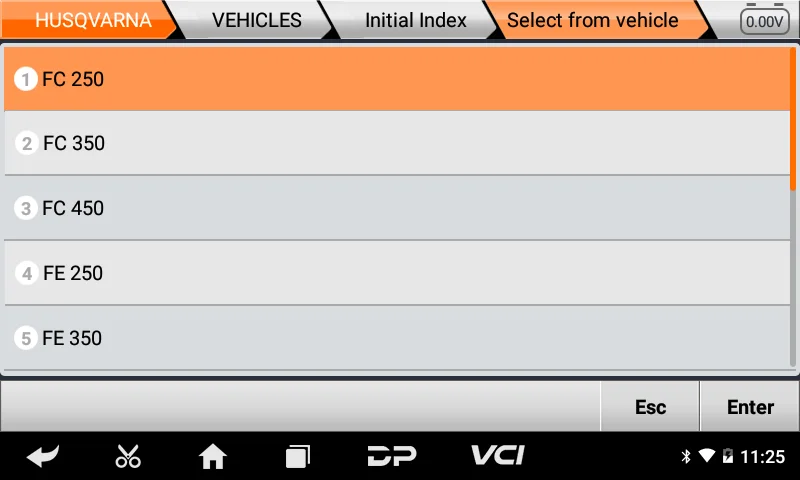

Function Display
Specifications:
Operation system |
Android 5.1.1 |
CPU |
RK3128 quad-core ARM cortex A7 |
Battery |
2600mA, rechargeable polymer lithium battery |
Extension memory card |
32G micro SD (TF) card supported |
Storage capacity |
16GB |
LCD |
5.0 inch |
LCD resolution |
800*480 |
Touch screen |
Capacitive touch screen |
Wifi |
Supported |
Working temperature |
-20℃~55℃ (14℉~131℉) |
Storage temperature |
-20℃~70℃ (-4℉~158℉) |
Weight |
About 700g |
Dimension |
198mm*115*mm*31mm |
