Foxwell T1000 TPMS Tool Programming Activate TPMS Sensors Check RF Key FOB Tire

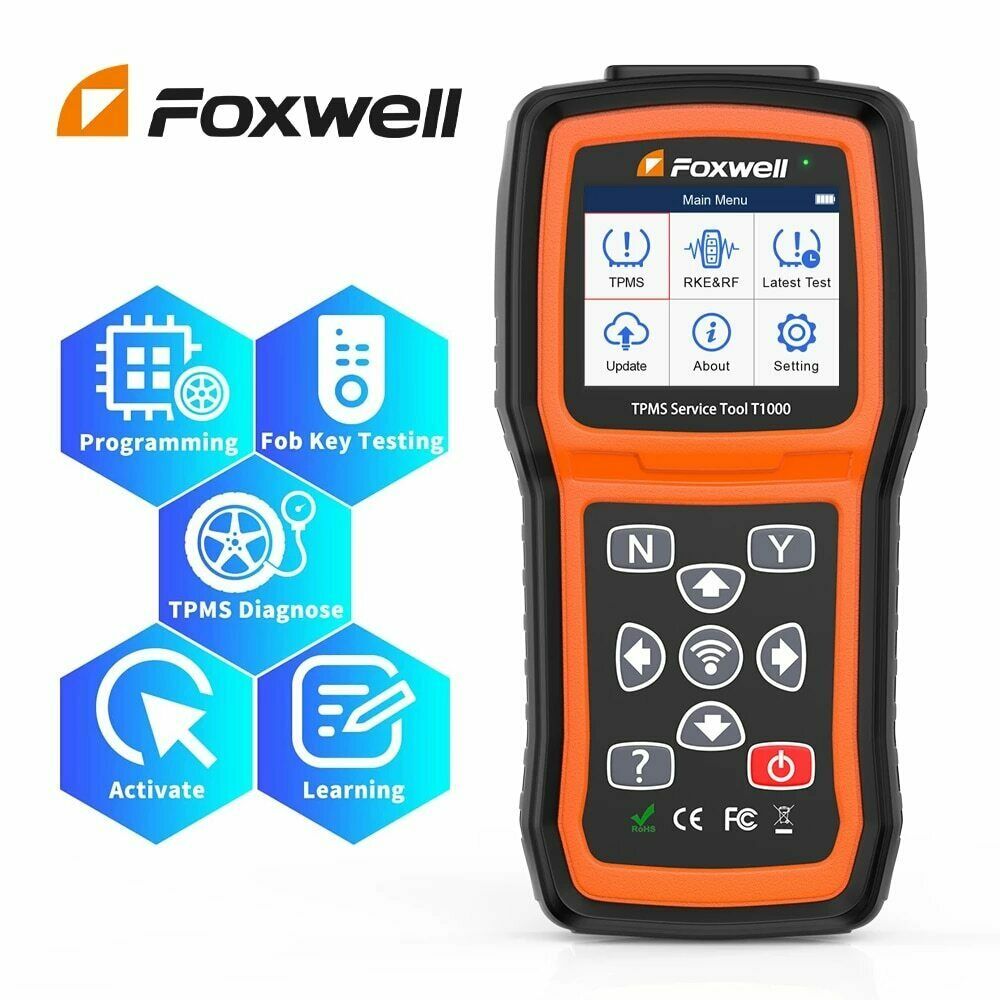

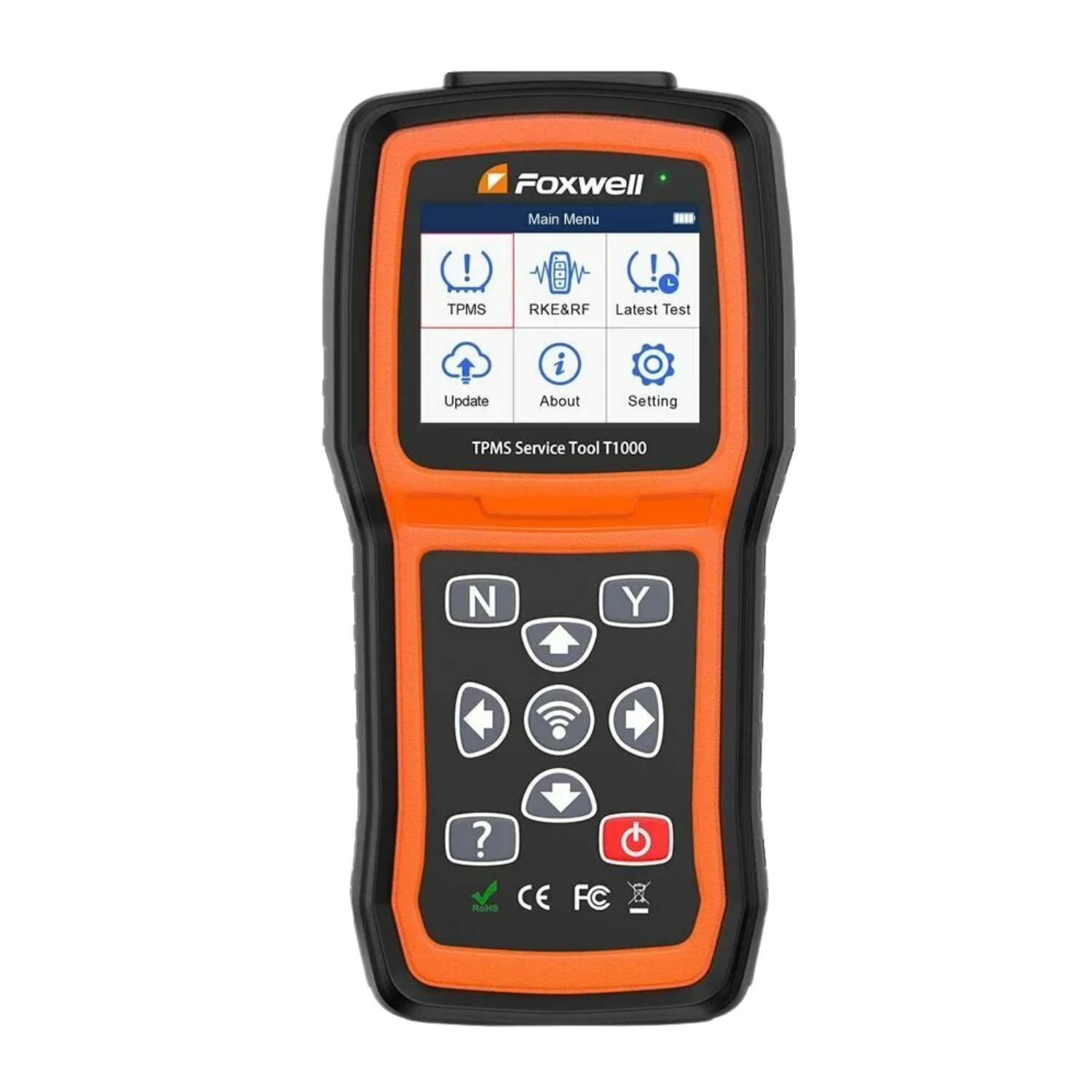

Foxwell T1000 ☛TPMS Service Tool

Foxwell's T1000 is an affordable universal TPMS service tool. It accurately activates and decodes TPMS sensors and program Foxwell self-developed T10 sensor. It is so easy that training is nearly not necessary as the whole process is displayed on-screen. Even the newest recruited technician can use the T1000 to complete his task.

Foxwell T1000 Features

●Able to Copy sensor ID and receive 315mhz 433mhz Sensor Activation Programming .
●Triggers all currently known TPMS sensors, including 2021 models.
●Make-model-year selection ensures correct activation and avoids crosstalk .
●Decodes sensor information and helps troubleshoting faulty sensors.
●Warn of a wrong sensor installed,miss a faulty sensor,duplicate ID, and incorrect sensor mode .
●Check RF remote keyless entry (key fob) .
●Clearly arranged kaypad and menu-driven operation .
●Built-in rechargeable Li-polymer battery-no battery to purchase.
●Easily Charged the tool with either wall plug or connecting to the computer.
●Multilingual Menu options, English, French Spanish and more.
●Lifetime free update via usb.
●Strong housing and protective rubber boot for tough workshop tests.

Program Foxwell T10 TPMS Sensors with seconds

Including Manual create, automotive create, clone by activation,programming work can be completed within seconds, very quick and convenience

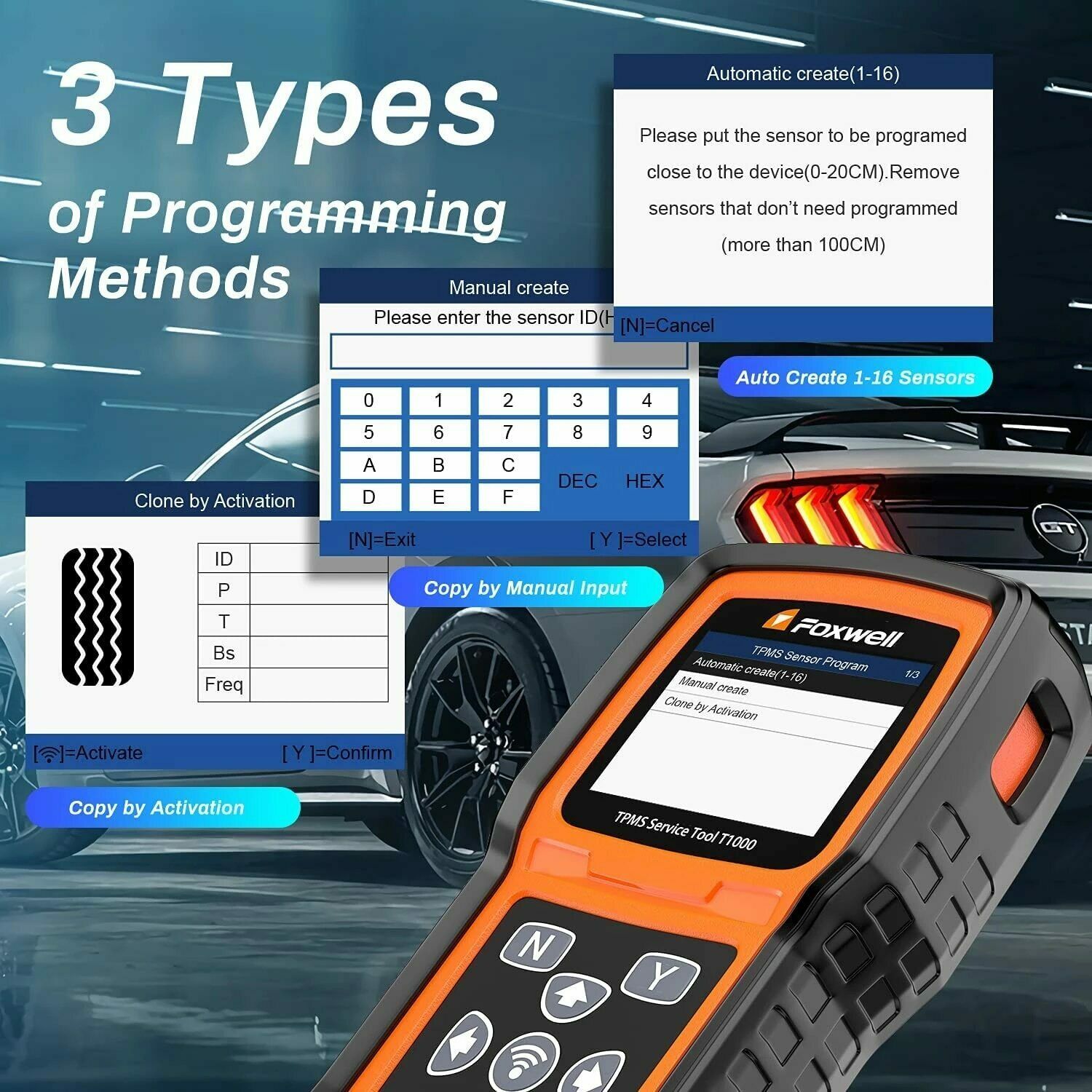

3 Methods for Quick TPMS Programming

Copy by Activation

The Clone By Activation function lets users automatically write in the retrieved original sensor data to the Foxwell Sensor which is used after the original sensor is triggered.

Place the tool near the sensor to be copied. 1)Highlight TPMS from the Main Menu and select the vehicle model as need. 2)Select Programming--Clone by Activation from the available menu. 3)Place the t1000 tool near the original sensor to be copied and press Activate to continue. 3)Place a new Foxwell Sensor in the sensor slot to program(around 0-20 cm). 3)T1000 automatically begins programming. 4) Programming is completed when you view the sensor and tire data.

Copy by Manual Input

The Manual Create function lets users to input the sensor ID manually. Input sensor ID. 1)Highlight TPMS from the Main Menu and select the vehicle model as need. 2)Select Programming--Manual Create from the available menu.3)Input the sensor ID in the dialog box and press Y to continue.

Auto Create 1-16 Sensors

Place 1-16 Sensor(s) close to the top of the tool. 1)FOXWELL T1000 automatically detects the sensor near the tool(around 0-20 cm). 2)Programming is completed when you view the sensor IDs and the PSNs.

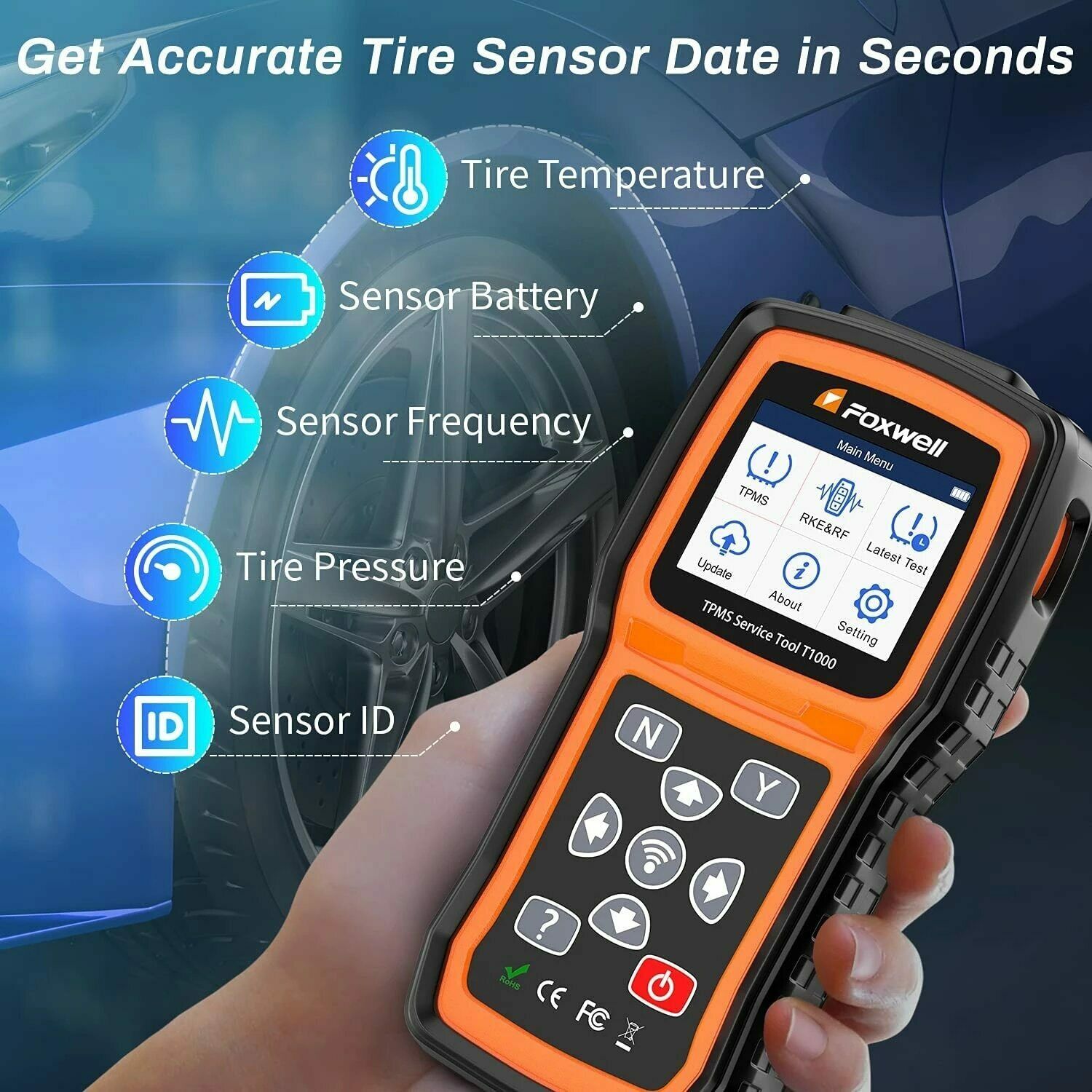

Read TPMS Sensor Data

Why is the TPMS light on? Weather if the tire air pressure are too low? Or is the sensor battery too weak? FOXWELL T1000 TPMS diagnostic tool can read the sensor ID, tire pressure, tire temperature, sensor battery, and frequency in seconds, help you figure out all TPMS problems fast.

Key FOB Testing (315/433MHz)

FOXWELL T1000 provides the key fob testing, which can precisely test the 315MHz or 433MHz key fobs to ensure whether it is perfectly running, being super easy for users to identify the key fob condition with the loud and clear audio and visual indication.

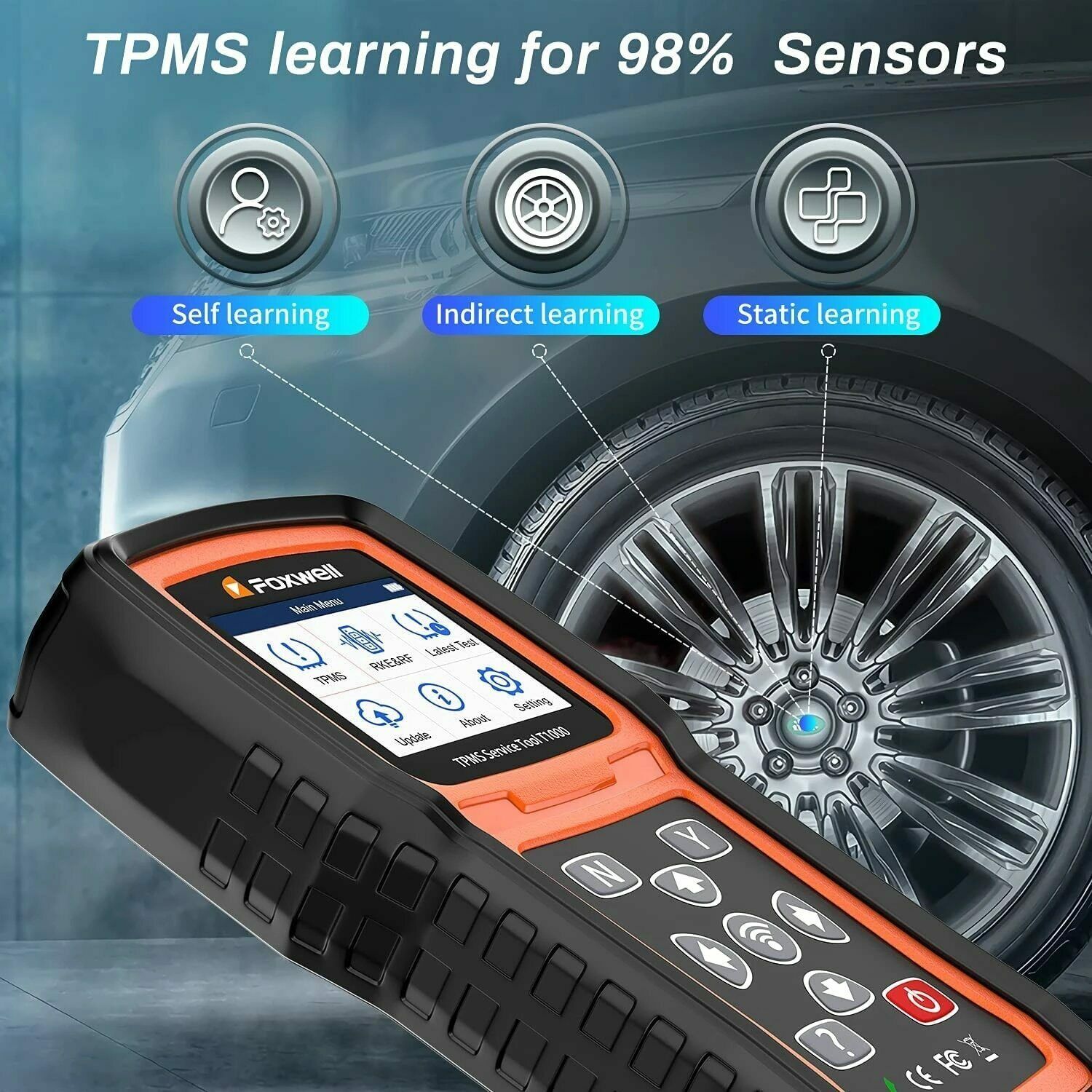

FOXWELL T 1000 Three Types of TPMS Sensor Relearn

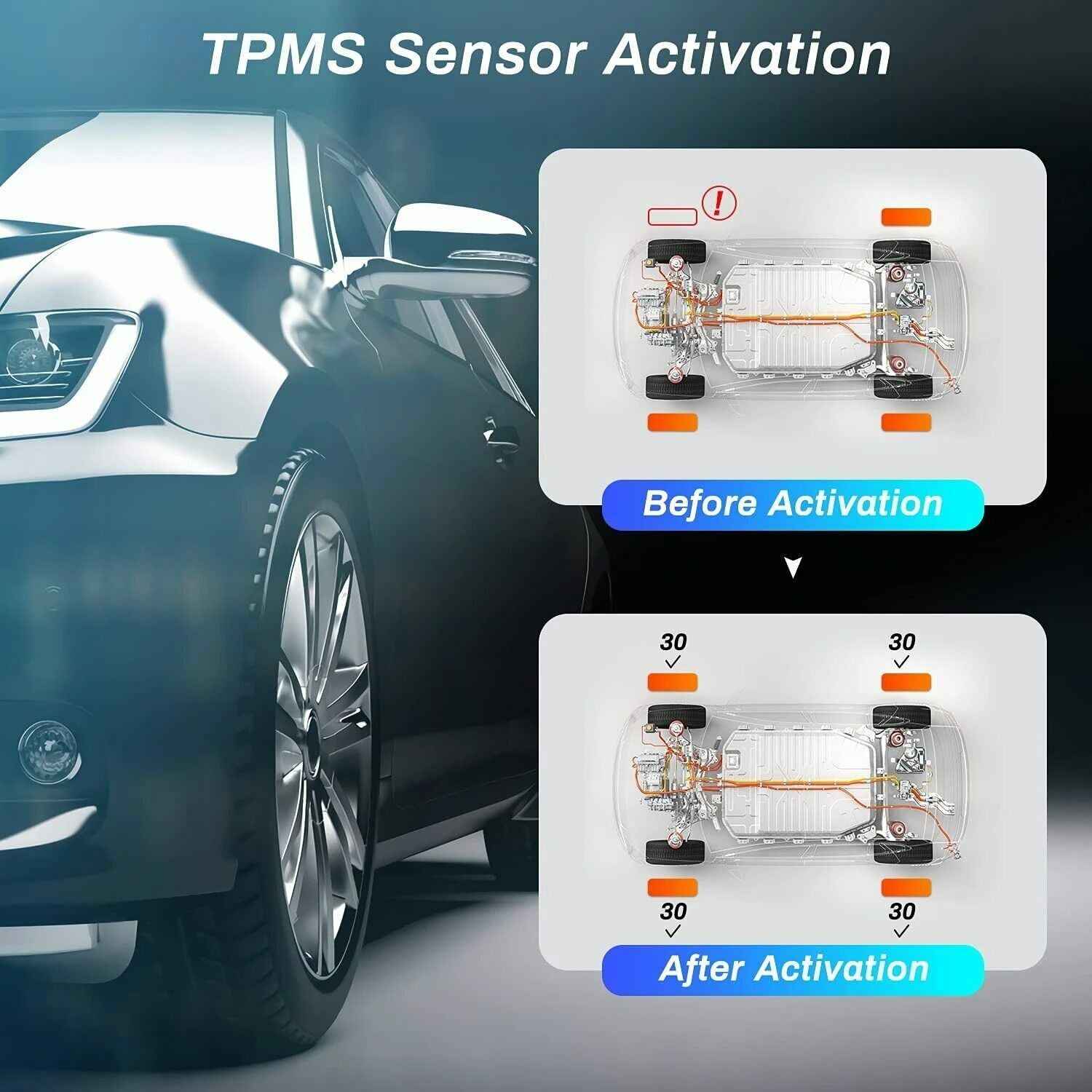

Activate TPMS Sensors

TPMS Sensor Activation Instruction

1.Highlight TPMS from the Main Menu and Y press the YES key to start.
2.On each screen that appears,select the
correct option and then press the YES
key. Do this until the complete vehicle
information is entered.
3.Place the tool to the correct position to
insure sensor activation and decode.
4.Press Activate to test the TPMS. If test
passes,TPMS data will be briefly
displayed for 3 seconds.

TPMS Sensor Activation

1. Highlight TPMS from the main menu and select the vehicle model as need
2. Select trigger from the available menu.
3. Place the tool to the correct position to ensure sensor activation and decode.
4. Press activate to test the TPMS, if test passed, TPMS data will be briefly displayed for 3 seconds.

Foxwell T1000 Support Language


if no NEW language, please update it.

Foxwell T1000 Support More Than 87 brands

for Buick, for Cadillac, for Chevrolet, for Chrysler, for Dodge,
for Ford, for GMC, for Hummer, for HSV, for Jeep, for Lincoln,for Tesla,

for Abarth, for Alfa Romeo, for Alpina, for Aston Martin, for Audi, for Bentley, for Bluesg, for Bmw, for Bugatti, for Citroen, for Dacia, for Ferrari, for Fiat, for Jaguar, for Lamborghini, for Lanice, for Lotus, for Man, for Maserati, for Maybach, for Mclaren, for Mercedes, for Mini, for Opel, for Peugeot, for Porsche, for Renault, for Retrofit, for Rolls Royce, for Saab, for Seat, for Skoda, for Smart, for Vauxhall, for Volkswagen, for Volvo

for Acura, for Daewoo,for Honda, for Holden, for Hyundai,for Infiniti, for Isuzu,for KIA, for Lada, for Lexus, for Mahindra, for Mazda,for Mitsubishi,for Nissan,for Scion, for Ssang Yong, for Subaru, for Suzuki, for Toyota

For Baic, for Borgward, for BYD, for Changan, for Chery, for CMS, for DFM, for FAW, for Foton, for Geely, for Greatwall, for Haval, for JAC, for Lifan, for Luxgen, for MG, for Qoros, for Zhonghua, for Zotye

Lifetime Free Update via USB Cable

Package List

1*T1000 Main Unit
1*USB Mini Cable
1*Magent (send random)
1*Battery Charger
1*User Quicker Guide
1*Warranty Card
1*Blow Molding Case

NOTE:The scanner has a built-in lithium-ion polymer rechargeable battery.
