ELM327 OBD2 Scan Tool For Android / iPhone Car OBD II Engine Data Code Reader
2
sold in last
8
hours
Out of stock
Many in stock
$34.99
customers are viewing this product
The ELM327 WIFI OBDII interface is an engine performance and diagnostics tool for automotive professionals and enthusiasts that allows you to wirelessly connect your car's on-board computer from your any Wi-Fi enabled device with the compatible application or software. The WiFi connectivity makes it compatible with BOTH Apple iOS (iPhone®, iPad®, iPod® Touch) and also Android devices!
â Genuine 25K80 Chip
â 1 Year Warranty
Key Highlights
⢠Read and erase diagnostic trouble codes (DTCs) and turn off the check engine light
⢠Compatible with BOTH Apple® iOS and Android devices
⢠Pays for itself with one use
⢠Hassle-free setup: Setup in seconds
⢠View real-time vehicle data, graphs and performance parameters while you're driving
⢠Find and fix problems before they happen
⢠Support for low power sleep mode and high-speed communication
⢠Compatible with all OBDII compliant vehicles
⢠WiFi connection provides a wider operating range than Bluetooth
⢠Compatible with SAE J1850 PWM and SAE J1850 VPW protocols found on many Ford and GM vehicles (these protocols are NOT supported on cheaper scanners)
Product Description:
With the appropriate applications, you can:
⢠Read diagnostic trouble codes, both generic and manufacturer-specific, and display code descriptions with over 3000 universal code definitions in the database
⢠Clear diagnostic trouble codes and turn off check engine lights
⢠Display and record real-time sensor data, including:
⢠Vehicle Speed
⢠RPM
⢠Fuel Consumption
⢠Engine Coolant Temp
⢠Fuel Pressure
⢠Calculated Engine Load
⢠Throttle Position
⢠Intake Manifold Pressure
⢠Air Intake Temp
⢠Timing Advance
⢠Mass Air Flow Rate
⢠Fuel Level
⢠Barometric Pressure
⢠EVAP System Vapor Pressure
⢠Fuel Trim
⢠Engine RPM,
⢠Fuel System Status
⢠Vehicle Speed
⢠Short Term Fuel Trim
⢠Long Term Fuel Trim
⢠Timing Advance
⢠Absolute Throttle Position
⢠Oxygen sensor voltages/associated short term fuel trims
⢠Fuel Consumption
⢠Engine Coolant Temp
⢠Fuel Pressure
⢠Calculated Engine Load
⢠Throttle Position
⢠Intake Manifold Pressure
⢠Air Intake Temp
⢠Timing Advance
⢠Mass Air Flow Rate
⢠Fuel Level
⢠Barometric Pressure
⢠EVAP System Vapor Pressure
⢠Fuel Trim
⢠Engine RPM,
⢠Fuel System Status
⢠Vehicle Speed
⢠Short Term Fuel Trim
⢠Long Term Fuel Trim
⢠Timing Advance
⢠Absolute Throttle Position
⢠Oxygen sensor voltages/associated short term fuel trims
⢠+ Much more...
Compatibility
Recommended Android App: Dash Command - DashCommand is an app for your car. It turns your iPhone/iPad/iPod into an advanced display for your engine data. Want to know why the check engine light keeps going on? Check it with DashCommand.
Recommended Android App: Dash Command - DashCommand is an app for your car. It turns your iPhone/iPad/iPod into an advanced display for your engine data. Want to know why the check engine light keeps going on? Check it with DashCommand.
APPLICATIONS DETAILS
Apple iOS
Free
Paid
iPad Optimized Apps
Specifications
SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 FT (Line of sight)
Antenna Type: Internal
Operating voltage: 12V, internal protection from shorcircuits/overvoltages
Nominal idle current: 45mA
Power Consumption: 0.75 Watts
Wi-Fi Standard: 802.11a/b/g
Operating Temperature: -15 to 100
Dimensions: 2.75 x 1.25 x 1.2 inches
Item Weight: 59.3g
Package Weight: 124g
Vehicle Coverage / Compatible Protocols:
ELM327 WIFI detects and interprets these protocols automatically. It also provides support for high speed communications and a low power sleep mode. There are plenty of compatible software packages available that offer useful features such as real-time engine parameters and Engine check light reading and clearing.
Note: Our scanner is suitable to all car brands, but not all car models. Before you make order, please check whether your car model has one of the following protocols.
⢠ISO 9141-2 (5 baud init, 10.4 kbaud)
⢠ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
⢠ISO 14230-4 KWP (fast init, 10.4 kbaud)
⢠ISO 15765-4 CAN (11 bit ID, 500 kbaud)
⢠ISO 15765-4 CAN (29 bit ID, 500 kbaud)
⢠ISO 15765-4 CAN (11 bit ID, 250 kbaud)
⢠ISO 15765-4 CAN (29 bit ID, 250 kbaud)
⢠SAE J1850 PWM (Found on many Ford vehicles)
⢠SAE J1850 VPW (Found on many GM vehicles)
Apple iOS Easy Setup:
1. Go to WiFi settings, search for the WiFi connection from the scanner and connect to it
2. Open your favorite application and connect. If necessary, set the IP to 192.168.0.10 and Port 35000 in settings

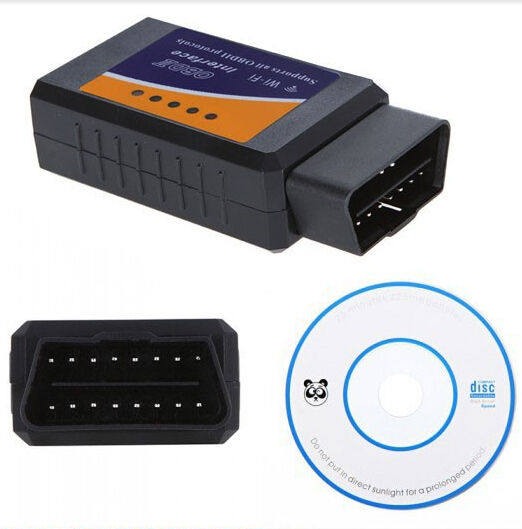

Package Content
1 x ELM 327 WIFI OBD2 / OBDII V1.5 Auto Diagnostic Scanner Tool
1 x CD Driver
1 x CD Driver
