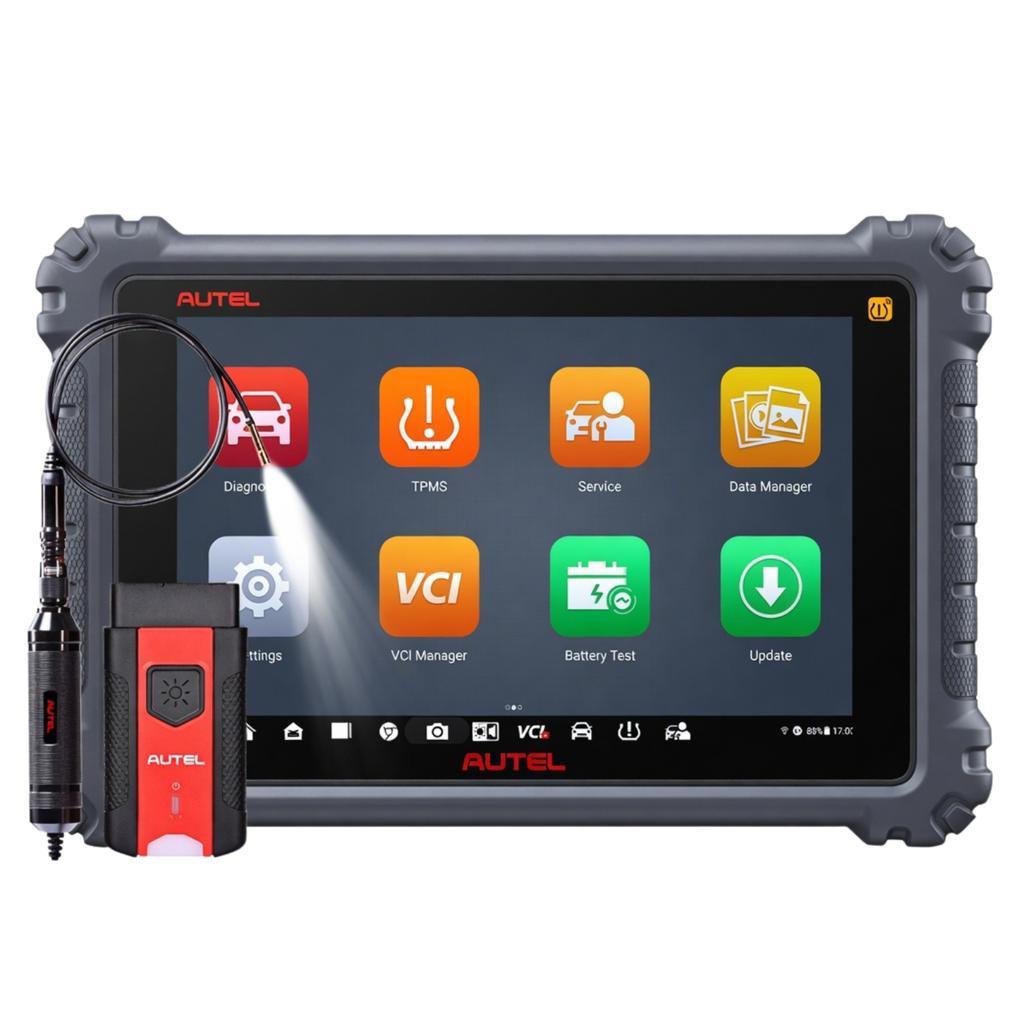

Autel MaxiCOM MK906 Pro-TS Diagnostic Scan Tool

Advanced OE-Level Diagnostic Scanner with Full TPMS, ECU Coding, Bi-Directional Control & 36+ Services

The Autel MaxiCOM MK906 Pro-TS Diagnostic Scan Tool is a high-performance, professional-grade automotive scanner designed for workshops, technicians, and advanced users. As an upgraded version of MS906 PRO-TS, it integrates OE-level diagnostics, full TPMS service, ECU coding, and advanced maintenance functions into one powerful device.

With no IP restrictions and 20+ language support, this tool is ideal for global usage, providing flexibility and scalability for automotive professionals worldwide.

Key Advantages

• No IP Restriction – Use anywhere globally without limitations
• 20+ Language Support – Easy switching for international users
• All-in-One Solution – Combines diagnostics, TPMS, ECU coding, and service functions
• Workshop-Level Performance – Suitable for professional garages and technicians

Powerful Hardware Specifications

Built with cutting-edge hardware to ensure fast diagnostics and smooth multitasking:

• Processor: Qualcomm 8-Core CPU
• Operating System: Android 10.0
• Display: 8-inch HD Touchscreen (1920 × 1200 resolution)
• Memory: 4GB RAM + 128GB ROM
• Camera: Front & Rear 16MP Cameras
• Battery: 11,600 mAh long-lasting rechargeable battery
• Connectivity: Dual-band Wi-Fi (2.4GHz & 5GHz), Bluetooth VCI
• VCI: MaxiVCI V200 supporting latest protocols

High-Performance Hardware & Advanced System

The MK906 Pro-TS is equipped with top-level hardware to ensure smooth and efficient operation. It features a Qualcomm 8-core processor, Android 10 operating system, 4GB RAM, and 128GB internal storage for fast processing and multitasking. The 8-inch LCD touchscreen with 1920×1200 resolution delivers clear visuals and responsive control. It also includes dual 16MP front and rear cameras, a powerful 11,600 mAh battery for long working hours, and dual-band Wi-Fi (2.4GHz and 5GHz) for stable connectivity. The included MaxiVCI V200 interface supports the latest communication protocols, ensuring compatibility with modern vehicles.

Complete TPMS Service Functions

The MK906 Pro-TS offers full TPMS service capabilities, making it a professional-grade TPMS tool. It can activate nearly all 315MHz and 433MHz TPMS sensors, program Autel MX-Sensors, relearn sensors, and retrieve OEM sensor part numbers quickly. It allows technicians to diagnose TPMS system health, turn off warning lights, and perform TPMS module retrofits. With the ability to handle up to 99% of TPMS-related tasks, it provides a complete solution for tire pressure monitoring diagnostics and maintenance.

Advanced ECU Online Coding & Offline Adaptation

This scanner supports advanced ECU online coding and offline adaptation, similar to high-end models like MaxiSys Elite and MK908 series. It enables users to access manufacturer servers, modify ECU parameters, and customize vehicle settings. Functions include component matching, adaptive data reprogramming, and unlocking hidden features. Technicians can disable unwanted features such as seatbelt warnings or automatic start-stop, and enhance vehicle performance by adjusting system parameters. It supports ECU coding for brands such as BMW (F and E chassis), Volkswagen, Porsche, Nissan, Hyundai, and offers offline adaptation for Ford and other models.

Full-System Diagnostics & Bi-Directional Control

The MK906 Pro-TS delivers OE-level full-system diagnostics, covering all major vehicle systems including engine, transmission, ABS, SRS, BCM, and IMMO. It allows reading and clearing of diagnostic trouble codes, viewing live data, and performing deep system analysis. With bi-directional control (active testing), technicians can send commands to vehicle components such as actuators, relays, valves, and sensors to test their functionality in real time. This helps accurately identify faults and verify repairs without unnecessary part replacements.

36+ Maintenance Services & Reset Functions

This diagnostic tool includes over 36 advanced maintenance services, covering essential and complex repair tasks. Key functions include oil reset, EPB reset, battery management system (BMS), DPF regeneration, injector coding, throttle adaptation, transmission adaptation, ABS bleeding, seat calibration, gear learning, and safety system resets. It also supports IMMO-related functions and battery testing, making it a versatile tool for routine servicing and advanced diagnostics.

Support for CAN FD, DoIP & Advanced Protocols

The MK906 Pro-TS supports modern communication protocols including CAN FD (for newer GM vehicles) and DoIP (for BMW, Jaguar, Land Rover, and other advanced models). This ensures compatibility with the latest vehicle technologies and allows faster data transmission during diagnostics. It also includes FCA AutoAuth support for secure access to protected vehicle systems.

Extended Functions & Professional Features

This scanner is designed to expand with additional tools and features, making it a complete workshop solution. It supports VAG guided functions for brands like Bentley, Volkswagen, Audi, Skoda, and Seat. Additional capabilities include cloud-based diagnostic reports, Wi-Fi printing, and integration with accessories such as the BT506 battery tester, MP408 oscilloscope, and MV105/MV108 inspection cameras. These features enhance diagnostic accuracy and workflow efficiency.

Vehicle Customization & Hidden Feature Activation

The MK906 Pro-TS allows extensive vehicle customization, enabling technicians to modify system behavior and unlock hidden features. Examples include automatic door locking based on speed, mirror folding, window control via remote, lighting customization, dashboard display adjustments, emergency brake light flashing, daytime running light control, and more. These functions provide added value by enhancing both performance and user experience.

Professional All-in-One Diagnostic Solution

Combining full TPMS functionality, advanced ECU coding, bi-directional control, and OE-level diagnostics, the Autel MaxiCOM MK906 Pro-TS is a comprehensive and future-ready automotive diagnostic tool. With global usability, powerful hardware, and extensive features, it is the ideal choice for professional technicians and workshops looking for a reliable, high-performance scanner capable of handling modern vehicle diagnostics and maintenance with precision and efficiency.

Full TPMS Service Functions

The MK906 Pro-TS delivers complete TPMS diagnostics and programming, making it one of the most powerful TPMS tools available.

TPMS Capabilities:

• Activate 99% of TPMS sensors (OEM & aftermarket)
• Perform TPMS sensor relearn (Stationary, Automatic, OBD)
• Program Autel MX-Sensors
• Retrieve OEM sensor part numbers instantly
• Monitor tire pressure, temperature & battery status
• Perform TPMS health check & diagnostics
• Support TPMS retrofit installation

Advanced ECU Coding & Adaptation

This tool provides professional ECU coding and customization capabilities similar to high-end scanners.

ECU Functions:

• Online ECU Coding (BMW, VW, Porsche, Nissan, Hyundai, etc.)
• Offline Adaptation (Ford and other supported brands)
• Component Matching & Relearning
• Custom Parameter Settings
• Disable unwanted features (seatbelt warnings, start-stop, etc.)
• Unlock hidden vehicle functions

Vehicle Customization Examples:

• Auto door locking at specific speeds
• Mirror auto-folding
• Daytime running light adjustments
• Dashboard brightness control
• Fuel consumption display
• Lighting system coding

OE-Level Full System Diagnostics

Perform complete diagnostics across all vehicle systems:

• Engine, Transmission, ABS, SRS, BCM, IMMO, and more
• Read and clear DTCs (Diagnostic Trouble Codes)
• View live data streams and freeze frame data
• Perform component testing and system analysis

Bi-Directional Control & Active Tests

With full bi-directional control, technicians can send commands to vehicle components and verify functionality.

Active Test Examples:

• Fuel pump operation
• A/C system testing
• Injector testing
• Window, mirror, and door controls
• Cooling fan and relay activation
• Throttle and actuator testing

36+ Advanced Service Functions

Covers 99% of daily maintenance tasks for modern vehicles:

• Oil Reset
• EPB (Electronic Parking Brake)
• ABS Bleeding
• SAS Calibration
• DPF Regeneration
• BMS (Battery Management System)
• Throttle Relearn
• Injector Coding
• Transmission Adaptation
• Gear Learning
• IMMO & Key Programming
• And many more advanced reset and relearn functions

Latest Communication Protocols

Stay compatible with modern vehicles using:

• CAN FD Protocol – Supports GM 2020+ vehicles
• DoIP Protocol – Compatible with BMW, Jaguar, Land Rover, Volvo
• FCA AutoAuth – Access secure FCA vehicles (Chrysler, Jeep, Dodge, Fiat)

Extended Professional Features

Enhance diagnostics with additional capabilities:

• VAG Guided Functions (VW, Audi, Skoda, Bentley)
• Wi-Fi Printing – Instant diagnostic reports
• Cloud Diagnostic Reports – Store and share data
• Battery Testing Support (with BT506)
• Oscilloscope Support (MP408)
• Endoscope Compatibility (MV105/MV108)
• Pre & Post Scan Reports for comparison

Vehicle Coverage

• Supports US, European, and Asian vehicles (1996–latest models)
• Works with passenger cars, SUVs, and light trucks
• Covers 150+ vehicle brands globally

Technical Specifications

• Display: 8.0” LED Touchscreen (1920×1200)
• OS: Android 10
• Memory: 4GB RAM / 128GB ROM
• Input Voltage: DC 9–35V
• Connectivity: Bluetooth, Wi-Fi
• OBD Interface: OBDII
• Battery: 11,600 mAh
• Weight: 1.10 kg
• Languages: English + 20+ languages
• Warranty: 1 Year
• Free Updates: 1 Year

Supported Systems

• Engine
• Transmission
• ABS
• SRS
• EPB
• TPMS
• DPF
• BMS
• SAS
• Oil Service Reset

Package Includes

• Diagnostic Tablet
• MaxiVCI Interface
• Adapter Cables
• USB Cable
• Carrying Case
• User Manual

Why Choose MK906 Pro-TS?

The Autel MaxiCOM MK906 Pro-TS stands out as a professional automotive diagnostic scanner combining powerful hardware, advanced ECU coding, full TPMS functionality, and OE-level diagnostics at a competitive price point.

It is ideal for:

• Automotive workshops
• Professional mechanics
• Advanced DIY users
• TPMS specialists
