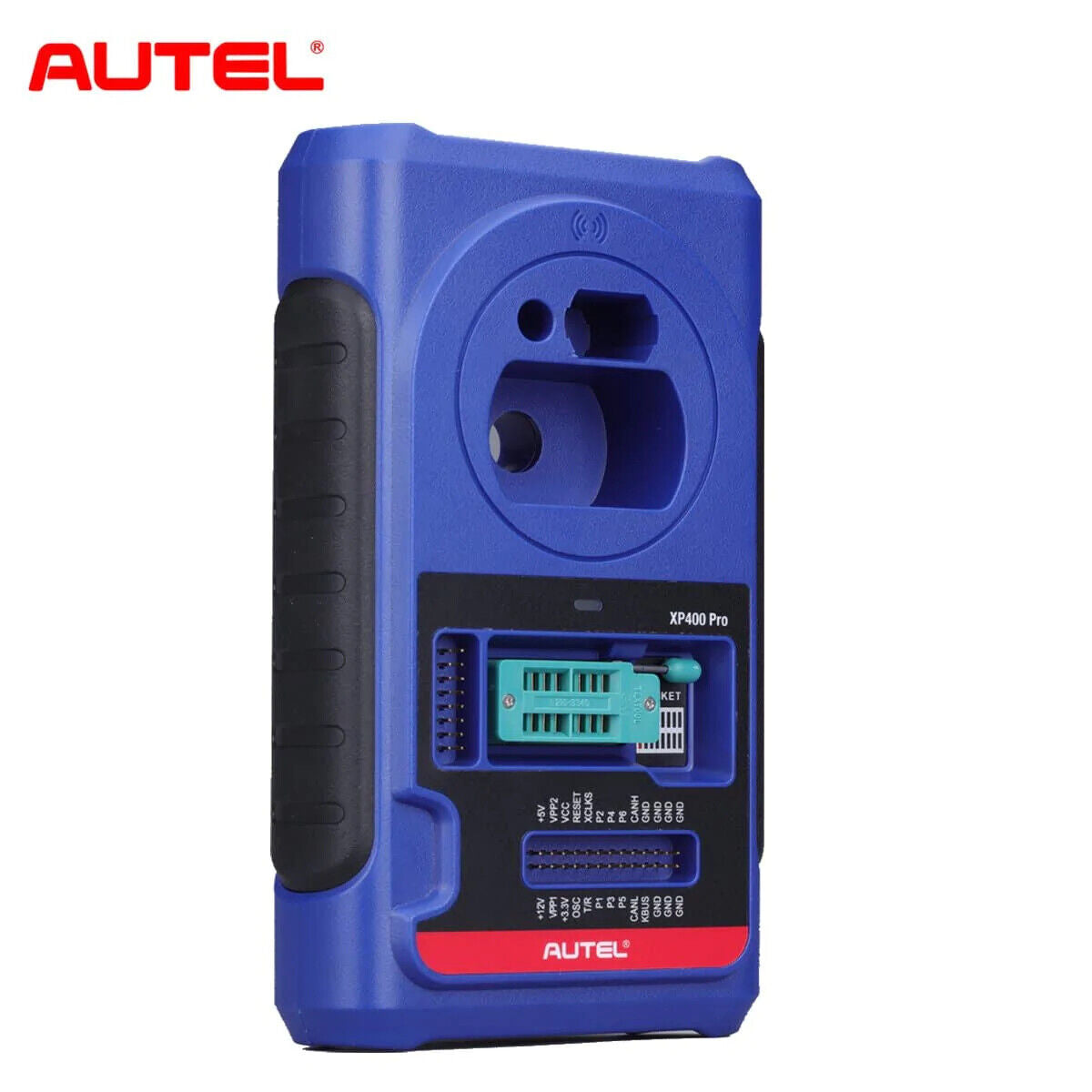

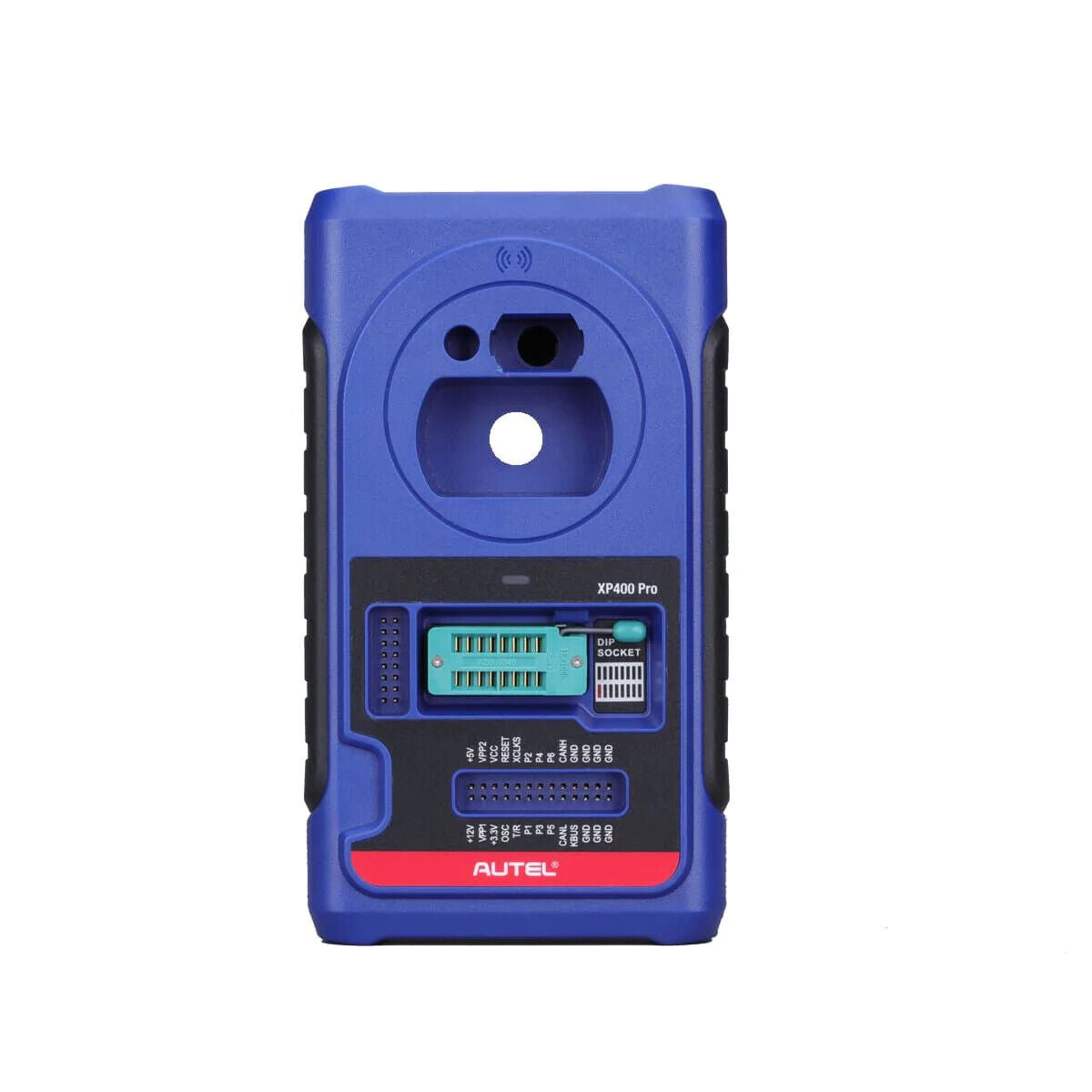

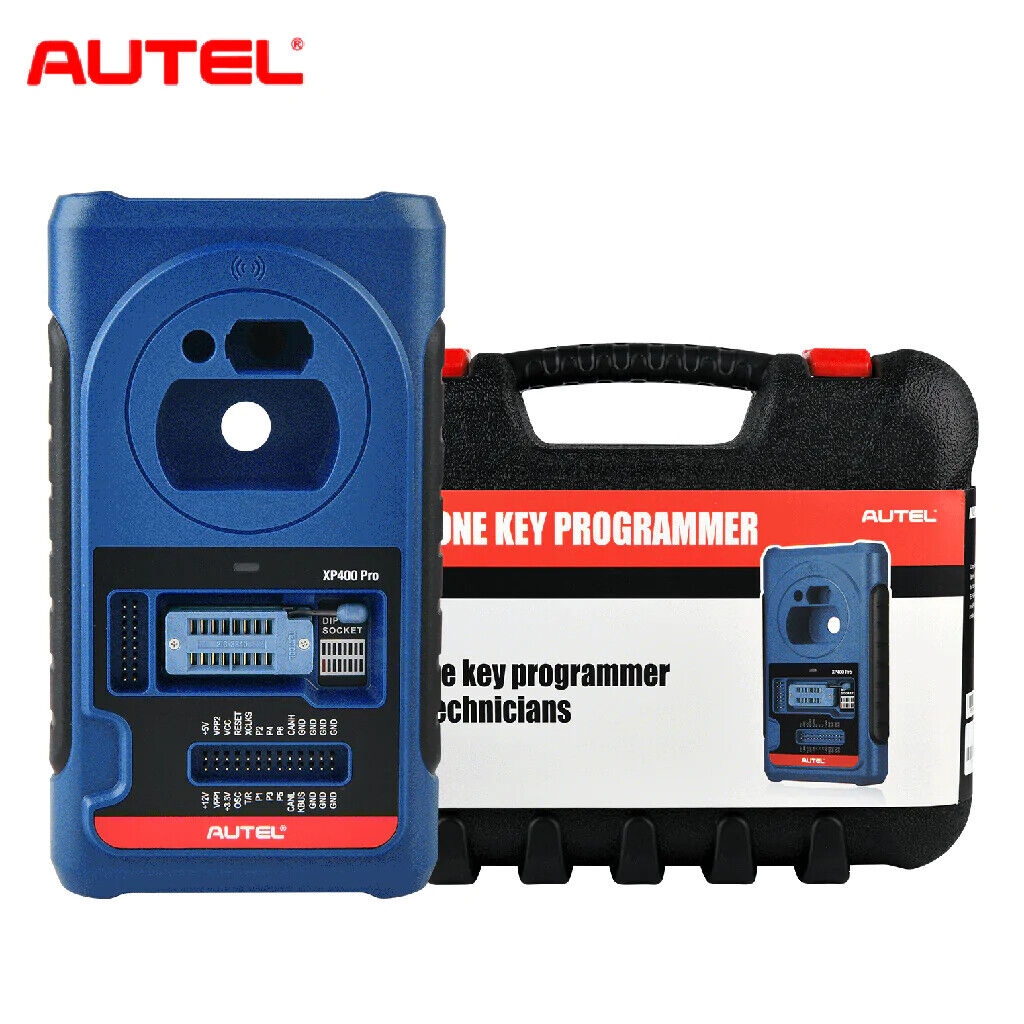

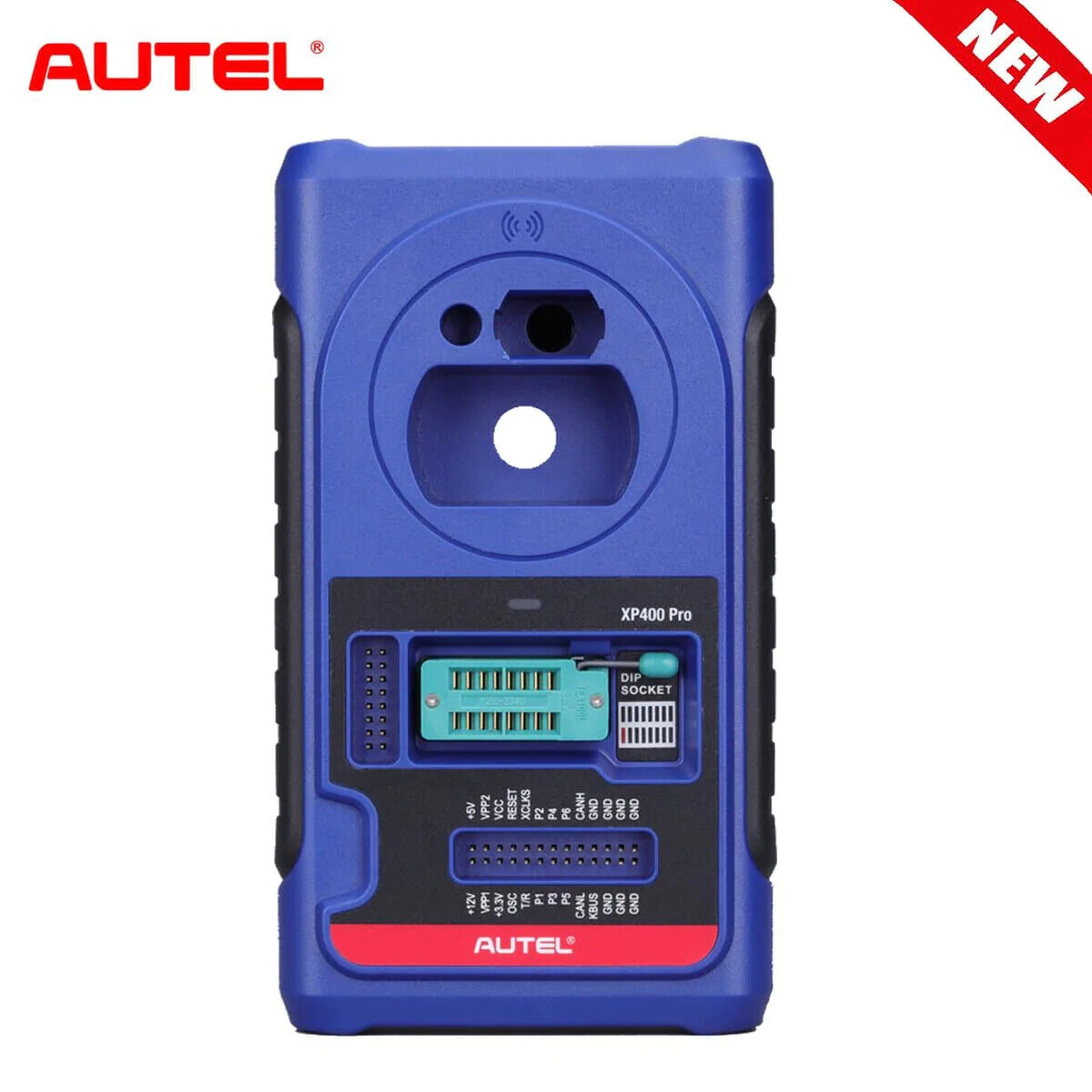

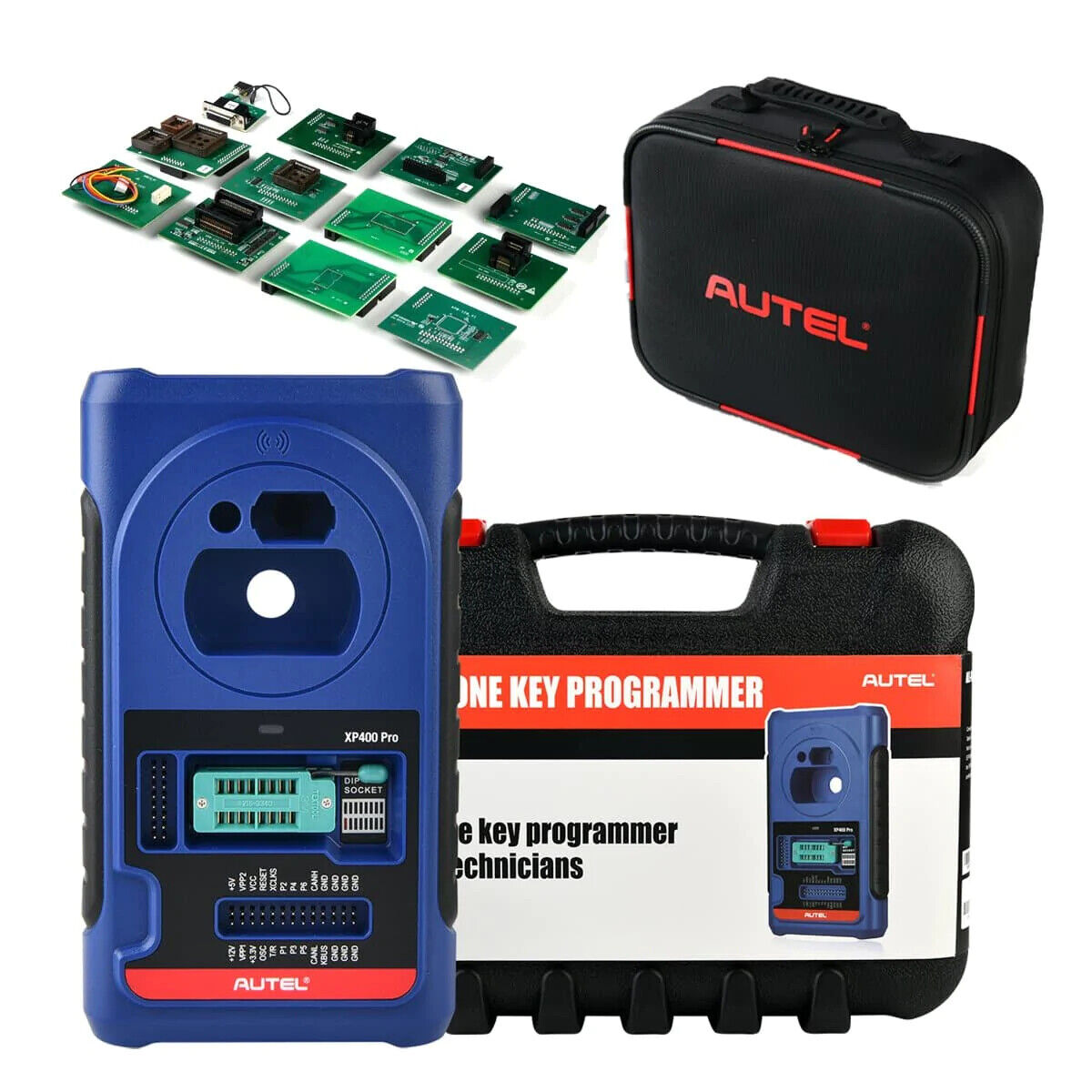

Autel XP400 Pro Programmer IMKPA Kit Expanded IMMO Programming Accessories Work

 Pro Functions:

• (1) Read transponder data (including Mercedes Benz infrared smart
• IMMO), and generate exclusive IMMO.
• (2) Read/write on-board EEPROM chip data, and read/write
• MCU/ECU chip data.
• (3) Read/write remote control transponder data and detect IMMO
• frequency.
• (4) Compatible with the IMMO programming diagnostic tablet or a computer with installed IMMO programming software, the XP400 Pro can read/write transponder data quickly and accurately.

XP400 Pro Programmer Features:

1. Advanced all-in-one IMMO Programmer;
2. Expanded EEPROM functions for more component access;
3. 170+ Types Odometer component reading functions;
4. 180+ Immobilizer ECU component types;
5. 40+ Engine ECU component types;
6. 2000+ MCU component types;
7. 440+ EEPROM component types;
8. Compatible with IM508 and IM608;
9. Includes 1-Year Warranty / Free Software Update for Life of Tool

MaxiIM IMKPA

• IMKPA is a IMMO Programming Adapter Kit, compatible with the XP400Pro IMMO & Chip Programmer. Includes 12 adapters for the XP400 Pro that enable to Read / Write / Erase for Mercedes Benz ESL_W209 / W906 Data, Mercedes Benz NEC IMMO Learning, BMW EWS3 IMMO Learning and Volkswagen / AUDI / BMW / Benz IMMO Unlock. Compatible with the IM608 and IM508 with XP400 Pro.

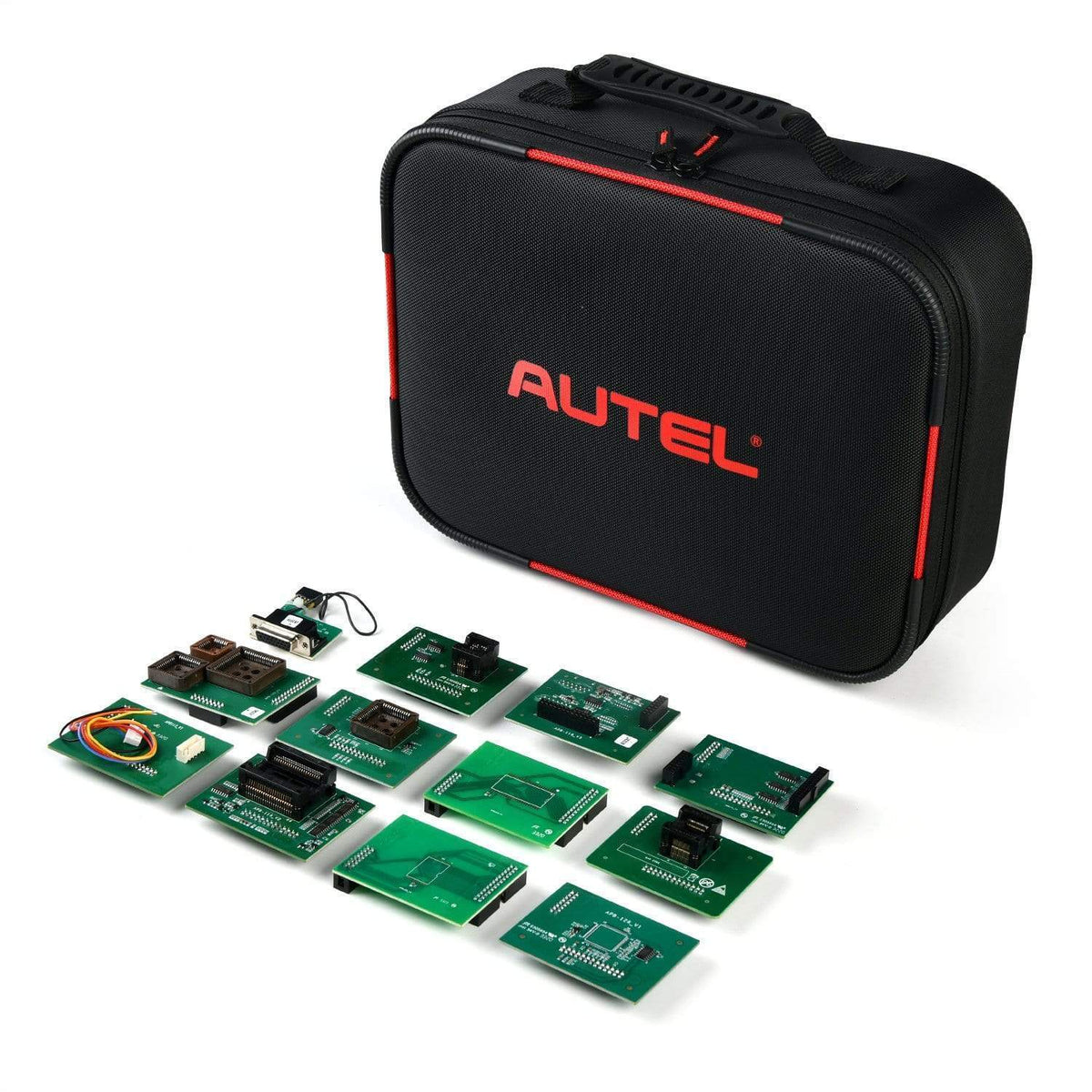

IMKPA Kit

• Expanded IMMO Programming Accessories
• Supports over 10 IMMO unlock types
• BMW EWS3 IMMO learning
• Benz NEC IMMO leering
• Benz ESL_W209 read/write/erase
• Compatible with IM508 and IM608 (XP400 Pro required)

XP400 Pro Specifications:

• Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
• Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉)
• Port Type: B-USB, DB26, DC12
• Input Voltage: 5 VDC, 12VDC
• Operating Current: < 500 mA
• Maximum Consumption: 2.5 W
• Device Dimensions: (L*W*H) 168 mm*98 mm*30 mm
• Net Weight: 520g

XP400 Pro Package List

• 1 x XP400 Pro Main Unite
• 1 x APB129 – EEPROM Adapter
• 1 x APA002 – EEPROM Socket
• 1 x APB125 – Mercedes Infrared Collector
• 1 x APB103 – MCU_PLCC52 Adapter
• 1 x APB104 – MCU_FQFP64 Adapter
• 1 x APB105 – MCU_FQFP80 Adapter
• 1 x APB106 – MCU_FQFP112 Adapter
• 1 x APB107 – MCU_FQFP144 Adapter
• 1 x APB108 – MCU_FQFP176 Adapter
• 1 x APB109 – MCU_FQFP32 Adapter
• 1 x APB110 – MCU_FQFP48 Adapter
• 1 x APB111 – MCU_SO28 Adapter
• 1 x APA101 – Spare Signal Cable
• 1 x APC101 – USB Cable (Standard USB –Type B USB)
• 1 x APA103 – EEPROM Clamp
• 1 x Dupont Line
• 1 x APA107 – ECU Cable
• 1 x APA108 – MCU Cable
• 1 x APA109 – MC9S12 Cable

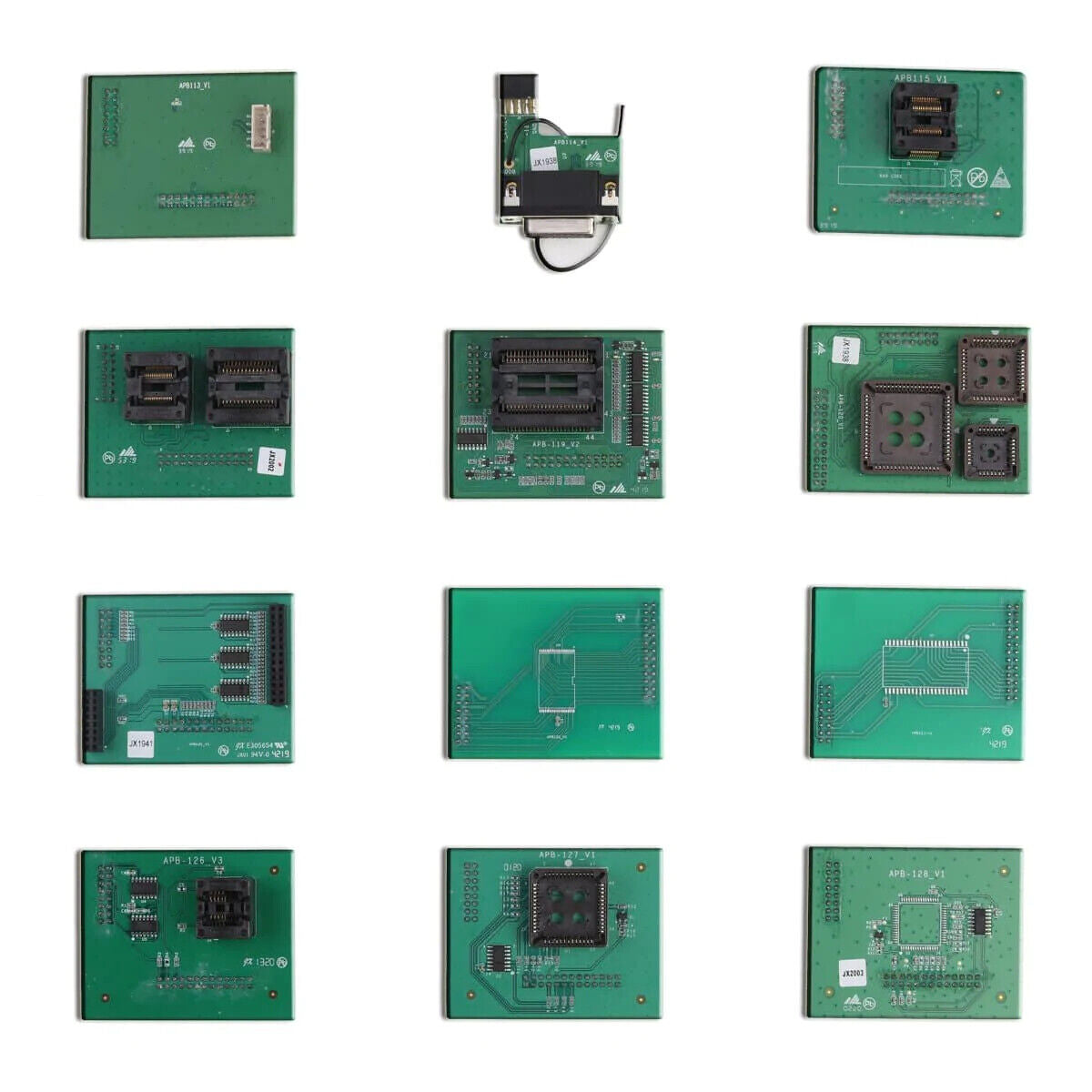

IMKPA Kit Package List:

• 1 x APB113
• 1 x APB114
• 1 x APB115
• 1 x APB118
• 1 x APB119
• 1 x APB120
• 1 x APB121
• 1 x APB122
• 1 x APB123
• 1 x APB126
• 1 x APB127
• 1 x APB128

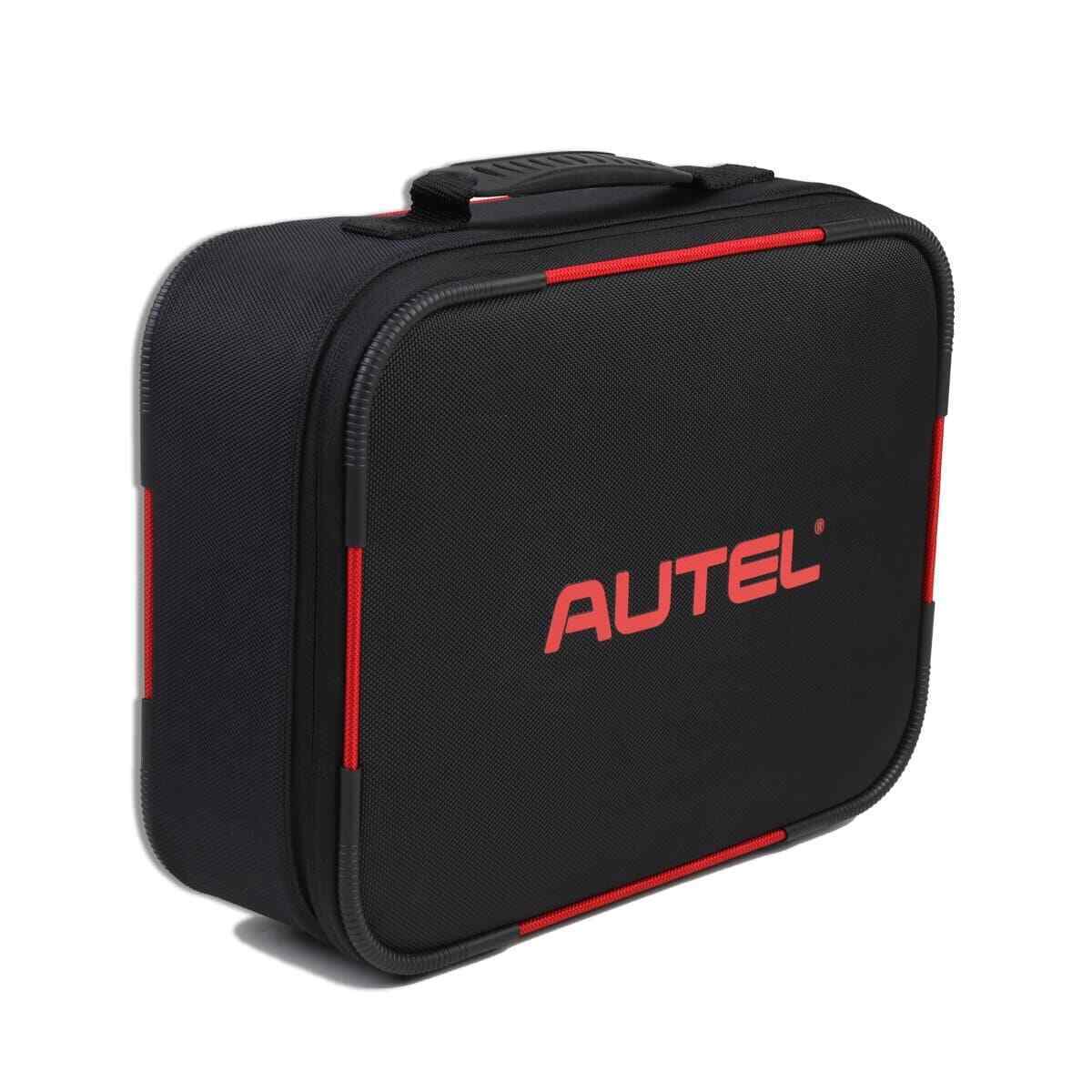

• 1 x Storage Case
