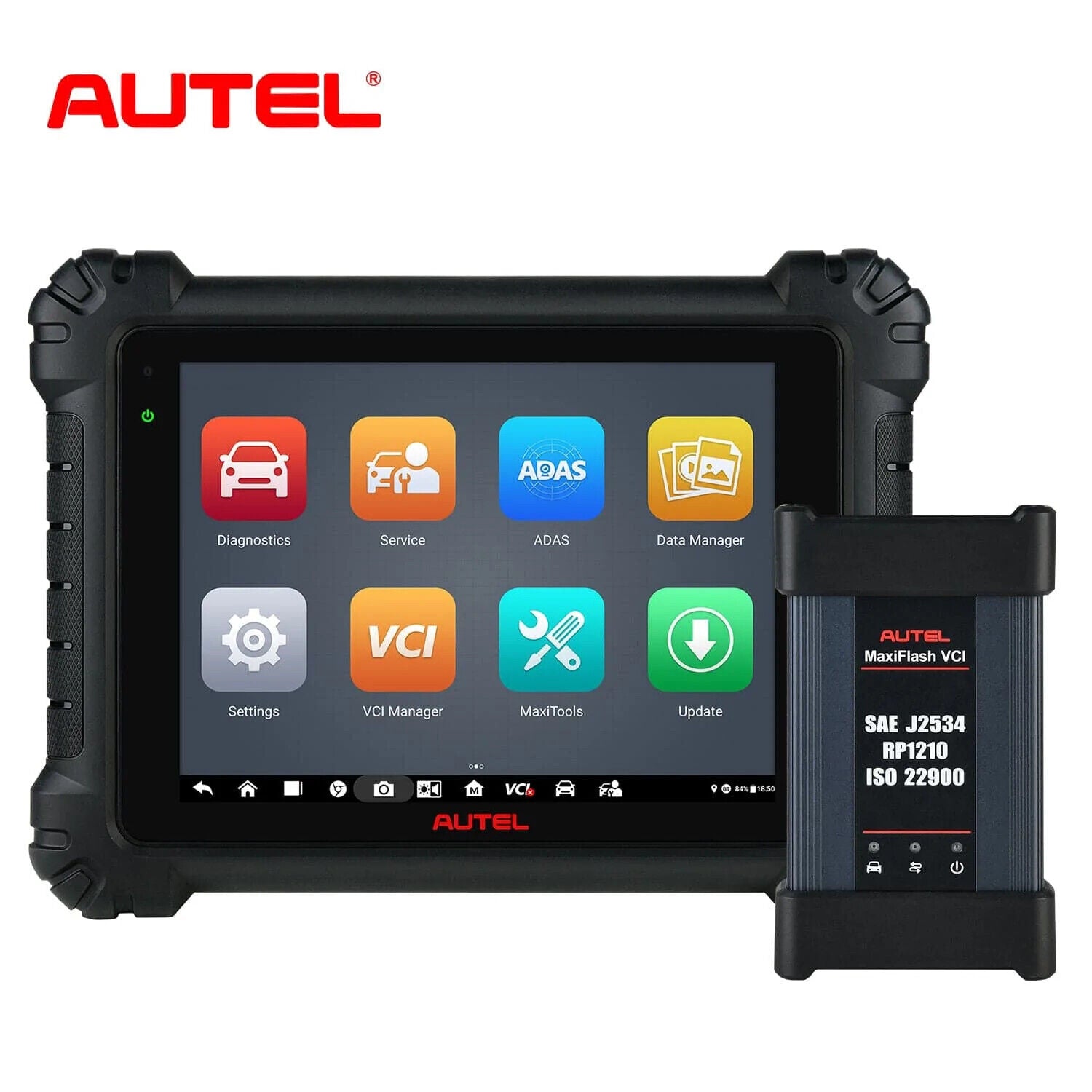

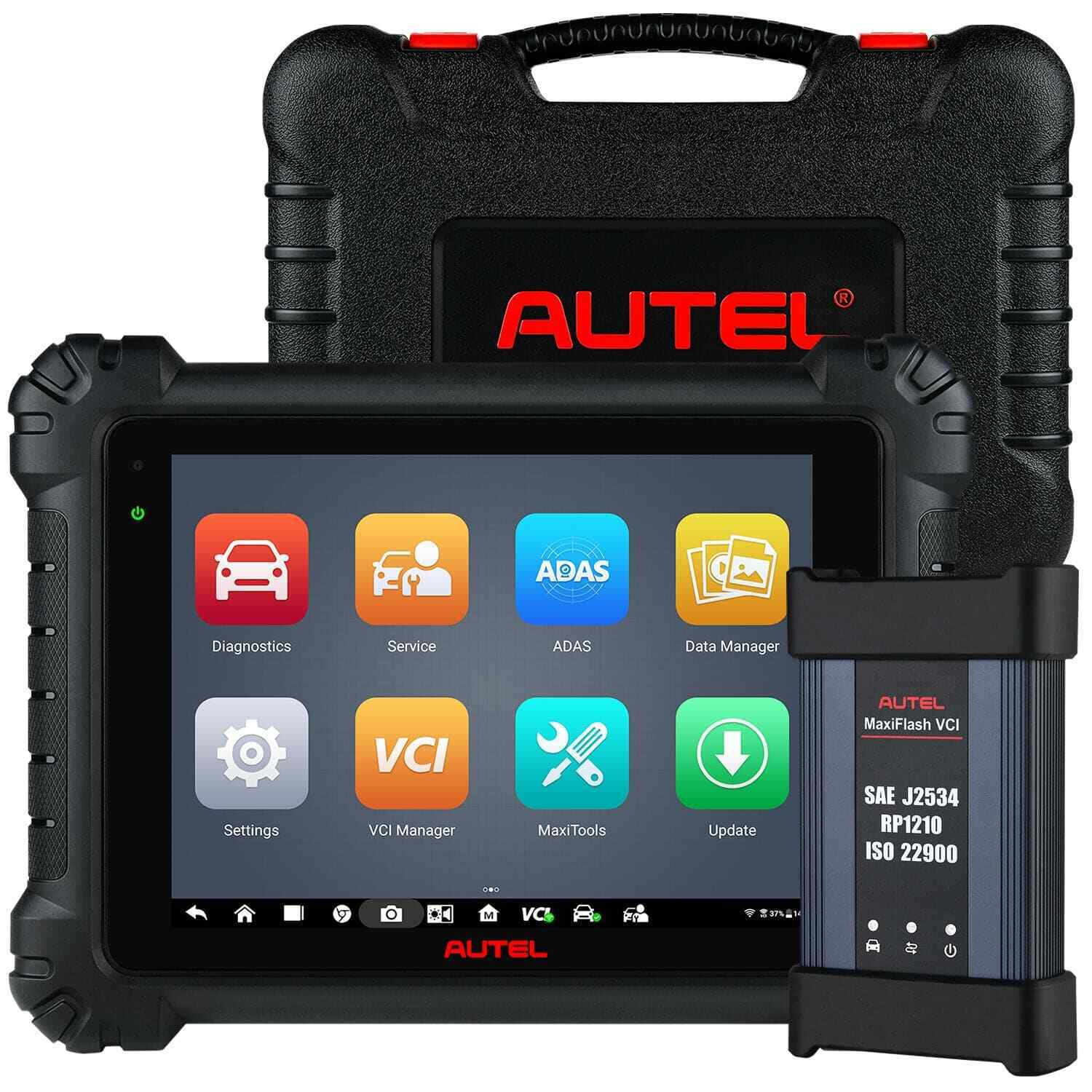

Autel MaxiSys MS909 Intelligent Scanner ECU Programming & Coding Diagnostic Tool


Autel MaxiSys MS909

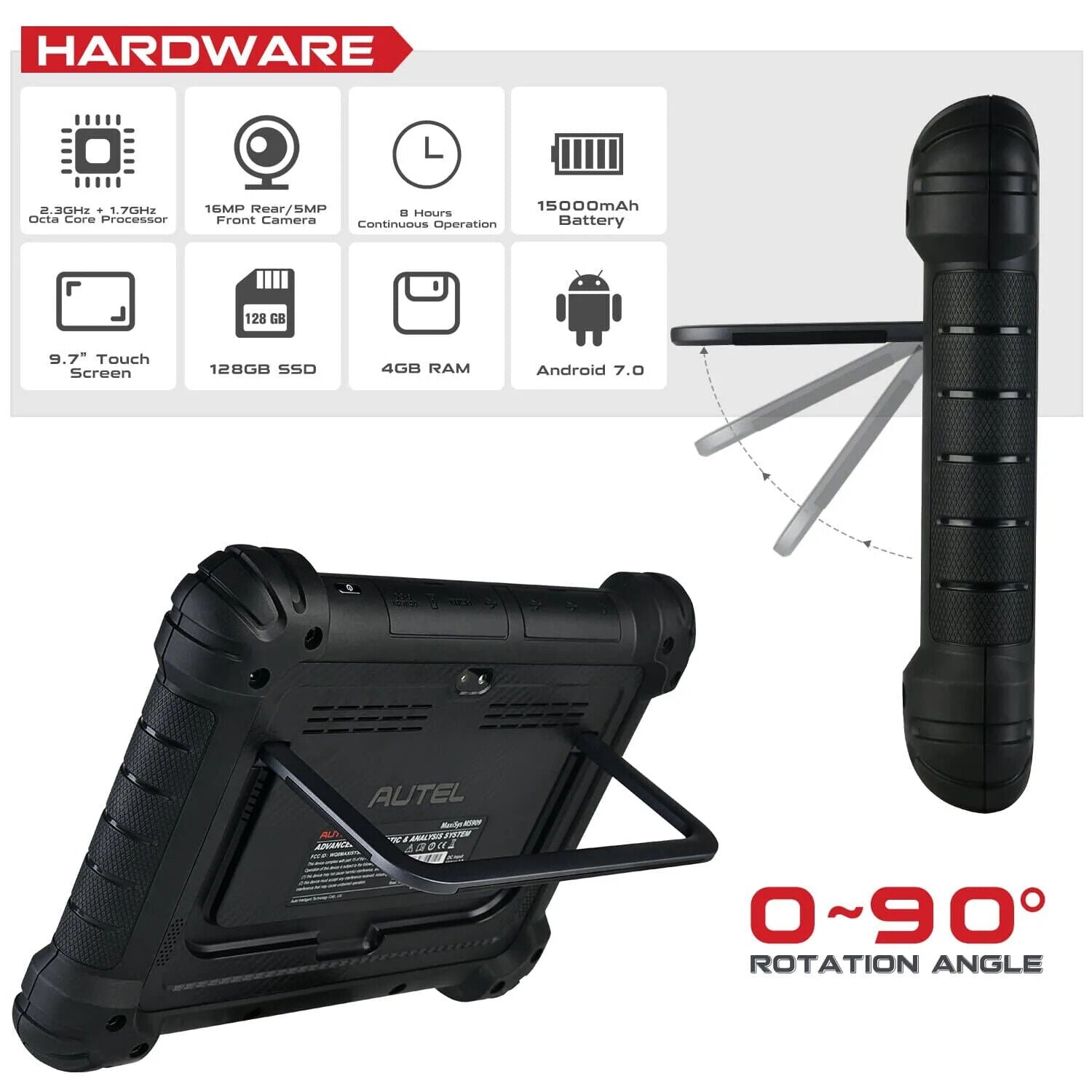

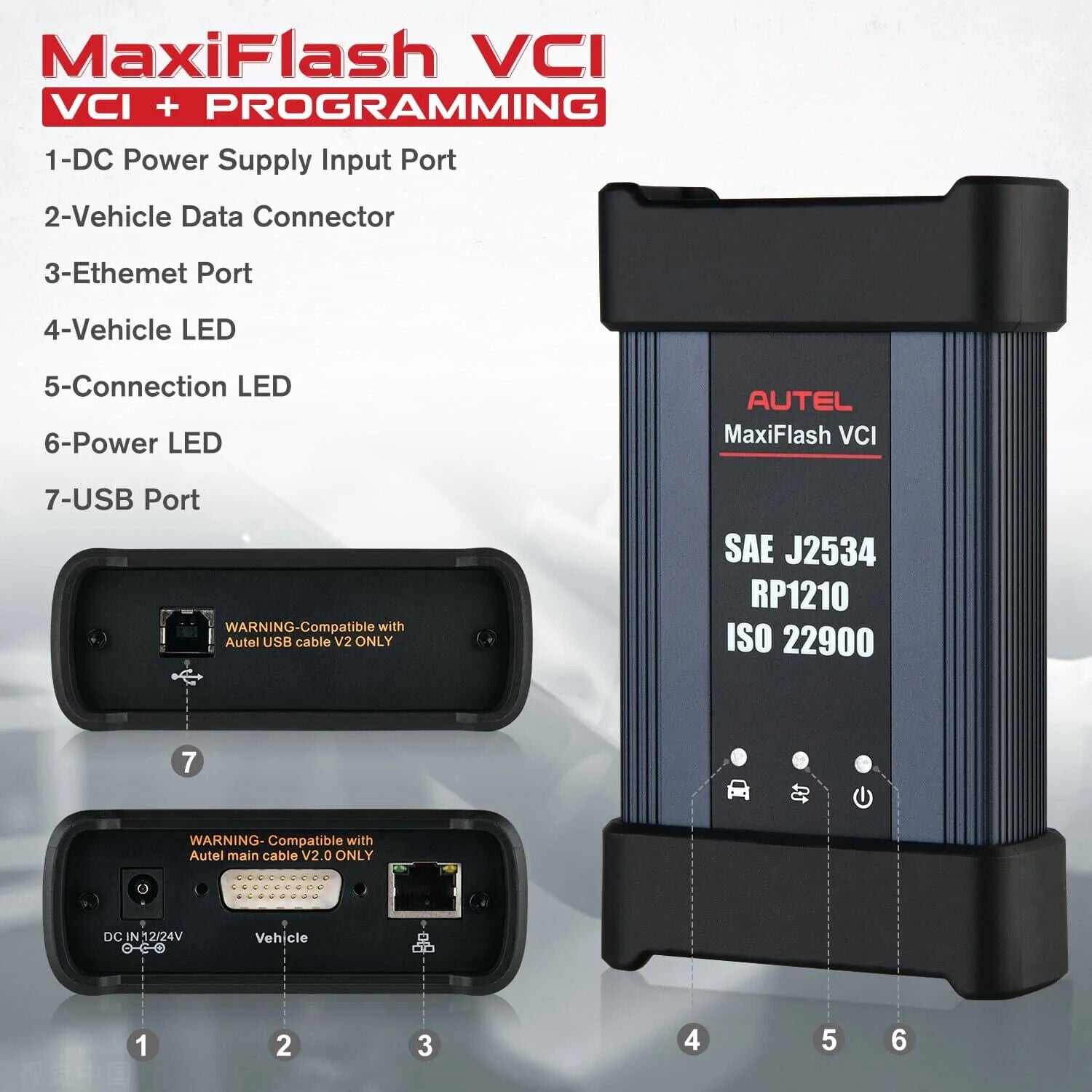

The MaxiSys MS909 features a 10-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The MS909 features the new MaxiFlash VCI, a combination VCI and vehicle communication tool providing faster dual Wi-Fi vehicle and network communications. The MS909 features front and rear cameras and a rechargeable Lithium battery providing 8 hours of continuous use to ensure you always have the power to scan.

Autel MS909 Scanner MaxiSYS MS909 Autel Car Diagnostic Tool Features Overview

Autel Maxisys MS909 Features:

  1. Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
  2. Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
  3. Automatic system and software updates with real-time push message notifications via internet
  4. Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
  5. One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
  6. Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

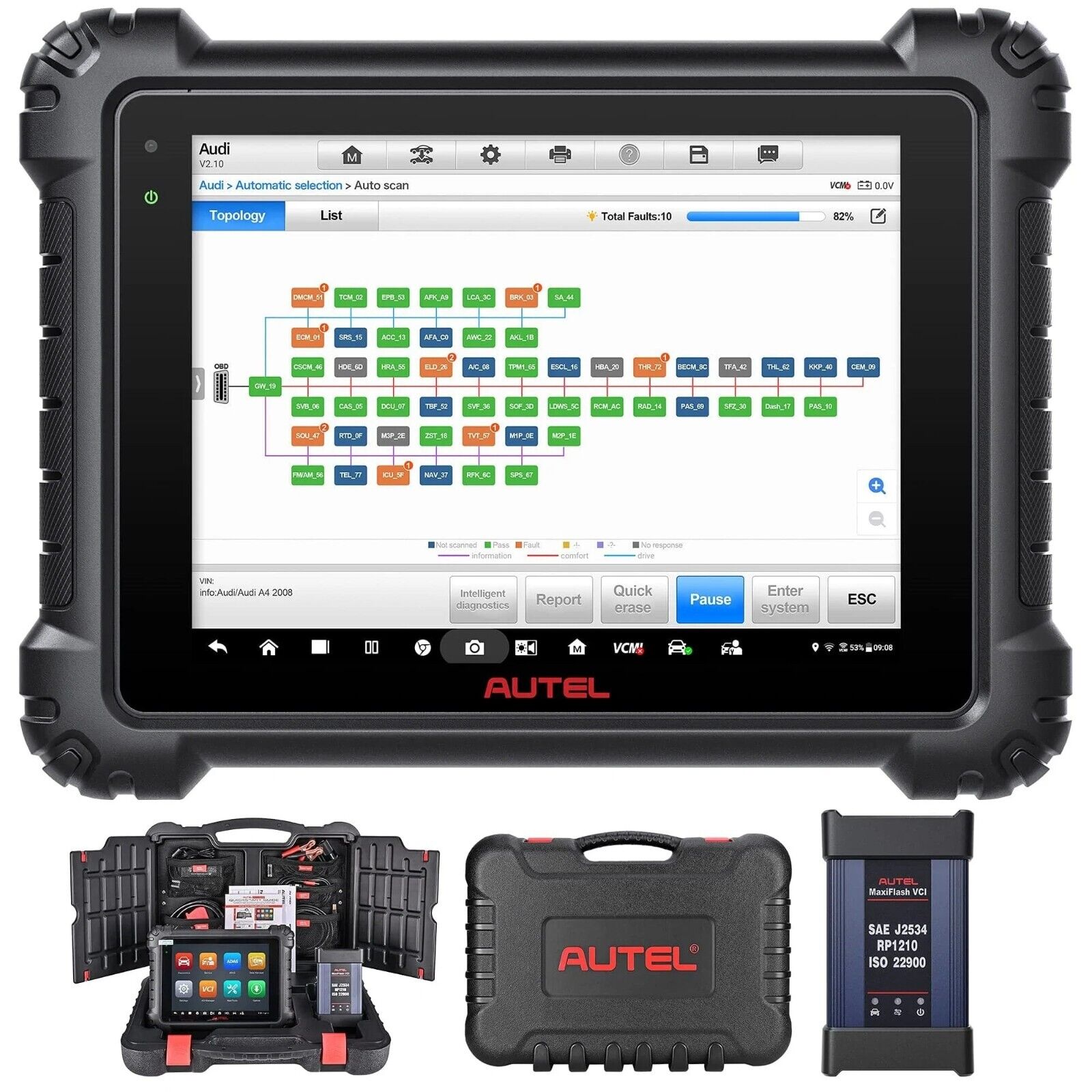

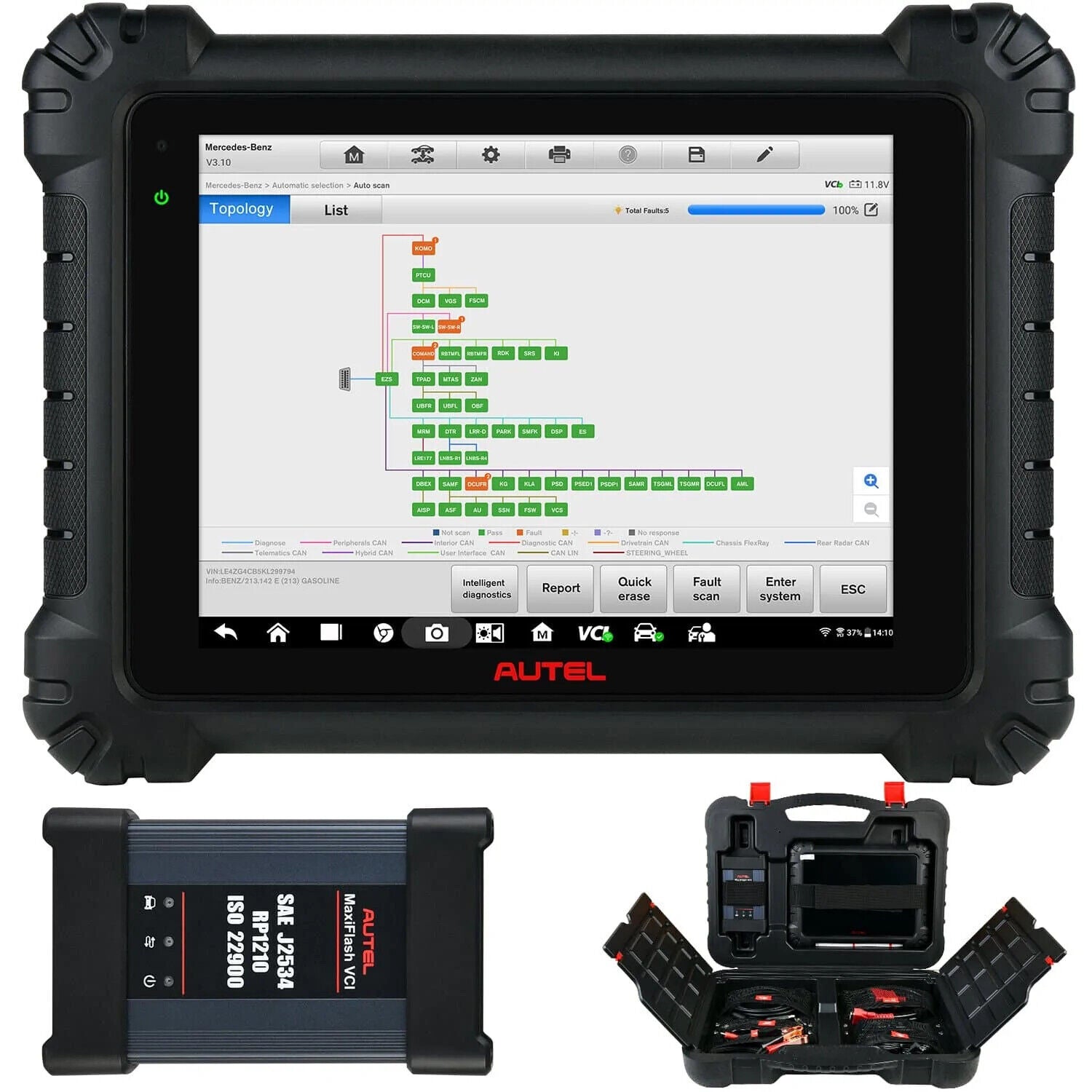

Autel MaxiSys MS909 Enhanced Auto Scan & Topology

The Auto Scan will comprehensively scan all ECUs of the vehicles to locate system faults. Thanks to the exclusive System Topology Software, technicians can see a color-coded topology display for all vehicle systems relationship and their status on one page after the Auto Scan is finished and you can press on a system module to analyze the system faults. This function offers technicians great convenience with its agile operation design and easy to perceive display.

ms909 module topology

Autel MaxiSys MS909 Full Systems Diagnosis Services:

Doing regular and routine maintenance on a modern car is impossible without a diagnostic system. Even the simplest procedures require the participation of an auto scanner. That's why Autel engineers have been working on them and making them as user-friendly as possible in the new MaxiSys MS909. Now you can easily do functions like:

  1. Oil Reset:Reset the oil change calculator in the engine and automatic transmission
  2. EPB:Replacement of brake pads on vehicles with an electric parking brake
  3. SAS:Adaptation of the sensor to the angular position of the steering wheel
  4. DPF:Regeneration of diesel particulate filter
  5. Brake Bleed:ABS Brake Bleeding
  6. IMMO:Disable any lost keys and add new keys. *ONLY for vehicles with low-grade anti-theft systems. Compatible with GM, Ford, Toyota, Honda and other 56 brands or models.
  7. ​​TPMS:Battery registration and reset
  8. ​​Seat Calibration:Calibrate the memory in replaced or repaired seats
  9. Airbag Reset:Resets the airbag data to clear the airbag collision fault indicator
  10. ​​A/F Reset:Set or learn Air/Fuel ratio parameters
  11. ​​Gearbox Reset:Help complete the gearbox self-learning to improve gear shifting quality
  12. ​​Suspension Reset:Adjust the vehicle body height sensor for level calibration
  13. ​​BMS:Battery registration and reset

autel ms909 services

Autel MaxiSys MS909 Advanced Functions:

  • Autel MaxiSys MS909 ECU Programming ECU Coding--Autel diagnostic scanner MS909 comes with J2534 ECU programming device BMW Ethernet Cable(For F-Series Coding Programming), which is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new Benz/BMW ECUs and fixing software-controlled drivability issues and emission issues, update the computer software on the vehicle to the latest version.
    Note:ECU Programming only forBMW/Mercedes Benz

autel ms909 ecu programming

Autel MaxiSys MS909 Vehicle Coverage

autel ms909 vehicle coverage

MaxiSYS MS909 Specifications:

Operating System: Android 7.0
Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory: 4GB RAM & 128GB On-board Memory
Display: 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity: • Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO) • BT v.2.1 + EDR • GPS • USB 2.0 (TWO USB HOST Type A, ONE USB mini device) • HDMI 2.0 • SD Card (Support up to 256GB)
Camera (rear): Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5.0 Megapixel
Sensors; Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: • Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 15000mAh 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage: 12V/3A Adapter
Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Dimensions: 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight 1.66kg (3.66lb.)
Protocols: DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

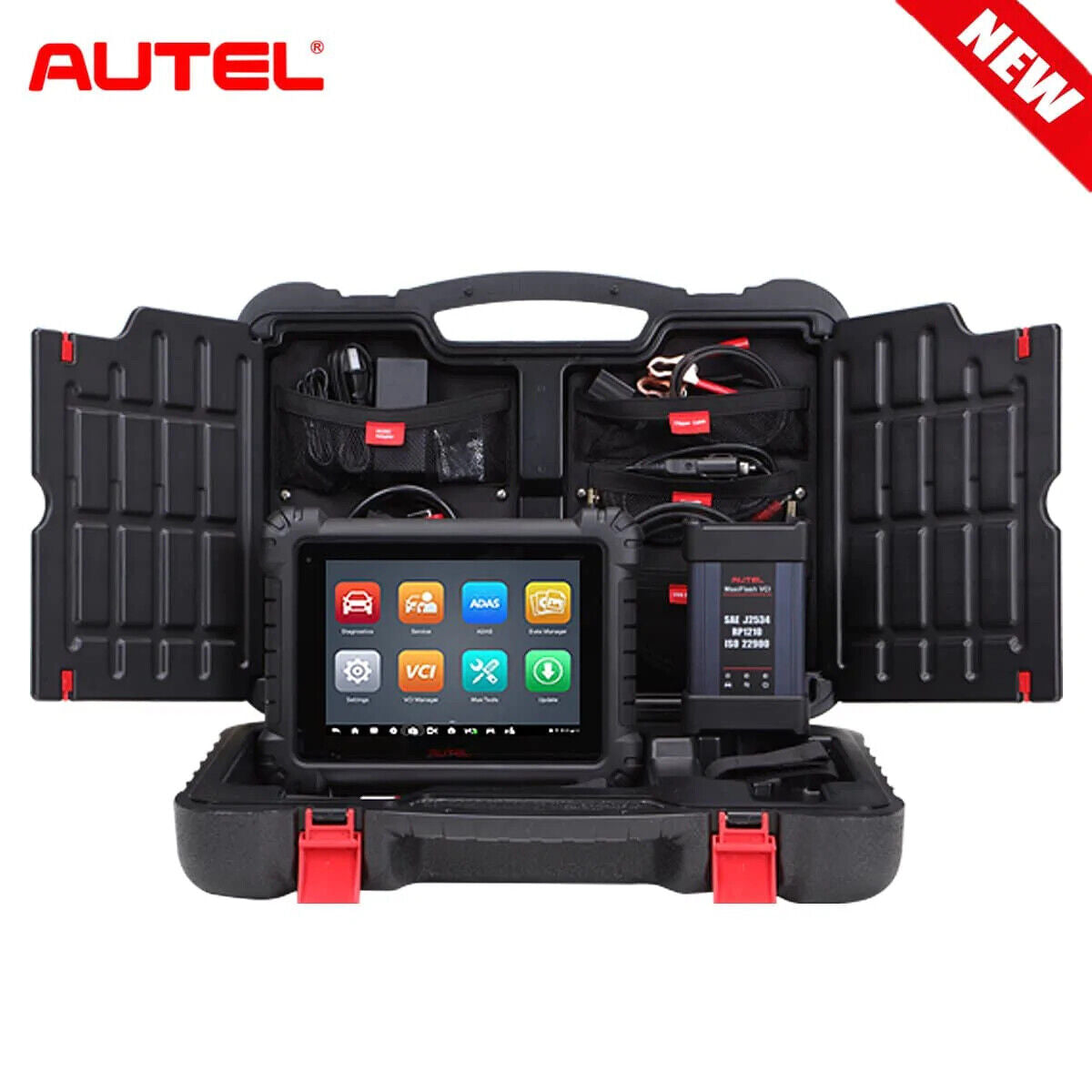

MaxiSYS MS909 Package Content:

  • 1x MS909 Main Unit
  • 1x MaxiFlash VCI
  • 1x Main Cable V2.0
  • 1x USB 2.0 Cable V2
  • 1x AC/DC Adapter(12V)
  • 1x Cigarette Lighter
  • 2x Light Fuse 6x30mm
  • 1x Clipper Cable
  • 1x Quick Reference Guide
  • 1x Packing List
  • 1x Soft Cloth
  • 1x Carrying Case 504 x 133 x 360 mm
