Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Kit Diagnostic Tool Scan

2 sold in last 8 hours
In stock
$990.00
Title *
$990.00
customers are viewing this product
Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Kit Diagnostic Tool Scan

PRODUCT HIGHLIGHTS

WebPage

Autel MaxiScope MP408 4 Channel Automotive Oscilloscope Kit Diagnostic Tool Scan

MAIN FEATURES:

  • Features one-click auto setup of voltage scale and time base
  • Works on all makes and models of modern vehicles
  • Compatible with LIN, CAN and FlexRay data bus standards
  • Reads and displays electrical signals in high resolution waveforms
  • Allows manual editing of measurement parameter display
  • Saves and reviews waveform data
  • Features color coded 4-channel control panel
  • Intuitive UI design features easy trigger point adjustment and real time scale info display
  • Direct power supply through USB connection
  • Free online software update through the Internet
  • Portable design with strong housing and protective rubber boot
Australian

Owned & Operated

Fast & Free delivery

Australia - wide

Easy returns

Quality guaranteed

1 year

Warranty




Autel MaxiScope MP408 Diagnostic Tool PC/Tablet Based 4-channel Automotive Oscilloscope test Electronic components/circuits etc.

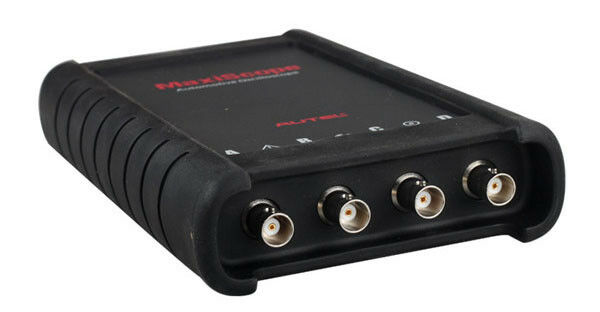

The MaxiScope MP408 is a PC based 4-channel automotive oscilloscope. It works in combination with your PC or MaxiSys Tablet, which turns into a powerful diagnostic tool, providing you an insight to the inner workings of a vehicle’s electronic circuits. Featuring the user-friendly UI design combined with the unrivalled hardware specs, the MP408 system is able to measure and test virtually all the electrical and electronic components and circuits in any modern vehicles. Power for the MaxiScope MP408 Module comes directly from the USB port of the connected PC, making the system very versatile and portable to use.



PACKAGE CONTENT:


    6


















SPECIFICATIONS:


  • Vertical resolution 12 bits
  • Channels 4
  • Bandwidth 20MHz
  • Accuracy 1%
  • Sensitivity 10mV/div to 20V/div
  • PC Interface USB 2.0 – Cable supplied
  • Power Requirements Powered from USB port
  • Input Ranges (full scale) ±v50mV to ±100V in 11 ranges
  • Input Impedance 1MΩ in parallel with 22pF
  • Input Type Single-ended, BNC connector
  • Input Coupling Software selectable AC/DC
  • Overload Protection ±200V on single input
  • Buffer Memory 32M samples shared among active channels
  • Waveform Buffer Up to 1000 waveforms
  • Timebase Ranges 100ns/div to 1000s/div
  • Operating Temperature Range 0°C to 50°C (15°C to 40°C for quoted accuracy)
  • Storage Temperature Range -20°C to +60°C
  • Storage Humidity Range 5% to 95%RH, Non-condensing
  • Dimensions 190X115X38mm Weight < 0.5kg
  • Maximum Sampling Rate (Single Shot)
  •   1 or 2 channels in use 80MS/s
  • 3 or 4 channels in use 20MS/s
  •
