ANCEL HD3200 All System Car Diagnostic Tool Engine DPF Oil Print Report Heavy

2 sold in last 8 hours
In stock
$502.07
Title *
$502.07
customers are viewing this product

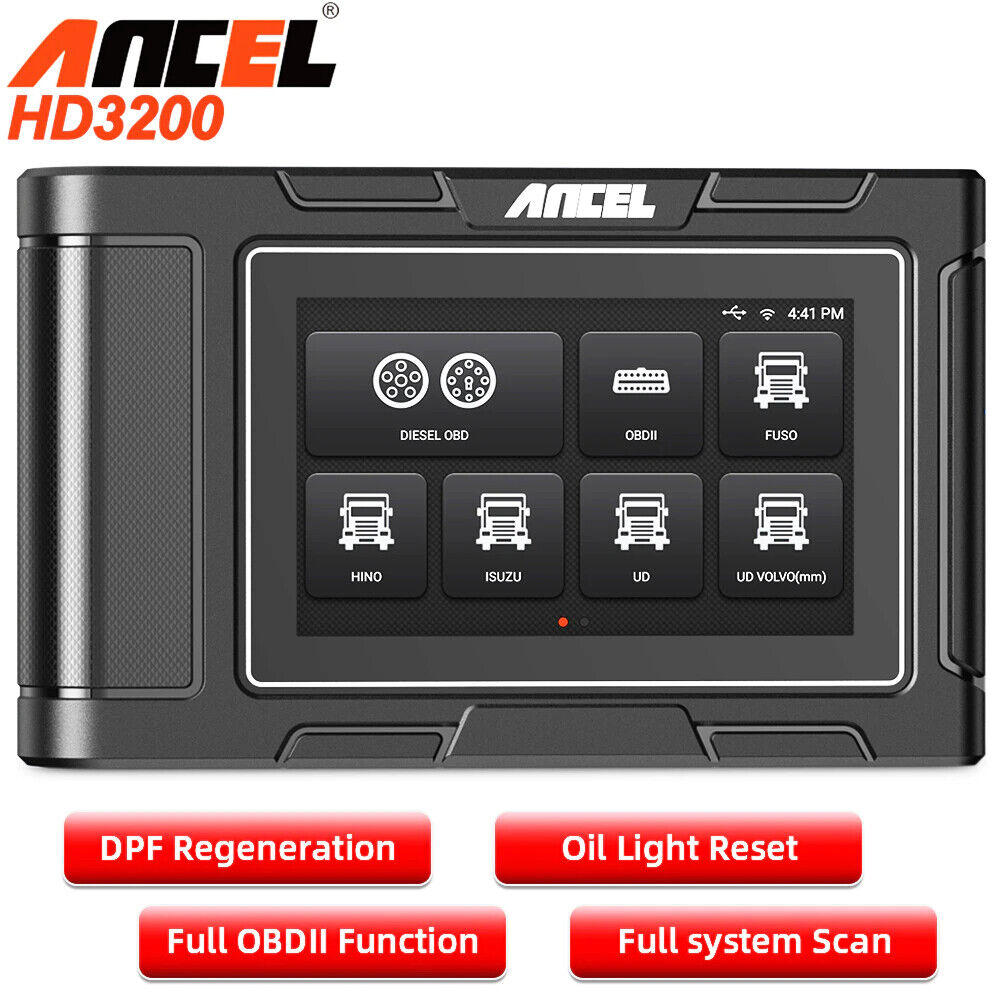

ANCEL HD3200 All System Car Diagnostic Tool Engine DPF Oil Print Report Heavy

PRODUCT HIGHLIGHTS

ANCEL HD3200 All System Car Diagnostic Tool Engine DPF Oil Print Report Heavy Duty Asian US Truck HD3100 OBD2 Automotive Scanner

Compared with other truck scanners, the ANCEL HD3200 HD truck diagnostic scan tool has added diagnose For FUSO, For ISUZU, For UD, For HYUNDAI, For KIA and other Asian diesel truck models, with richer diagnostic functions, which can show most of the causes of system trouble and tell you which systems of the truck have problems and whether they need to be repaired. It is not only suitable for truck owners but also very suitable for truck repair shops, it is a DIY tool for truck lovers. If you need a cost-effective truck scanner, HD3200 will be a good choice, it will save you a lot of time and money.

Trucks and Cars Diagnostic Tools--- HD3200&HD3100

● 1.The HD3200 heavy-duty truck diagnostic scanner not only supports the private protocols diagnosis For FUSO/For HINO/For ISUZU/For UD/For VOLVO/For HYUNDAI/For KIA, but also supports standard OBD protocols, including OBDII and HDOBD. ​● 2.Support truck all-system diagnosis. ​● 3.OE-Level Diagnosis: compared with other diagnostic scan tools, only HD3200 includes a separate menu diagnosis for Fuso/for Hino/for Isuzu/for UD/for VOLVO/for Hyundai/for Kia, get ANCEL HD3200 diesel OBD scanner, you will get an OEM-Level diagnosis for various Asian heavy trucks (and construction machinery) of these models. ​● 4.Special Functions: DPF Regeneration, Oil Reset .(HD3100(For US Truck) does not have these special features) ​● 5.Convenient operation & optional printer: clear operation interface and commercial vehicles are classified according to vehicle information. Additionally, this truck diagnostic tool can provide one-click upgrade/screenshot/activation functions, and print diagnostic reports at any time. There is an optional printer below the link that can be used for diagnostic data and report printing. ​● 6.WiFi One-key Activate and Update! ​● 7.Equipped with a 5-inch LCD Touch Screen for Easy Operation, One-click Screenshot. ​● 8.English and Traditional Chinese Language Switch



HD3200(For Asian Truck) Special Functions: DPF, Oil

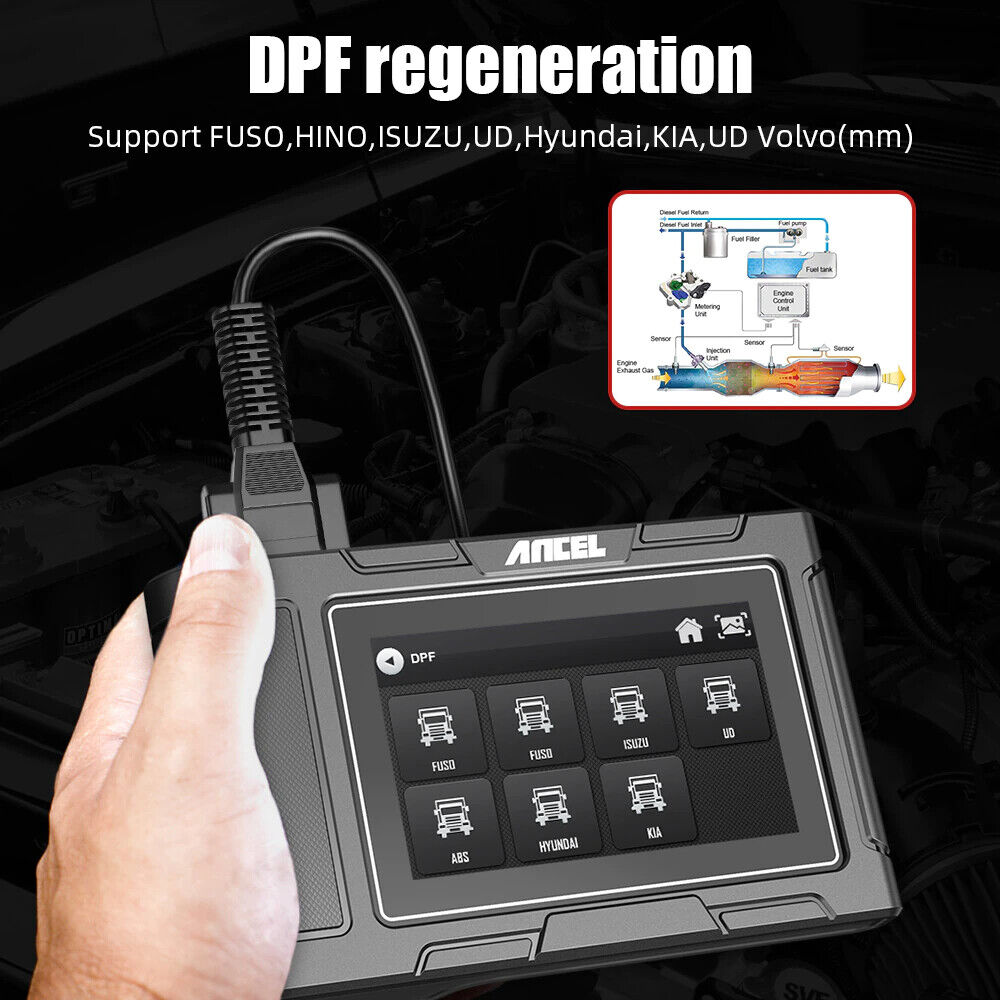

1.DPF Regeneration. ​DPF Regeneration is used to clear PM(Particulate Matter)from the DPF filter through continuous combustion oxidation mode(such us high temperature heating conbustion,fuel additive or catalyst reduce PM ignition conbustion)to stabilize the filter perfornance. ​DPF regeneration may be performed in the following cases: ​a)The exhaust back pressure sensor is replaced. ​b)The PM trap is removed or replaced ​c)The fuel additive nozzle is removed or replaced ​d)The cataytic oxidizer is removed or replaced. ​e)The DPF regeneration MIL is on and maintenance is performed. ​f)The DPF regeneration control module is replaced. ​ ​2.Maintenance Light Reset: Oil Reset. ​The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the mileage or driving time to zero after the maintenance,so the maintenance light will go out and the system will start a new maintenance cycle.



Note:

HD3100(For US Truck) has no DPF and Oil special functions

ALL-SYSTEM Diagnostic Scanner Tool for HD Asian Trucks: Lifetime Free Update!

1, Engine drive system check ​2, Automatic Transmission Diagnostic ​3, ABS EPB Anti-lock Brake System ​4, SRS Airbag Crash Data Reset ​5, SAS Steering Angle Sensor Reset ​6, Oil Light Serive Reset ​7, Suspension System Adjustment ​8, Audio System ​9, IMMO Immobilizer System ​10, ESP ASC Brake System ​11, SAS Steering Angle System ​12, Air Conditioning System ​13, DPF System ​14, Air Condition System ​15, Auto Headlamp System ​16, ACC System ​17, Car Radio Audio System ​18, Car Door Windows System ​19, Battery Manager System ​20, TPMS Tire Pressure Monitor System and So On System, Support Most of Car Drive, Power-train, Chassis and Body System Diagnose, Error Scan, Reset, Activate, Reprogramming, Relearning,Coding etc Function ​...

2 in 1 Truck Diesel OBD & Car OBDII Scanner

① Reading Codes: Present some diagnostic trouble codes after scanning the vehicle. ​② Erase Codes: Clear the fault codes after doing the repair according to the prompt of the scanner. ​③ Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display. ​④ I/M Readiness Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing. ​⑤ Freeze Frame: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data. ​⑥ On-Board Monitor Test: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs. ​⑦ O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer. (Note:If the vehicle uses a controller area network (CAN) protocol to communicate, this function is not supported by vehicle) ​⑧ Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc. ​⑨ Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability. ​⑩ DTCs Lookup



Support print and share report

HD3200(For Asian Truck )/HD3100(For US Truck) scanner supports the printing function, which can print diagnostic report data such as vehicle information, fault codes, and data streams, and can also print software interface. ​ ​You can share the health report of your car with others via email, and you can also send it to yourself. which is very convenient. ​ ​Note: The printer and HD3200(For Asian Truck )/HD3100(For US Truck) diagnostic scanner are sold separately. If you need to print data, you can buy the printer at the bundle link below the link.



Support PIN Detect

This function mainly measures the voltage of 16 PIN of OBD diagnostic interface, and judges the pin position of K- line and CAN line. After connecting the OBD interface of the vehicle, click the main interface "Tools" to select pin detection. The program automatically measures the 16pin voltage of the OBD diagnosis interface, and judges the pin position of K-line and can line. ​ ​Note: The test requires ECU no response, please ask the customer to check whether the diagnostic interface has voltage.

HD3200(For Asian Truck ) Special function support car

DPF Regeneration diagnoses: ​for FUSO/For HINO/For ISUZU/For UD/For VOLVO/For HYUNDAI/For KIA. ​ ​Service Reset functions diagnose: ​for FUSO/For ISUZU/For UD/For VOLVO/For HYUNDAI/For KIA. ​ ​Engine Oil Reset diagnoses: ​for HINO.

HD3200(For Asian Truck ) Support Truck List:

It supports with for FUSU,for HINO, for ISUZU, for KIA,for UD, for VOLVO, for HYUNDAI…… ​ The only code reader on the market with the proprietary protocol of these car models, with more powerful diagnostic functions. For example, other brands of diesel scanners can also support diagnosis for HINO and for Isuzu, they can only support models with J1939 protocol after 2012, but the HD3200 diagnostic scan tool can support for Hino and for Isuzu with the private protocol from 1998 to 2020.

HD3100(For US Truck) Support Asian Truck List:

HD3100 works on diesel powered vehicle with standard J1587, J1708, and J1939 protocol, as well as Class4-Class8 HD trucks from 2006 on. ​ ​American ​ ​for Freightliner, for IWC, for Kenworth, for Peterbilt, for Sterling, etc… ​ ​Asian ​ ​for Hino, for Fuso, for Isuzu, for UD Truck, for Hyundai Truck, for Ashok Leyland, etc… ​ ​Europe ​ ​for Mercedes-Benz commercial vehicles,for Man, for Iveco, for Renault, for Duff, for Scania, for Kamas and so on… ​ ​China ​ ​for Dongfeng Commercial Vehicle, for FAW Jiefang, for China National Heavy Duty Truck, for Futian Commercial Vehicle, for Shaanxi Heavy Duty Truck and more

Support Lifetime Free Update Via Wifi

With this scan tool, you can one-touch update the diagnostic software via wifi anytime and anywhere, and no need to update on the computer. Then you will get the latest diagnostic systems and vehicle database of this scanner.

Need to be activated before use!

Step 1: Simply plug into the OBD port on your car and turn the ignition on, after the vehicle power on, the device will automatically startup; Step 2: Connect WIFI. Go to Settings>WIFI; Step 3: After successfully connecting to WIFI, go to Settings>Activation, click "Activate". Note: 1. If the "Activation failed" prompt appears on the screen, please check whether your network connection is normal. 2. Click activate directly to use it, no registration is required.

One-click Feedback

This diagnostic tool supports one-click feedback. You can give us your feedback via this function if you have diagnostic problems, ANCEL's professional technical team will provide you with excellent solutions.

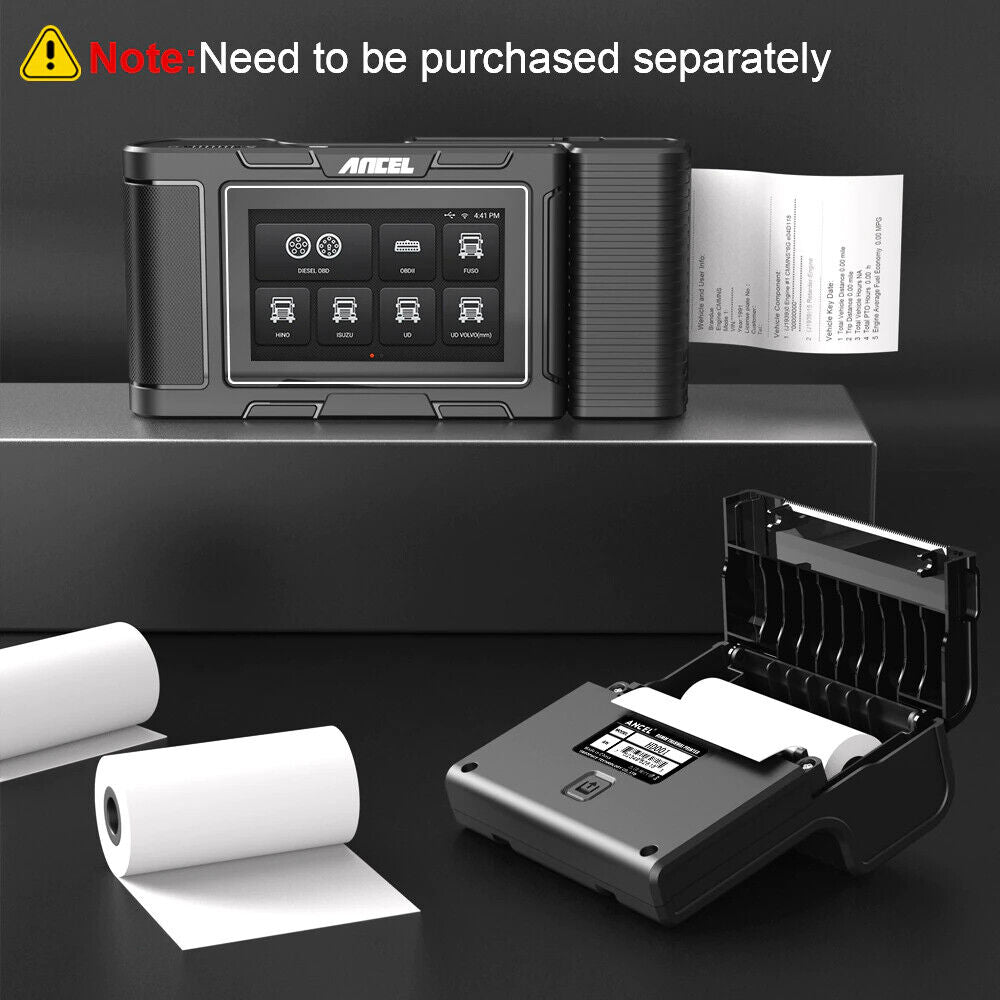

Optional Printer Hardware Parameter

Printer: 80mm Thermal printer ​Print speed: 60mm/s ​Effective print width: 72mm ​Print resolution: 203dpi 1mm=8dots ​Print paper specifications: 80mm*30mm

Product High Configuration Hardware & details

CPU Quad-Core ARM Cortex-A7 ​RAM 1GB ​Flash 8GB ​Display 5 inches LCD,resolution ratio 800*480 ​WIFI 802.11b/g/n 2.4GHz ​USB interface Type C interface ​Diagnose interface DB15 interface ​Operating voltage DC 10V~36V/3A ​Pinter Optional



100% Original Package List:

1 * HD3200(For Asian Truck )/HD3100(For US Truck) Diagnostic Scan Tool ​ ​1 * Main Test Line ​ ​1 * 6 Pin & 9 Pin Connector ​ ​1* OBDII-16 Pin connector ​ ​1 * Hyundai-Diesel OBD-16 Pin Connector ​ ​1 * HD3200(For Asian Truck )/HD3100(For US Truck) Scanner User Manual ​ ​1*with printer or 1*no printer
