4G GPS Tracker Smart Children Personal Watch Camera SOS Video Call Locator
4G LTE+3G WCDMA+2G GSM networks:
1.54” LCD touch screen (240*240pdi)
GPS positioning, with accuracy of 5m outdoors
WIFI positioning, with accuracy of 30m indoors
Health management with HR&BP, Pill reminder and Step counting

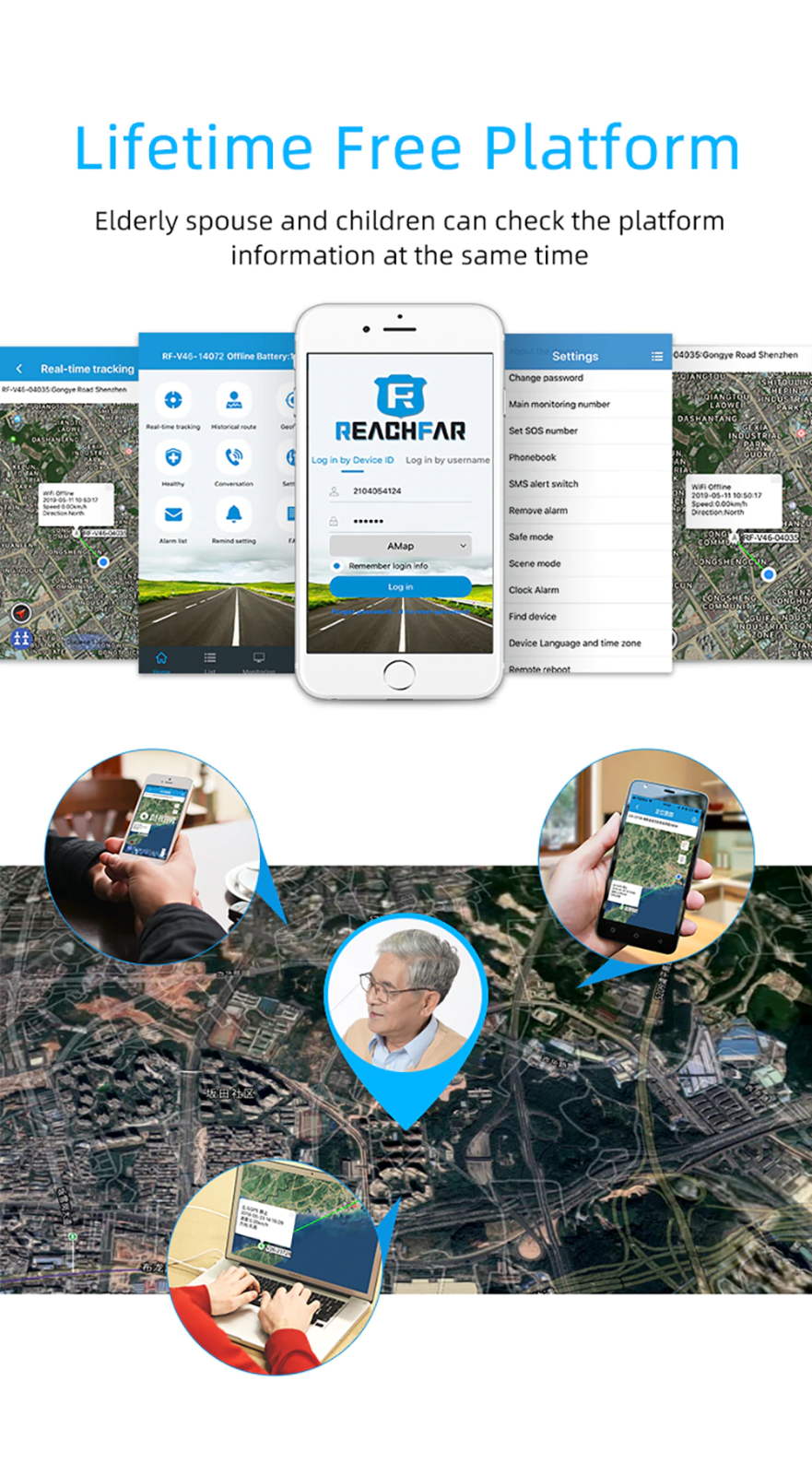

Web platform/ Phone App/ SMS for positions check
SOS call, Voice call, Voice chat
Geo-fence: GPS fence & WIFI fence double care
High pixel camera
Talking clock monitor
Low battery alarm
Ringtone to find people
Bands combination ( Blobal 4G network coverage):
4G-FDD： Band 1/2/3/4/5/7/8/12/20/28A
2G-GSM： Band 2/3/5/8
GPS locating time：30sec with cold boot (open sky)
29sec with warm boot (open sky)
5sec with hot boot (open sky)
GPS positioning accuracy：5-15m (open sky)
WIFI positioning accuracy：15-100m(Under WIFI range）
Working temperature：-10℃ ~ +80℃
Working humidity：5% ~ 95% RH
Host size: 58.2(L)*40.8(W)*17.2(H)mm
Host Net weight: 41g
1pc GPS Tracking Watch
1pc USB Charging Cable
1pc Screw driver
1pc User Manual
2pc Spare Screws
1pc SIM Card Ejector Pin
Q: Device shows online, but it shows “wait for the device responses” when you make settings with APP.
A: a. Device SIM signal is not good with poor GPRS data;
b. Device is busy in other process. Please wait a minute and try again.
Q: After inserting a SIM card, it can get a SMS reply, but it displays “Not enabled” on the platform and APP.
A: Please check the watch SIM Card has LTE data plan.
Q: The SIM card has 4G data plan, but the device still shows “Not enabled “or “offline”.
A: It needs to configure APN data, since we have pre-programmed most SIM cards’ APN, but hasn’t. Find out your watch SIM card’s APN name, APN user name, password, MCC and MNC codes before doing below settings.
Please set main monitoring number first by sending below command from your own phone to the watch sim number.
pw,123456,center,your own phone number#
After a reply, send below command to set APN into the watch.
The command is: apn,apndata,user,password,MCC MNC code#
