3G / 4G GPS TRACKER 20000mAh Waterproof IPX7 Anti-Theft Vehicle Car Truck TK20G
3G / 4G GPS TRACKER 20000mAh Waterproof IPX7 Anti-Theft Vehicle Car Truck TK20G
PRODUCT HIGHLIGHTS
-
WiFi.
- Micro SD Slot.
- Microphone.
- Removable Battery.
- Waterproof Level IPX7
- Long Battery Life
- Powerful Magnet
- Kinds of Sleeping Modes
- FREE GPS Tracking Software â Forever
- Public Hardware Communication Protocol
- Micro SD Slot.
Owned & Operated
Australia - wide
Quality guaranteed
Warranty
Â
General speaking, VJOYCAR luxury GPS trackers have all functions of common GPS tracker, however, they have more functions as blow:
Â-
 Â
- WiFi. Â Â
- Micro SD Slot. Â Â
- Microphone. Â Â
- Removable Battery. Â
Question 1: How does WiFi work?
  Answer, wifi works very much.
  1. WiFi tracking and Wifi locating.
  As we all know, no GPS signal indoor, eg, inside the super market, inside the shopping mall⦠a common GPS tracker will locate via LBS. However, LBS location is from the nearest GSM tower, it’s not accurate at all.
  Our luxury GPS trackers could locate from wifi signal as long as there are 2 or more than 2 routers. It’s very accurate. Of course, if no wifi signal, it will locate from LBS still. If Just locate via wifi signal, it no need wifi user and password, just locate from wifi SIGNAL.
2. WiFi fence.
  Set a wifi fence for the gps tracker, once it moves into or out from the fence,it will alert and report. Much better than the old device â bluetooth anti lost device.
3. WiFi uploading.
  If you want to save cost from GPRS internet data plan. Then do a simple setting, make it upload via WiFi only , or Both Wifi & GPRS.

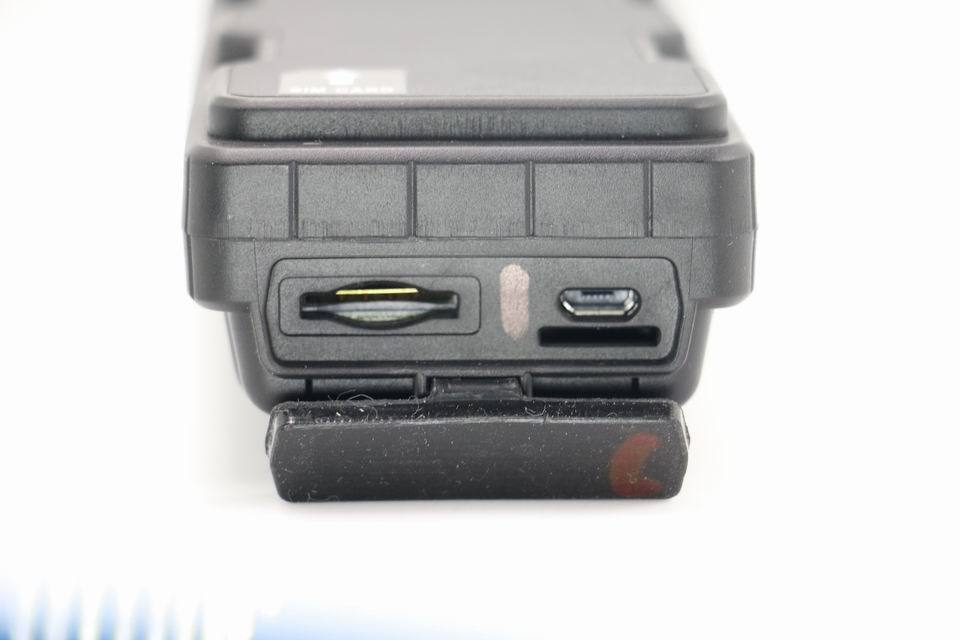

Question 2: How does SD slot work?
  Answer, micro SD slot supports max 32G TF card. Then it helps a lot also.
  1. Data Logger.
  Are you seeking for a GPS tracker without sim card, no sim card? Every seller tell you no way, no that kind of GPS trackers, right? However, we have a solution. When receive the device, if you don’t want to buy a sim card for it, because the SIM card need credit, cost money, no effective, yes, then just let it save data inside the TF card, work as a offline data logger.
  Finally, when the car come back, eg, your drive come back home, take out the tf card, play back its data on the google map.
Furthermore, the offline data can be report and export to excel.
Â
Â
  BTW, if no working SIM card, no signal released, then , the signal detector can’t find it out! Anti-Jammer! 100% secret!
2. Save Data.
  Most users who are familiar with gps tracking devices, should have one question: why my device lose some data always. That’s because, when the device move into the crowed building, move into the forest, move into the remotely location⦠then no GSM signal, can’t upload data to server. For our devices, when no GSM signal, it could save data inside the TF card for months, then upload to server again when GSM signal come back. Automatically!
Question 3: What’s the microphone used to?
  Answer: Built in microphone, means, the master control phone number could send sms to call and listen the background audio within 5 meters, voice monitor remotely.
Question 4: What’s removable battery used to?
  Answer: A removable battery value more than you can image:
  1. Save cost. All of VJOYCAR TK GPS trackers are with big battery, and they are rechargeable. However, our GPS tracker life is around 10 years, battery life is only 1-3 years. Once battery is dead, then a portable GPS tracker is dead also? No, you could replace the battery by yourself. Eg, we always got demands like this: “We do not like the non-replaceable battery option as Lithium batteries are only good for 2-4 years.”
  2. Save time. Some special project, no time to recharge the battery, then use 2 minutes to replace a new battery for the GPS tracker.
  3. Valid warranty. VJOYCAR offer 12 months quality warranty. However, some countries, eg, UK,Bulgaria the logistic companies don’t allow stuff with internal battery. Then if you want to ship it back to China for repair or replacement, then, no way. For our GPS tracker, just take out the battery, pack and ship back at a low cost.
Â
 Â
Â
At last, all of our TK gps trackers are popular because of:
Â-
 Â
- Waterproof Level IPX7 Â Â
- Long Battery Life  Â
- Powerful Magnet  Â
- Kinds of Sleeping Modes  Â
- FREE GPS Tracking Software â Forever  Â
- Public Hardware Communication Protocol Â
 Â
Â
Function | Command | Description |
APN Setting | *apn*AXXX*BXXX*CXXX* | This command sets the telecom Access Point Name. BXXX refers to user name, CXXX refers to password. eg,*apn*cmnet* |
Master Setting |
*master*123456 *+1XXXXXXXXXXXX* |
+1 refers to the country code. XXXXXXXXXXXX is the cellphone number. Please make sure country code is included, and 0 is not needed before cell phone number eg,*master*123456*+8613621925935* |
Password Changing | *password*654321* | Original password is default as 123456. 654321 refers to new password. |
Vibration Sensitivity Setting | *sensitive*1-5* | 1 being the most sensitive, 5 the least. Default setting is 1. |
Motion Alert | *callalert* | Call alert will call master number 2 times when motion is detected after 3 minutes non-movement. |
*smsalert* | SMS notification will sent to master number when motion is detected after 2 minutes non-movement. | |
*alertoff* | End Call/SMS alert | |
Period Motion Alert On | *continuousalert* 0-23*0-23* | Device will enable motion alert function at appointed period of time Remark: Only TK05 TK10 Tk15 TK20 have this function. |
*periodlocateoff* | End Period Motion Alert Remark: Only TK05 TK10 Tk15 TK20 have this function. |
|
LLC Query | *locate* | Latest information of latitude, longitude, date, time and ranking. |
Address Query | *locateaddress* | Address information of current location. |
Google Map Search | *locatemap* | Google Map link with current location |
Real-time Tracking | *routetrack*1-99* | 1-98 represents hours of accumulated data, 99 means always on. eg,*routetrack*1* |
(routetrack,rsampling and rupload only upload data when device is moving.) | ||
Sampling Interval | *rsampling*1-999* | 1-999 represents seconds of data collecting interval, default as 10 seconds. eg,*rsampling*10* |
(routetrack,rsampling and rupload only upload data when device is moving.) | ||
Upload Interval | *rupload*60-999* | 60-999 represents seconds of data uploading interval, default as 60 seconds, minimum rate should not be less than 60. *rupload*60* |
(routetrack,rsampling and rupload only upload data when device is moving.) | ||
Real-time Tracking Off | *routetrackoff* | End routetrack function. |
Check Location | *check*0-99* | Track by hour. 0-99 represents hours of data upload interval, default as *check*0* eg, *check*1* (check and checkm upload data when device both stationary and moving.) |
*checkm*10-99* | Track by minute. 5-99 represents minutes of data upload interval eg,*checkm*10* | |
(check and checkm upload data when device both stationary and moving.) | ||
*checkoff* / *check*0* | End check function | |
Period Tracking |
*periodlocate* XXXXXXXX**XXXXXXXX* |
GPS location data will be uploaded to server at appointed periods, up to 3 time periods. Remark: Only TK05 TK10 Tk15 TK20 have this function. |
*periodlocateoff* | End period tracking function. Remark: Only TK05 TK10 Tk15 TK20 have this function. | |
Appointed Time Tracking |
*timinglocatemap* XXXX*XXXX**XXXX* |
Check map location at appointed time Remark: Only TK05 TK10 Tk15 TK20 have this function. |
*timinglocateoff* | End appointed time tracking function Remark: Only TK05 TK10 Tk15 TK20 have this function. | |
Upload Alert | *uploadalert*on* | All alerts will be uploaded to server |
*uploadalert*off* | End upload alert function | |
Online Control | *onlineon* | Enable online control function |
*onlineoff* | End online control function | |
Deep Sleep Setting | *sleep*1-99* | 1-99 represents hours of deep sleep period.eg, *sleep*1* Remark: only portable trackers have "sleeping" function. |
Period Motion Sleep | * sleepv*1-99* | Period Motion Sleep. 1-99 represents hours of deep sleep period. eg, *sleepv*1* Remark: only portable trackers have "sleeping" function. |
Motion Sleep | * sleepv* | Motion Sleep function with motion alert. Remark: only portable trackers have "sleeping" function. |
Sleep Off | *sleepoff* | End Deep Sleep function. Remark: only portable trackers have "sleeping" function. |
Status query | *status* | Check system status |
Multi Controller | *multiquery* | Enable multi controller function |
*multiqueryoff* | End multi controller function | |
Device Information | *about* | Software edition information and deviceâs serial number. |
 Â
 Â
 Â
    Â
 Â
-
Â
-
 Â-
  Â
- Â
SPECIFICATIONS:
-
Â
Â
- WiFi. Â Â Â Â Â Â Â Â
- Micro SD Slot. Â Â Â Â Â Â Â Â
- Microphone. Â Â Â Â Â Â Â Â
- Removable Battery. Â Â Â Â Â Â Â
    Â
General speaking, VJOYCAR luxury GPS trackers have all functions of common GPS tracker, however, they have more functions as blow:
