OBDSTAR P50 Airbag Crash Battery Reset Tool 95 Brands 14400+ ECUs

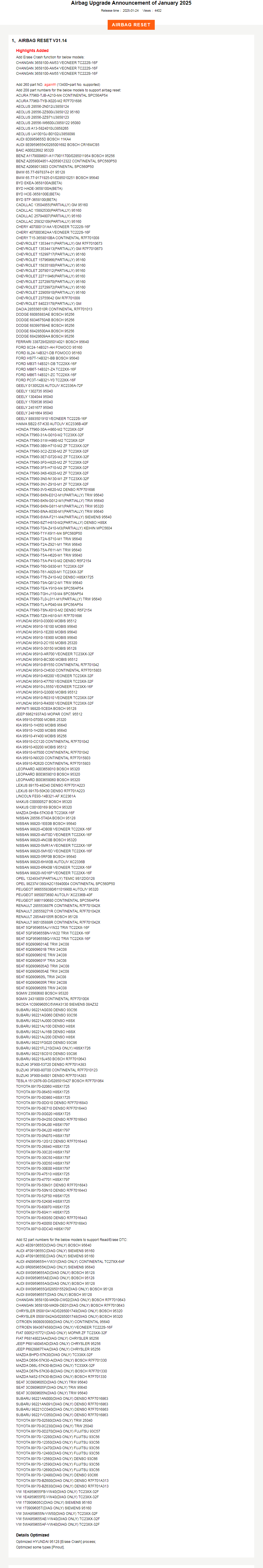

Supported Lists
Please check the supported lists before purchasing:
- OBDSTAR P50 Airbag Reset Support Car List
- OBDSTAR P50 Battery Reset Support Car List
- OBDSTAR P50 SAS Reset Support Car List
Vehicle Coverage
- Supported 95 brands: ACURA, ALFAROMEO, ASTONMARTIN, AUDI, BAOJUN, BENZ, BMW, BUICK, CADILLAC, CHERY, CHEVROLET, CHRYSLER, CITROEN, DACIA, DODGE, FERRARI, FIAT, FORD, GMC, GREATWALL, HONDA, HYUNDAI, INFINITI, JAGUAR, JEEP, KIA, LADA, LAMBORGHINI, LANCIA, LANDROVER, LEXUS, LINCOLN, MASERATI, MAZDA, MINI, MITSUBISHI, NISSAN, OPEL, PEUGEOT, PORSCHE, RENAULT, SEAT, SKODA, SMART, SUBARU, SUZUKI, TESLA, TOYOTA, UAZ, VOLVO, VW, ZOTYE
- Cover over 14400+ ECU part No. (supporting fuzzy search)
- Support MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570
OBDSTAR P50 Airbag Reset + PINCODE Equipment
OBDSTAR P50 is a new-generation intelligent airbag reset equipment covering 95 brands and over 14400+ ECU part numbers. Based on a RK3128 quad-core processor, it offers a fast and smooth experience with a 5-inch capacitive touchscreen. It supports one-click airbag reset, battery reset, SAS reset, and ECU programming via OBD or BENCH modes, with features like fuzzy ECU part number search, clear BENCH mode wiring diagrams, and comprehensive fault code descriptions.
Basic Functions
- Supports one-click airbag reset for 95 brands and over 14400+ ECU part No.
- Supports fuzzy search for ECU part No.
- Contains clear BENCH mode wiring diagram
- Contains powerful and complete description files for fault code
- One year free update; $150/year from second year ($90 if renewed before expiry)
- Supports Hyundai/Kia TC2xxx types bench airbag reset with CAN FD adapter
- Supports battery reset for Audi and Volvo by BENCH
- Supports Tesla bench airbag reset
- Supports SAS reset function for Toyota
Advanced Functions
- Read ECU Information: ECU part number, historical/current frame number, collision record
- Read DTC
- Erase DTC
- Read EEPROM: Read EEPROM data for backup
- Write EEPROM: Write EEPROM data into ECU
- Read FLASH
- Write FLASH
- Write VIN: Restore correct VIN after crash data clear
- Clear/Erase Crash: Clear ECU crash data
- Unlock ECU
- Battery Reset for Audi and Volvo by BENCH
P004 Adapter Highlights
- Designed for ECU programming, reading, or writing data in bench mode
- Maintains normal communication regardless of 12V power button state
- Toggle 120Ω resistance for CAN BUS ECU at any time
- Supports 6&14 and 3&11 CAN BUS protocols simultaneously
- Optional CAN FD adapter for models after 2020 (e.g., Hyundai/Kia)
- Supports GM Single CAN (GM SCAN)
- Supports K-line Protocol
- P004 jumper connects multiple wires for clearer wiring
- DB15 connector communicates with any OBDII-16 I/O interface
How to Use OBDSTAR P50
Register the device before use with distributor code: 0086A002.
General operation steps:
- Read part number to verify correctness
- Read fault codes to check for airbag crash faults
- Clear fault codes (some models allow direct clearing)
- Read EEPROM if supported
- Clear collision record
- Write VIN if supported (e.g., for some Ford/Renault models)
- Clear fault codes again
- Read fault codes to confirm successful clearing
Attention
- Part numbers listed as DIAG ONLY can only read fault codes, not clear crash data
- Part numbers listed as PARTIALLY or BETA may fail without a solution, but this is not a quality issue
- Language: English only
- No pre-installed software; download via one-click upgrade after registration
Additional Features
Buy Cluster Calibration & Oil Light/Service Reset Function Authorization to get the same functions as the ODO Master. Learn more.
Cluster Calibration & Oil Light/Service Reset
Vehicle Coverage Overview
Update Information
Update Details
Airbag Reset V30.34 (2023-02-28): Working with CAN FD Adapter
Airbag Reset Update V30.34
Update Details

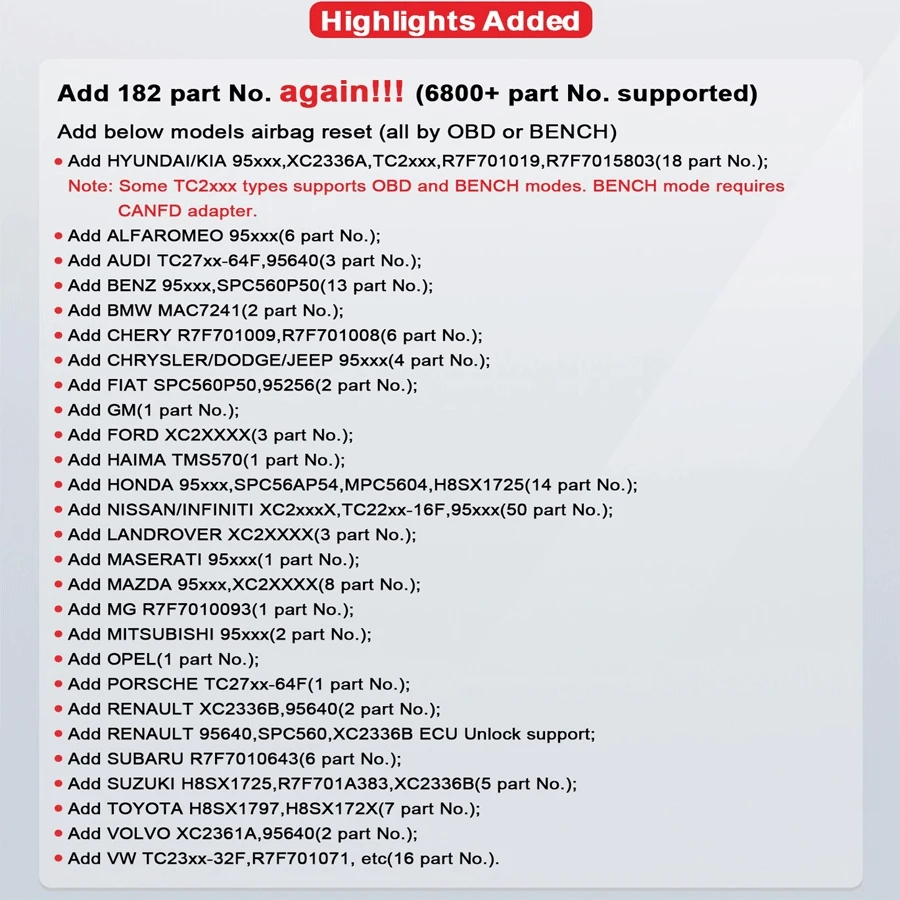

Airbag Reset V30.32 (2022-12-28): Added Hyundai/Kia airbag reset, working with CAN FD Adapter
Airbag Reset Update V30.32
Specifications
| Operation System | Android 5.1.1 |
|---|---|
| CPU | RK3128 quad-core ARM cortex A7 |
| Battery | 2600mA, rechargeable polymer lithium battery |
| Extension Memory Card | 32G micro SD (TF) card supported |
| Storage Capacity | 16GB |
| LCD | 5.0 inch |
| LCD Resolution | 800*480 |
| Touch Screen | Capacitive touch screen |
| Wifi | Supported |
| Working Temperature | -20℃ ~ 55℃ (14℉ ~ 131℉) |
| Storage Temperature | -20℃ ~ 70℃ (-4℉ ~ 158℉) |
| Weight | About 700g |
| Dimension | 198mm*115mm*31mm |
Specifications

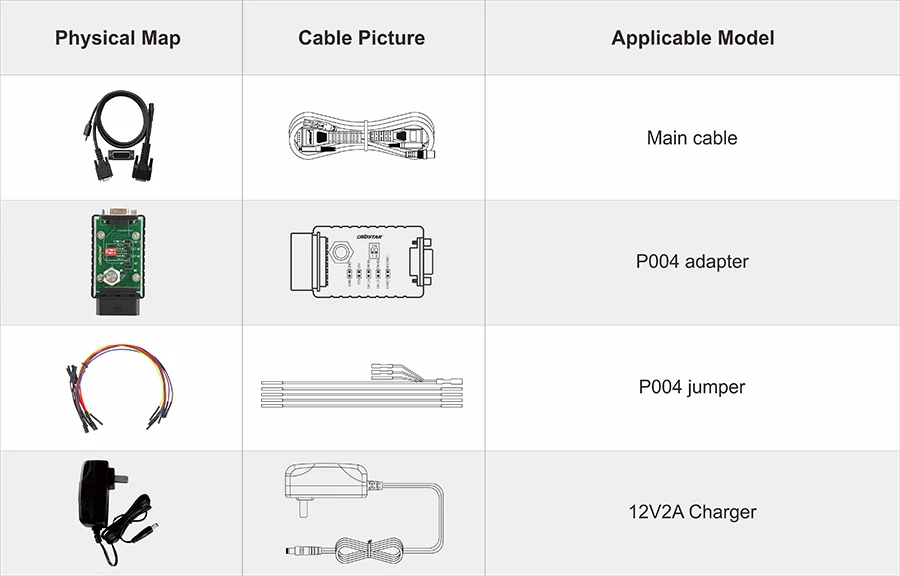

Package Includes
- 1pc x OBDSTAR P50 Main Unit
- 1pc x Main Cable
- 1pc x P004 Adapter
- 1pc x P004 Jumper
- 1pc x 12V2A Charger
- 1pc x CAN FD Adapter
Accessories

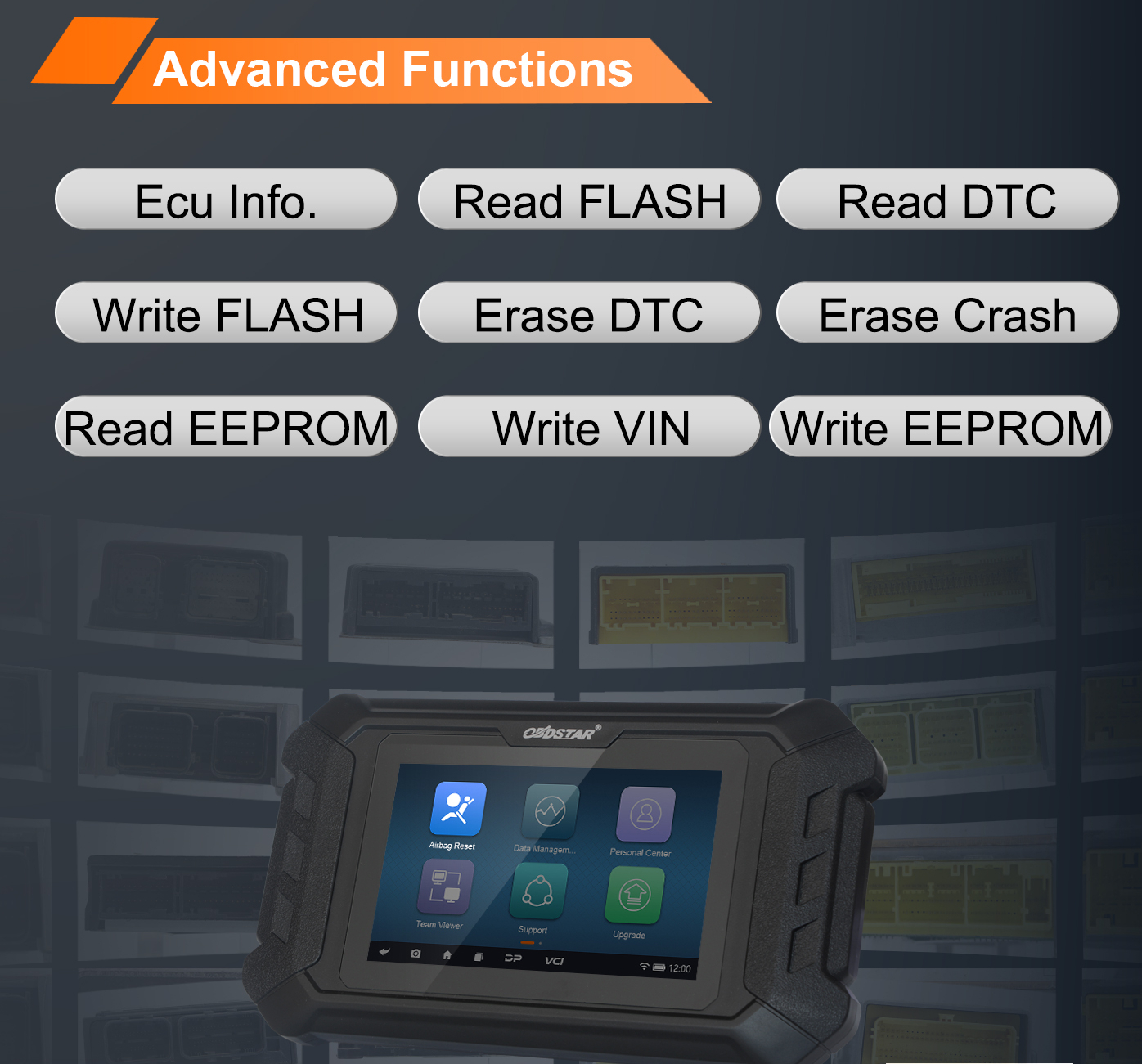

Advanced Functions Diagram
Vehicle Coverage Diagram
Main Page/Brand Supported
Supported brands for airbag reset and diagnostic functions.
Main Page/Brand Supported
Main Page/Brand Supported
Main Page/Brand Supported
Main Page/Brand Supported
Main Page/Brand Supported
Main Page/Brand Supported
Main Page/Brand Supported
Main Page/Brand Supported
Main Page/Brand Supported
Demo (VOLVO TMS570)
Demonstration of airbag reset and ECU programming for VOLVO TMS570.
Demo (VOLVO TMS570)
Demo (VOLVO TMS570)
Demo (VOLVO TMS570)
Demo (VOLVO TMS570)
Demo (VOLVO TMS570)
Demo (VOLVO TMS570)
Demo (VOLVO TMS570)
Demo (VOLVO TMS570)
Demo (VOLVO TMS570)
Demo (VOLVO TMS570)
Demo (VOLVO TMS570)
Demo (VOLVO TMS570)
Demo (VOLVO TMS570)
Update Details

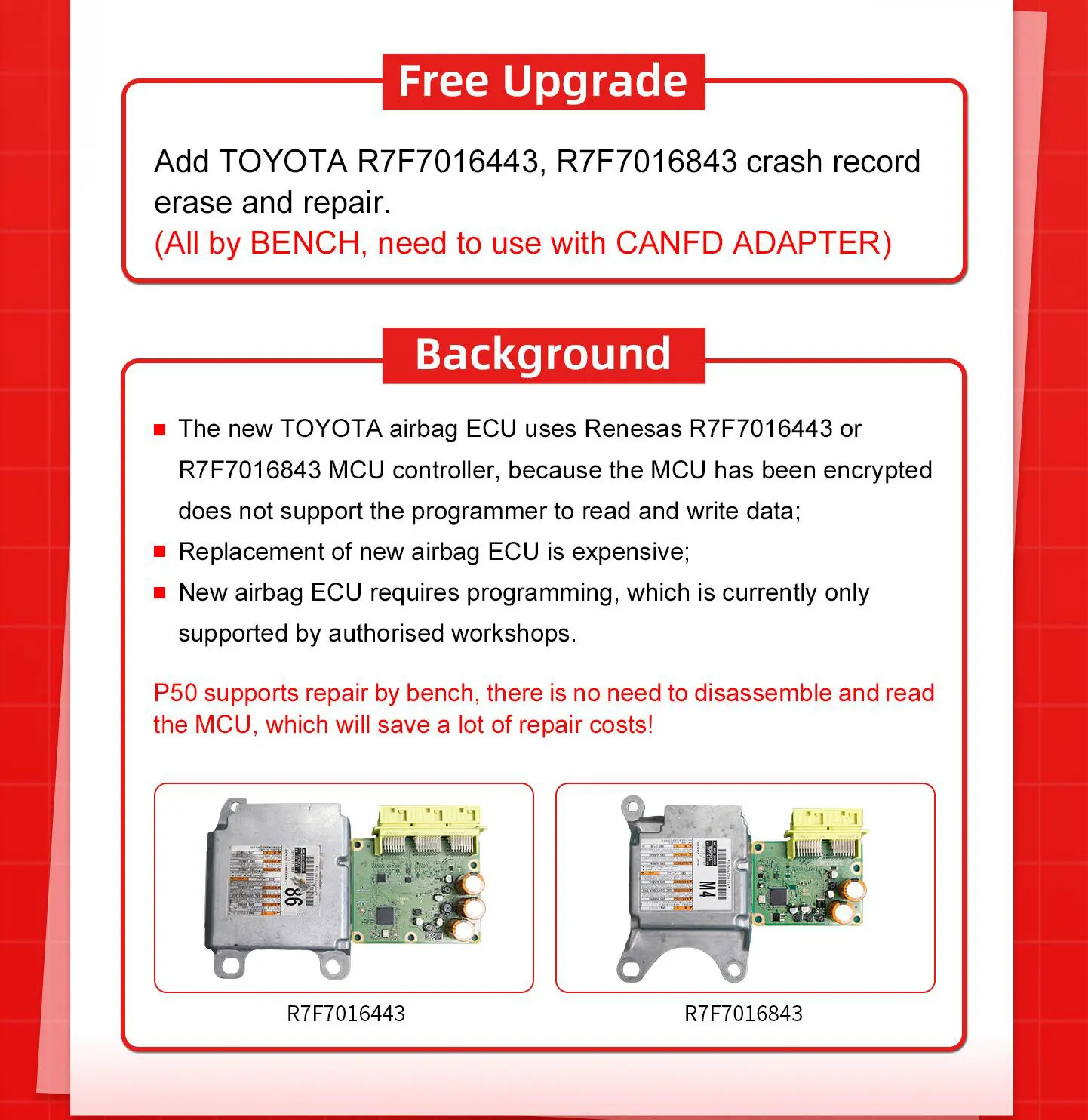

Added TOYOTA R7F7016443, R7F7016843 (2023-07-25), working with CAN FD adapter.
TOYOTA Update
TOYOTA Update
Update Details
Airbag reset update for Hyundai/Kia, working with CAN FD Adapter.
Hyundai/Kia Update
Hyundai/Kia Update
CAN FD Adapter Support
Supporting car models for CAN FD adapter usage.
CAN FD Adapter
OBDSTAR CAN FD adapter is designed for diagnosing ECU systems of cars with CAN FD protocols. Compatible with P50, X300 DP Plus, X300 PRO4, and X300 DP Key Master for programming and airbag reset.
Advantages
- Portable design
- Easy operation
- High performance
Usage
Use female connector to connect with OBDII-16 and male connector with DLC Diag Socket.
Package Includes
- 1pc x OBDSTAR CAN FD Adapter
CAN FD Adapter for Airbag Reset
Package Overview
