ANCEL S110 EVAP Smoke Leak Detector Car Vacuum Tester Fuel Pipe Diagnostic Tool

ANCEL S110 Car Smoke Leak Machine Dual Mode Built-in Air Pump EVAP Vacuum Tester Fuel Pipe Leakage Smoking Generator

🌐【Smoke Test Your Vehicle with Ease】In modern cars, many check engine codes are set off by an air/vacuum leak. Our smoke machine automotive performs a variety of tests such as EVAP system test, air intake system, exhaust system, inter-cooling system, oil circuit, water lines and other pipeline systems that users can image. It effectively and accurately detects every detectable location, saving you time and money at repair shops and helping DIY mechanics pinpoint the problem, rather than just replacing parts.
🌐【EVAP Function】S110 Pro features an EVAP function, allowing it to operate efficiently under compression without requiring an additional regulator. With a unique output pressure level of 0.5 PSI, it provides optimal performance at an affordable cost in the market.
🌐【Effortless & Convenient Usage】Smoke machine for cars measures 4.88 x 4.21 x 6.53 inches and weighs only 2 pounds, making it the perfect lightweight solution for hassle-free use. Its convenient hanging feature allows effortless placement on the engine hood, making it a must-have for car owners seeking a stress-free smoke machine.
🌐【2 in 1 Leak Detection Modes】This device offers dual detection modes for air and smoke. Air mode allows for leak testing before introducing smoke (place the hose in the area to be tested and observe if the small red ball on the flow meter moves to determine if there is a leak); Smoke mode introduces smoke into vehicle system for leak detection.Keep your vehicle in optimal condition effortlessly.
🌐【Smoke Flow Control Valve with Flow Meter】Easily monitor and adjust smoke output with this device. The flow meter also displays important information on internal pipe pressure, preventing damage due to high pressure and ensuring leaks are detected in low pressure scenarios. An essential tool for any detection system.
🌐【Premium Built Leak Detection Tool 】 ① Quickly and accurately detects even the smallest leaks with its ultra-precise 0.1in soft hose tip. ② Features durable clamps and 8.2ft power cables for long-lasting performance and effortless use. ③Regulating Valve - Adjust the smoke output to your desired level. ④Smoke is produced in just 10 seconds, making it a convenient and time-saving tool for hassle-free car maintenance.

FULL SYSTEM DIAGNOSTICS, DON'T MISS ANY LEAKS.

EVAP SYSTEM TEST: Leakage in the fuel evaporation system causes fuel vapour to escape into the atmosphere, resulting in waste and pollution or unstable engine idling.

EXHAUST SYSTEM TEST: Uncleaned harmful gases escaping into the atmosphere or increasing the noise of the vehicle are the main disadvantage when leaks occur in the exhaust.

FUEL TANK SYSTEM TEST: If there are gaps in the fuel tank and pipes caused by improper installation or insufficient sealing of the fuel tank cap, it may cause leaks in the fuel tank system.

TEST OF VARIOUS PIPE CONNECTIONS: Smoke test of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.

CAR SEALING TEST: Poor sealing of the car can lead to many inconveniences, such as it is not warm and dusty, not soundproof, not waterproof, etc.

CRANKCASE SYSTEM TEST: Excessive pressure or corrosion of the crankcase is the main reason why the crankcase seal is damaged and oil leaks.

INTAKE SYSTEM TEST: A leak in the intake system will result in inadequate intake of the car engine, leading to low engine performance.
TURBO TEST: The leakage of coolant would cause the engine to indicate a high water temperature.

How to do leakage test?

1. Attach the hook to the device.
2. Attach the workshop air adapter to the unit.
3. Plug the power cord into the power outlet.
4. Screw the smoke hose to the unit.
5. Fill smoke oil (mineral oil based) into the unit via the refill opening on the top.
(Note: The oil level must not be higher than the level indicator. )

6.Connect the factory air supply.
7.Connect the vehicle's 12V power supply.
8. Introduce workshop air into the unit.
9. Turn the flow control knob counterclockwise to open the air flow.
10. Turn on the power on the back of the unit, then the unit will start to generate smoke.
11. Introduce the smoke into the system

ANCEL S110 Car Smoke Leak Detector Support All of Car Models

For detecting the leakage of pipe systems on cars,motorcycles,snowmobiles,off-road vehlicles,ATVS,light trucks and speedboats,Suitable for all car models

OVERHEAT & ANTI-FROST PROTECTION

Overheat Protection:When the temperature of the device exceeds 75℃,power protection will be intelligently activated to turn it off.

Anti-frost Protection:The device can also work normally at -20℃

DUAL POWER & DOUBLE PRECISION

Swiftly confirm potential leaks and detect smoke-sensitive components with ease in Air Mode, ensuring prompt responses. For precise pinpointing of leak sources, seamlessly switch to Smoke Mode, revealing hidden issues with visible smoke. This versatile mode not only expedites leak identification but also optimizes testing efficiency, reducing smoke oil consumption.

AIR MODE :

First, use the air mode to directly measure the leak, and judge whether there is a leak by the pressure gauge value. If it is less than 0.5bar, it will inevitably leak. If it reaches 0.8bar and above, the pipeline tightness is very good.Then there is no need to waste baby oil

SMOKE MODE:

After the air mode determines that there is a leak, use the smoke mode to find the leak.

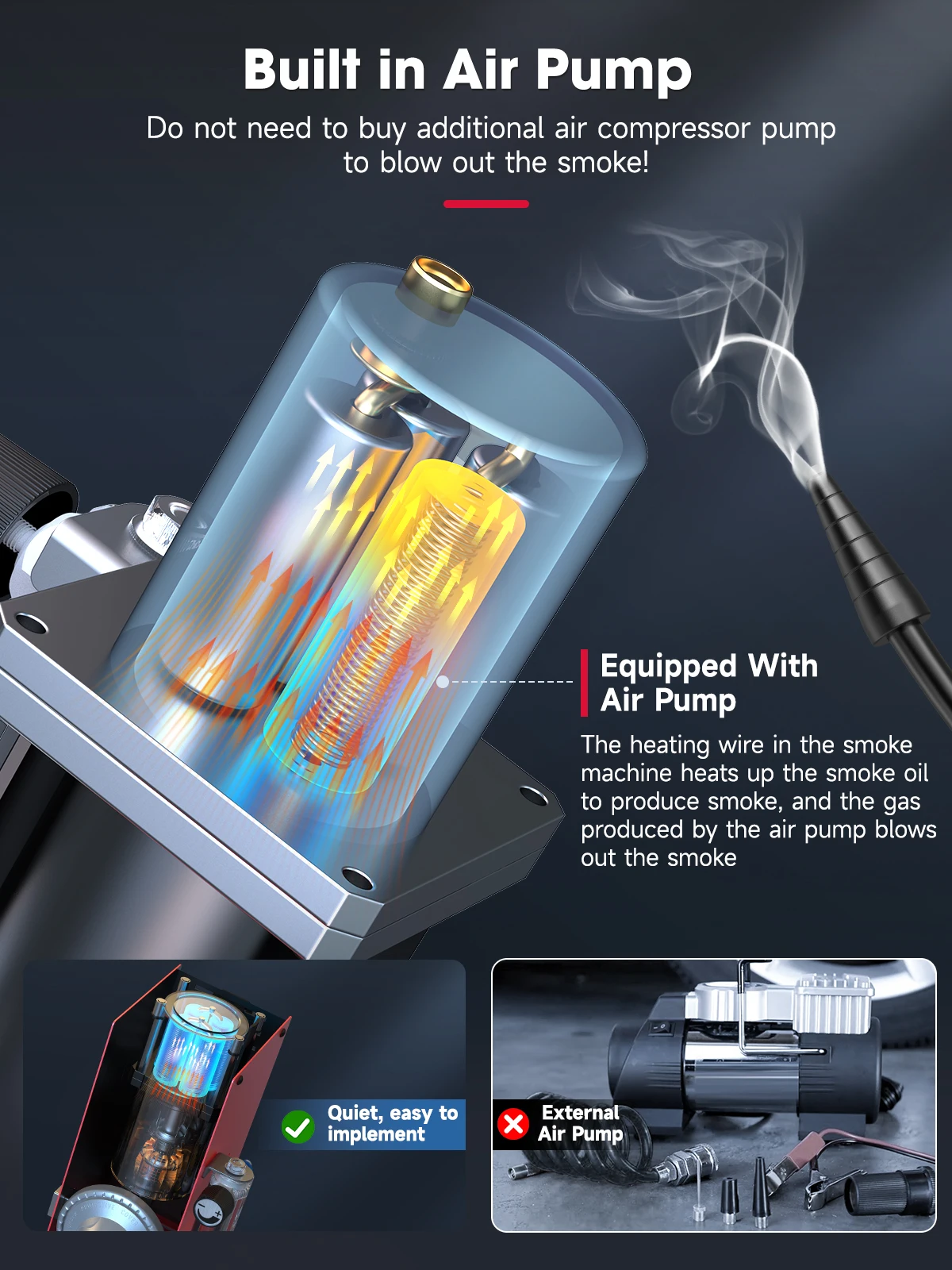

BUILT-IN AIR PUMP

Do not need to buy additional air compressor pump to blow out the smoke!

Intuitive Pressure Gauge & Flow Meter, Quickly Assessing Extent Of Leakage

This smoke tester automotive equipped with a pressure gauge and an adjustable flow meter, ensuring crystal-clear and precise detection of even the smallest leaks. Additionally, the adjustable flow meter allows for easy regulation of smoke output size, adapting to various test conditions with precision.

NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.

Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.

Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.
