2023 New Arrival LAUNCH X431 PRO ELITE Car Diagnostic Tools CAN FD DOIP
Couldn't load pickup availability
LAUNCH X431 PRO ELITE Professional All-System Diagnostic Scanner with ECU Coding and Bidirectional Control

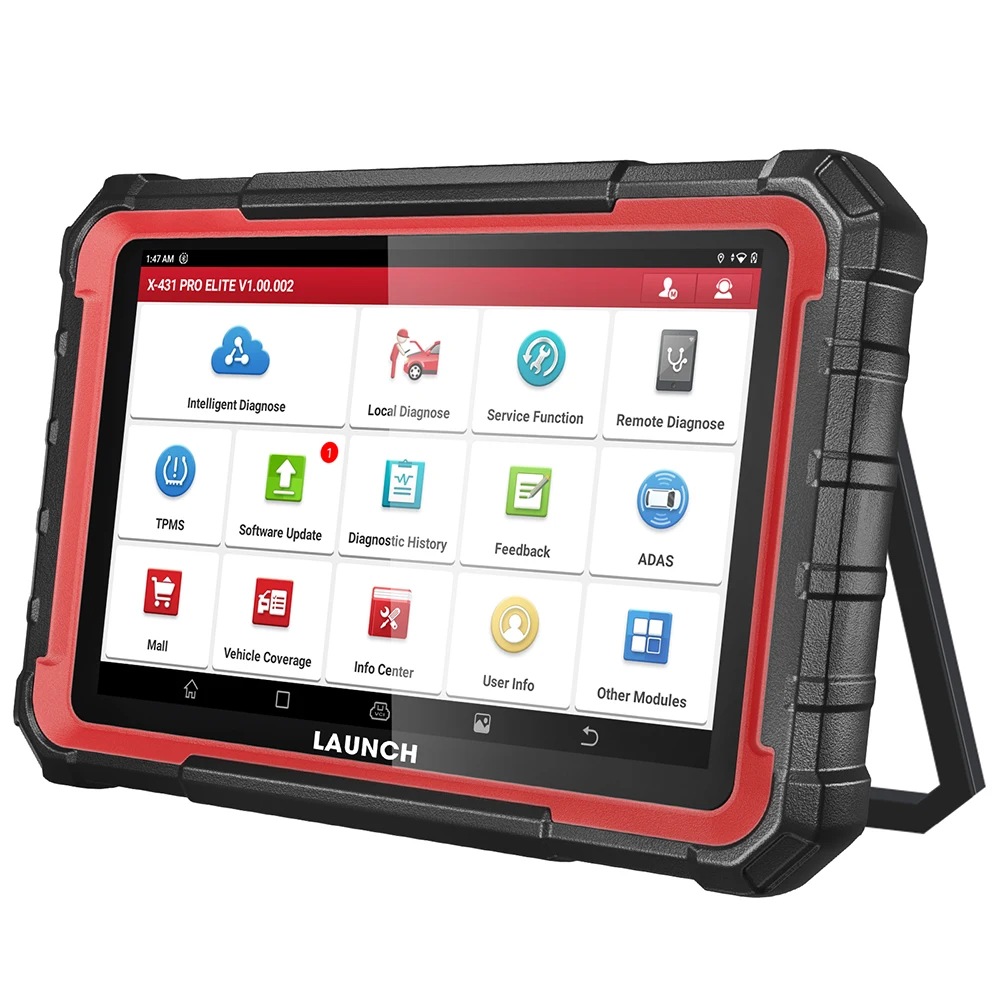

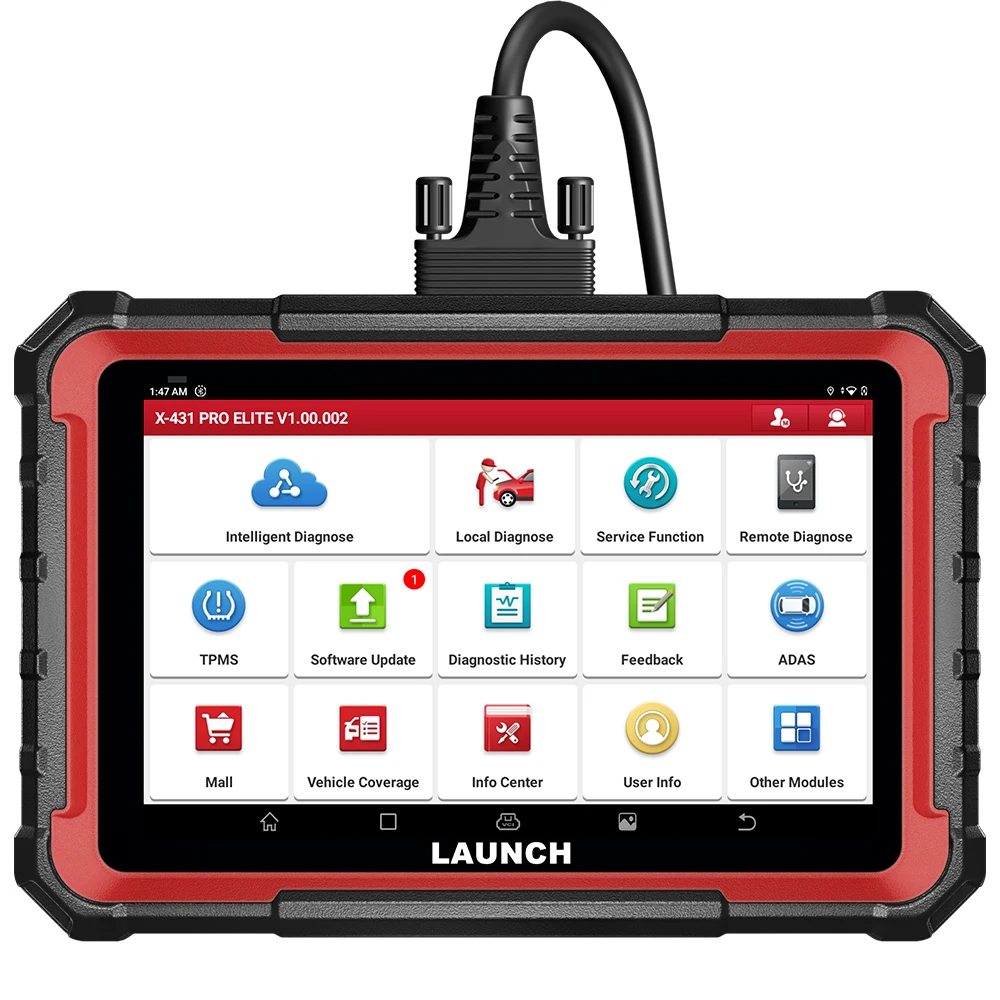

The LAUNCH X431 PRO ELITE is an 8-inch professional automotive diagnostic scanner designed for comprehensive vehicle system diagnostics, ECU coding and bidirectional active testing. Supporting CAN FD and DoIP protocols, it provides access to modern vehicle networks, while its 35+ service reset functions, FCA AutoAuth support and remote diagnosis capabilities help technicians identify faults and perform maintenance procedures. With Android 10, a 1024 × 800 display, 4GB RAM, 64GB storage and dual-band Wi-Fi, it offers a practical diagnostic solution for automotive workshops and experienced DIY users.
- 8-inch high-resolution display for clear diagnostics Equipped with a 1024×800 resolution display on an 8-inch screen, the LAUNCH X431 PRO ELITE delivers sharp visuals for accurate and easy-to-read diagnostic results across all vehicle systems.
- Advanced CAN FD & DOIP support for modern vehicles The device supports CAN FD and DOIP protocols, ensuring full compatibility with the latest high-speed vehicle networks in modern cars, including advanced diagnostics and data transfer.
- 35+ reset functions and bi-directional control Featuring 35+ reset functions and bi-directional control/active test, this scanner enables comprehensive system resets and real-time component testing for improved vehicle performance.
- 2026 newest software with remote diagnosis Powered by the 2026 newest software version and Android 10 OS, it supports remote diagnosis and auto VIN scan for faster, smarter troubleshooting and vehicle identification.
- Quad-core 2.0GHz CPU with 4G+64G memory With a quad-core 2.0GHz CPU and 4G RAM + 64G storage, the X431 PRO ELITE ensures fast processing, smooth multitasking, and ample space for software updates and data storage.
- Wi-Fi 2.4GHz/5GHz connectivity and 6000mAh battery The device includes Wi-Fi 2.4GHz/5GHz support for seamless connectivity and a 3.7V/6000mAh battery for extended operation without constant charging.
What are the differences between the European version and the global version?
* EU Version: There are IP restrictions and can only be used in Europe.
* Global Version: No IP restrictions, can be used around the world
LAUNCH X431 PRO ELITE 8-inch CAN FD DOIP All System Advanced Car Diagnostic Tools, 35+ Resets ECU Coding Active Test 2 Years Free Update, support FCA SGW Autoauth, ADAS, TPMS, Key programmer Extended functions
LAUNCH X431 PRO ELITE comes with Full Bi-directional Control, ECU/ Online Coding, 35+ Services, All Systems Diagnostics, FCA AutoAuth, CANFD DOIP, For VAG Guide, Refresh Hidden Functions, Auto Vin, Remote Control, 10,0000+ Vehicle Coverage, 25 languages,
Supports more than 10 extension modules (TPMS, ADAS, BST360, VSP600, XPROG 3, Key programmer, S2-2, Oscilloscope, wifi printer, Multimeter, etc)
EU UK RU Version Supports 18 languages
Russian, English, Italian, French, Spanish, German, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Danish, Serbian, Finnish, Swedish, Swedish, Romanian
Global Version Supports 25 languages
English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch, Hungarian, Finnish, Czech，Turkish, Greek, Arabic, Danish, Romanian, Serbian, Swedish, Thai, Persian, Simplified Chinese, Traditional Chinese
Supports CAN FD and DOIP protocol, it supports For GM after 2020 and other New cars ! Also Supports FCA AutoAuth !!!
CANFD :
it is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.
Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer
DOIP：
With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/ IP and Ethernet. This enables much higher data rates than with CAN. That makes LAUNCH X431 PRO Elite save both in terms of time and expenses in the case of complex diagnostic tasks and flash applications. Compatible with BMW (F&G chassis), for Volvo models (2018 later), for Land Rover & for Jaguar models (2017 later).
( Note: this is car list that CANFD and DIOP supports, LAUNCH X431 PRO Elite also supports other cars, more than about 100+ brands, like for bmw, for vw, for ford etc, there has the detailed car list in the following description, you can check it）
AutoAuth Access: Bypass SGW in FCA Vehicles
you now have access to the security gateway module on 2018 and newer for Fiat Chrysler vehicles, so that the diagnostic tool can clear codes, run bi-directional active tests, actuations, relearns or even IMMO key programming (pulls PIN & write), ADAS calibration assistance etc.
*Note: Update to get this new Function. Since November 2023, 2022, all FCA-supported regions will require an account purchase to log in AutoAuth. The payment is charged by AutoAuth directly. LAUNCH is not involved in any transaction process. Reach us for more detail.
Amazing Online ECU Coding Function
The advanced coding function is used to re-flash the vehicle control modules, which allows you to update the computer software on the vehicle to the latest version, as well as to reprogram adaptive data for certain components after making repairs or replacements, providing solutions for the issues of drivability, fuel efficiency, power loss, fault codes, durability of mechanical parts etc.
But please note that ecu coding is not suitable for all vehicles, please check the compatibility with VIN number before purchasing.
Active Test & Bi-directional control
Bi-Directional Control capability and is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators.
For example, X431 PRO Elite have the ability to actuate relays, injectors, coils, or perform system tests, etc. Also it will actuate solenoids valve and actuators for active testing to identify the error easily moreover. The bi-directional functions are quite extensive. even open an e.g.r. valve and seeing the difference in idle response and oxygen sensor voltage.
Please note: Active testing does not work on all vehicles, please check compatibility with VIN numbers before purchasing. Active tests vary depending on the manufacturer, year, and model, and only the available tests display in the menu.
Guide Function For Volkswagen/ For Audi, for GM
√ Service Regeneration,Particle Filter(DPF)
√ Adapt Injector Correction Value
√ Reset Engine Control Adaptation Values
√ Throttle Learning
√ Fill Coolant Circuit
√ Adapt Values,SCR system
√ Activating/ Deactivating Cruise Control System
√ Basic Setting Of Transmission
√ Basic Setting of Sensors (-G85/-G200/-G201/-G251)
√ Basic Setting/ Bleeding Brake System
√ Initial A/C Compressor Run-In
√ Adaptation Automatic Locking At 15 km/h
√ Distance Control System Calibration
√ Deactivate Or Activate Airbags And Belt Tensioners
√ Adaptation Menu Key Multifunction Steering Wheel
√ Adapting Service Intervals
√ Service Interval Display ,Resetting
√ Transport Mode, Switching Off/On
√ Level Control System Basic Settings
√ Brake Pad Change
√ Headlight Beam Adjustment
√ Battery Adaptation
√ Rear View Camera System Calibration
√ Driver Assistance Systems Front Sensor System Calibration etc.

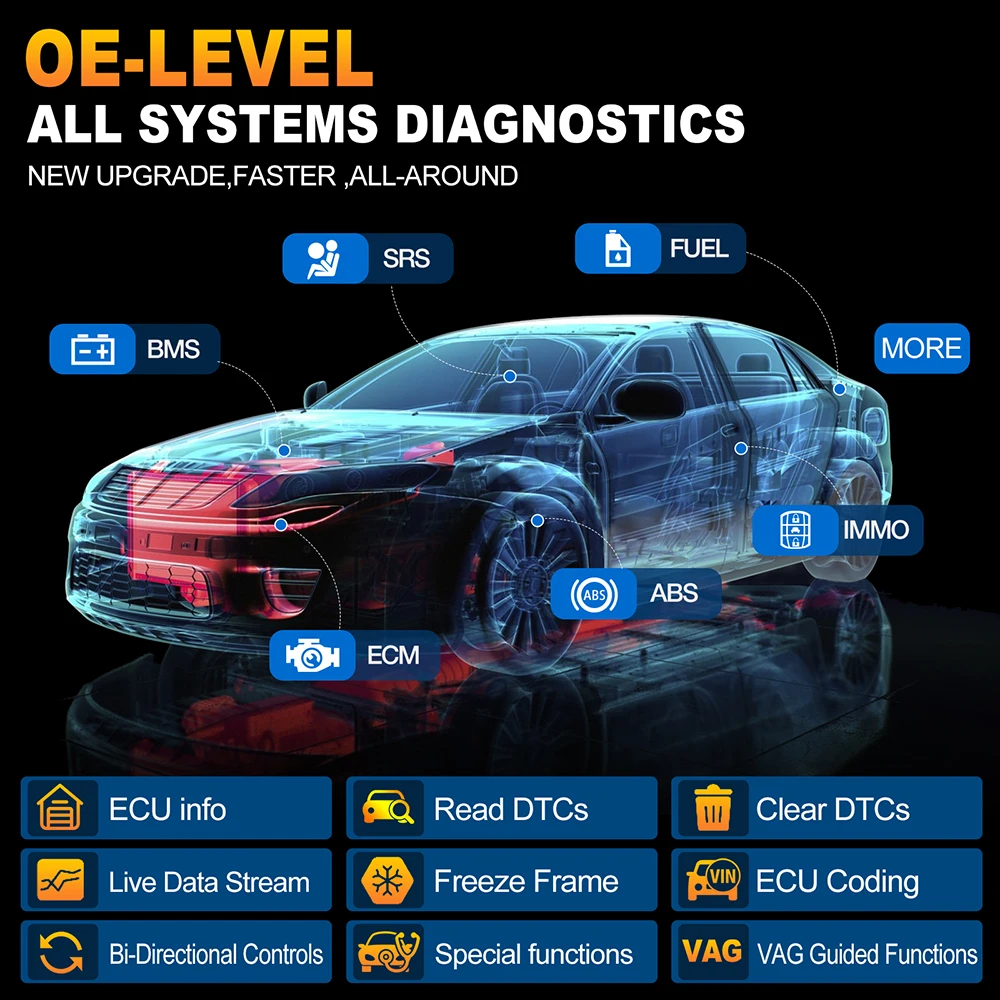

All system diagnostic function
This LAUNCH diagnostic scanner can establish a data link to all systems and subsystems of the vehicle being serviced to:
- Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.
- Read & erase DTCs to locate problem areas and clear the codes.
- View Live Data of each parameter item.
The following is a list of modern vehicle systems that this scan tool can get access to:
- Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems
- Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System
- Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset
- Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle
- Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics ... and more.
This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily. So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.
supports 35+ Kinds of Special Reset Service Function
( Please note that different reset functions support different cars, not all cars, please contact us to view the detailed car list, or you can also view it directly in this link :https://qcar.x431.com/qcar/#/pc/index?q=eyJsYW4iOiIxMDAyIn0%3D）
01 SAS Reset - Steering Angle Reset
To reset the steering angle, you must first find the relative zero point position when the vehicle is traveling in a straight line. Taking this position as reference, the ECU can calculate the accurate angle for left and right steering.
After replacing the steering angle position sensor, replacing steering mechanical parts (such as steering gearbox, steering column, end tie rod, steering knuckle), performing four-wheel alignment, or recovering car body, you must reset the steering angle.
02 Electronic Parking Brake Reset
This function enables you to reset the brake pad after replacing the brake pad.
lt needs to be performed in the following cases:
1.The brake pad and brake pad wear sensor are replaced.
2.The brake pad indicator lamp is on.
3.The brake pad sensor circuit is short, which is recovered.
4. Replace the servo motor.
03 Gear Learning
The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computerto more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped with Delphi engine, the MlL turns on after the engine is started.The diagnostic device detects the DTC P1336' gear not learned'.
In this case, you must use the diagnostic device to perform gear learning for the car. After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, or crankshaft flywheel is replaced, or the DTC 'gear not learned" is present, gear learning must be performed.
04 Oil Reset
This function enables you to reset the oil service for the engine oil life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and weather events.
lt needs to be performed in the following cases:
1. lf the service lamp is on, run car diagnostics first for trouble shooting. After that, reset the driving mileage or driving time, so as to turn off the servicelamp and enable a new driving cycle.
2. lf the service lamp is not on, but you have changed the engine oil or electric appliances that monitor oil life, you need to reset the service lamp.
05 IMMO Reset
This function enables you to perform the anti-theft key matching function, so that the immobilizer control system on the car identifies and authorizes remote control keys to normally use the car.
lt needs to be performed in the following cases:
When the ignition switch key, ignition switch, combined instrument panel, ECU, BCM, or remote control battery is replaced.
06 Injector Coding
This function enables you to write injector actual code or rewrite code inthe ECU to the injector code of the corresponding cylinder, so as to more accurately control or correct cylinder injection quantity.
lt needs to be performed in the following cases:
After the ECU or injector is replaced.
07 TPMS Reset
After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting function must be performed to reset tire pressure and turn off the tire pressure MIL.
Tire pressure resetting must be performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tire pressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged, and tire is replaced for the car with tire pressure monitoring function.
08 Battery Matching
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery, in which the original low battery fault information will be cleared and battery matching will be done.
lt needs to be performed in the following cases:
1. The main battery is replaced.
2. The battery monitoring sensor is replaced.
09 ABS Bleeding
This function allows you to perform various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS).
lt needs to be performed in the following cases:
1. When the ABS contains air.
2. When the ABS computer, ABS pump, brake master cylinder, brake cylinder, brake line, or brake fluid is replaced.
10 Electronic Throttle Position Reset
This function enables you to make initial settings to throttle actuators and returns the learned values stored on ECU to the default state.
Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust theamount of air intake.
11 Diesel Particulate Filter (DPF) Regeneration
This function enables you to clear PM (Particulate Matter) from the DPF filter through continuous combustion oxidation mode (such as high temperature heating combustion, fuel additive or catalyst reduce PM ignition combustion) to stabilize the filter performance.
lt needs to be performed in the following cases:
1. The exhaust back pressure sensor is replaced.
2. The PM trap is removed or replaced.
3. The fuel additive nozzle is removed or replaced.
4. The catalytic oxidizer is removed or replaced.
5. The DPF regeneration MlL is on and maintenance is performed.
6. The DPF regeneration control module is replaced.
12 Air Suspension Calibration
This function enables you to adjust the height of the body.
lt needs to be performed in the following cases:
1. When replacing the body height sensor, or control module in the air suspension system.
2. When the vehicle height is incorrect.
13 AFS Reset (Adaptive Front-lighting System)
This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.
14 Sunroof Initialization
This function enables you to set the sunroof lock off, closed when it rains, sliding/ tilting sunroof memory function, temperature threshold outside the car etc.
15 Gearbox Matching
This function enables you to complete the gearbox self-learning to improve gear shifting quality.
lt needs to be performed in the following cases:
When the gearbox is disassembled or repaired.
16 EGR Adaption
This function is used to learn the EGR (Exhaust Gas Recirculation) valve after it is cleaned or replaced.
17 Language Change
This function is used to change the system language of the vehicle central control panel.
18 AF Reset
This function is applied to set or learn airlfuel rate parameters.
19 Coolant Bleed
Use this function to activate the electric water pump before venting the cooling system.
20 NOx Sensor Reset
NOx sensor is a sensor used to detect the content of nitrogen oxides (NOx) inengine exhaust. lf the NOx fault is re-initialized and the NOx catalytic converteris replaced, it is necessary to reset the catalytic converter learned value storedin the engine ECu.
21 Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
22 Stop Start Reset
This function is used to open or close the automatic Start Stop function via setting the hidden function in ECU.
(The precondition is vehicle equipped with hidden function and hardware support).
23 Transport Mode
To lower vehicle power consumption, user may perform the following operations: limit vehicle speed, not wake up the network for door open and disable remote key etc. In this case, deactivating transport mode is needed torecover vehicle being normal.
24 Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.
25 Windows Calibration
This function is used to perform door window matching to recover the ECu initial memory, and recover the automatic ascending and descending function of power window.
26 AdBlue Reset (Diesel Engine Exhaust Gas Filter)
After the diesel exhaust treatment fluid (car urea) is replaced or filled up, urea reset operation is required.
27 AC System Initialization
When the vehicle's air conditioning ECU actuator is replaced or the ECU memory is lost, the air conditioning system must be relearned/ initialized.
28 Intelligent Cruise Control System Reset
This function is used to matching the intelligent cruise control module after it is replaced or repaired.
29 Engine Power Balance Monitoring
This function is used to monitor crankshaft acceleration in the power stroke ofeach cylinder, to determine the relative power provided by each cylinder.
30 MOTOR ANGLE CALIBRATION
31 High Voltage Battery Detection
This function is used for high voltage battery diagnosis and status information detection.
32 Gas Particulate Filter (GPF) Regeneration
This function is used to perform the GPF replacement or regeneration after the fuel consumption is increased and engine output power is reduced resultingfrom a long time service of the GPF.
33 Clutch Reset
34 TURBO Reset
35 Reset Hide
.... More maintenance features will be continuously updated.
Reset Hide
.... More maintenance features will be continuously updated.
More features of LAUNCH X431 PRO ELITE
* [Intelligent Diagnose, Auto VIN Scan]
Obtain vehicle data from the cloud server to perform quick test via reading VIN, to avoid various defects resulting from step-by-step menu selection.
* [Local Diagnose] Diagnose a vehicle manually.
* [Remote Diagnose] This option aims to help repair shops or technicians launch instant messages and remote diagnosis, making the repair job getting fixed faster.
* [X-431 Diagnosis Kit] Include vehicle coverage, CANBUS pin detection, CANScope, and Fix connector firmware, etc.
* [Feedback] To feed back the recent 20 diagnostic logs to us for
issue analysis.
* [Mall Function] Subscribe some extra software or service functions that are not included in the diagnostic tool online.
* [Health Report (Quick Test)]
You can quickly access all the electronic control units of the vehicle and get a detailed report about vehicle health.
* [8-in-1 Live Data Stream]
* DTC Look up
* Diagnostic Report
* Diagnostic Report print & Share
* Online Repair Sources
Compatible with more module functions
[LAUNCH X431 i-tpms]
This module allows you to configure the scan tool as TPMS activation & diagnostic tool, which provides the ability to trigger TPMS sensor, program TPMS sensor, perform the relearning procedure. It needs to work with the compatible TSGUN/ i-TPMS device (sold separately).
[ LAUNCH ADAS (Calibration)]
This module enables you to effectively and accurately calibrate a wide range of camera-based & radar-based driver assistance systems, e.g. the front camera for the lane departure warning system, the radar sensor for the ACC (Adaptive Cruise Control) or the camera for adaptive headlights.It needs to work with the specific ADAS calibration tool (sold separately).
[LAUNCH Oscilloscope]
This module can make the auto repair technician quickly judge the faults on automotive electronic equipment and wiring. It needs to work with the specific Scopebox (sold separately).
[LAUNCH S2-2 Sensor Simulator]
This module is specially designed to diagnose and simulator vehicle sensor faults quickly and conveniently. It needs to work with the compatible S2-2 Sensorbox (sold separately).
[LAUNCH VSP600 Videoscope]
This module allows you to check those unseen parts of engine, fuel tank, and braking system etc. It needs to work with the compatible Videoscope (sold separately).
[LAUNCH BST360 Battery Tester]
This module allows you to fix battery detection faster and easier.It needs to work with the specific Bluetooth Battery tester (sold separately).
[LAUNCH Immobilizer Programmer]
This module allows you to perform the read-write function for vehicle keys, EEPROM, MCU, and EEPROM/ FLASH of vehicle engine and gearbox ECU. It needs to work with the specific immobilizer programmer (sold separately).
[LAUNCH Key Programmer]
The module can identify car key chips and generate various types of chip models from super remotes, read the remote-control frequency of car keys, and generate remote control devices for different car models from various types of super remotes. It needs to work with the compatible key programmer (sold separately).
[LAUNCH X431 WiFi Printer]
X431 PRO ELITE can be connected to WIFI printers to print out diagnostic data or reports.
More .....
Covering 99% of cars worldwide, supporting over 100,000 vehicles.
150+ Car Brands, 100, 000+ Car Models Supported!
For ASTON MARTIN
For AUDI
For HOLDEN (Australia)
For BENZ (For Mercedes-Benz/ For Maybach)
For BMW (For BMW/ For Brilliance BMW/ For Rolls-Royce/ For Mini)
For Fiat (Brazil)
For GM (Brazil)
For CHANGAN
For CHANGCHENG
For CHANGHE (For Changhe/ For Changhe Suzuki)
For CHRYSLER ( For Chrysler/ For Dodge/ For Jeep)
For CITROEN ( For Citroën/ For Dongfeng Citroën)
For CMC
For DAEWOO
For DAIHATSU
For FERRARI
For FIAT (For Fiat/ For Abarth/ For Alfa Romeo/ For Lancia/ For Nanjing Fiat)
For FLYER
For FUSO
For FUTIAN (For Beiqi FUTIAN)
For GAZ
For GM (For GM/ For Chevrolet/ For Cadillac/ For Buick)
For HAFEI
For HINO
For HMAZDA
For HONDA (For Honda/ For Acura/ For Dongfeng Honda/ For GAC Honda)
For HUACHEN
For HYUNDAI
For IKCO
For MAHINDRA INDIAN
For MARUTI INDIAN
For TATA INDIAN
For ISUZU
For IVECO
For JACTY
For JIAO
For JINLONG
For JOYLONG
For JPISUZU
For KIA
For HYUNDAI KOREA
For KIA KOREA
For LANDROVER (For Jaguar/ For Land Rover)
For LIFAN
For LIUWEI_TY
For LUXGEN
For MAHINDRA
For PERODUA (Malaysia）
For PROTON (Malaysia）
For MARUTI
For MASERATI
For MAXUS
For MAZDA ( For Mazda/ For Mazda China)
For MITSUBISHI (For Mitsubishi/ For Mitsubishi Guangqi)
For MVM
For MYHRTY
For NISSAN ( For Nissan/ For Infiniti/ For Nissan GTR/ For Dongfeng Nissan/ For Venucia)
For OPEL
For PERODUA ( For Perodua)
For PEUGEOT (For Peugeot/ For Dongfeng Peugeot)
For PORSCHE
For PROTON
For QIRUI_TY
For QOROS
For RENAULT (For Renault/ For Dacia)
For ROVER
For SAAB
For SAICMG
For SAIPA
For SEAT
For SGM (For GM China / For Chevrolet China / For Cadillac China /For Buick China )
For SKODA
For SMART
For SPRINTER
For SSANGYONG
For SUBARU
For SUZUKI
For TATA
For TOYOTA (For Toyota/ For Lexus/ For Toyota China)
For TRUMPCHI
For FORD USA (For Ford/ For Lincoln/ For Ford China)
For VAZ
For Volvo/ For Lynk & Co
For VW (For Volkswagen/ For Bentley/ For Bugatti/ For Lamborghini)
For WEILI
For XIALI
For XINKAI
For ZHONGSHUN
For ZHONGTAI
For ZHONGXING

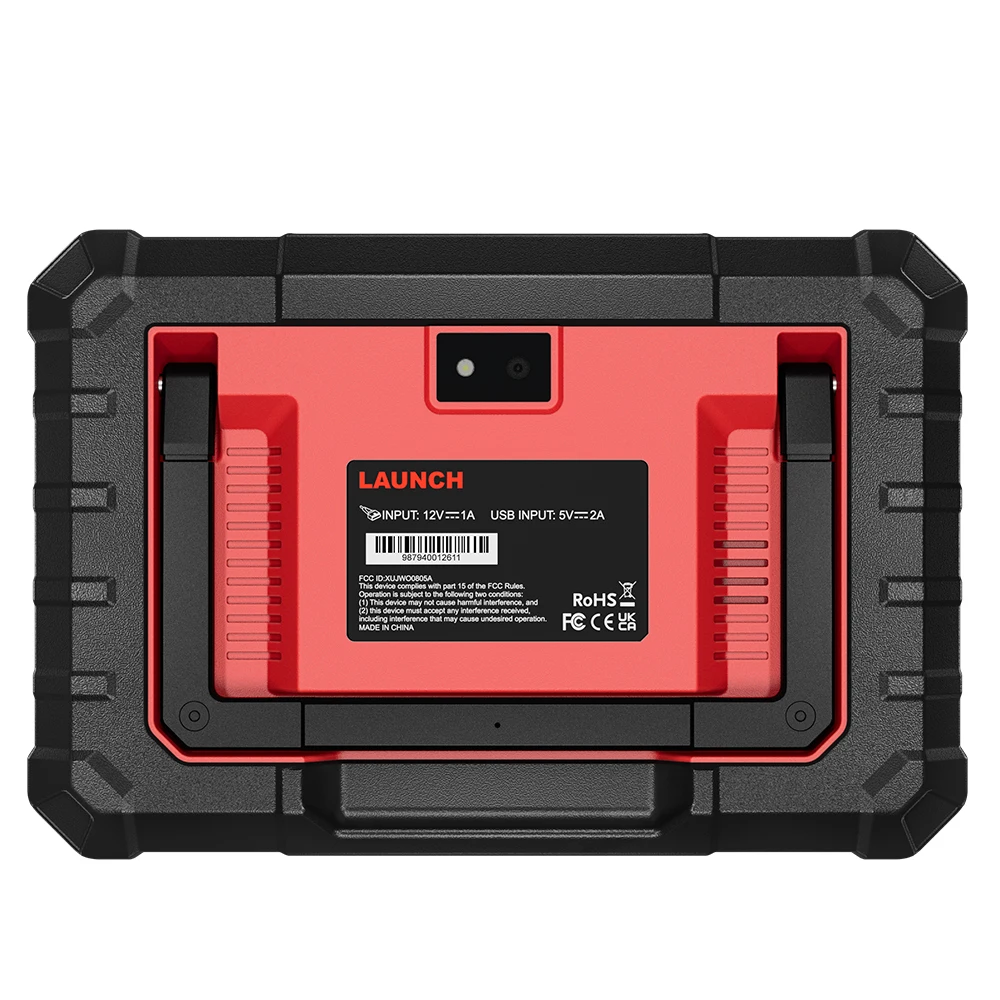

LAUNCH X431 PRO ELITE Tablet Parameter
■ Tablet Size: 8.0-inch LED screen, 1024*800
■ System Version: Android 10.0
■ CPU Version: Quad-core 2.0GHz
■ RAM: 4GB
■ ROM: 64GB
■ Battery Capacity: 3.7V/6000mAh
■ Camera: 8MP Rear
■ Wi-Fi Network: 2.4GHz / 5GHz (Dual-band)
■ Tablet Dimensions: about 250mm×170mm×40mm
■ Packaging Dimensions: about 350mm×142mm×157mm
■ Total Weight: about 4 KG
■ Charging Power: 5V 2A (10W)

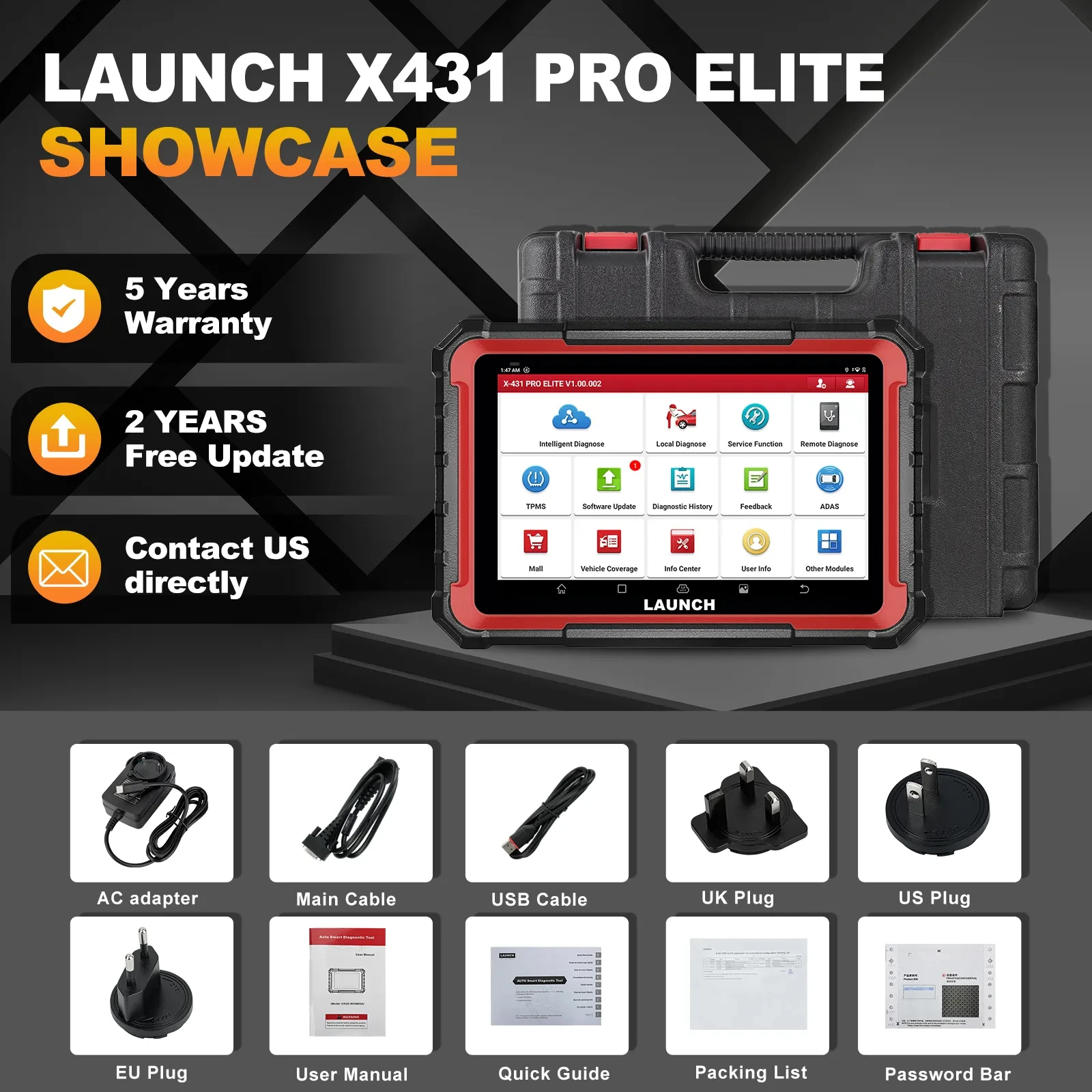

LAUNCH X431 PRO ELITE Packing List
1pc * X431 PRO ELITE 8 inch Tablet PC
1pc * OBD Diagnostic Cable
1pc * Type-C Data Cable
1pc * Charger Cable
1pc * US Plug
1pc * UK Plug
1pc * EU Plug
1pc * Manual
1pc * Quick Guide
1pc * Packing list
1pc * password paper
Choose the LAUNCH X431 PRO ELITE for versatile vehicle diagnostics, advanced coding capabilities and a wide range of maintenance functions in one device. Before purchasing, verify vehicle compatibility by VIN, as ECU coding, active tests and service functions vary by make, model and year. Please also select the correct regional version: the EU version is restricted to use in Europe, while the Global version has no IP restrictions.
