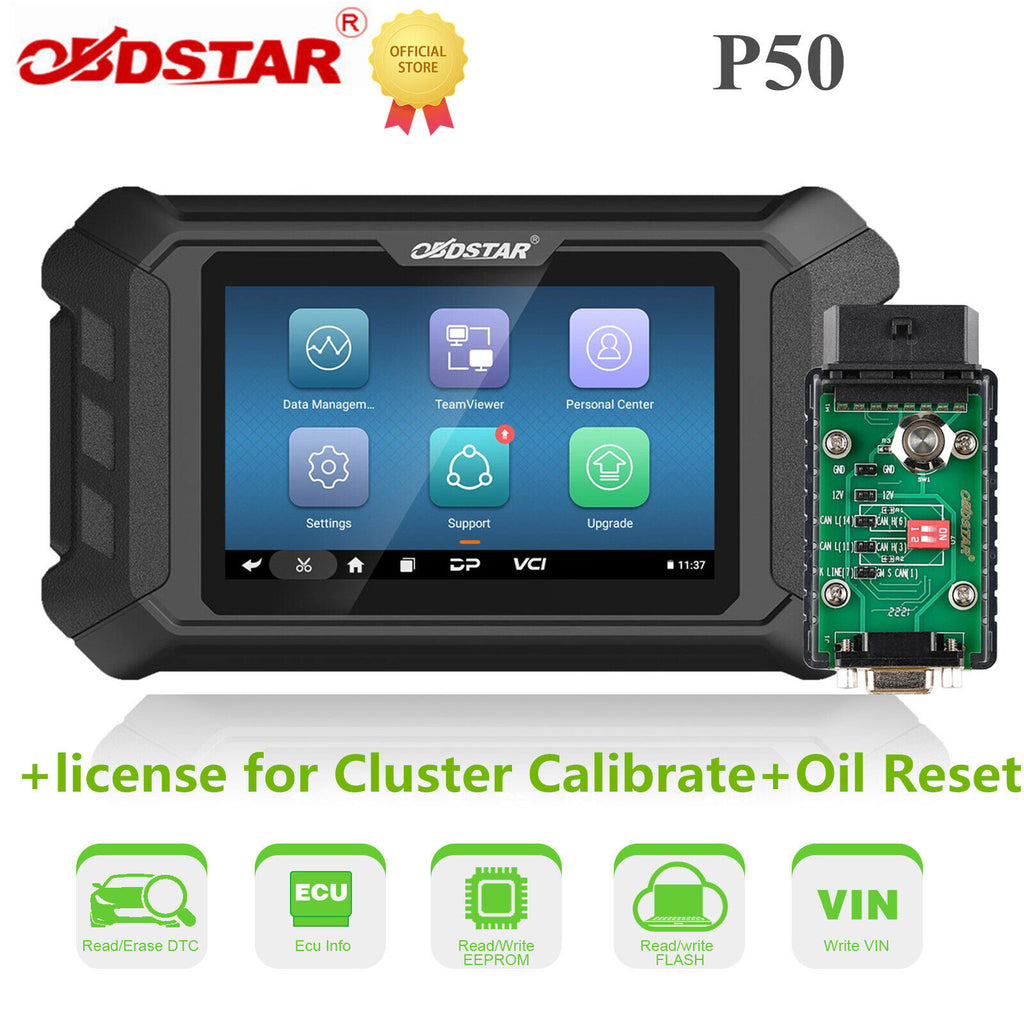

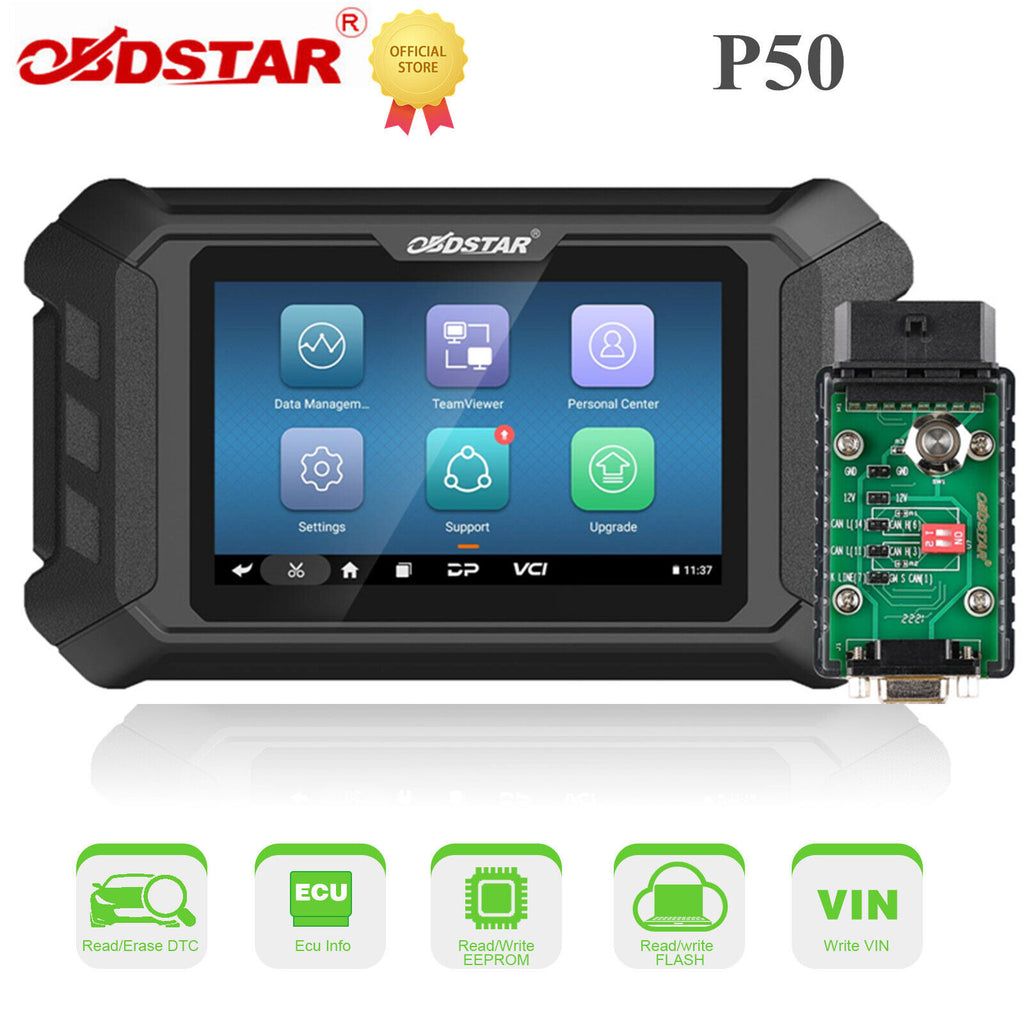

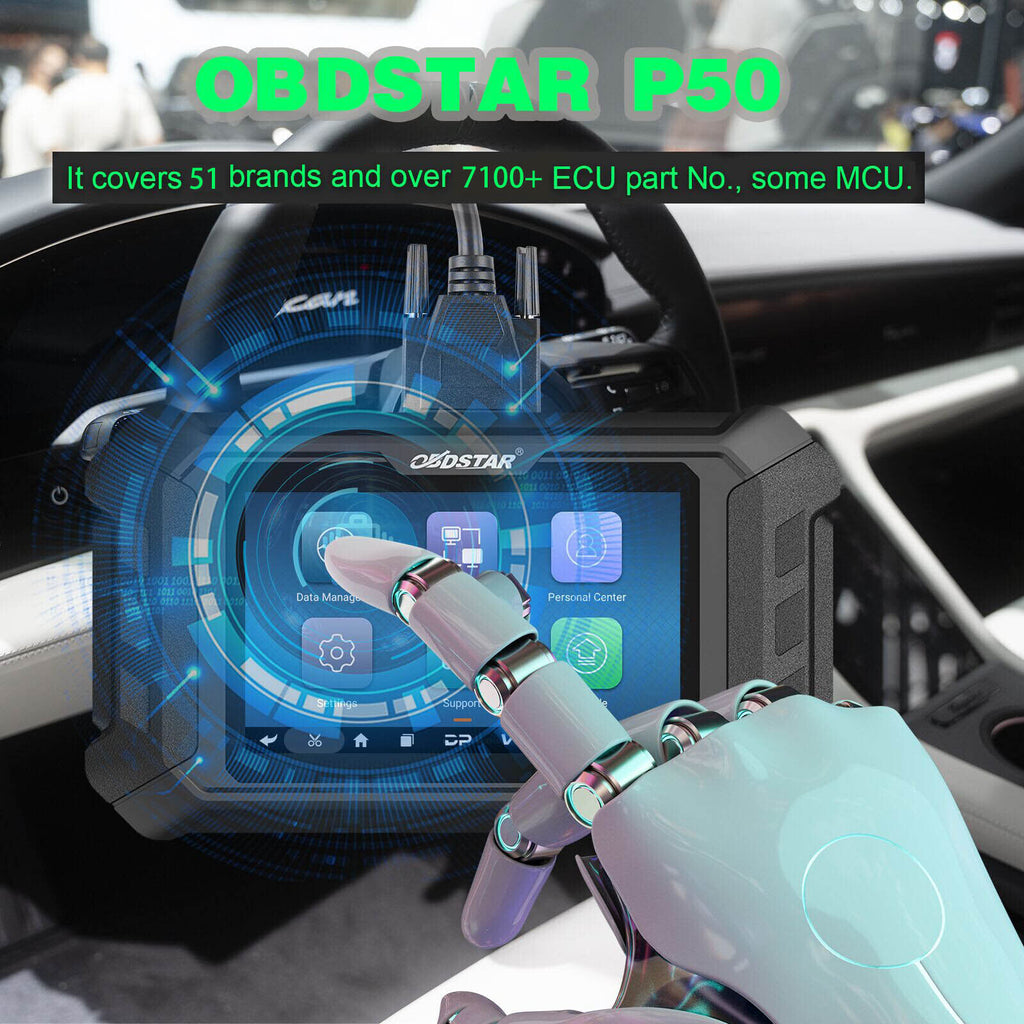

OBDSTAR P50 Airbag Reset + PINCODE Intelligent Airbag Reset Equipment Covers 38 Brands and Over 3000 ECU Part No.

OBDSTAR P50 Support Car List 2023-04-14
Buy Cluster Calibration & Oil Light/ Service Reset Function Authorization, get the same function as the odo master.

OBDSTAR P50 Basic Functions:
1. Supports one-click airbag reset for 51 brands and over 7100 ECU part No.
2. Supports fuzzy search for ECU part No.
3. Contains clear BENCH mode wiring diagram
4. Contains powerful and complete description files for fault code
5. One year update for free. 150 USD for update per year from second year.

6.Language: English
More functions under development

OBDSTAR P50 Advanced Functions:
Read ECU Information: Read ECU part number, historical frame number, current frame number, collision record.
Read DTC
Erase DTC
Read EEPROM: Read EEPROM data from ECU for backup
Write EEPROM: Write EEPROM data into ECU
Read FLASH
Write FLASH
Write VIN: Write back the correct VIN after executing [Crash Data Clear]
Clear/Erase Crash: Clear ECU crash data
Unlock ECU

How to use OBDSTAR P50?
Please register the device before using.
Instructions for registration.
Distributor code: 0086A002.
The general operation steps are as follows:
1. Read the part number---To see whether it reads the correct part number
2. Read fault codes---Check if there is an airbag crash fault
3. Clear the fault code---A few car models' airbag fault codes can be cleared by cleaning the fault codes directly
4. If reading EEPROM is supported, please read EEPROM
5. Clear the collision record
6. If there is a write VIN function, please write VIN ( Very few Ford and Renault models' VIN information will be erased when cleaning the fault codes)
7. Clear the fault code
8. Read the fault code---To confirm that the fault has been successfully cleared

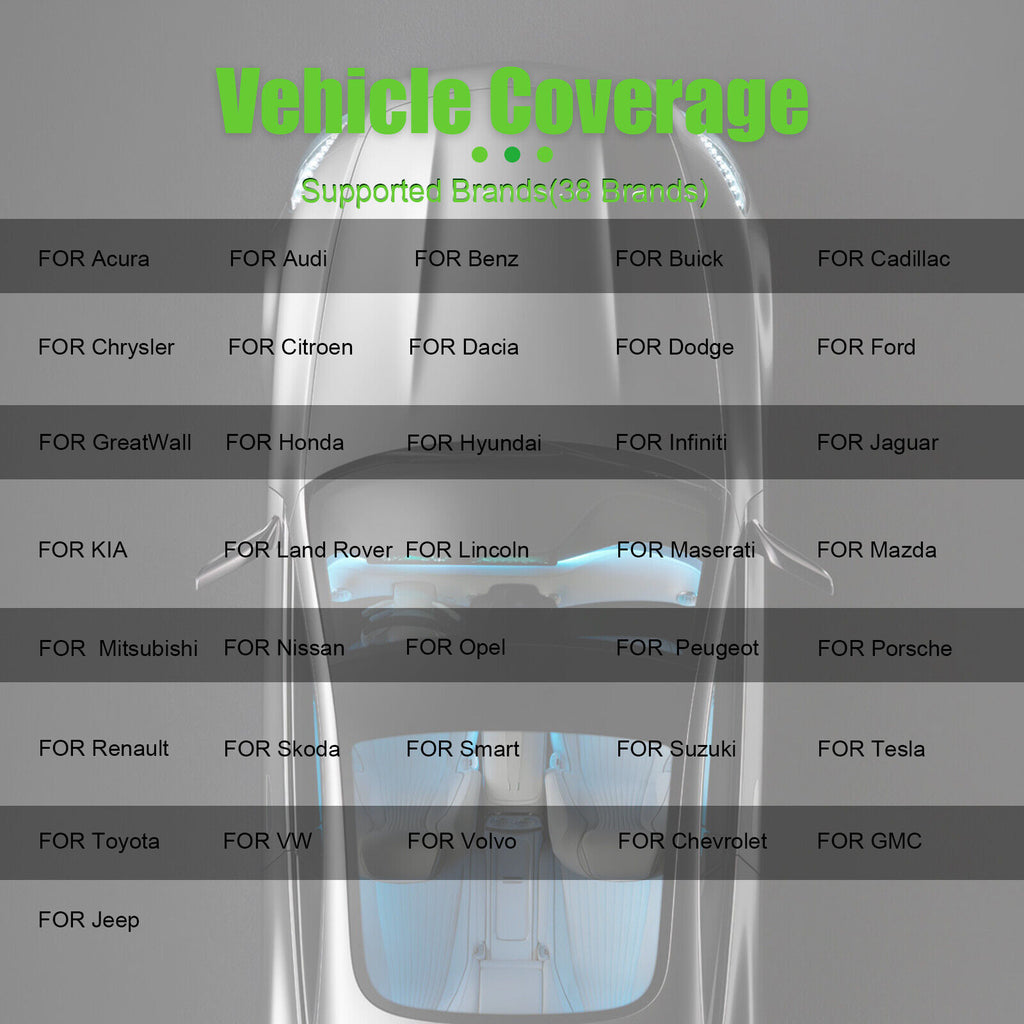

OBDSTAR P50 Vehicle Coverage:
1. Supported 51 brands:
For Acura/Audi/Benz/Buick/Cadillac/ Chevrolet/ Chrysler/ Citroen/ Dacia/ Dodge/Ford/GMC/ GreatWall/ Honda/ Hyundai/ Infiniti/Jaguar/ Jeep/ KIA/ Land Rover/ Lincoln/ Maserati/ Mazda/ Mitsubishi/ Nissan/ Opel/Peugeot/Porsche/ Renault/Seat/ Skoda/ Smart/ Subaru/ Suzuki/ Tesla/Toyota/VW/ Volvo
2. Cover over 7100 ECU part No. (supporting fuzzy search)
3. Support MCU types: H8SX, RH850, SPC, XC2XXX, TC2XXX, TMS570...

Latest Update:
Airbag Reset V30.34 --2023-02-28
Working with CAN FD Adapter


Airbag Reset V30.32 --2022-12-28
Add for Hyundai/ Kia airbag reset, working with CAN FD Adapter

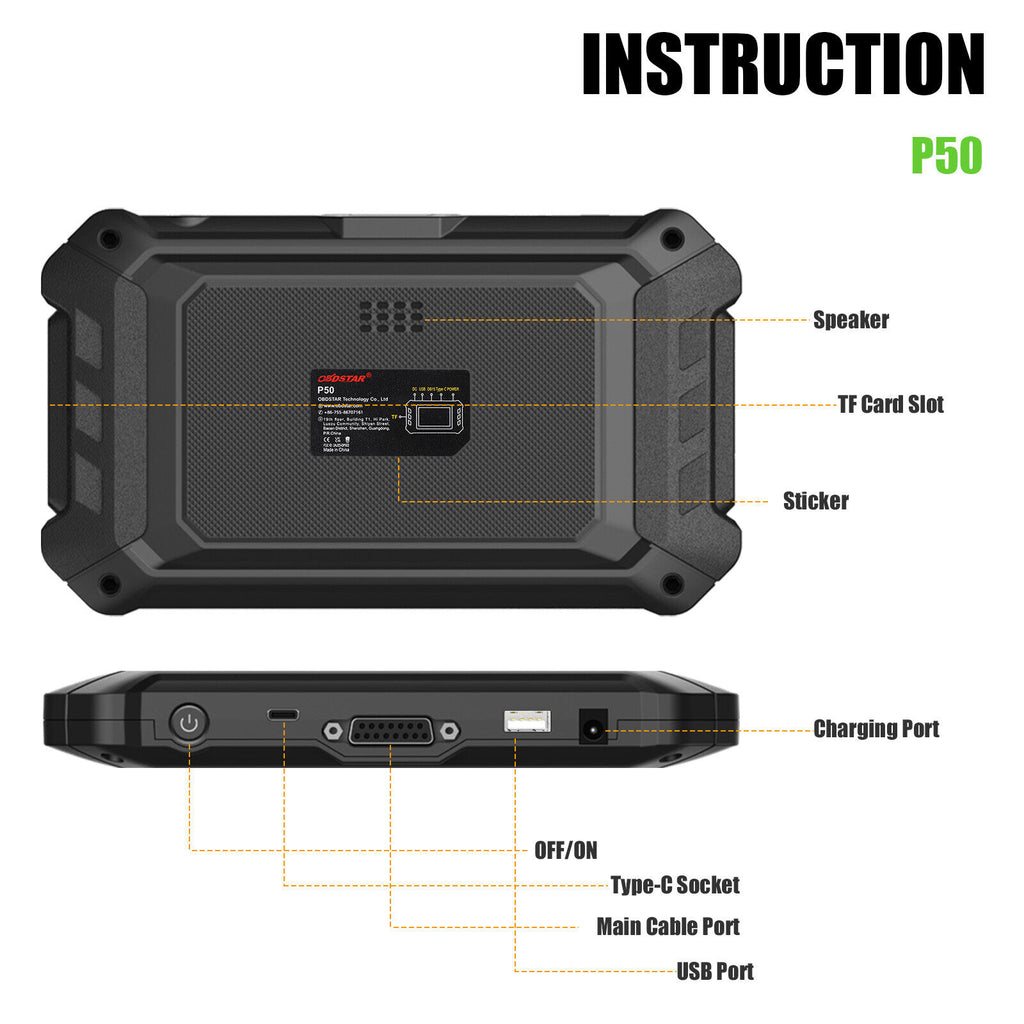

OBDSTAR P50 Specification:

Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	2600mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	5.0 inch
LCD resolution	800*480
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃  ~  55℃（14℉  ~  131℉ ）
Storage temperature	-20℃  ~  70℃（-4℉  ~ 158℉ ）
Weight	About 700g
Dimension	198mm*115*mm*31mm

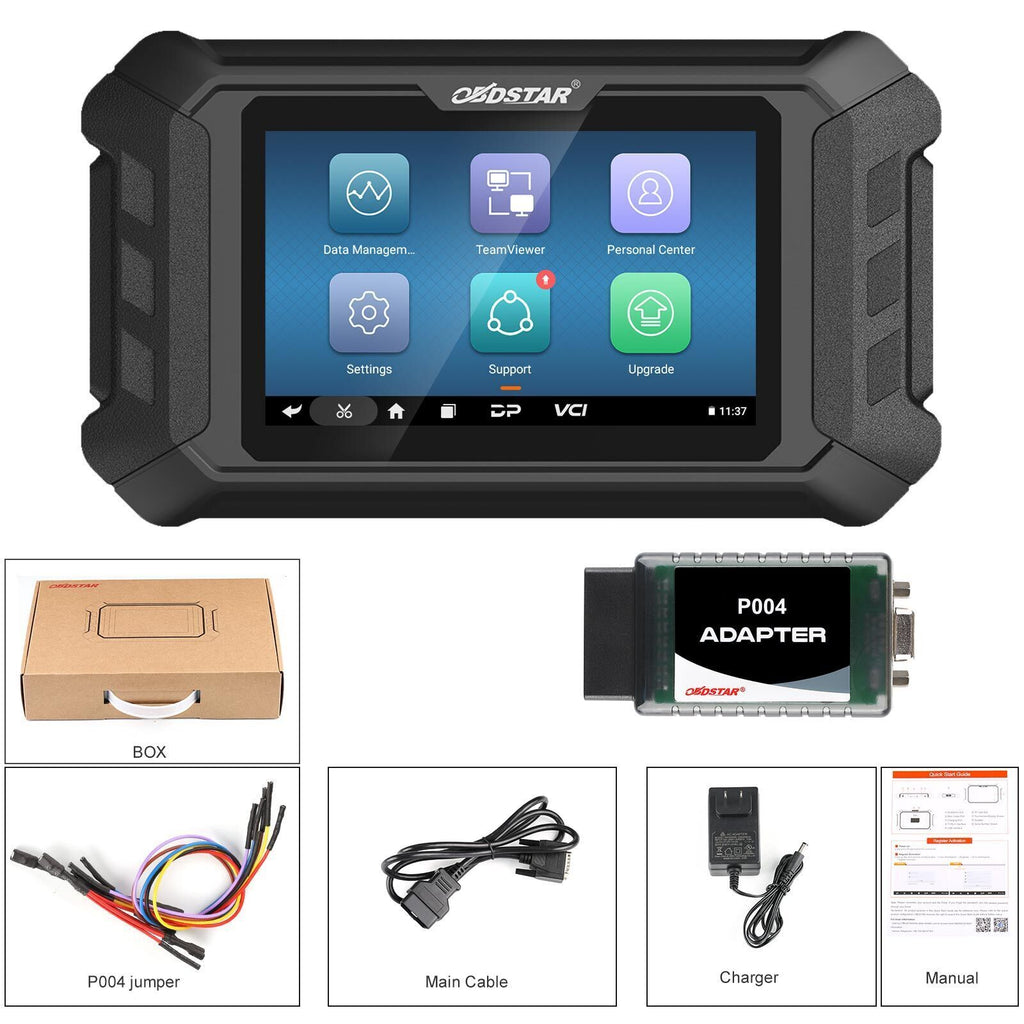

Package Includes:

1pc x OBDSTAR P50 Main Unit
1pc x Main cable

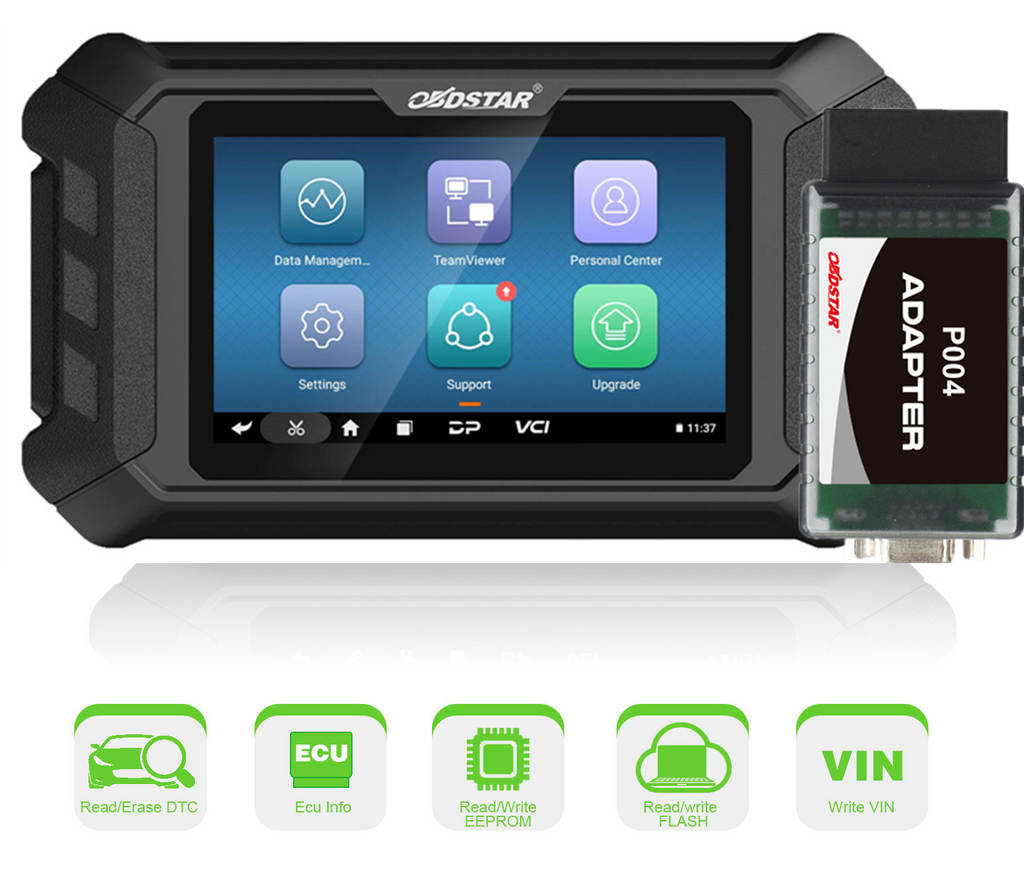

1pc x P004 Adapter
1pc x P004 Jumper
1pc x 12V2A Charger
