OBDSTAR MS80 - ONE YEAR UPDATE

2 sold in last 8 hours
In stock
$625.90
Title *
$625.90
customers are viewing this product

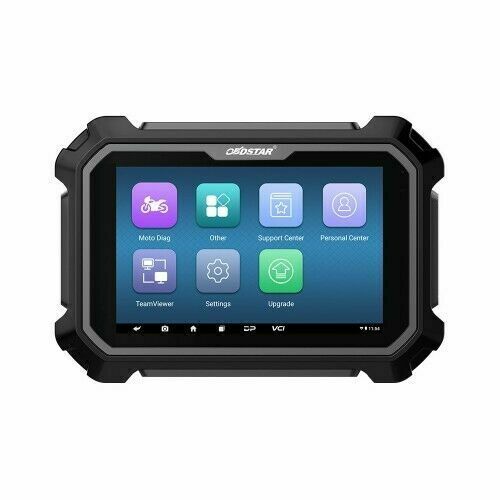

OBDSTAR MS80 - ONE YEAR UPDATE

PRODUCT HIGHLIGHTS

MS80 is the new generation of intelligent motorcycle ( Motorcycle/PWC/Snow mobile/ATV/UTV, etc)diagnostic equipment of OBDSTAR Technology Co., Ltd, based on Samsung Exynos processor, extremely fast and smooth; Equipped with 8-inch capacitive touch screen, touch sensitive.

MS80 has professional-level intelligent diagnosis, providing an unprecedented intelligentdiagnosis and maintenance experience-the first fault guidance, technical bulletin, data flow assistance, diag socket, and other functions to help you diagnose accurately and efficiently; exclusive interactive circuit diagram and electrical query system, easy troubleshooting Failure, so you have no worries about the motorcyle diagnosis!


Functions

1. New android 5.1.1 operation system;

2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding etc;

4. Menu arbitrary selection is more convenient and quick;

5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;

6. Wi-Fi connection to the internet, one-click software upgrade;

7. One-click remote function, OBDSTAR technical staff remote assistance;

8. Support the fault diagnosis of most of the world's luxury locomotives and tens of thousands of models.


Advanced function

1. The first fault guidance, help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;

2. Exclusive interactive circuit diagram and electrical description query function, so that you can have a worry-free diagnosis;

3. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;

4. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting, EOL mode, transmission memory reset, clear computer memory etc.


Motorcycle/snowmobile/ATV/UTV diagnostic function support series

ASIA:

AEON, BAJAJ, BENELLI(DSK), DAELIMMOTOR, HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TGB, TVS, YAMAHA


EUROPE:

ADIVA, AJP, APRILIA, BENELLI, BETAMOTOR, BMW, BRIXTON MOTORCYCLE, BROUGH SUPERIOR, DERBI, DUCATI, FANTIC MOTOR, FBMONDIAL, GASGAS, GG TECHNIK, GILERA, GOES, HM, HUSABERG, HUSQVARNA, KSR MOTO, KTM, KVN MOTORS, LAMBRETTA, MACBOR, MALAGUTI, MASH, MBK, MH, MINSK, MOTO GUZZI, MOTO MORINI, MV AGUSTA, ORCAL, OVERBIKES, PEUGEOT, PIAGGIO, QOODER, QUADIX, QUADRO, ROYAL ALLOY, SHERCO, STELS, SWM, TRIUMPH, VERVE MOTO, VESPA, WOTTAN


AMERICAS:

ACELLERA, BRP, COLEMAN, CSC MOTORCYCLES, DAFRA, HARLEY, INDIAN, KELLER, POLARIS, VICTORY


CHINA:

ARIIC, CFMOTO, CHINA ABS, CHINA ENGINE, CQZONGSHEN, CYCLONE, DAYANG, DAYUN, DONGFANG, GAOKIN, GENERIC, GEON, GUOWEI, HAOJIANG, HAOJUE, HISUN, JNQQSUZUKI, KEEWAY, KOVE, LIFAN, LONCIN, LONGJIA, QJBENELLI, QJMOTOR, REGAL RAPTOR, RIYA, SHINERAY, SINNIS, VOGE, WYHONDA, XDZHONDA, ZONTES


Motorcycle key programming support series

EUROPE:

APRILIA, BMW, DERBI, DUCATI, GILERA, PEUGEOT, PIAGGIO, TRIUMPH, VESPA


AMERICAS:

BRP, HARLEY-DAVIDSON


ASIA:

HONDA, KAWASAKI, SUZUKI, YAMAHA


PWC support car series

HONDA, KAWASAKI, SEA-DOO(BRP), YAMAHA(COMING SOON)


More functions under developing...



Function Display

1) Main Page/Brand Supported

MS80

MS80

MS80

MS80

MS80


2) Help Data/Technical Bulletin/Fault Guidance

MS80

MS80

MS80


3)Supported System List/Manual Service Function

MS80

MS80


4) Interactive Circuit Diagram

MS80

MS80


5) Components Description

MS80

MS80


6) Diag Socket/Diag Connector Location

MS80

MS80



7) Data Flow Text/Waveform Diagram/Instrument Diagram

MS80

MS80

MS80


8) Special Function-HARLEY-DAVIDSON

MS80

MS80



9) Special Function-TRIUMPH

MS80


10) Special Function-KTM

MS80

MS80



11) Special Function-BMW

MS80

MS80

MS80



12) Special Function-APRILIA

MS80


13) Special Function-PIAGGIO

MS80



14) Special Function-SYM

MS80



15) Special Function-KYMCO

MS80



16) Special Function-BENELLI

MS80



17) Special Function-VESPA

MS80


18) Special Function-SUZUKI

MS80



19) Special Function-KAWASAKI

MS80


20) Special Function-HONDA

MS80



21) Special Function-YAMAHA

MS80

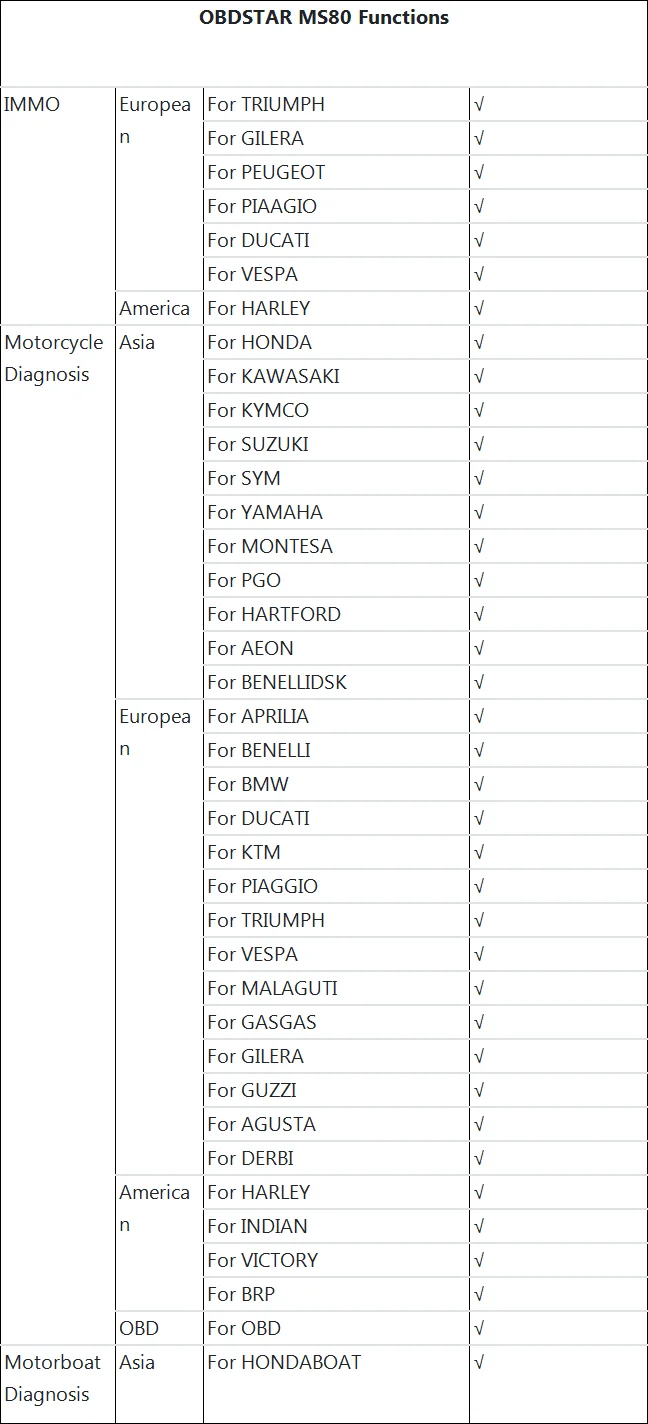

Comparison Table for OBDSTAR MS80 and MS50:


Motorcycle/snowmobile/ATV/UTV diagnostic function support car series:

Asia:
For Honda、for Hondamontesa、for Kawasaki、for Kymco、for Suzuki、for SYM、for Yamaha


Europe:
For Aprilia、for Benelli、for BMW、for Derbi、for Ducati、for Gasgas、for Gilera、for KTM、for Malaguti、for Moto Guzzi、for MV Agusta、for Peugeot、for Piaggio、for Triumph、for Vespa


Americas:
For BRP、for Harley Davison、for Indian、for Victory


Motorcycle key programming support car series:
For Gilera、for Harley Davison、foor Peugeot、for Piaggio、for Triumph、for Vespa


PWC support car series:
For BRP、for Honda、for Kawsaki、for Yamaha


Product Parameters
Operation System: Android 5.1.1
CPU: Exynos4418  Dual Core
ARM Cortex A9
Battery: 3700mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 32GB
LCD:8.0 inch
LCD resolution: 1280*800
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature:  -10℃~55℃(14℉~131℉)
Storage temperature:  -20℃~70℃(-4℉~158℉)
Weight:  1kg(Main Unit)
Dimension: 254mm*174*mm*35mm

Package includes:
1pc x M001         Main Cable
1pc x M002         Power Cable
1pc x M002A     GND
1pc x M003A     Multi functional jumper
1pc x M004       For APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005       For KAWASAKI
1pc x M006       For KAWASAKI
1pc x M012       For SUZUKI
1pc x M015A     For HONDA/HONDA MONTESA
1pc x M018       For YAMAHA
1pc x M019       For KTM
1pc x M021       For AEON/BENELLI/BENELLI DSK
1pc x M026       For SYM
1pc x M027       For KYMCO/KAWASAKI
1pc x M034       For HARLEY-DAVIDSON
1pc x M037       For DUCATI
1pcx M040        For BMW
1pc x M041       For EURO V
1pc x M042       For INDIAN/VICTORY
1pcx M043        For BRP
1pc x P001        IMMO KIT(Optional)
1pc x 12V2A      CHARGER
MS80
