OBDSTAR ISCAN PRO FPT Marine Diagnostic Tablet for FPT Outboard Engines

⚓ OBDSTAR ISCAN PRO FPT (MARINE)

Professional Intelligent Marine Diagnostic Tablet for FPT Engines

🌊 Product Overview

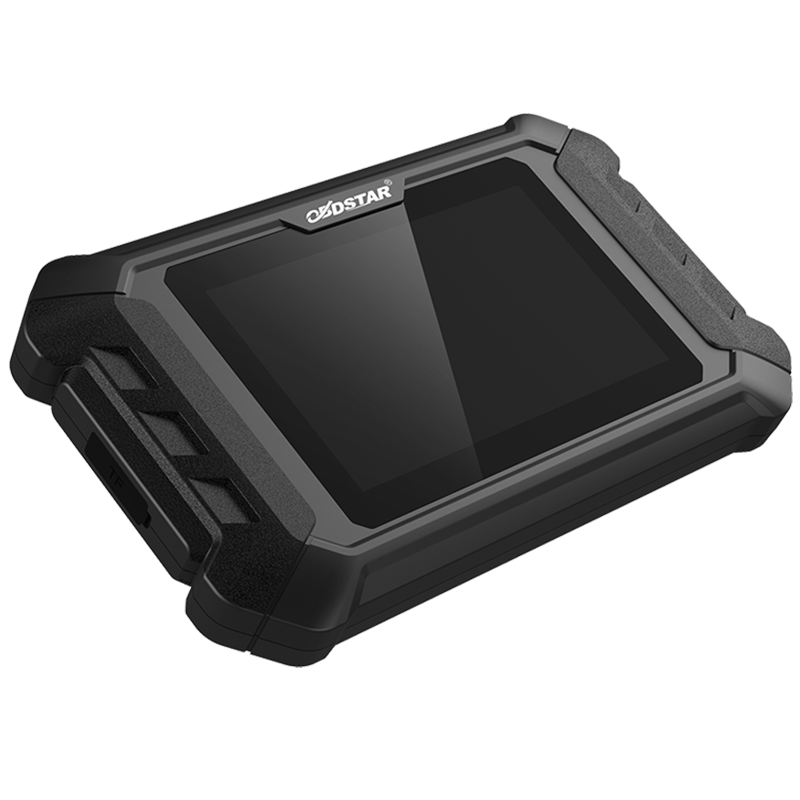

The OBDSTAR ISCAN PRO FPT (MARINE) is a high-performance, portable marine diagnostic tablet designed specifically for FPT marine engines. Built with an industrial-grade design and powered by a quad-core RK3128 processor, it delivers exceptional speed, precision, and reliability for marine diagnostics.

Equipped with a 7-inch capacitive touchscreen, the ISCAN PRO FPT provides a user-friendly Android interface that allows technicians to efficiently perform complete diagnostic operations on FPT engines. This tool represents the next generation of intelligent marine diagnostics — compact, durable, and optimized for real-world marine conditions.

⚙️ Technical Specifications

🧰 Main Functions

1. Android 5.1.1 Operating System — Fast, stable, and intuitive user interface.

2. User-Friendly Menu Navigation — Simple, icon-based layout allows users to master operations quickly.

3. Comprehensive Diagnostic Capabilities — Includes code reading, code clearing, data flow, active tests, parameter setting, and ECU coding.

4. Flexible Menu Selection — Access any function instantly with convenient menu shortcuts.

5. Data Recording & Playback — Record real-time data streams for detailed analysis and accurate fault location of sensors or components.

6. Wi-Fi Connectivity — Supports one-click software updates and cloud-based upgrades.

7. Remote Diagnostic Support — Allows OBDSTAR technical engineers to assist remotely for fast troubleshooting.

⚓ Advanced Diagnostic Functions

1. OBDSTAR Mobile App Integration

   • Syncs with the OBDSTAR mobile app for enhanced marine diagnostic support.

   • Provides socket/connector location guidance and real-time diagnostic assistance.

2. Multiple Data Display Modes

   • View data as text, waveform graphs, or instrument panels, enabling detailed fault analysis and performance visualization.

3. Special Function Support

   • Supports specialized procedures for component replacement and calibration, including:

     • Rail Pressure Regulating Valve Replacement

     • Rail Pressure Sensor Replacement

     • Crankcase Pressure Sensor Replacement

     • Oil Replacement

     • Boost Pressure Sensor Replacement

     • Exhaust Flap Replacement

   • And more marine-specific adjustment functions.

4. DC24V Power Input — Designed for marine electrical systems.

🚢 Supported FPT Engine Series

The ISCAN PRO FPT (MARINE) supports a wide range of FPT Cursor and NEF marine engines, including but not limited to:

• Cursor Series:
  C13 ENS M33, C13 ENT M50, C13 ENT M77, C13 ENT M82, C16 ENT MP, C78 ENT M30, C78 ENT M50, C78 ENT M55, C87 ENT M38, C87 ENT M62, C87 ENT M65

• NEF Series:
  N40 ENT M25, N60 ENT M37, N60 ENT M40, N60 ENT M48, N67 550, N67 570 EVO, N67 ENT M45, N67 ENT M56, N67 ENT M57

• S Series:
  S30 ENT M23

⚙️ Additional engine models are continually added through software updates.

📱 Interface Previews

From OBDSTAR Mobile App:

• Main Diagnostic Page

• Connector & Socket Location Guidance

From ISCAN PRO Interface:

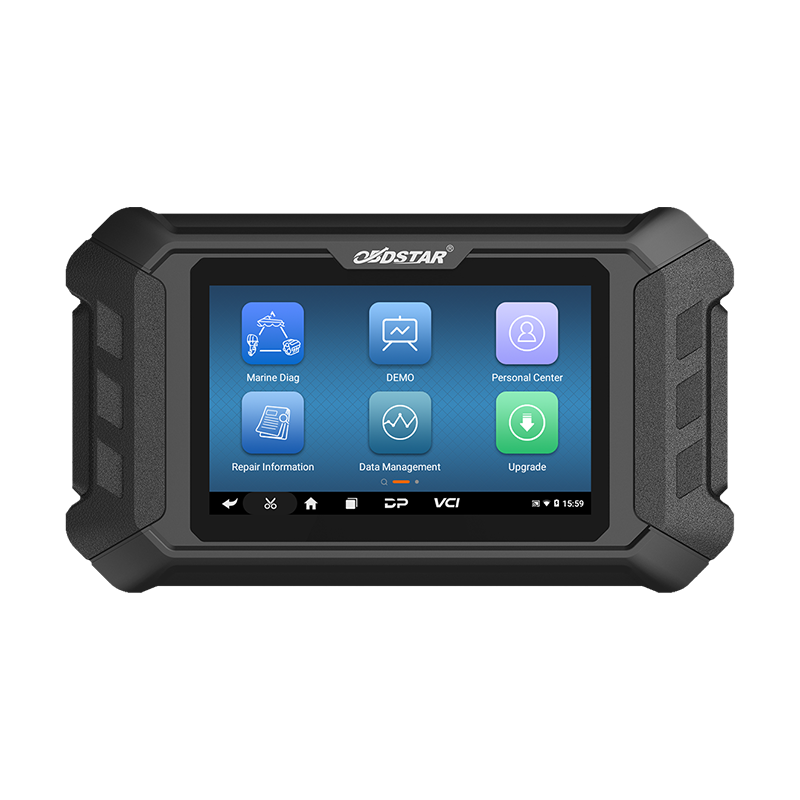

• Brand Selection and Main Diagnostic Screen

• Data Stream View (Text / Waveform / Graphical Mode)

🧩 Highlights

• Tailored for FPT Marine Engines

• Compact Industrial Design with High-Performance Processing

• Multiple Data Views (Waveform, Graph, Text)

• Supports DC24V Marine Power Input

• Wi-Fi & Remote Assistance for Easy Updates

• Comprehensive Diagnostic and Special Functions

• Rugged, Portable, and Technician-Friendly

📦 Package Includes

• 1 × OBDSTAR ISCAN PRO FPT (MARINE) Diagnostic Tablet

• 1 × Main Connection Cable Set

• 1 × Power Adapter

• 1 × Quick Start User Manual

• 1 × Rugged Carrying Case
