LAUNCH X431 ProS Mini WiFi Bluetooth OBDII Full System Diagnostic Scanner Tool

2 sold in last 8 hours

In stock

$1,290.00

Default Title

Quantity:

Subtotal: $1,290.00

Add to Wish List

11 customers are viewing this product

WebPage

LAUNCH X431 ProS Mini

MAIN FEATURES:

Full Diagnose Function
One-click Update
Repair Data
Remote Diagnosis
Wide Vehicle Coverage
Powerful Diagnosis: Accurate
Powerful Diagnosis
Data Stream record and playback
VINSCAN
View History
Maintenance Help: Including

Australian

Owned & Operated

Fast & Free delivery

Australia - wide

Easy returns

Quality guaranteed

1 year

Warranty

Product Description Specifications Shipping Returns & Warranty

ãKey reasons to buy LAUNCH X431 Pros Miniã

1. Active Test (Bi-directional Control)

2. ECU Coding

3. Full Systems Diagnoses

4. 16 Service Functions

5. Remote Diagnosis

6. 91 Car Brands and 10000+ Cars supported

7. Android 7.1-Based 7.0 HD LCD & 4680 mAh battery & 32GB storage capacity & Dual Camera

8. Read ECU Version

9. 2 Year Free Update(No IP Limited) & 5 Years Warranty & Bluetooth & WI-FI Connection

10. 24 Languages Supported: Italian, English, Chinese Simplified, Chinese Traditional, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Romania, Serbia, Finnish, Swedish, Czech, etc.

ãECU Codingã

The LAUNCH X431 Pros Mini diagnostic scanner provides you with unparalleled ECU Coding, which is also known as Teach-in Program, Component Adaptation or something similar, addressing the following issues:

1.To perform the customer individual customization of the car such setting alarms, doors locking, and outdoor lighting, etc., to improve vehicle performance,or stimulate high-end car functions.

2. By changing the code with the ECU coding, itâs easy to improve vehicle performance or stimulate high-end functions for the car.

3. ECU coding enables multiple car systems to recognize each other and then the actuators can start to work.

ãActive Testã

With this diagnostic toolâs Active Test, you can output the command into the ECU in order to turn on/off actuators, to find faults in the subsystems of your car effortlessly. For example, when you carry out an active test on a radiator fan, if the radiator fan is working then it is fine.But if not, then there might be an issue with the wires, replays or the fan.

*Available test varies by the vehicle manufacturer, year, and model.

ãAll Systems Diagnosesã

This Launch diagnostic scanner LAUNCH X431 PROS MINI can establish a data link to all systems and subsystems of the vehicle being serviced to:

1. Retrieve ECU information of the tested control units including unit type, version numbers, and other specifications, etc.

2. Read & erase DTCs to locate problem areas and clear the codes.

3. View Live Data of each parameter item.

This comprehensive scanning process is able to locate the faulty systems and retrieve the DTCs related easily.So you can work on all parts of the vehicle systems to enhance the performance, save energy, reduce emissions, and everything else.

ãAccess to Vehicleâs All Modulesã

With all system coverage, you will not have to purchase a separate device to perform different functions.The following is a list of modern vehicle systems that this scan tool can get access to:

â Engines / Auto Transmission / Airbags / Immobilizer / Key Coding / ABS / Cruise Control / Instruments / Self Leveling Suspension systems

â Seats / Doors / Gateway / Steering Angle / Air Suspension / Body Systems / Electronic Power Steering & Motor Assisted / Power Steering / Tyre Pressure / Rain Sensors / 4WD System Stabilizer / Intelligent Parking Assist/Door Motors / Audio Systems / Air Conditioning / Tiptronic / Anti Theft / Soft Top / Headlamp Leveling / Central Locking / Automatic Clutch / DPF Reset

â Electric Windows / Plip Programming / Heated Rear Window / Xenon Headlights / Wash Wipe / Fuel Burning Heater / Transfer Box / Seat Memory / Oil Life Service Reset / Sliding Doors / Electronic Throttle

â Navigation System / Rollover Sensor / Cruise Control / Multi Function Steering Wheel / Aux Heating / Electronic Parking Brake / Clutch Electronics...etc.

ã16 Service Functionsã

1. Oil Reset: Close the oil service light and reset service mileage & service interval after replacing the engine oil.

2. Injector Coding: Write the new injector numbers into the ECU for accurate communication and injection control.

3. EPB Reset: Reset the new electronic parking brake for braking wheels safely again.

4. SAS Reset: Clear memories of the previous steering angle sensor and store the replaced one.

5. TPMS Service: Relearn TPMS sensors so that new sensors can be recognized by ECU.

6. ABS Brake Bleeding: Get a firm brake pad after air exhaustion.

7. BMS Service: Perform a reset on the vehicle battery for clearing the fault information and re-match the battery.

8. DPF Service: Clear particulate matter from the DPF filter to stabilize the filter performances

9. Tooth Learning: Finish tooth learning after changing crankshaft in the car engine, so the new part can be used.

10. Throttle Matching: Initialize the throttle actuators to the default state for regulating throttle (or idle engine) operations accurately.

11. Anti-theft Matching: Disable the lost vehicle keys and write the key information into the replacement.

ADDITIONAL 5 SPECIAL SERVICE FUNCTIONSï¼

12. Air Suspension Reset: When the body height sensor and control module in the air suspension system are replaced or the level of the car is wrong, this function needs to be performed to level the body height sensor.

Car List of Air Suspension Reset Functions: For Audi, For Mercedes Benz, For BMW, For Citroen, For Chrysler, For Ford, For GM(Cadillac, Chevrolet, GMC, Holden), For Peugeot, For Seat, For Skoda, For VW, For ChangAnFord, For DFCitroen, For SGM, For YQVW.

13. Gearbox Reset: When the gearbox is disassembled or repaired (after some car batteries are powered off), it will cause shift delay or impact problem. At this time, this function needs to be performed to automatically test the gearbox according to driving conditions. Compensate for a more comfortable and ideal shift quality.

Car List of Gearbox Reset Functions: For BMW, For Mercedes Benz, For Chrysler, For Ford, For GM(Buick, Cadillac, Chevrolet, GMC, Holden, Hummer, Pontiac, Saturn), For ChangAnFord, For SGM(BUICK, CADILLAC, CHEVROLET, BUICK TRUCK), For BYD, For CHANGAN, For Chery, For Geat Wall, For Geely.

14. Sunroof Reset: Set the sunroof lock switch, the sunroof when it is raining, the memory function of the sliding/tilting sunroof, and the temperature threshold outside the car.

Car List of Sunroof Reset Functions: For Mercedes Benz, For BMW, For CHRYSLER, For Cadillac

15. AFS Reset: Headlight matching function is used to match the headlights of the vehicle. It detects the light of the environment, then decides whether to automatically turn on the headlights, and can monitor the driving speed and body posture of the vehicle, and adjust the headlights in time.

Car List of AFS Reset Functions: For AUDI, For MERCEDES-BENZ, For MG, For CHRYSLER, For GM(Cadillac, Chevrolet , GMC, Daewoo, Alpheon, PONTIAC, Holden, OLDSMOBILE, BUICK, SATURN, GMC TRUCK, CHEVROLET TRUCK), For OPEL, For SEAT, For SKODA, For VW, For SHVW, For SGM(BUICK, CADILLAC, CHEVROLET, BUICK TRUCK), For YQVW, For BAIC, For GREATWALL, For CHERY, For CHANGAN, For ROEWE, For YQJC, For ZOTYE.

16. EGR Reset: The main purpose is to reduce nitrogen oxides (NO x ) in the exhaust gas and improve fuel economy at partial load.

Car List of EGR Reset Functions:For MERCEDES-BENZ, For BMW, For CITROEN, For Chevrolet, For Daewoo, For Holden, For PEUGEOT, For RENAULT, For VOLVO.

ãFull OBD2 Basic Functionsã

1. Read Codes â read generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes, and pending codes;

2. Clear Codes â clear detected trouble codes and turn off the MIL/Check Engine Light;

3. Live Data â view graphically real-time parameters of vehicleâs computer modules;

4. Freeze Frame â view the vehicleâs operating parameters when a DTC is detected;

5. I/M Readiness Status â have a vehicle inspected before the State Emissions Test;

6. O2 Sensor Test â check the oxygen sensors for fuel efficiency and emissions;

7. On-board Monitor Test â determine if each monitor is OK by comparing values;

8. Component Test â initiate a leak test for EVAP system to test components or modules;

9. Vehicle Information â retrieve the vehicle information of VIN, CINs, and CVNs.

ãMore Advantages of LAUNCH X431 Pros Miniã

1. Bluetooth and Wi-Fi Connection

The Bluetooth/Wi-Fi connection feature allows you to view the diagnostic parameters while you are performing some specific repairs, without being limited by the short cable. Just plug the contained VCI Module into the car, then connect it with PROS MINI through Bluetooth/Wi-Fi, you are able to diagnose car freely, either at your workbench or under the hood.

2. Data Record & Playback

The LAUNCH X431 Promini diagnostic scanner allow you to view the Live Data Stream, and to record the data in Waveform. This would save you the hassle of reading through and digesting all the information which is being presented to you. You can even playback these data, for better analysis and rectification as well as the future use.

3. Share Report via Wi-Fi

Rather than taking the additional hassle, with this Launch scanner, you would easily be able to share the diagnostics report to your clients or technicians via Wi-Fi. They would take a look at the full, clear and accurate diagnostic report, and then understand about what would need to be done.No more Googling unreliable fixes that would waste your energy.

4. Practical Remote Diagnosis

LAUNCH X431 Pros Mini Scan tool provides practical remote diagnosis, user can ask for the remote control through phones, tablets, and computers etc. It has realized the reality that a mechanic can diagnose an abnormal vehicle which is even thousands of miles away.

5. Key Fob Programming Diagnosis

If a key fob is lost or otherwise destroyed, you can purchase a new key fob from a dealership, but that may be an expensive endeavor. LAUNCH X431 PROS MINI can be used to disable the lost vehicle keys and program a new replacement key fob, for effectively preventing your car from being stolen.

6. High-end Hardware Configuration

This diagnostic scan tool provides users with superior performance in Android 7.0 with high-end hardware configuration ranging from the fast-running Quad-core processor, 6.9-inches touchable screen to a built-in 32G internal card (64G capability extendable), which is great for users to quickly retrieve and analyze diagnostic data.

7. 2 Years Free Update

After registering this scan tool, you will be eligible to download all the latest diagnostic software updates being free for 2 years. Updating is simple as it can be done online by connecting your Pros Mini to Wi-Fi, with just one click.

ãCover 10000+Car Modelsã

Japan:

Suitable For DAIHATSU, HONDA, Acura, JPISUZU, ISUZU, TLISUZU, MAZDA, MITSUBISHI, NISSAN, SUBARU, INFINITI, NISSAN GTR, SUBARU, SUZUKI, TOYOTA, SCION, LEXUS

China:

Suitable For BAIC, BEIJING, CHANGAN, CHANGCHENG, CHANGHE, DFXK, FLYER,BYD, FUTIAN,FOTON, HAFEI, HAOQING, GEELY, HUACHEN, JACTY, JIANGHUAI, JIAO, GONOW, JINLONG, JOYLONG, LIFAN, LIUWEl-TY, LUXGEN, QIRUl-TY,CHERY, TRUMPCHI (GAC), WEILi, XILI,FAW TIANJIN, XINKAI, ZHONGSHUN, ZHONGTAI,ZOTYE, ZHONGXING, SPARK-TY, HMADA, SAICMG, QOROS, ISUZU,JMC, CHANGANFORD, DFHONDA, GZHONDA, DFNISSAN, DF PEUGEOT, TJ TOYOTA, YQ MAZDA, CHSUZUKI, FUKANG, HC BMW, NJ FIAT, XIAOKANG DONGFENG

Europe:

Suitable For BENZ, AUDI, BENZ, MAYBACH, BMW, BUGATTI, CITROEN, FERRARI, FIAT, JAGUAR, LANDROVER, MASERATI, OPEL, PEUGEOT, PORSCHE, RENAULT, ROVER, SAAB, SEAT, SKODA, SMART, SPRINTER, VOLVO, VW, LANCIA, DACIA, LAMBORGHINI, EUROFORD, BENTLEY, ROLLS-ROYCE, MINI, VAUXHALL, ABARTH, ALFA ROMEO

Brazil:

Suitable For BX-FIAT, BX-GM

India:

Suitable For MAHINDRA, MARUTI, TATA

Malaysia:

Suitable For PERODUA, PROTON

Australia:

Suitable For AUST FORD, HOLDEN

Korea:

Suitable For DAEWOO, HYUNDAI, KIA, SAMSUNG, SSANGYONG

Iran:

Suitable For MVM

Ukraine:

Suitable For ZAZ

America:

Suitable For FORD, LINCOLN, GM, BUICK, CADILLAC, CHEVROLET, HUMMER, CHRYSLER, DODGE, JEEP

Russia:

Suitable For GAZ, IZH, PAZ, SEAZ, UAZ, VAZ

ãSpecificationã

Display Screen: 7 inch, 1024*600 LCD Touchscreen

Camera: Front facing cameras

OS: Android 7.0

Processor: Quad core 1.3 GHz, with 2GB of processor memory and 32GB of on-board storage

Camera: Rear 5.0 Megapixel

Battery: 4680mAh rechargeable lithium polymer battery

Connectivity: Bluetooth

Dealer Code for Registration: 755D

Working Voltage: 9-18v

Operating Temperature: -10â-50â

Bluetooth Range: within 100 meters

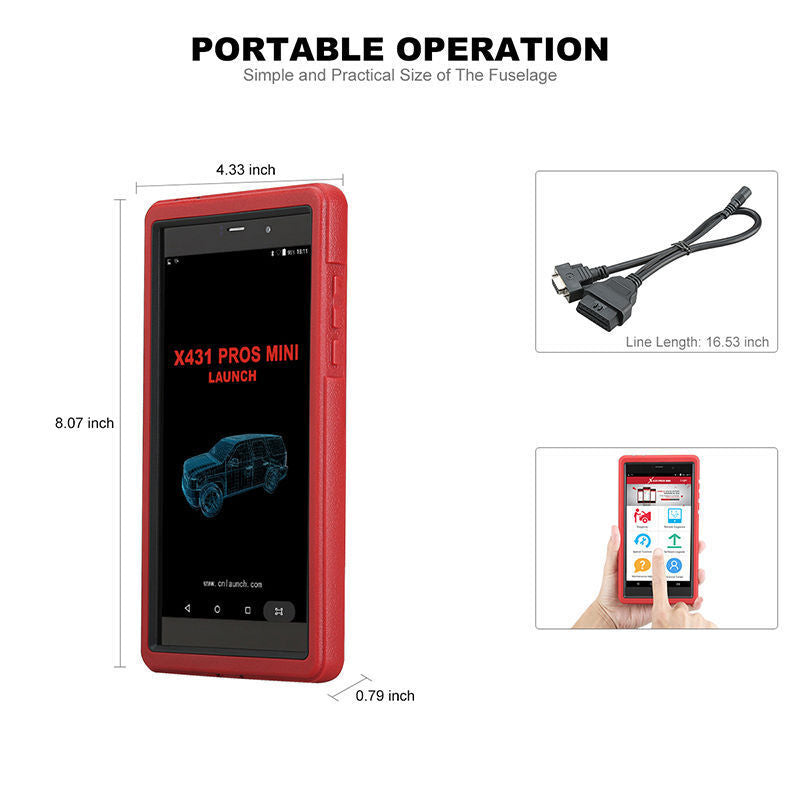

Dimension: 205*130*50.8 mm (8.07* 5.12*2 inches)

Weight: 700g (1.54 lb)

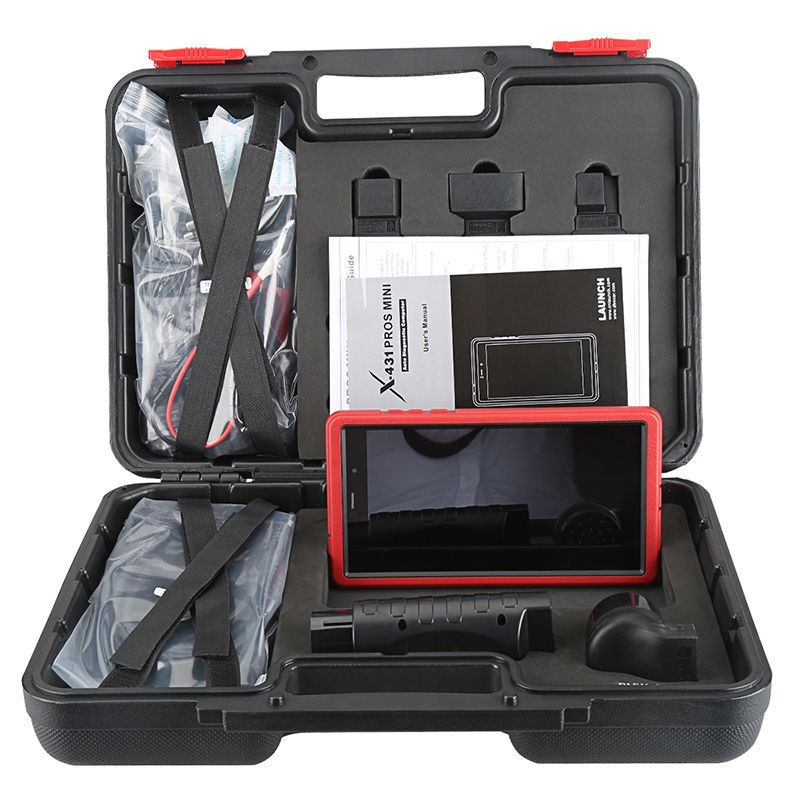

ãPackage Listã

1*X-431 Pros Mini V3.0 Main Unit

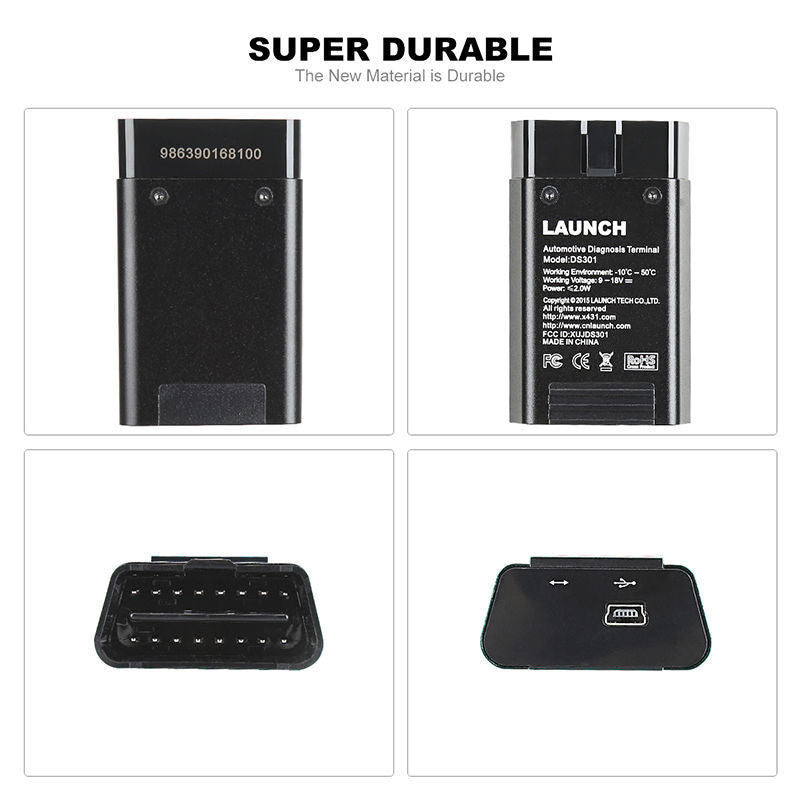

1*VCI Module

1*5V/2A Adapter (US Standard)

1*5V/2A Adapter (EU Standard)

4*Clipper Fuse

2*Lighter Fuse

1*V4.0 Host A Type USB to Type C USB Cable (L = 1000mm)

1*PIN Envelope

1*Quick Start Quide

1*Instructions

Test Cables:

1*Double Clamp Power Cable

1*Cigarette Lighter Cable

1*OBD 16pin Extension Cable

OBD1 Connectors:

1*Benz-38

1*Fiat-3

1*Nissan-14+16

1*BMW-20

1*Chrysler-6

1*GM VAZ-12

1*Honda-3

1*Mistubishi Hyundai-12+16

1*Toyota-17

1*Toyota-22

SPECIFICATIONS:

X-431 V Specifications: Item Parameter:

Operating system : Android 5.1

CPU: 1.3 GHz

Display 6.8â TN capacitive touchscreen

RAM 2 GB

Capacity (internal / SD card) 16GB

Battery 3000 mAh

Printer Optional (Wi-Fi)

Camera Front 2 mp / Back 5mp

Communication WiFi/Bluetooth

DBS Connector Specifications:

Working Voltage	9 ~15V
Average working current	about 35mA
Standby current	about 25mA
Working temperature	-20 to 55Â°C (-4Â°F to 131Â°F)
Storage temperature	-30 to 70Â°C (-22Â°F to 158Â°F)
Storage humidity	<80%
Working humidity	<60%
Net weight	about 26g
Bluetooth Distance	10M (without obstacle)
