LAUNCH X431 EV Diagnostic Upgrade Kit and Activation Card

Product Overview

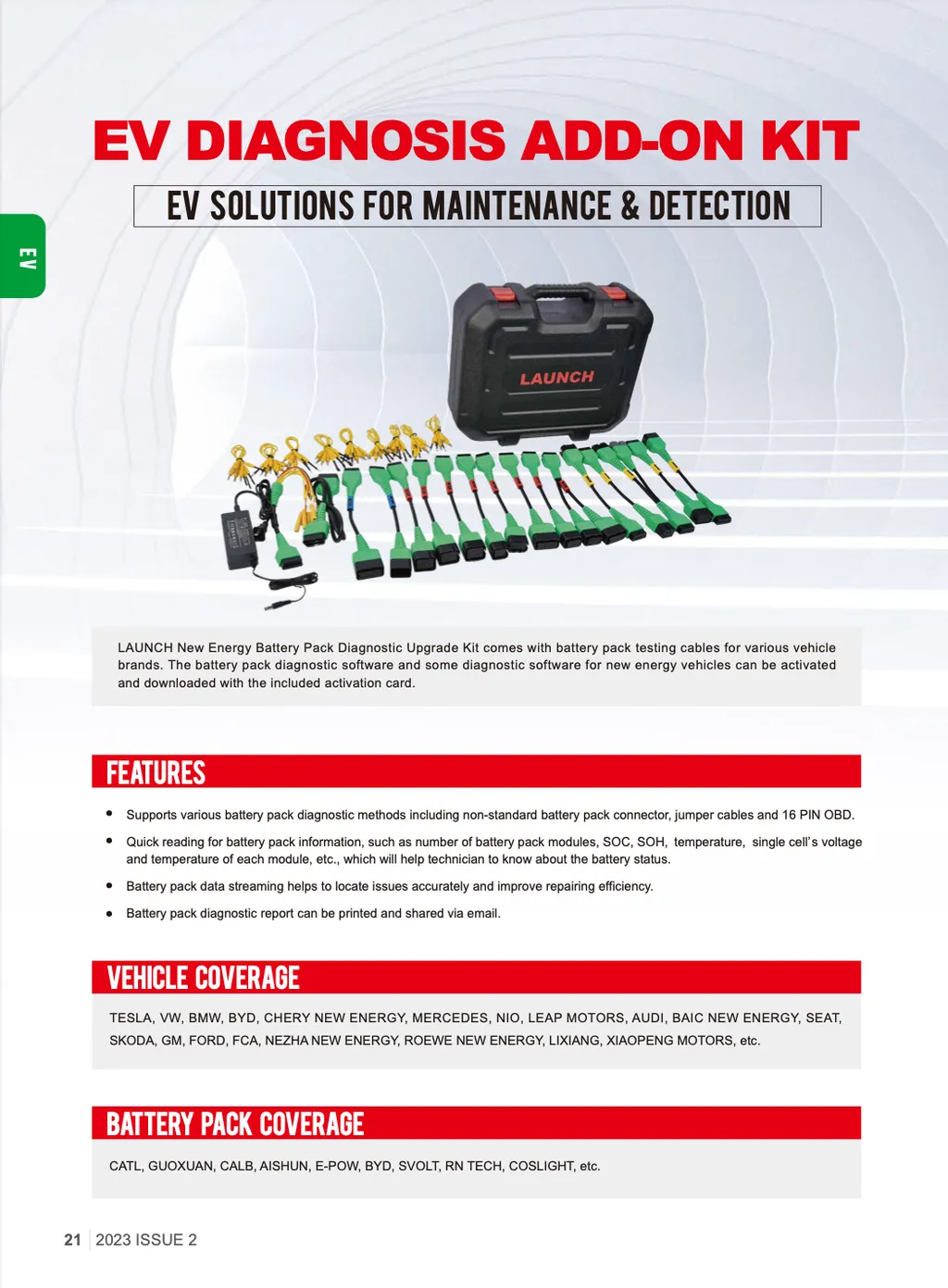

The LAUNCH X431 EV Diagnostic Upgrade Kit is a powerful add-on for diagnosing electric vehicle (EV) battery packs, designed to work seamlessly with select LAUNCH X431 diagnostic tools. This kit includes an activation card and specialized adapters to perform in-depth battery analysis on a wide range of EVs. With support for multiple diagnostic methods and comprehensive battery data streaming, you can quickly identify issues, improve repair efficiency, and generate professional reports for sharing or printing.

Key Features

Enhance your EV diagnostic capabilities with advanced tools tailored for modern electric vehicles.

• Multiple Diagnostic Methods: Supports adapter cable, OBD port, and jumper cable diagnostics, including non-standard battery pack connectors and 16-pin OBD.
• Comprehensive Battery Data: Reads number of battery modules, State of Charge (SOC), State of Health (SOH), temperature, individual cell voltage, and module temperatures.
• Data Streaming: Real-time battery data helps pinpoint issues accurately, boosting repair efficiency.
• Diagnostic Reports: Generate, print, or email battery pack diagnostic reports for professional documentation.
• Activation Card: Unlocks battery pack and new energy vehicle diagnostic software for easy setup.

Diagnostic Capabilities

Perform precise battery pack diagnostics with flexible and efficient tools.

• Adapter Cable Diagnostics: Use brand-specific cables for direct battery pack access.
• OBD Port Diagnostics: Connect via 16-pin OBD for standardized data retrieval.
• Jumper Cable Diagnostics: Support non-standard connectors for versatile diagnostics.
• Battery Data Insights: Access SOC, SOH, module count, cell voltages, and temperatures for thorough analysis.
• Report Sharing: Save and share diagnostic reports via email or print for customer communication.

Compatibility

The EV Diagnostic Upgrade Kit is an accessory compatible with specific LAUNCH X431 diagnostic tools.

• Compatible Devices:
  • X-431 PAD V
  • X-431 PAD VII
  • X-431 PAD VII Elite
  • X-431 Pro5
  • X-431 PRO3 V+ 5.0
  • X-431 PRO3 (PRO3S+ V5.0)
  • X-431 PRO3 ACE
  • X-431 PRO3 APEX
• Platform Requirements: Requires X-431 EURO TAB III or X-431 EURO LINK for operation.

Battery and Vehicle Coverage

Diagnose a wide range of EV battery packs and vehicle models with extensive coverage.

• Battery Manufacturers:
  • CATL
  • GUOXUAN
  • CALB
  • AISHUN
  • E-POW
  • BYD
  • SVOLT
  • RN TECH
  • COLIGHT
  • Others
• Electric Vehicles:
  • Volkswagen
  • BMW
  • BYD
  • Chery New Energy
  • Mercedes Benz
  • NIO
  • Leap Motors
  • Audi
  • BAIC New Energy
  • Seat
  • Škoda
  • GM
  • Ford
  • FCA
  • Nezha New Energy
  • Roewe New Energy
  • Li Xiang
  • Xiaopeng Motors
  • Tesla
  • Others

Technical Notes

Ensure optimal use with these important considerations.

• Accessory Nature: This kit is an add-on and requires a compatible LAUNCH X431 tool for functionality.
• Activation Process: Use the activation card to download and activate battery pack and new energy vehicle diagnostic software.
• Tesla Diagnostics: Includes Tesla-specific connectors for enhanced compatibility.

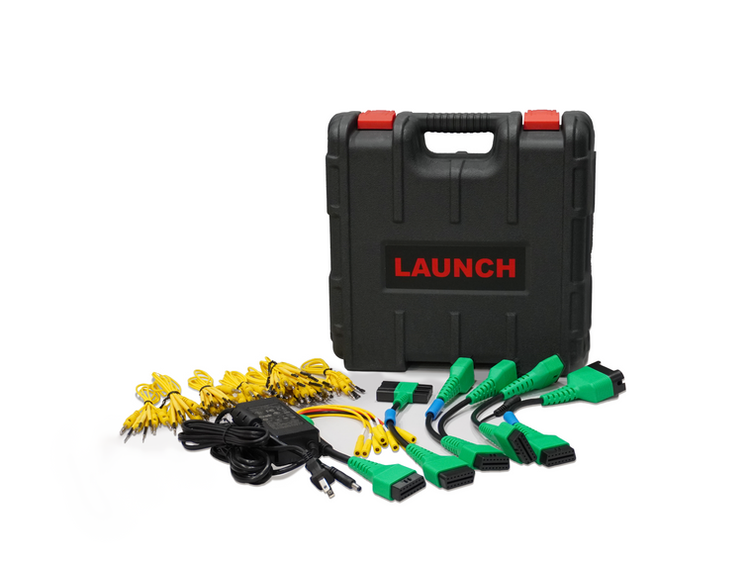

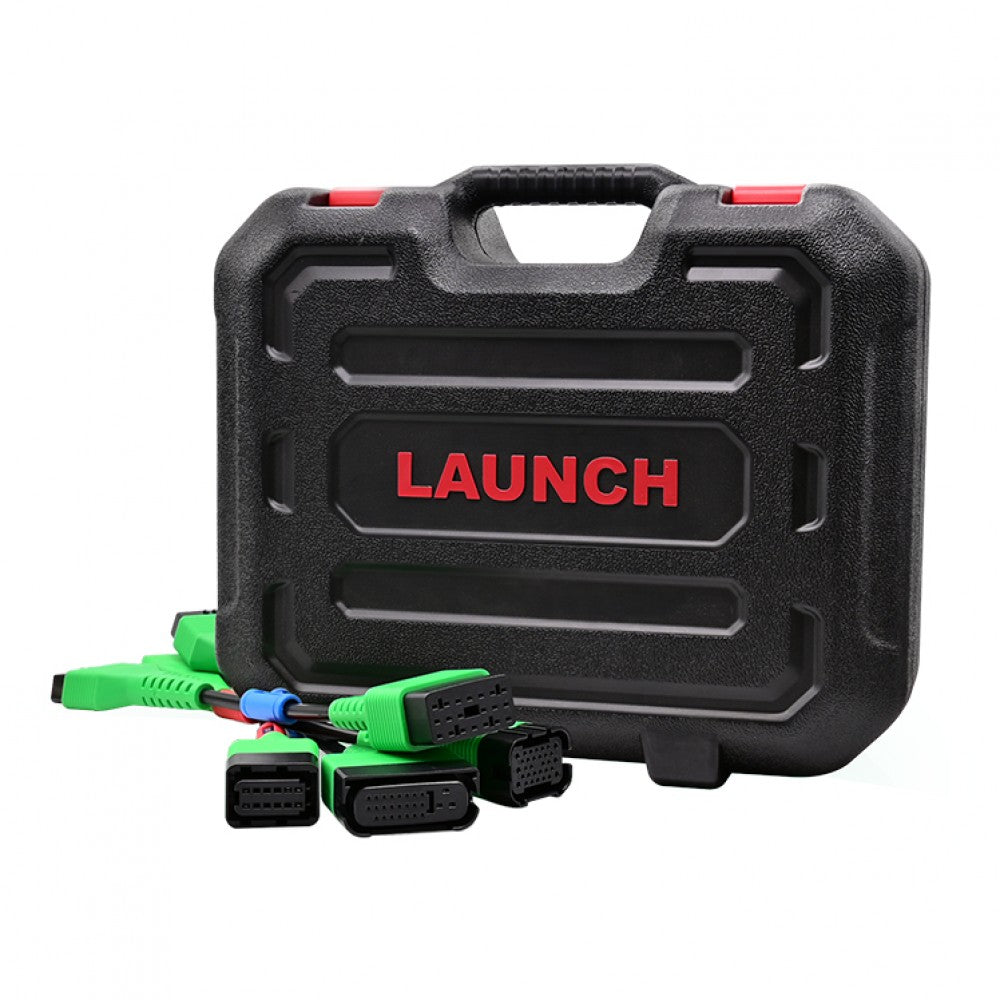

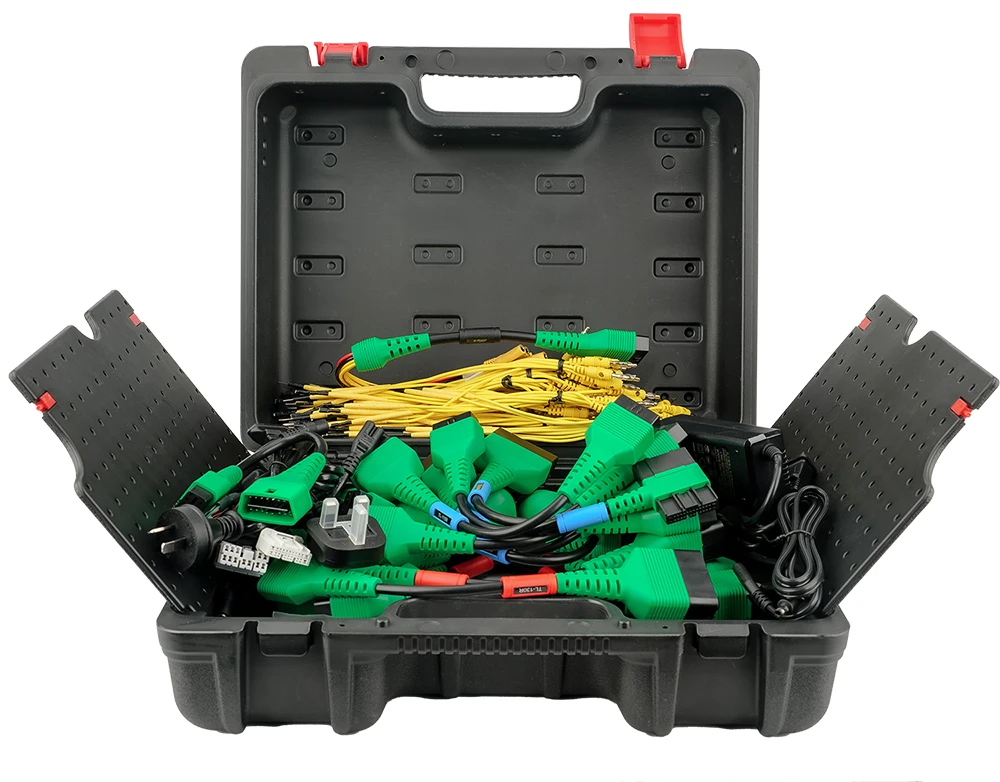

Package Listing:

• 1pc x Tesla-12+20 connector, RoHS
• 1pc x Special connector for Tesla airbag repair, RoHS
• 1pc x (PAD VII) 220V/1.3A, 8-suffix British AC wire, 1M, Pengshengye, RoHS
• 1pc x OBD16 male to female new energy extension cable, with DC cable, RoHS
• 1pc x X431 EV MAX battery pack detection 8PIN diagnostic connector, RoHS
• 1pc x X-431 PAD IV electric control adapter cable 1, RoHS
• 1pc x X-431 PAD IV electric control adapter cable 10, RoHS
• 1pc x X-431 PAD IV electric control adapter cable 11, RoHS
• 1pc x X-431 PAD IV electric control adapter cable 12, RoHS
• 1pc x X-431 PAD IV electric control adapter cable 2, RoHS
• 1pc x X-431 PAD IV electric control adapter cable 3, RoHS
• 1pc x X-431 PAD IV electric control adapter cable 6, RoHS
• 1pc x X-431 PAD IV electric control adapter cable 7, RoHS
• 1pc x X-431 PAD IV electric control adapter cable 8, RoHS
• 1pc x Battery pack test line 100 models, RoHS
• 1pc x Battery pack test line 101, RoHS
• 1pc x Battery pack test line 102, RoHS
• 1pc x Battery pack test line 103, RoHS
• 1pc x Battery pack test line 104, RoHS
• 1pc x Battery pack test line 105, RoHS
• 1pc x Battery pack test line 106, RoHS
• 1pc x Battery pack test line 107, RoHS
• 1pc x Battery pack test line 108, RoHS
• 1pc x Battery pack test line 109, RoHS
• 1pc x Battery pack test line 110 models, RoHS
• 1pc x Battery pack test line 112 models, RoHS
• 1pc x Battery pack test line 113, RoHS
• 1pc x Battery pack test line 114, RoHS
• 1pc x Battery pack test line 115 models, RoHS
• 1pc x Battery pack test line 116, RoHS
• 1pc x Battery pack test line 119, RoHS
• 1pc x Battery pack test line 124 types, RoHS
• 1pc x Battery pack test line 126 models, RoHS
• 1pc x Battery pack test line 127 models, RoHS
• 1pc x Battery pack test line 130 models, RoHS
• 1pc x Battery pack test line 152 models, RoHS
• 1pc x (PAD VII), 8-suffix Australian standard AC wire, 1M, Pengshengye, RoHS
• 1pc x (PAD VII) 220V/1.3A, 8-suffix European standard AC wire, 1M, Pengshengye, RoHS
• 1pc x Power adapter, 12V4A, 48W desktop, 8-suffix DC connector 5.5, US standard AC cable, 2M, Pengshengye, RoHS
• 1pc x New Energy Detection Extension Pack Overseas Configuration Operation Guide, RoHS
• 1pc x Activation Card
