iCarsoft i950 Fits Alfa Romeo OBD2 Diagnostic Code Reader Reset Scan Tool
For Fiat/Alfa Romeo+OBDII
(Diagnose Single Brand of all Models, OBDII-16 DLC)
i950 is a professional vehicle fault diagnostic tool developed by iCarsoft Technology Inc., Especially for full system of one vehicle brand. This product supplies colorful TFT screen and unique diagnostic software.

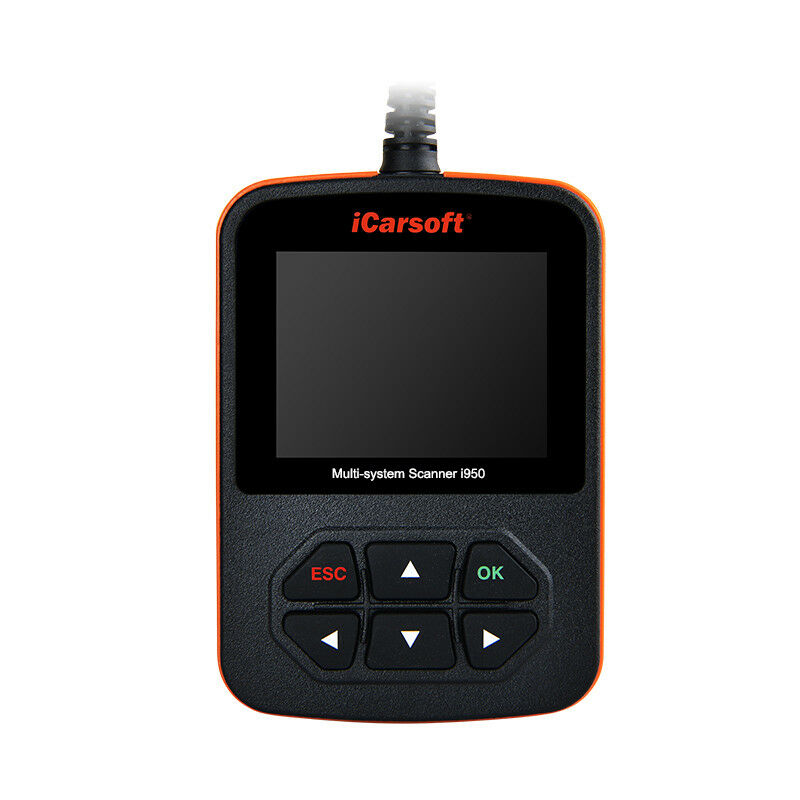

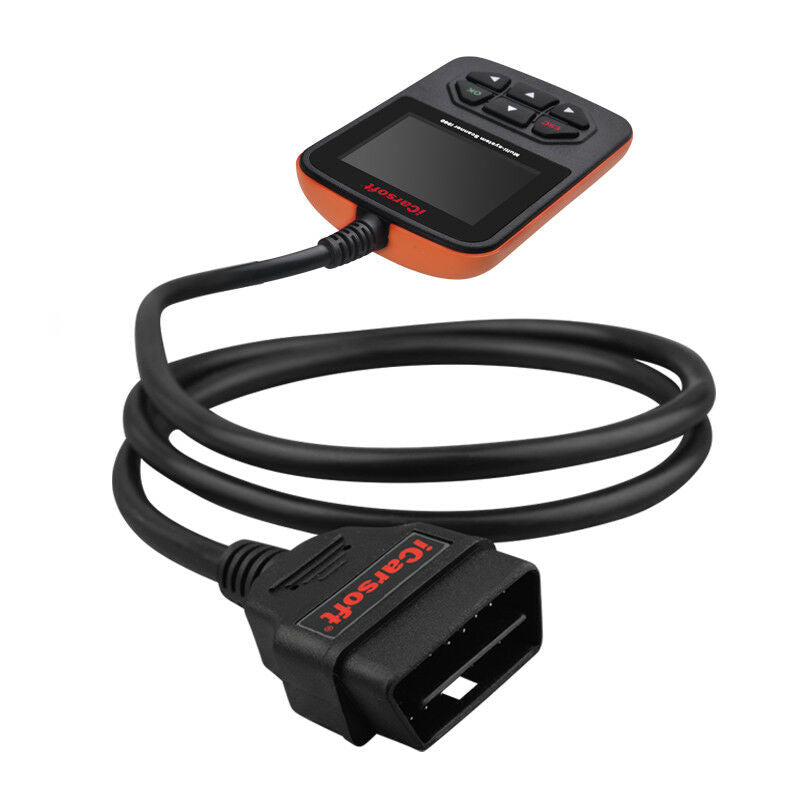

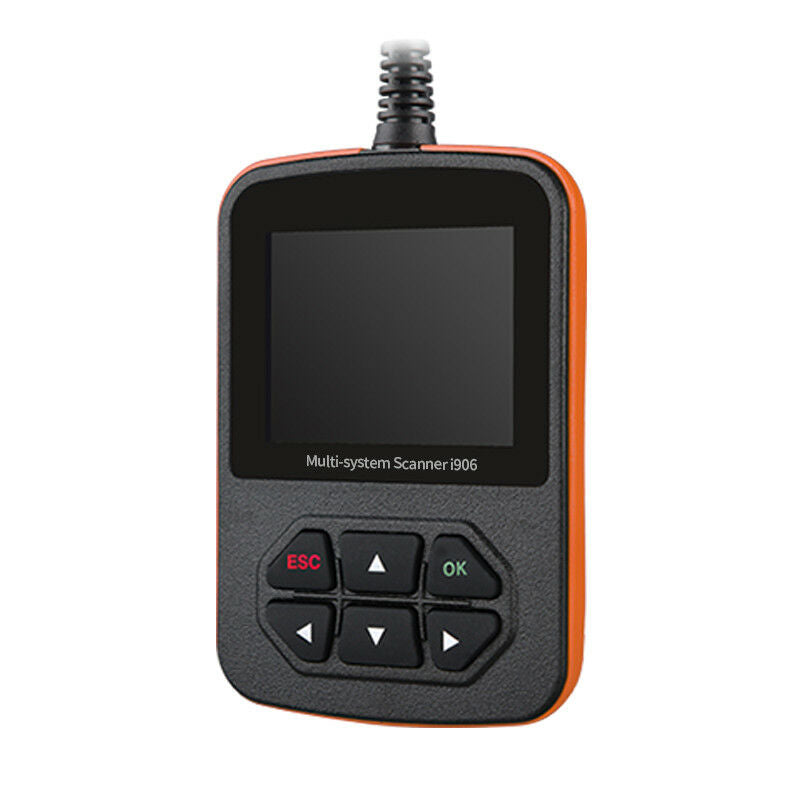

① Cable with OBD II Connector -- Connects the Multi-system
Scanner to the vehicle's Data Link Connector(DLC).
② LCD Display -- Indicates test results.
③ ESC Button -- Returns to previous menu.
④ LEFT Button -- Move cursor right or left for selection;Or turn
page up and down when more than one page is displayed.
⑤ DOWN Button -- Move cursor up and down for selection.
⑥ RIGHT Button -- Move cursor right or left for selection;Or turn
page up and down when more than one page is displayed.
⑦ OK Button -- Confirms a selection(or action)from a menu list.
⑧ UP Button -- Move cursor up and down for selection.
i950 Multi-system Scanner supports full system diagnosis.
It's a powerful DIY tool, test modes include: CANBUS, ISO9141, KWP2000,
J1850 etc.. It enables technicians to accurately diagnose complex problems.
1. Read Codes
2. Erase Codes
3. I/M Readiness -- I/M Readiness indicate whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.
4. Data Stream
5. Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.
6. O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.
7. On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.
8. Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.
9. Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.
10. Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
11. Turn off Check Engine Light (MIL), clear codes and reset monitors
12. Read live PCM DataStream
13. Support CAN (Controller Area Network) and all other
14. Multilingual menu and DTC definitions- English, Spanish, and German, etc.
15. Read pending DTCs
16. Read permanent DTCs
17. DTCs search
18. Tested data playback
FEATURES FOR FIAT/ALFA ROMEO
• Read DTCs |
|
Hardcopy User's Manual
3-foot OBD II cable
Data Cable
Nylon Carry Case
|
Model coverage for Fiat 500 |
STRADA ULYSSE '02
System coverage for Fiat: Automatic Gearbox Marelli SELESPEED CFC328 2
System Coverage: • AUTO CRUISE |
• AFS/ACL • ELECTRIC SLIDE DOOR R
Model coverage for Alfa Romeo 147
System coverage for Alfa Romeo: Bosch ABS 5.7 ASR/TC |
|
B) Operation Temperature: 0 ℃ -- 50 ℃
C) Storage Temperature: -20 ℃ -- 70 ℃
D) Power: 9V -- 18V
F) Power consumption: 1.2W (Typical)
G) Dimension: 121mm*86mm*26mm (LxWxH)
H) Weight: 300g
• English
• German
• Spanish
• French
• Portuguese
• Russian
• Dutch
