ICARSOFT CR GENIUS – In-Depth Technical

1. 📌 Core Purpose of the Device

The ICARSOFT CR GENIUS is a professional multi-brand automotive diagnostic scanner designed for workshops, mechanics, and advanced car users.

Its main function is to:

• Communicate with a vehicle’s ECU (Electronic Control Unit)
• Read and clear fault codes (DTCs)
• Perform live system monitoring
• Execute advanced service and calibration functions

In simple terms:
👉 It acts like a “computer doctor” for cars, diagnosing electronic and system-level problems across many vehicle brands.

2. 🧠 Hardware & System Architecture

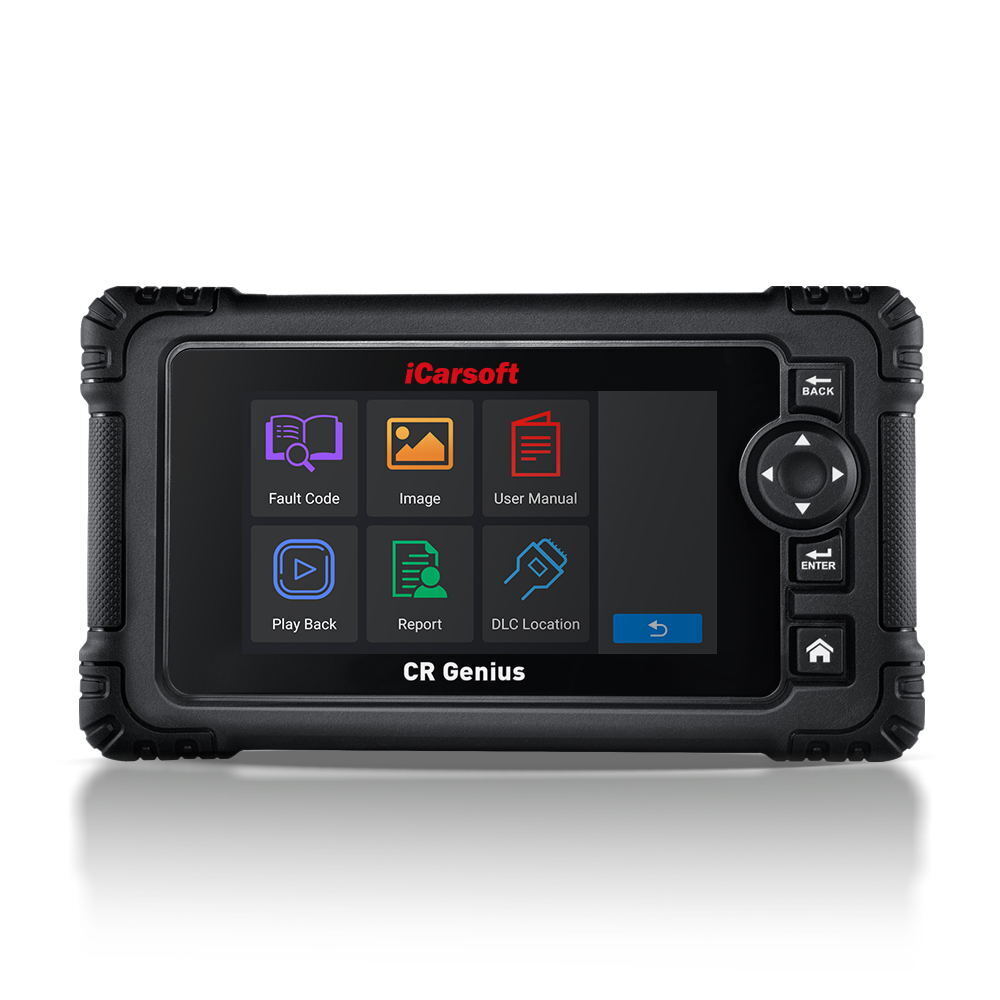

📱 Display & Interface

• 5.0-inch capacitive touchscreen
• 1280 × 720 HD resolution
• Full touch-based Android-style interface

👉 Meaning: It behaves like a small Android tablet optimized for car diagnostics.

⚙️ Processing System

• Android 8.1 OS
• Quad-core 1.3 GHz processor

👉 This allows:

• Smooth navigation through menus
• Fast scan processing
• Handling multi-ECU data streams

🔌 Communication Protocols Supported

It supports major automotive communication standards:

• CANBUS (modern vehicles)
• ISO9141 (older European/Asian cars)
• KWP2000 (older diagnostics protocol)
• J1850 (older Ford/GM systems)

👉 Meaning: It can communicate with both old and modern vehicles, which increases compatibility range significantly.

3. 🚗 Vehicle Coverage (Multi-Make Support)

It supports 40+ car brands globally, including:

🇪🇺 Europe

BMW, Mercedes-Benz, Audi, VW, Volvo, Renault, Peugeot, Fiat, Jaguar, Land Rover, Opel, Porsche, etc.

🇯🇵 / 🇰🇷 Asia

Toyota, Honda, Nissan, Lexus, Mazda, Hyundai, Kia, Mitsubishi, Subaru, Suzuki, Isuzu, etc.

🇺🇸 America

Ford, GM, Chrysler

🇦🇺 Australia

Holden, Ford Australia variants

👉 Meaning:
It is a global multi-brand scanner, not limited to one manufacturer system.

4. 🔍 Core Diagnostic Functions (What it actually does)

📊 4.1 Read & Clear Fault Codes (DTCs)

• Reads stored ECU errors
• Clears fault codes after repair

👉 Example:
If “check engine light” is ON, it identifies the exact cause (sensor, misfire, etc.)

📈 4.2 Live Data Streaming

Shows real-time engine and system data:

• RPM
• Fuel pressure
• Temperature sensors
• Oxygen sensor readings
• Voltage levels

Display formats:

• Text
• Graph
• Analog gauge

👉 Meaning:
You can “watch the engine working live.”

🧪 4.3 Bi-Directional Control (Active Testing)

This is a professional-level feature.

It allows the scanner to:

• Send commands to vehicle components
• Activate/deactivate parts

Examples:

• Turn fuel pump ON/OFF
• Activate radiator fan
• Test ABS pump
• Control injectors

👉 This is used for real fault verification, not just reading data.

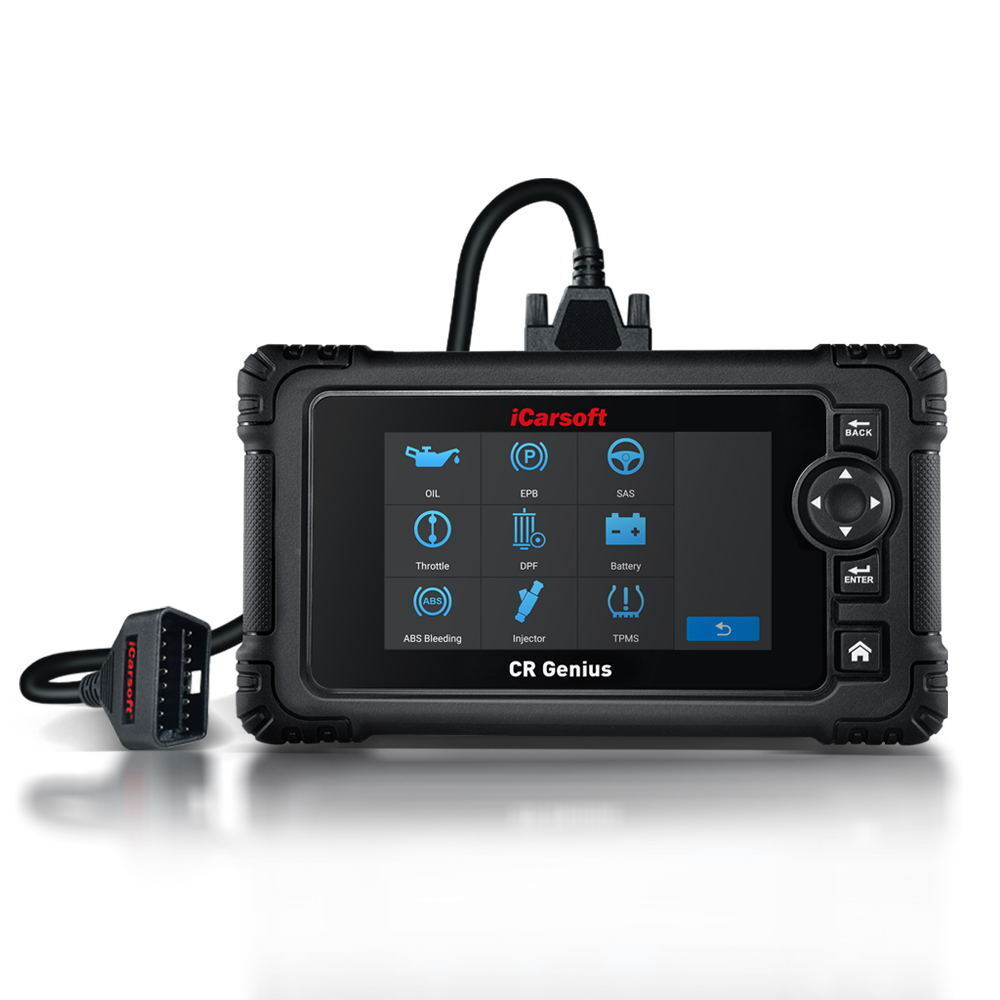

5. 🛠️ Special Service Functions (Advanced Workshop Features)

These functions are what make it a professional garage-level tool.

🔄 5.1 Oil Service Reset

• Resets oil change interval light
• Recalculates service schedule

🧭 5.2 Steering Angle Sensor (SAS) Calibration

• Resets steering alignment data
• Required after suspension or steering repairs

🅿️ 5.3 EPB (Electronic Parking Brake)

• Retracts brake calipers
• Used when replacing brake pads

🌫️ 5.4 DPF Regeneration (Diesel Vehicles)

• Clears soot from diesel particulate filter
• Restores engine efficiency

🔋 5.5 Battery Management System (BMS)

• Registers new battery
• Ensures correct charging system behavior

⚙️ 5.6 Electronic Throttle Control (ETC)

• Relearns throttle position
• Fixes idle and acceleration issues

🛑 5.7 ABS Bleeding

• Removes air from ABS braking system
• Restores brake pressure stability

⛽ 5.8 Injector Coding

• Matches fuel injectors to ECU
• Required after injector replacement

🚨 5.9 TPMS Service

• Reads tire sensor IDs
• Programs new TPMS sensors

6. 📡 Advanced ECU-Level Diagnostics

Full ECU Scanning

The device can scan:

• Engine ECU
• Transmission
• ABS
• Airbags (SRS)
• Body control modules
• HVAC systems

👉 Meaning:
It does not only scan engine faults — it checks the entire vehicle electronic ecosystem.

7. 📊 Data & Analysis Features

📌 Freeze Frame Data

Captures snapshot at failure moment:

• Engine speed
• Load
• Temperature
• Sensor status

👉 Useful for diagnosing intermittent faults.

📉 O2 Sensor Testing

Checks oxygen sensor efficiency for fuel control systems.

🔁 EVAP System Test

Tests fuel vapor leak system for emissions control.

📘 DTC Library

Built-in fault code dictionary:

• Explains error codes
• Reduces dependency on manuals

8. 🌐 Connectivity & Updates

• Automatic software updates
• Online feedback support
• DTC search function
• Multi-language interface (15+ languages)

👉 Meaning:
Device stays updated with newer vehicles and systems.

9. ⚠️ Limitations (Important Reality Check)

• Some functions require OEM-level access codes
• Not all features work on all cars (depends on model/year)
• Advanced coding is limited compared to dealer tools
• Coverage is broad but not 100% universal

10. 🧠 Practical Use Cases

This tool is typically used for:

🏪 Workshops

• Full vehicle diagnostics
• Service resets
• ECU testing

🚗 Advanced Car Owners

• DIY troubleshooting
• Reset warning lights
• Monitor engine health

🔧 Mobile Mechanics

• Fast on-site diagnostics
• Multi-brand support

🔚 Summary (Simple View)

The ICARSOFT CR GENIUS is:

• A multi-brand diagnostic scanner
• With professional ECU-level access
• Supporting live data, coding, and actuator tests
• Designed for workshops and advanced automotive diagnostics
