ICARSOFT MB V2.0 Professional CAR DIAGNOSTIC CODE SCANNER TOOL FOR MERCEDES BENZ

ICARSOFT MB V2.0 Professional CAR DIAGNOSTIC CODE SCANNER TOOL FOR MERCEDES BENZ

SKU: Does Not Apply
$369.90
Hurry up! Only 1 left
Product subtotal: $369.90
Proudly Australian
Technical Support
Easy Returns
Fast & Free Shipping
Return policy

Our goal is for every customer to be totally satisfied with their purchase. If this isn't the case, let us know and we'll do our best to work with you to make it right.
Shipping

We will work quickly to ship your order as soon as possible. Once your order has shipped, you will receive an email with further information. Delivery times vary depending on your location.
43588418
ICARSOFT MB V2.0 Professional CAR DIAGNOSTIC CODE SCANNER TOOL FOR MERCEDES BENZ
$369.90
PROFESSIONAL MULTI-SYSTEM AUTO DIAGNOSTIC TOOL iCARSOFT MB V2.0

FOR MERCEDES-BENZ / SPRINTER / SMART + OIL RESET + EPB + DPF + SAS + ETC + OBD II
iCarsoft MB V2.0 Main Unit
The iCarsoft MB V2.0 is a professional and powerful vehicle fault diagnosis tool specifically developed for Mercedes-Benz, Sprinter, and Smart vehicles by iCarsoft Technology Inc. Equipped with a vivid 4.0" TFT LCD screen and unique diagnostic software, it features full ECU diagnosis for a single vehicle brand. Supported test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850, enabling automotive technicians and DIY mechanics to accurately diagnose complex vehicular problems.

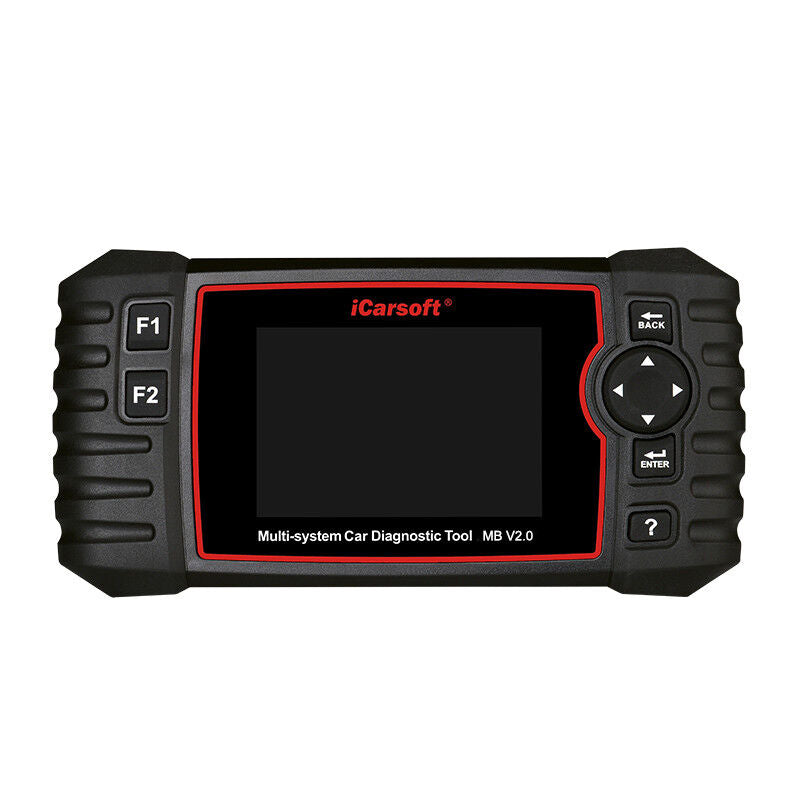

Interface Diagram
LAYOUT & BUTTON DESCRIPTIONS

① BACK BUTTON – Returns to the previous menu. ⑦ F1 FUNCTION BUTTON – Reserved for specialized system uses.
② UP BUTTON – Moves the cursor upward for selection. ⑧ F2 FUNCTION BUTTON – Reserved for specialized system uses.

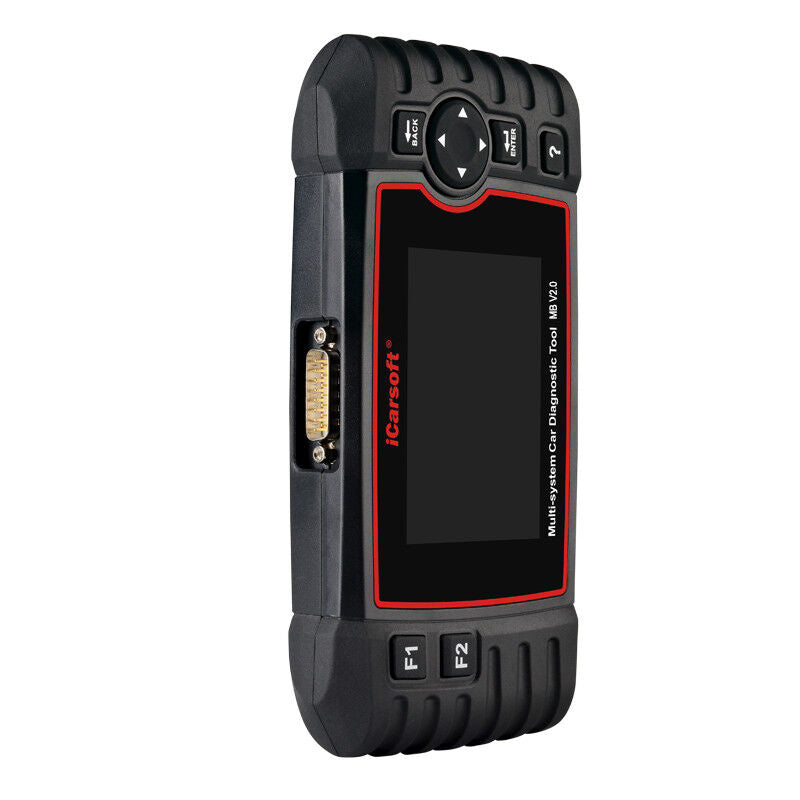

③ LEFT BUTTON – Moves the cursor left or switches screens. ⑨ OBDII CONNECTOR – Connects the scan tool to the vehicle's Data Link Connector (DLC) via the OBDII cable.

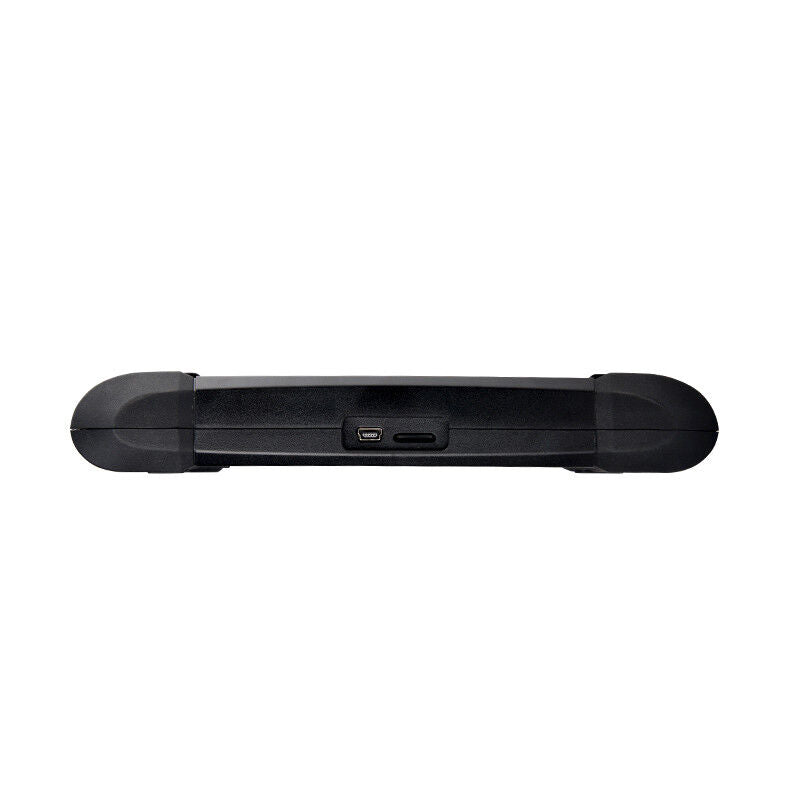

④ RIGHT BUTTON – Moves the cursor right or switches screens. ⑩ STORAGE CARD SLOT – Holds the operating system and memory card of the scan tool.
⑤ DOWN BUTTON – Moves the cursor downward for selection. ⑪ DATA CABLE CONNECTOR – Connects the scan tool to a PC for power supply and downloading software updates.
⑥ ENTER BUTTON – Confirms a selection or action from a menu list. ⑫ HELP BUTTON – Displays helpful text information for test results or tool operations.
Product Features
KEY PRODUCT FEATURES

1. Multi-System Coverage: Reads and clears trouble codes (DTCs) on almost all vehicle systems, including Engine, Transmission, ABS, Airbag, and more.
2. OBDII/EOBD Support: Full compatibility with all ten modes of OBDII/EOBD operations.
3. Live Data Readings: Displays real-time critical parameters from internal vehicle modules.
4. Full ECU Diagnosis: Deep scanning capabilities across the single selected vehicle brand.
5. Broad Model Compatibility: Applies to most models of the targeted brand equipped with a standard 16-pin OBDII Data Link Connector (DLC).
6. Ergonomic Build: Features premium, tactile silicone keys for simple, reliable usage.
7. Oil Light / Service Reset: Supports oil service lamp resetting and maintenance intervals.
8. Electronic Parking Brake (EPB): Safely deactivates and reactivates the EPB system for brake pad replacement, service, and initialization.
9. Diesel Particulate Filter (DPF): Controls the DPF regeneration process, forcing manual clearing when a DPF blockage occurs and turning off the dashboard DPF indicator light.
10. Electronic Throttle Control (ETC): Relearns the throttle valve control value when cleaning, adjusting, or replacing the throttle valve component.
11. Steering Angle Sensor (SAS) Calibration: Calibrates the steering wheel position to straight ahead, or recalibrates the SAS following steering track or parts replacement.
12. Print Data Function: Allows printing out recorded diagnostic trouble codes or custom test reports directly through a PC.
13. Battery Voltage Test: Accesses and retrieves the real-time voltage of the vehicle battery via the OBD port when the engine initiates.
14. Built-in DTC Lookup Library: Easily look up generic and manufacturer-specific trouble code descriptions directly on the tool.
15. PC Upgradable: Enjoy easy, full-speed software and firmware updates via computer connection.
16. Multi-Language User Menu: Supports English, German, Dutch, Spanish, and French.
Fourteen Advantages
14 PREMIUM SYSTEM ADVANTAGES

✔ Diagnose Single Brand of Most Models (OBDII-16DLC) ✔ Read & Clear Diagnostic Trouble Codes (DTCs)
✔ Deep Full System Diagnosis ✔ Read & Graph Live Streaming Data
✔ Support Oil Service Interval Light Reset ✔ Support Battery Voltage Monitoring Test
✔ Electronic Parking Brake (EPB) System Maintenance ✔ Onboard Data Review and PC Printing Functions
✔ Diesel Particulate Filter (DPF) Regeneration Control System ✔ Full-Speed Software Upgrades via Computer
✔ Electronic Throttle Control System (ETC) Relearning ✔ High-Resolution 4.0" TFT LCD Screen (480*320 Pixels)
✔ Steering Angle Sensor (SAS) Component Calibration ✔ Global Multi-Language System Settings
OBDII Functions
COMPREHENSIVE OBDII FUNCTIONAL MODES

1. Read Codes: Identifies active and historical diagnostic trouble codes.
2. Erase Codes: Clears faulty codes and effectively resets monitors.
3. I/M Readiness Check: Indicates whether emissions-related systems are operating properly and prepared for standard state Inspection & Maintenance testing.
4. Data Stream Analysis: Views digital real-time outputs of the engine control module.
5. Freeze Frame Capture: Automatically records vehicle operational conditions at the precise split second an emission-related fault triggers.
6. O2 Sensor Test: Retrieves and displays oxygen sensor monitoring test results from the onboard vehicle computer.
7. On-Board Monitoring: Reads results for specific components and emission control systems.
8. Evap System Test: Initiates a precise localized leak test for the vehicle's EVAP system.
9. Vehicle Info Retrieval: Displays Vehicle Identification Number (VIN), Calibration Verification Number (CVN), and corresponding tracking data.
10. Broad Code Retrieval: Reads generic codes (P0, P2, P3, U0), manufacturer-specific codes (P1, P3, U1), and pending codes.
11. MIL Reset: Turns off the Check Engine Light (MIL), clears fault histories, and resets systemic monitor blocks.
12. Live PCM DataStream: Reads live Powertrain Control Module data synchronously.
13. Advanced Networks: Fully supports CAN (Controller Area Network) alongside all standard vehicular communication buses.
14. Language Support & Definitions: Multilingual menu access combined with integrated onscreen DTC definition popups.
15. Read Pending DTCs: Finds faults noticed during ongoing drive cycles before a formal code is cast.
16. Read Permanent DTCs: Targets critical persistent fault strings embedded within the control module.
17. DTC Search: Built-in quick search tool for identifying codes across the integrated database.
18. Test Mode Protocols: Supports CAN, ISO9141, KWP2000, J1850 VPW, and J1850 PWM protocols.
19. European Petrol Vehicles: Fully functional on most 2001 and later OBDII compliant European Petrol vehicles.
20. European Diesel Vehicles: Fully functional on most 2004 and later OBDII compliant European Diesel vehicles.
21. US & Asian Vehicles: Works seamlessly on most 1996 and later OBDII compliant US and Asian market vehicles.
22. Color Data Graphing: View and chart live operational data stream figures with lightning-fast refresh rates.
23. Onboard Parameters Help: Includes extensive helper notes, parameter details, and mode explanations.

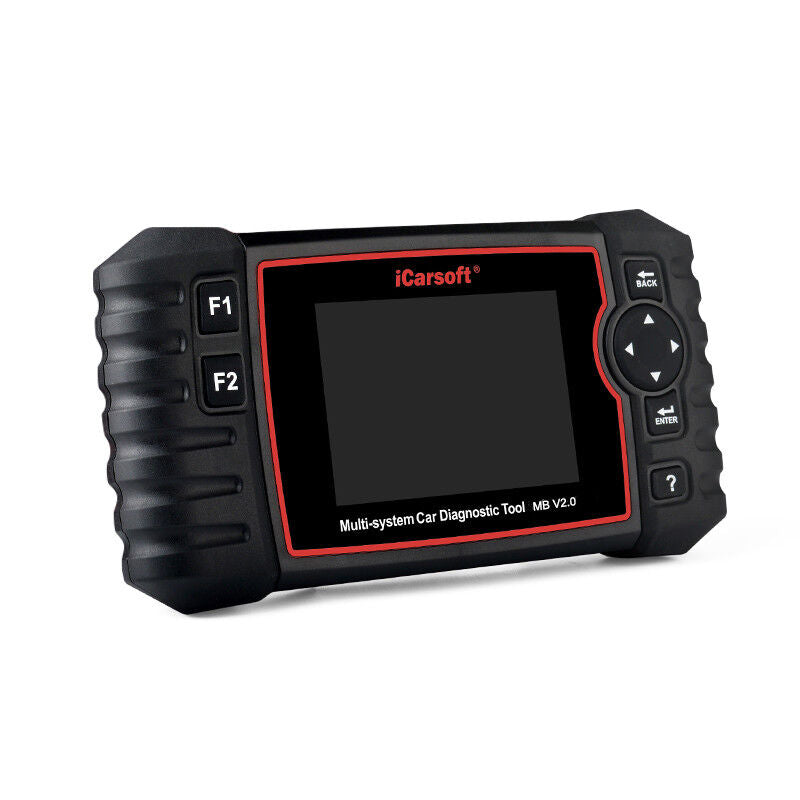

Product Display View 1

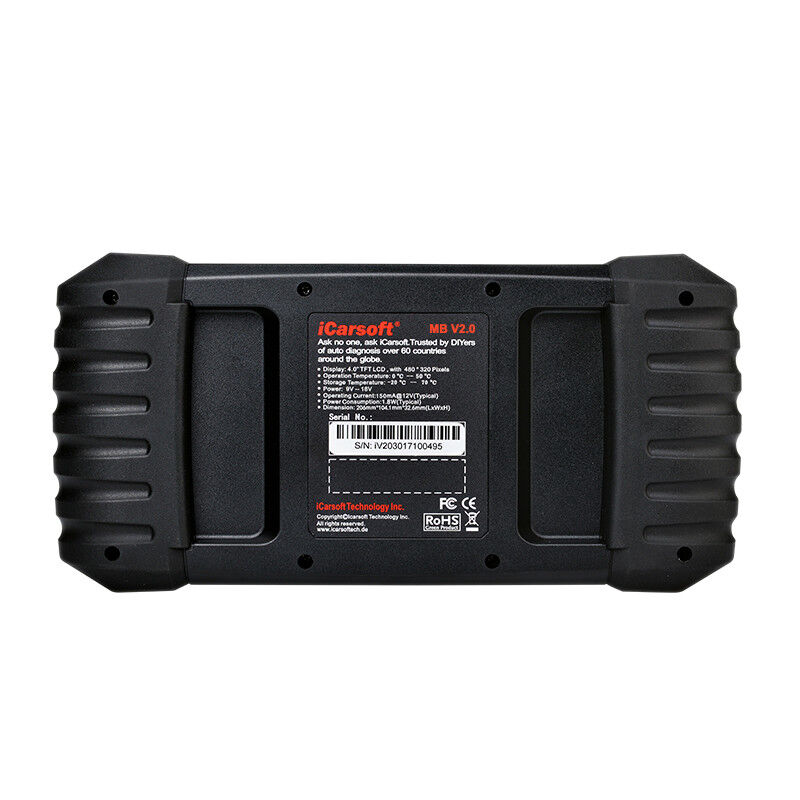

Product Display View 2
Specifications
TECHNICAL SPECIFICATIONS

• Display: 4.0″ TFT LCD screen, 480 * 320 Pixels Resolution
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 70°C (-4°F to 158°F)
• Operating Voltage: 9V to 18V
• Operating Current: 150mA @ 12V (Typical Standard Output)
• Power Consumption: 1.8W (Typical Energy Draw)
• Dimensions: 206 mm * 104.1 mm * 32.6 mm (Length x Width x Height) 		PACKAGE CONTENTS

• 1 x iCarsoft MB V2.0 Main Diagnostic Scanner Unit
• 1 x TF Memory Card (Pre-installed inside the main unit slot)
• 1 x Heavy-Duty Vehicle Main Link Diagnostic Cable
• 1 x High-Speed PC Data Update Cable
• 1 x Comprehensive Printed User Manual
Package Contents Graphic
