2025 iCarsoft RT V1.0 OBD2 Diagnostic Scanner Tool for Renault Dacia System Code Reader

PROFESSIONAL MULTI-SYSTEM CAR DIAGNOSTIC TOOL RT V1.0
FOR RENAULT/DACIA + OBDII + OIL RESET + SAS

iCarsoft RT V1.0 is a professional and powerful vehicle fault diagnosis tool for Renault/Dacia developed by iCarsoft Technology Inc. With a 2.8" TFT LCD and unique diagnostic software, it features full Control Unit diagnosis of single vehicle brand and test modes mainly include: CANBUS, ISO9141, KWP2000, and J1850 etc. It enables technicians to accurately diagnose complex problems.

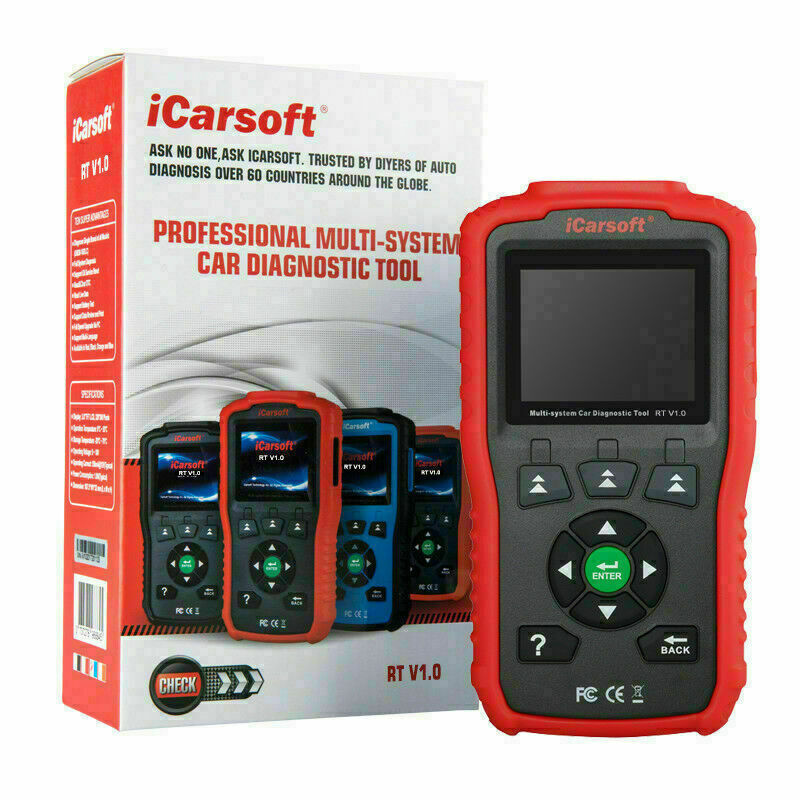

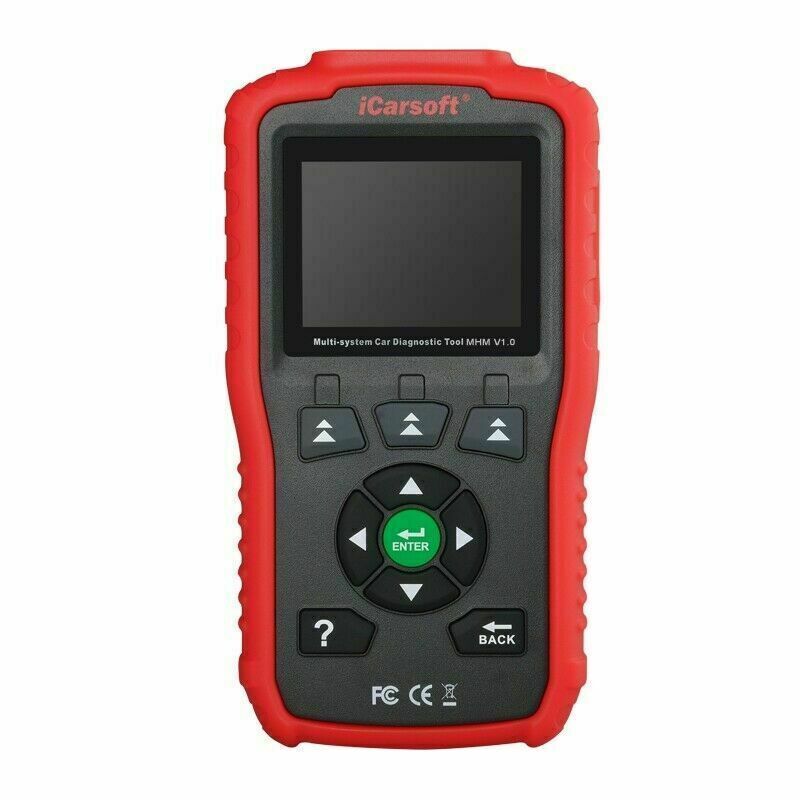

Button Descriptions

• 1. LCD DISPLAY -- Indicates test results.

• 2. BACK BUTTON -- Returns to previous menu.

• 3. UP BUTTON -- Moves cursor up for selection.

• 4. DOWN BUTTON -- Moves cursor down for selection.

• 5. LEFT BUTTON -- Moves cursor up for selection.

• 6. RIGHT BUTTON -- Moves cursor down for selection.

• 7. ENTER BUTTON -- Confirms a selection (or action) from a menu list.

• 8. FUNCTION BUTTON -- In case of special use.

• 9. FUNCTION BUTTON -- In case of special use.

• 10. FUNCTION BUTTON -- In case of special use.

• 11. HELP BUTTON -- Shows help information for test results or user operation.

PRODUCT FEATURES

• iCarsoft RT V1.0 can do it all-reads and clears trouble codes on most of the systems such as engine, transmission, ABS and airbag etc.

• Support OBDII/EOBD Ten Modes of Operation

• Read Live Data

• Full Control Unit Diagnosis

• Applies to the single Brand of all Models equipped with OBDII-16 DLC

• Easy To Use with Silicone Keys

• Oil Light/Service Reset: Support service lamp reset.

• SAS: Steering Angle Sensor (SAS) calibration, calibrates the steering wheel to straight ahead, or recalibrates SAS while steering part replacement.

• The Print Data function allows you printing out diagnostic data recorded by the scan tool or customized test reports.

• Battery test allows you getting the voltage of battery with OBD port by the scan tool when the engine starts.

• DTC Library to lookup when user is operating this tool.

• Upgrade via Computer

• Multi-language: English, German, Dutch, Spanish, French.

TEN SUPER ADVANTAGES

• Diagnose Single Brand of all Models (OBDII-16DLC)

• Full System Diagnosis

• Support Oil Service Reset

• Steering Angle Sensor (SAS) Calibration

• Read & Clear DTC

• Read Live Data

• Support Battery Test

• Support Data Review and Print

• Full Speed Upgrade via computer

• Support Multi-Language

• Available in Red, Black, Orange and Blue

OBDII FUNCTION

• Read Codes

• Erase Codes

• I/M Readiness -- I/M Readiness indicates whether or not the various emissions-related systems on the vehicle are operating properly and are ready for Inspection and Maintenance testing.

• Data Stream

• Freeze Frame -- When an emission-related fault occurs, certain vehicle conditions are recorded by the on-board computer. This information is referred to as freeze frame data. Freeze Data is a snapshot of the operating conditions at the time of an emission-related fault.

• O2 Sensor Test -- This option allows retrieval and viewing of O2 sensor test results for most recently performed tests from the vehicle's on-board computer.

• On-Board Monitoring -- This function can be utilized to read the results of on-board diagnostic monitoring tests for specific components/systems.

• Evap System Test -- The EVAP test function lets you initiate a leak test for the vehicle's EVAP system. Before using the system test function, refer to the vehicle's service repair manual to determine the procedures necessary to stop the test.

• Vehicle Information -- The option displays the vehicle identification number (VIN), the calibration verification number (CVN), and other information of the test vehicle.

• Retrieve generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes

• Turn off Check Engine Light (MIL), clear codes and reset monitors

• Read live PCM datastream

• Support CAN (Controller Area Network) and all other

• Multilingual menu and DTC definitions- English, Spanish, and German, etc

• Read pending DTCs

• Read permanent DTCs

• DTCs search

• Supports most of the OBDII/EOBD test modes include: CAN, ISO9141, KWP2000, J1850 VPW and J1850 PWM.

• Works on most of 2001 and later OBDII compliant PETROL European vehicles

• Works on most of 2004 and later OBDII compliant DIESEL European vehicles

• Works on most of 1996 and later OBDII compliant US and Asian vehicles

• View & Graph Live Data in Color Graphing and blazing fast refresh rate for better graphing and live data readings.

• Comprehensive Help, Including OBD Parameter, Mode Explanations & More.

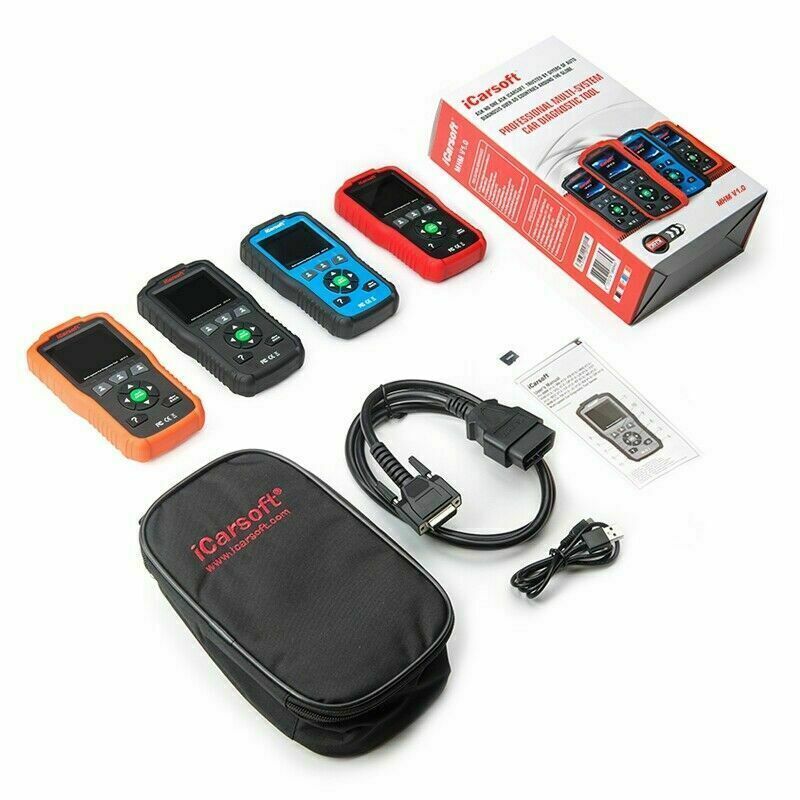

CONTENTS

• RT V1.0 Main Unit

• User's Manual

• TF Card (In the main unit)

• Main Cable

• PC Connecting Cable

• Nylon Carry Case

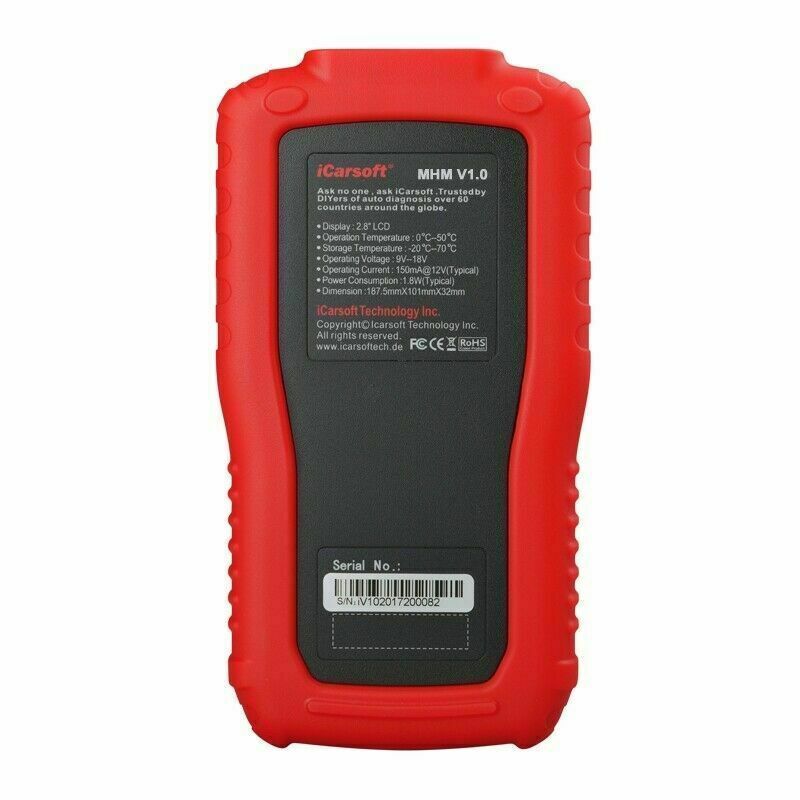

SPECIFICATIONS

• Display: 2.8" TFT LCD, 320*240 Pixels

• Operation Temperature: 0°C ~ 50°C

• Storage Temperature: -20°C ~ 70°C

• Operating Voltage: 9 ~ 18V

• Operating Current: 150mA@12V (Typical)

• Power Consumption: 1.8W (Typical)

• Dimension: 187.510132 mm (L x W x H)
