[FOR ACTIVATING]：

As a time-effective TPMS tool, TS408 is committed to activating any known OEM/Universal TPMS sensors for you. Choose the right vehicle make, model and year, the Activation process is just in the blink of an eye. To check compatibility, please send OEM code/sensor information to MotorzoneUS@outlook.com or ask through Q/A. We’ll reply in time.

[FOR PROGRAMMING] :

AS a cost-effective TPMS tool, TPMS programmer TS408 is capable to program AUTEL MX-Sensor with three programming options: Copy By Activation, Copy By Manual Input and Auto Create. Notice:TS408 could program Autel-MX sensors very quickly, but it doesn’t support copy by OBD.

[FOR RELEARNNING & RESETTING] :

As an user-friendly TPMS tool, Autel MaxiTpms TS408 provides on-tool relearn procedure for every TPMS equipped U.S., Asian and European vehicle, besides, it helps you reset the TPMS system. Notice:the relearn function of TS408 works very well, it provides auto relearn and stationary relearn, but not OBD relearn. If your old sensors are dead or cannot be scanned, this function may fail.

[FOR KEY FOB TESTING] :

Do you want to know whether the key fob is working? Then using Autel TPMS tool TS408 (TS401, TS501), which could accurately test the key fob to make sure if it is in top condition.

[FOR BETTER CUSTOMER EXPERIENCE] :

Then one year warranty and lifetime free update are offered for you. With English/Spanish/French data support and 24-hour tech support, we are here to provide reliable shopping experience. Please see the Installation Manual [pdf ] on the Technical Specification to see how to update TS408 quickly.

Languages

English/Spanish/French

Update & Warranty

Lifetime Free Update 1 Year Warranty for any Quality Problem.

Activate Sensors & Program Autel MX-Sensors

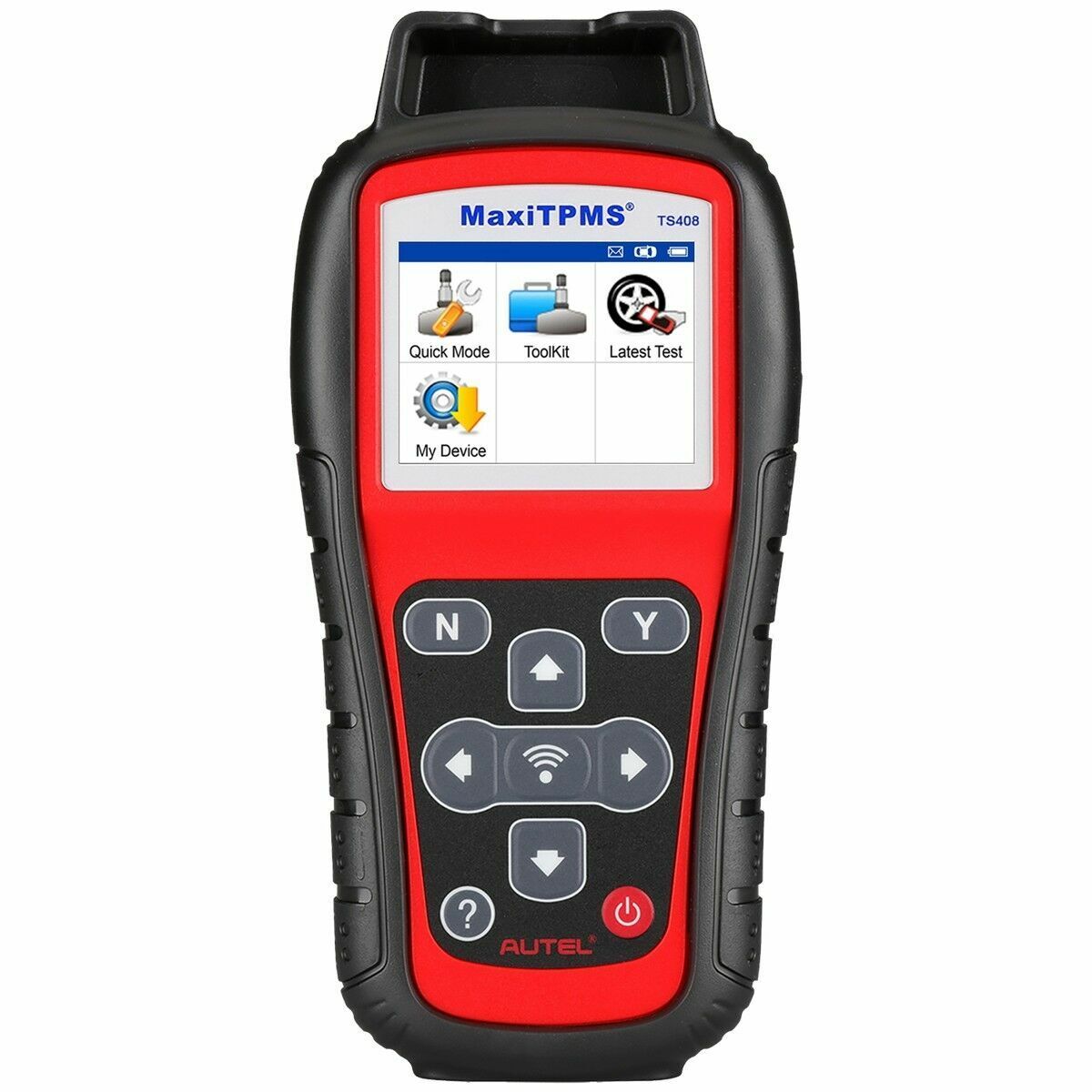

MaxiTPMS TS408 is an easy-to-use handheld TPMS relearn tool, which is specially designed to activate all TPMS sensors, and program Autel MX-sensors(Only for Autel brand sensors programming).

Activate TPMS sensors:

By choosing the right vehicle’s make, mode and year, Autel TS408 can activate all known OEM/Universal TPMS sensors to view TPMS data: sensor ID, tire pressure, tire temperature, battery condition, sensor position and OE part number etc.

Activate Sensors & Program Autel MX-Sensors

TS408 can easily program Autel MX-sensor to replace OE TPMS sensors with 3 options: √ The old sensor is not completely bad? Using Copy by Activation from the existing sensor to the new sensor. √ The old sensor is lost or completely bad? Input the ID printed on the original sensor with Copy by Manual Input. √ The old sensor is completely bad and there is no way to get the old sensor ID? Use Auto Create to generate sensor IDs after you selecting the test vehicle’s make, model and year. √ Notice： TS408 could program Autel-MX sensors very quickly, but it doesn’t support copy by OBD.

3 different programming methods are easy enough to help reduce service time:

Warm Tip: TPMS Programming is especially for Autel MX-Sensor.

1. Copy by Activation

Place the tool near the sensor to be copied. 1)Press “Y” to program the original sensor ID into MX-sensor when you view the original sensor ID. 2)Place a new MX-Sensor in the sensor slot to program. 3)Autel TS408 automatically begins programming. 4) Programming is completed when you view the sensor and tire data.

2. Copy by Manual Input

Input sensor ID. 1) Select “Yes” to save and continue programming. 2)Programming is completed when you view the sensor and tire data.

3. Auto Create 1-16 Sensors

Place 1-16 MX-Sensor(s) close to the top of the tool. 1)Autel TS408 automatically detects the sensor near the tool. 2)Programming is completed when you view the sensor IDs and the PSNs.

2 Practical Ways to Relearn New TPMS Sensors

With a proper TPMS relearn tool – Autel MaxiTPMS TS408, relearning the new sensor IDs to the vehicle’s ECU won’t be hard anymore. Through Auto Relearn or Stationary relearn, the unique IDs installed on the vehicle will be correctly recognized by the vehicle's ECU, and the ECU can display the correct wheel location of each tire's press.

Auto Relearn:

Auto relearn is applicable when your vehicle can learn single or multiple TPMS sensor IDs. You are required to adjust the inflation pressure, rotate or replace sensors, and drive your vehicle for a period of time to turn off the TPMS warning light.

Stationary Relearn:

A stationary relearn allows new TPMS sensor IDs to be transferred to the vehicle’s ECU without driving a vehicle. You can trigger the sensors when the vehicle is in learn mode by our TPMS Tool TS408.

98% Sensors Available

TS408 is designed to activate more than 98% of TPMS sensors on the market. When you choose the right vehicle make, model, and year, TS408 can easily activate all the sensors and read the sensor ID, pressure, temperature, and battery condition.

Key Fob Testing

It can be particularly frustrating when your key fob stops working or starts to perform sporadically. Autel TS408 comes with key fob testing to tell you the signal strength of both the 315MHz and 433MHz key fob in the form of a progress bar. In this way, you get to identify whether the key fob works in top condition. If not, feel free to maintain it to make sure it functions when you really need it.

Sensor Information Check

Autel relearn tool TS408 allows you to read both the OE and MX sensor information such as sensor ID, tire pressure, temperature, frequency, voltage, PSN, relearn type, OE manufacture. These information help quickly determine the tire’s condition. And once you need to rotate wheels or replace any bad sensor, the sensor information you retrieved will be a good reference for you to get a proper TPMS sensor for replacement.

At-A-Glance TPMS Status

Autel MaxiTPMS TS408 allows you to easily read direct feedback from all 4 sensors, clearly understand the status of all TPMS features. The displayed sensor and ECU data will pinpoint the location of which sensor’s battery is low and needs to be replaced soon. You can also not only figure out the specific system faults but also identify the fixes in a short time.

Only 2s Required to Complete Activation

1.Place your TS408 close to the sensor 2.Press “Y” to trigger the sensor 3.TS408 receives data from the sensor 4.TPMS activation is completed 5.Check the displayed sensor ID, pressure, temperature, and voltage.
