■ Introduction

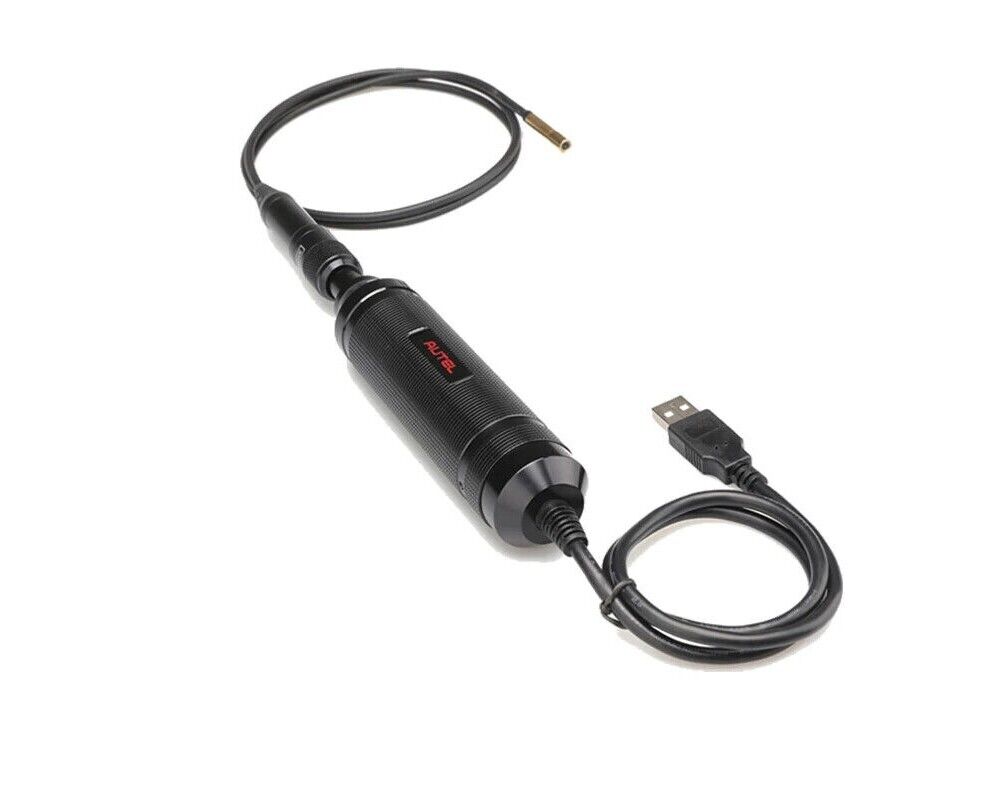

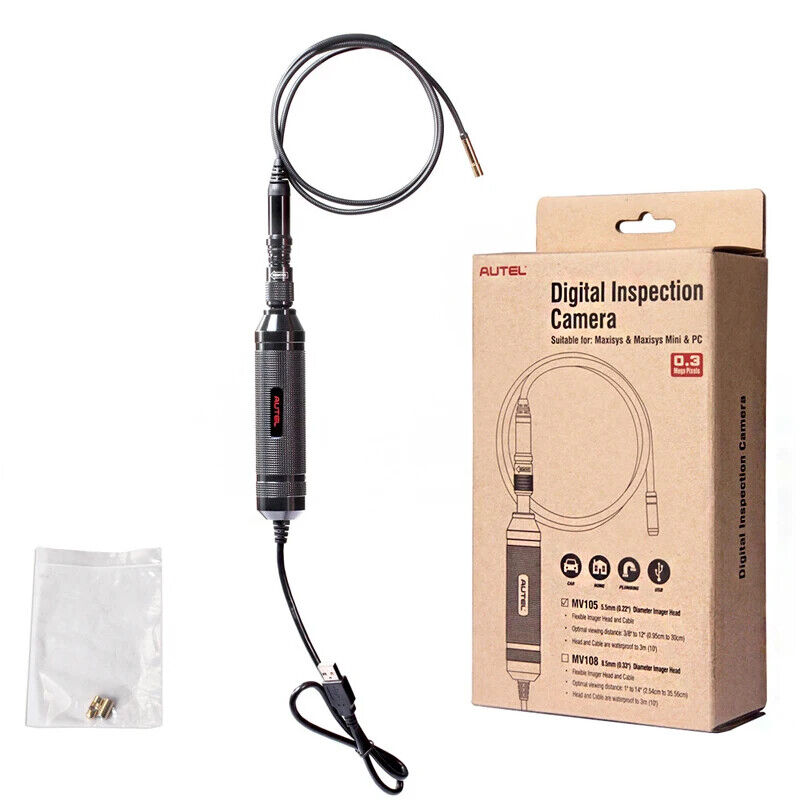

The MV105s digital inspection camera is designed to work with MaxiSys series products or PC. It turns your MaxiSys tablet into a video inspection scope, allowing you to examine difficult-to-reach areas normally hidden from sight. It is capable of recording digital still images and videos, which offers you an economical solution to inspect machinery, facilities, and infrastructure in a safe and quick way.

PC connection - Serpentine Cable USB Adapter

Maxisys Series connection - Serpentine Cable USB Adapter

Easy to use HD camera - maxivideo mv105 Digital camera

Flexible serpentine camera

This featuring 39.37inches cable, waterproof and 8.5mm diameter camera is bendable and suitable  for various types of environment,including confined places or dark area, damp or wet area etc.

■ Bullet Points

1. POWERFUL GADGET - MaxiVideo MV108 is a digital inspection camera that is specially designed for work with Autel MaxiSys series tablet tools or PC through USB connection and it offers you an economical solution to inspect vehicle in a safe and quick way.

2. UNIQUE WHITE LED - Super bright white LED light on camera tip, it greatly helps to improve image brightness and clarity even in dark or low-light condition. Moreover, the digital inspection camera can capture 320*240dpi image for your analyzing.

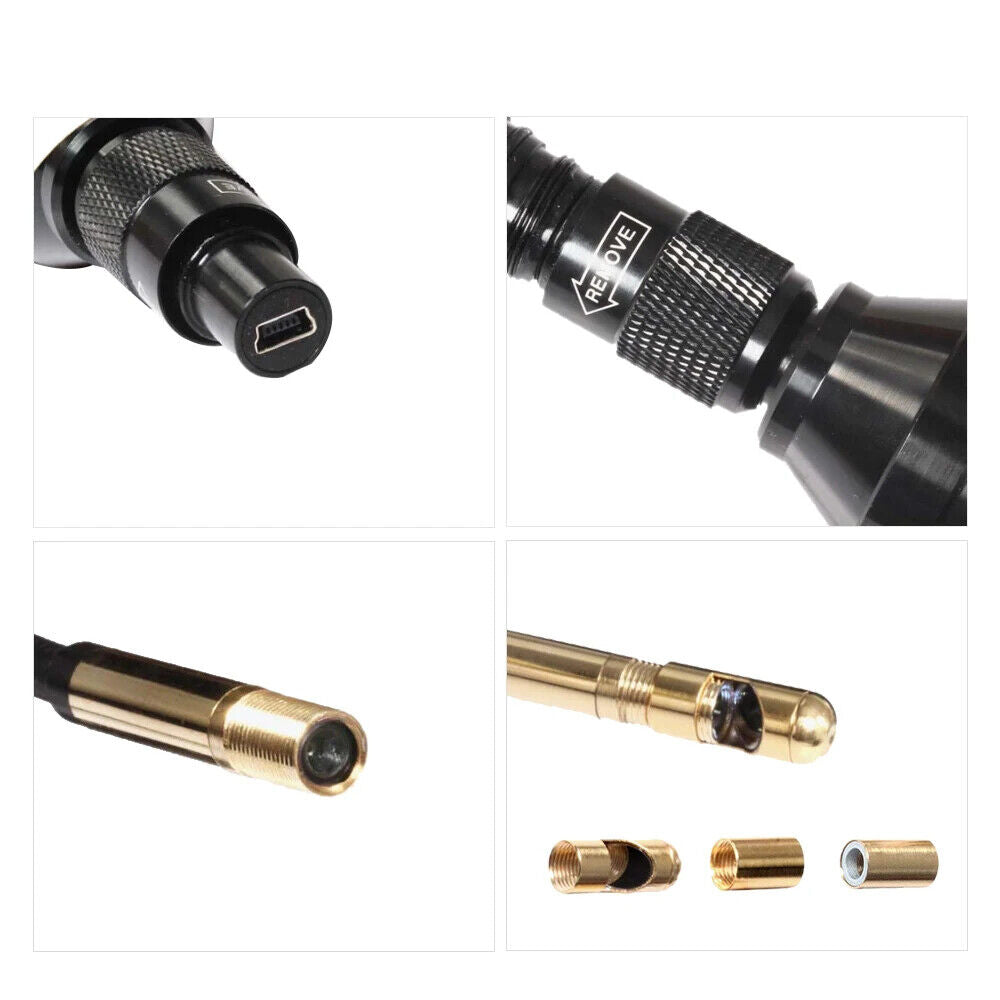

3. COMPACT & CONCISE DESIGN - The digital inspection camera is made up of Removable Imager Head Cable, Handgrip, and USB Cable. They are all designed for comfortable grips and agile operation to special tasks.

4. FLEXIBLE SNAKE CAMERA - This featuring 39.37inches cable, waterproof and 5.5mm diameter camera is bendable and suitable for various types of environment, including confined places or dark area, damp or wet area etc.

5. WARRANTY & SERVICES - Autel warrants to its customers that this product will be free from all defects in materials and workmanship for a period of 12-months from the date of the original purchase.

■ Product Features

1.White LED lights to illuminate the inspection areas.

2.Small diameter allows it to be used in the tight spaces.

3.Wonderful for up-close visual inspections in confined areas, such as engine cylinders and small part inspections.

4.Powerful and perfect for inspecting most spark plug holes.

5.Super bright LED and high resolution provide crystal clear images

Specifications

Optimal Viewing Distance:MV108: 1'' to 14'' (2.54cm to 35.56cm)

Image Capture: MV105s (640x480)

Image Head: MV105s: 8.5mm (0.33'')

Operating Temperature: Main Unit: 0°C to 50°C (32°F to 122°F)

Cable: -10°C to 70°C (14°F to 158°F)

Storage Temperature: -20°C to 75°C (-4°F to 167°F)

Waterproof: Imager head and cable to 1m(3')

Weight:0.2kg with 5.5mm diameter imager head

Compliance: FCC (EMC), CE (EMC and LVD)
