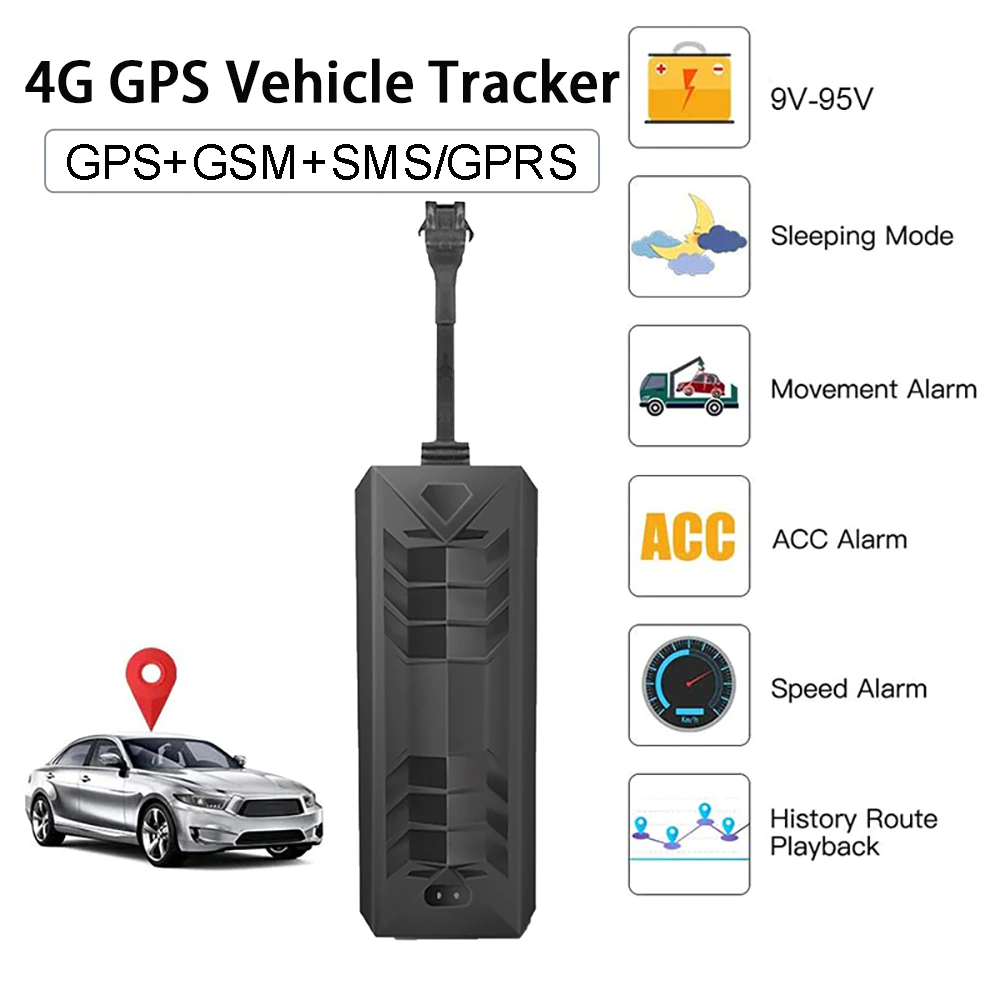

4G LTE GPS TRACKER ACC Detection 9-95V Cut off Oil TKSTAR Car Security Alarm
Product Highlights
Real Global 4G version, also compatible with 2G network;
1. Wide Working Voltage Range: 9~95V, suitable for all vehicles;
2. GPS and LBS Positioning, SMS GPRS Location;

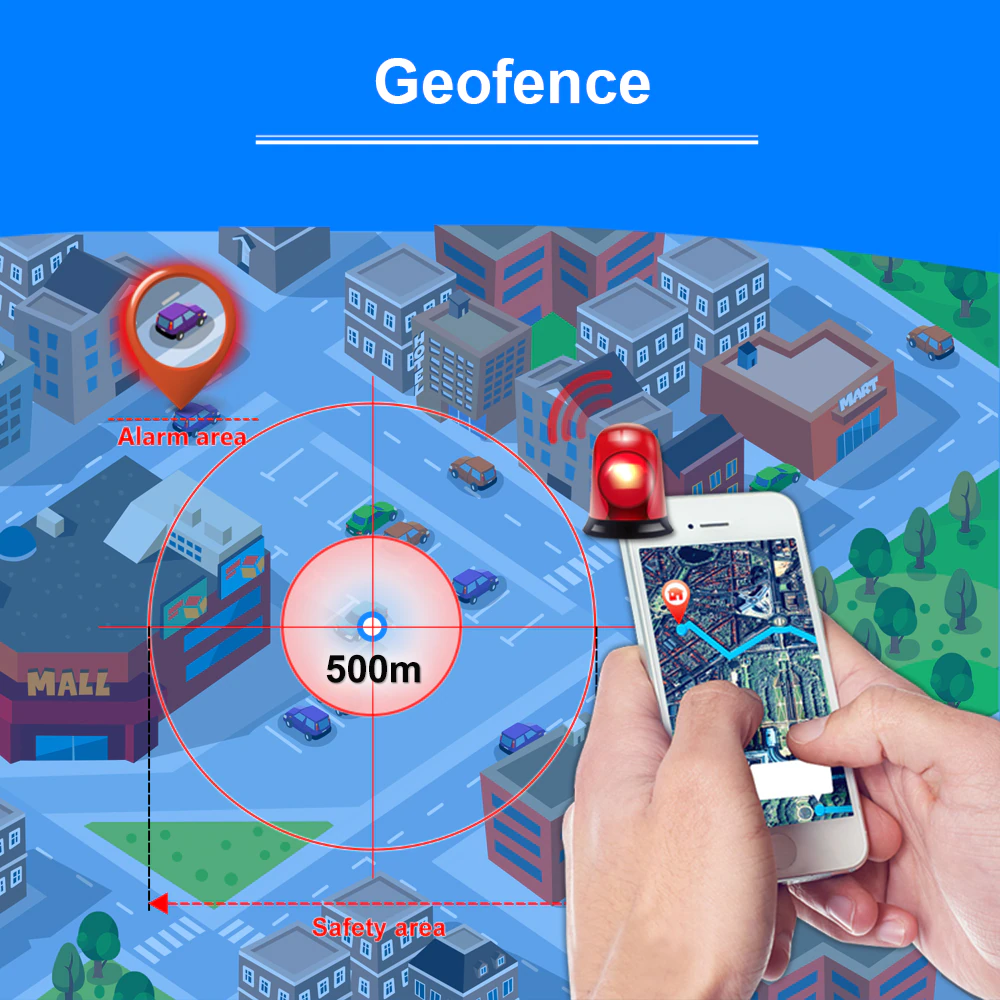

3. Geo-fence (entry & exit report);
4. Built-in backup battery to send out power failure alarm or cut-line alarm.
5. Cut off the Oil and Power or circuit remotely with Relay.
6. ACC Ignition Detection, ACC anti-theft alarm.
7. Over-speed alarm; Shake / vibration alarm;
8. History route playback: the web tracking server can save data of latest 6 months;
9. Real-time tracking via mobile app and PC Tracking server;
10. Admin admin user account management:after setting an admin user account, can manage and control multiple devices at the same time.
Global 4G Bands (also compatible with Global 3G and 2G netowrk)
European / Middle East / African / Asian Version:
4G LTE-FDD: B1/B3/B5/B7/B8/B20
2G GSM: 900/1800MHz
South American / New Zealand / Australia Version:
4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66
2G GSM: 850/900/1800/1900MHz

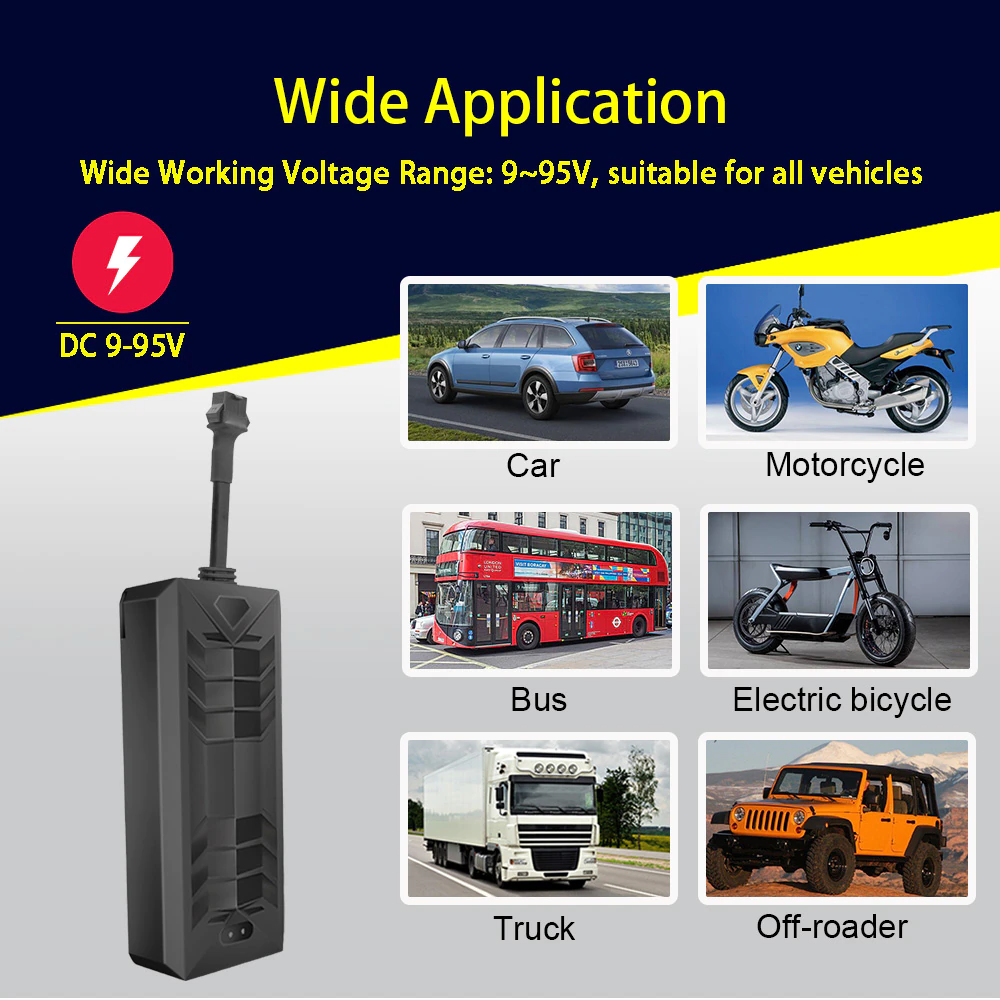

Product wide application:
ACC Ignition Detection, ACC anti-theft alarm:
Cut off the Oil and Power or circuit remotely with Relay.
Product Specifications:
GPS + LBS Dual positioning ways:
Multiple Alarms:
Realtime Tracking: Google map via SMS, APP(iOS & Android) and web serverï¼
1. SMS Tracking
2. Android & IOS APP Tracking
3. Real-time PC Platform Tracking
Lifetime free tracking APP and server:
Product Parameters:
Shell material: ABS plastic
Network: GSM/GPRS
Frequency Bands: LTE/4G: LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66...
GSM/2G: 850/900/1800/1900MHz
Working voltage: 9V-95V
Working current: 35mA (GPS on) 10mA (off)
Built-in battery: 80 mAh (3.7V polymer battery)
GPS sensitivity: -159dBm
GPS accuracy: 5m
Activation time:
Cold start: 45s
Warm start: 35s
Hot start: 1s
Storage temperature: -40°C to +85°C
Working temperature: -20°C to +55°C
Humidity: 5%-95% non-condensing
Host size: 82x38x8mm
Host weight: 26.6g
Package list:
1 * Main Unit
1 * Harness
1 * Relay
1 * English User Manual
(No Sim Card and SD Card included)
