2023 New 3rd Generation Dashboard Cluster Instrument HUD for Tesla Model 3 / Y A
2024 Upgraded 3rd Generation Dashboard Cluster Instrument HUD for Tesla Model 3 / Y Android 12 4G WIFI Displayer OTA Onlline Upgrade CarPlay Android Auto
Detailed Installation Video Link: https://youtu.be/isqWCZsHuoc
Product introduction:
Product Features:
No any damage to original car circuit; Read & Display original car information.
1. Center Console Dashboard Cluster for Tesla Model 3 & Model Y;
2. 1920*720 Touch Screen HD Performance LCD Display;
3. 10.25 inches IPS full touch screen;
4. Support Google Online Store! Carplay, Android Auto, Navigation, etc , New tech improvement design;
5. Android 12.0 system (Greater Compatibility), can make calls, send massages, see movies and listen to Music...
6. 8 Cores CPU with RAM/ROM 2G/32G, 4G/64G (Optional)
7. Support wifi，wifi hotspot and Bluetooth wireless Connection + Global 4G network;
8. Brightness Adjust Automatically and Manually;
9. Adopted blue-light blocking technology, protect your eyes without flashing;
10. 3 main interfaces can be switched by the steering wheel;
11. Innovative UI styles: equipped with 3D animation effects ;
12. Driver-friendly Installation: can be installed on RHD or LHD freely;
13. Car's front review with optional camera;
14. Real-time display car information: Speed/Gear/Battery Capacity/Lights/Doors/Tire Pressure, etc.;
15. Multiple languages are supported: English, Russian (русский), Korean (한국어), Spanish (español), French (français), Portuguese (português), Polish (Polski), Dutch (Nederlands), Chinese;
16. Compatible with AMD Ryzen and Intel Atom systems;
17. Free software update remotely: With OTA design, Y6 can be upgraded software online directly, it is suitable for all Model 3 / Y from 2017 to 2023;
18. Support email: letitia@vjoycar.com (Offer technical support all the time)
Product Details:
Meanings of function icons:
Real Photos:
Optional Front Camera:
Package List:
1* Y6 Car LCD Dashboard (10.25in)
1* Connect wire
1*GPS Antenna
1*4G Antenna
1* screws and nuts
1*Bracket
1*User manual
1* Front view camera (Optional)

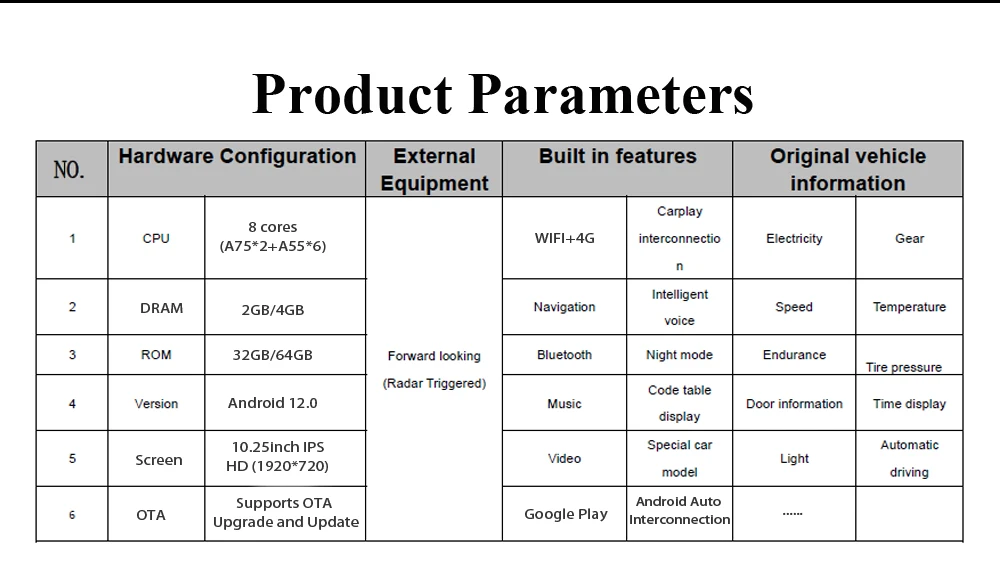

Product Parameters:
Production Specification:
Product name: android dashboard screen for Tesla Model 3 & Y
Item Number: Y6
Host size: Approx.264*113mm/10.39*4.44in
Operating system: Android 12.0 version 4G full Netcom.
Display: 10.25 inches, high-definition IPS touch screen, resolution 1920*720.
CPU: 8 cores (A75*2+A55*6).
DRAM: 2GB/4GB (optional). ROM: 32GB/64GB (optional).
Mileage: KM/H&MP/H (Follow the original car system). Single Mileage: The single trip mileage is accumulated from zeroclearing.
Total Mileage: Follow the original car.
Voice control: Support various language voice control.
Input power: 10V+/-0.2V, > 3A (MAX 15.5V).
Working temperature: -20 to 70℃/-4 to 158℉ (Temperature unit: Set the temperature unit, Celsius (℃)/ Fahrenheit (℉).)
Video: Support RMVB, AVI, MKV, MP4 and other multi-format ultra-high-definition video hard decoding, support 4K high-definition video.
Audio: The small speaker can broadcast navigation alone, and connect to Bluetooth to realize the original car audio output.
U disk: With 1 channel Type-C interface.
CarPlay: Compatible with iPhone 6 and above, iOS10 and above.
Android Auto: Compatible with Google and Samsung phones with Android 10 and above, other Android phones require Android 11 and above.
Control method: Original car steering wheel, touch control.
Network/WiFi: 4G full Netcom, WiFi supports 2.4G/5G.
